Uvod
Ovaj priručnik pruža bitne informacije za siguran i efikasan rad, održavanje i rješavanje problema vaše Hotone Thunder Bass mini bas gitare. Amplifier Head. Please read this manual thoroughly before using the product.
The Hotone Thunder Bass amplifier head is designed to deliver a powerful bass tone in a compact and portable form factor. It features a simplified control layout for ease of use, including a 3-band EQ for tone shaping, and various input/output options for versatile connectivity.
Setup
1. Raspakivanje i pregled
Pažljivo uklonite amplifier from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. Retain the packaging materials for future transport or storage.
2. Povezivanje napajanja
Connect the included 18V DC power supply adapter to the 18V DC input jack on the rear panel of the amplifier. Ensure the adapter is securely connected before plugging it into a power outlet. Use only the specified 18V DC center-negative power supply.
3. Povezivanje instrumenta
Plug your bass guitar into the INPUT (1/4" mono jack) on the front panel of the ampLifier koristeći standardni kabl za instrumente.
Figure 1: Front Panel Controls and Input. (1) INPUT: 1/4" mono jack for bass guitar.
4. Connecting to a Speaker Cabinet
Povežite amplifier to a speaker cabinet using the IZLAZ ZVUČNIKA (1/4" mono jack) on the rear panel. The amplifier is designed to automatically fit cabinets with impedances ranging from 4-16 ohms.
5. Connecting Headphones or Line Out
For silent practice or direct recording, connect headphones or a line-level device to the PHONES/LINE OUTPUT (1/8" stereo jack) on the rear panel.
6. Using the FX Loop
To integrate external effects pedals, use the FX LOOP SEND i FX LOOP RETURN (1/4" mono jacks) on the rear panel. The FX Loop is positioned between the pre-amp i moć amp sekcije.
7. Connecting an External Music Player (AUX IN)
Connect an external music player (e.g., smartphone, MP3 player) to the AUX IN (1/8" stereo jack) on the rear panel to play along with backing tracks.
Figure 2: Rear Panel Connections. (1) 18V DC Input, (2) PHONES/LINE OUTPUT, (3) AUX IN, (4) FX LOOP RETURN, (5) SPEAKER OUTPUT, (6) FX LOOP SEND.
Uputstvo za upotrebu
1. Uključivanje/isključivanje
Locirajte ON/OFF toggle switch on the front panel. Flip the switch to the "ON" position to power on the amplifier. The indicator light will illuminate. Flip to "OFF" to power down.
2. Volume and Gain Controls
- DOBITAK: Controls the input gain level. Higher settings increase the signal strength and can introduce overdrive.
- OBIM: Kontrolira ukupnu izlaznu jačinu zvuka amplifier.
Start with the VOLUME control at a low setting and gradually increase it to a comfortable listening level. Adjust the GAIN to achieve your desired amount of clean tone or overdrive.
3. 3-Band EQ Controls
The Thunder Bass features a responsive 3-band equalizer to shape your tone:
- BASS: Controls the low frequency response.
- SREDINA: Controls the mid frequency response.
- TREBLE: Controls the high frequency response.
Experiment with these controls to find the perfect tone for your bass and playing style. Adjusting the MIDDLE control can significantly impact the presence and clarity of your sound.
4. Video demonstracije proizvoda
Watch this video for a demonstration of the Hotone Thunder Bass amplifier's sound characteristics across various musical styles, including funk, world, rock, and blues. It showcases the amplifier's ability to produce strong, classic tones, smooth overdrive, and bright, powerful slap sounds.
Video 1: Hotone Thunder Bass Mini Bass Guitar Amplifier Head Demonstration.
Održavanje
- čišćenje: Koristite meku, suhu krpu za čišćenje spoljašnjosti ampNe koristite abrazivna sredstva za čišćenje, voskove ili rastvarače.
- Skladištenje: Kada se ne koristi duži period, uskladištite ampČuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
- ventilacija: Osigurajte amplifier has adequate ventilation during operation. Do not block the ventilation slots.
- Upravljanje kablovima: Avoid kinking or excessive bending of cables. Store cables neatly to prevent damage.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema izlaza zvuka |
|
|
| Distorted Sound |
|
|
| Brujanje ili šum |
|
|
Specifikacije
- Model: NLA-4 (Thunder Bass)
- Output Wattage: 5 Watts
- Izvor napajanja: 18V DC (Adapter uključen)
- Speaker Output Impedance: 4-16 ohms (auto-fitting)
- Kontrole: Volume, Gain, Bass, Middle, Treble
- Ulazi: 1/4" Instrument Input, 1/8" AUX IN
- Izlazi: 1/4" Speaker Output, 1/8" Phones/Line Output
- Petlja efekata: Yes (Send/Return)
- Materijal: Metalna šasija
- Težina artikla: Otprilike 1 funta (0.45 kg)
- Dimenzije proizvoda (D x Š x V): 4.72 x 2.76 x 2.36 inča (120 x 70 x 60 mm)

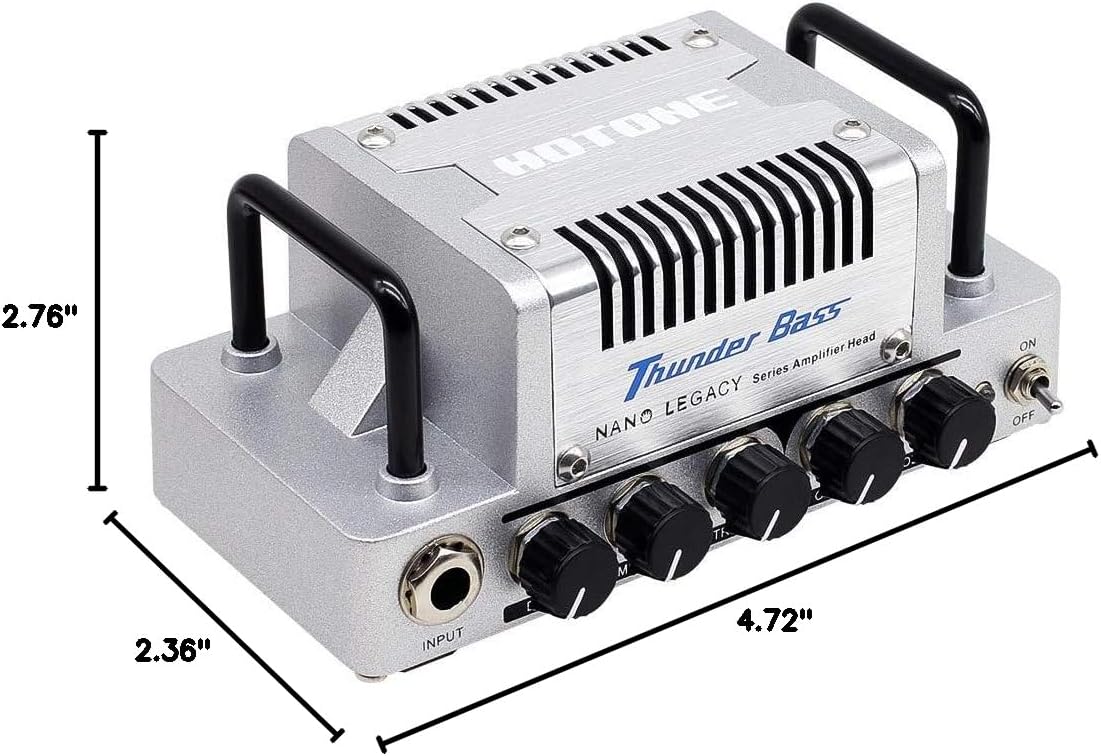

Slika 3: Dimenzije proizvoda.
Garancija i podrška
The Hotone Thunder Bass Mini Bass Guitar Amplifier Head is covered by a manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Hotone webSačuvajte račun kao dokaz o kupovini.
