Uvod
This manual provides detailed instructions for the setup, operation, and maintenance of your La Crosse Technology Model 302-604R-TBP Indoor Digital Thermometer and Hygrometer Station. Please read this manual thoroughly before using the device to ensure proper function and longevity.
Karakteristike
- Indoor Temperature Display (Fahrenheit/Celsius)
- Indoor Humidity Display (%RH)
- Minimum/Maximum Value Records for Temperature and Humidity
- Comfort Level Icon Indicator
- Manual Set Time (12/24 Hour Format)
- Compact Tabletop or Wall-Mount Design
Product Overview

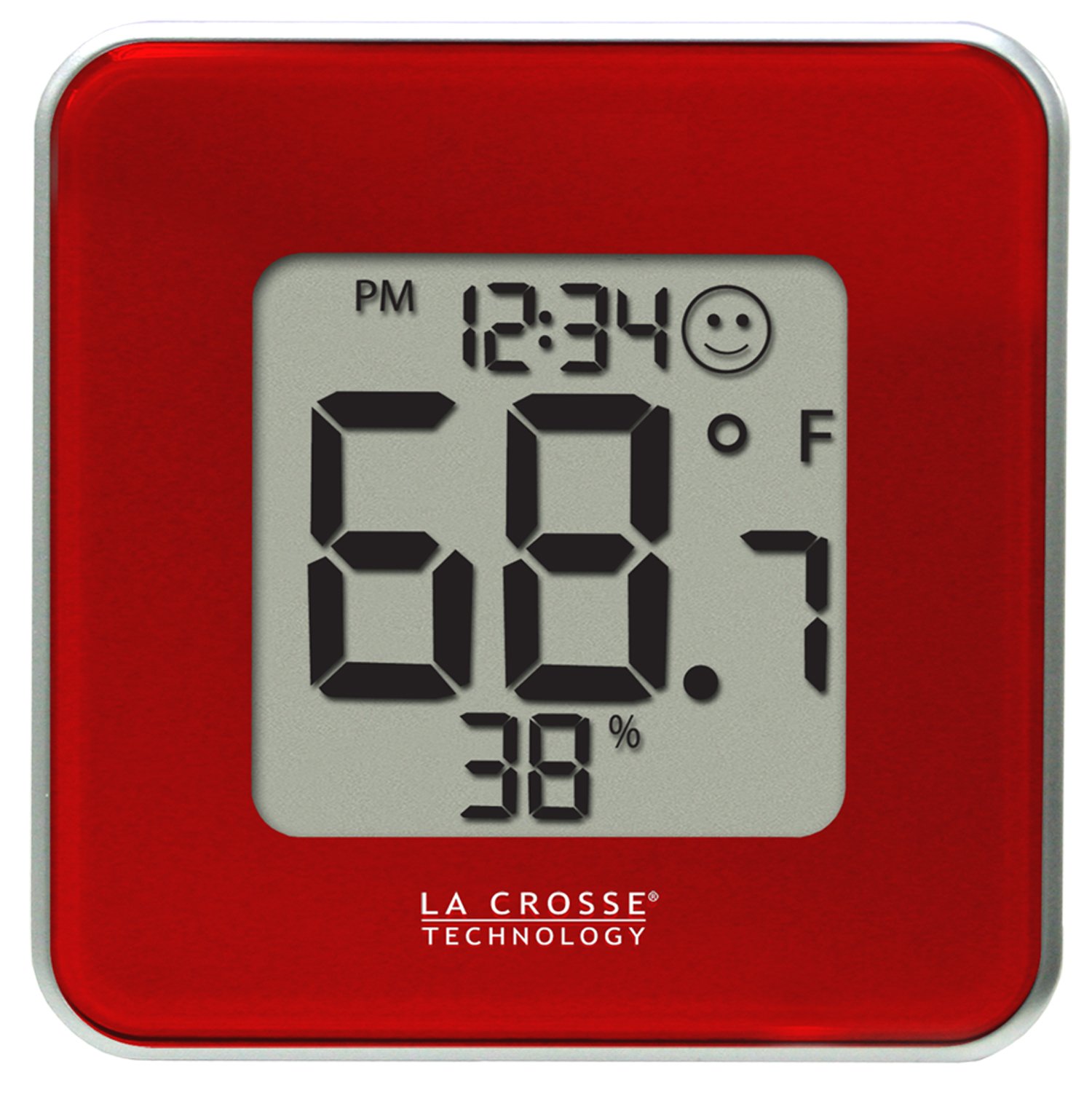

Slika 1: Front view of the La Crosse Technology 302-604R-TBP station. The display shows the current time, indoor temperature, indoor humidity, and a comfort level indicator. The device is red with a silver trim.
Setup
1. Instalacija baterije
- Pronađite odjeljak za baterije na stražnjoj strani uređaja.
- Skinite poklopac odeljka za baterije.
- Umetnite jednu CR2032 bateriju, pazeći na ispravan polaritet (+/-).
- Replace the battery compartment cover. The unit will power on automatically.
2. Plasman
The 302-604R-TBP can be placed on a tabletop using its integrated stand or mounted on a wall. Choose a location away from direct sunlight, heat sources, or vents for accurate readings.
Operacija
The device features three buttons on the back: SET/CF, SWITCH, i MAX/MIN.
Podešavanje vremena
- Pritisnite i držite SET/CF dugme otprilike 3 sekunde da biste ušli u režim podešavanja vremena. Cifra za sate će treptati.
- Pritisnite SWITCH dugme za podešavanje sata.
- Pritisnite SET/CF button again to confirm the hour and move to minute setting. The minute digit will flash.
- Pritisnite SWITCH dugme za podešavanje minuta.
- Pritisnite SET/CF button again to confirm the minute and exit time setting mode.
Changing 12/24 Hour Format
While in time setting mode (hour flashing), press the MAX/MIN button to toggle between 12-hour (with AM/PM) and 24-hour time formats.
Changing Temperature Units (Fahrenheit/Celsius)
Pritisnite SET/CF button briefly (not held) to switch between Fahrenheit (°F) and Celsius (°C) temperature display.
Viewing Minimum/Maximum Values
- Pritisnite MAX/MIN jednom pritisnite dugme da biste prikazali maksimalnu zabilježenu temperaturu i vlažnost.
- Pritisnite MAX/MIN pritisnite dugme drugi put da biste prikazali minimalnu zabilježenu temperaturu i vlažnost.
- Pritisnite MAX/MIN pritisnite dugme treći put da biste se vratili na trenutna očitavanja.
- To clear the MIN/MAX records, press and hold the MAX/MIN button for 3 seconds while the MIN or MAX values are displayed.
Ikona nivoa udobnosti
The display includes a comfort level icon (a smiley face) that indicates the general comfort level based on current temperature and humidity. This is an approximate indicator and not a precise measurement.
Održavanje
Zamjena baterije
When the battery indicator appears on the display, replace the CR2032 battery as described in the "Battery Installation" section. Old batteries should be disposed of according to local regulations.
Čišćenje
Očistite jedinicu mekom, damp krpu. Ne koristite abrazivna sredstva za čišćenje ili rastvarače, jer mogu oštetiti ekran iliasing. Ensure no moisture enters the battery compartment or other openings.
Rješavanje problema
| Problem | Rješenje |
|---|---|
| Nema prikaza ili je prikaz slab | Zamijenite CR2032 bateriju. Osigurajte ispravan polaritet. |
| Netačna očitanja temperature/vlažnosti | Ensure the unit is not in direct sunlight, near heat sources, or in a draft. Allow 20-30 minutes for readings to stabilize after initial setup or relocation. |
| Dugmad ne reaguju | Remove and reinsert the battery to perform a soft reset. If the issue persists, replace the battery. |
Specifikacije
- Model: 302-604R-TBP
- Brand: La Crosse Technology
- Raspon temperature u zatvorenom prostoru: Not specified in provided data, typical range is 0°C to 50°C (32°F to 122°F).
- Raspon vlažnosti u zatvorenom prostoru: Not specified in provided data, typical range is 10% to 99% RH.
- Zahtjevi za napajanje: 1 x CR2032 baterija (uključena)
- Dimenzije: 4.13 x 1.15 x 4.13 inča (10.49 x 2.92 x 10.49 cm)
- Težina artikla: 4 unce (113.4 grama)
- Vrsta montaže: Tabletop or Wall-mount
Garancija i podrška
For warranty information or technical support, please refer to the documentation included with your product packaging or visit the official La Crosse Technology webweb-mjestu. Kontakt informacije za korisničku podršku obično su dostupne na web-mjestu proizvođača website.
