1. Podešavanje
Before operating your DEWALT 20V MAX Cordless Grease Gun, ensure proper setup of the battery, grease cartridge, and hose.
1.1 Ugradnja i punjenje baterije
Insert the 20V MAX XR Lithium-Ion battery (4.0Ah) into the tool until it clicks securely into place. Use the provided fast charger (DCB115) to charge the battery. Refer to the charger's manual for specific charging instructions.
Figure 1.1: DEWALT 20V MAX 4.0Ah Battery
1.2 Punjenje patrone s mašću
- Unscrew the barrel from the main body of the grease gun.
- Pull the plunger rod all the way back and lock it into place.
- Remove the caps from both ends of a standard 14 oz grease cartridge.
- Insert the open end of the grease cartridge into the barrel.
- Screw the barrel back onto the grease gun body.
- Release the plunger rod.
Figure 1.2: Loading a Grease Cartridge
1.3 Punjenje pumpe
After loading a new cartridge, it is essential to prime the pump to remove any trapped air. Locate the air-bleeder valve on the grease gun. Loosen the valve slightly while holding the trigger until grease begins to flow. Tighten the valve once grease flows consistently.
1.4 Attaching the Flexible Hose

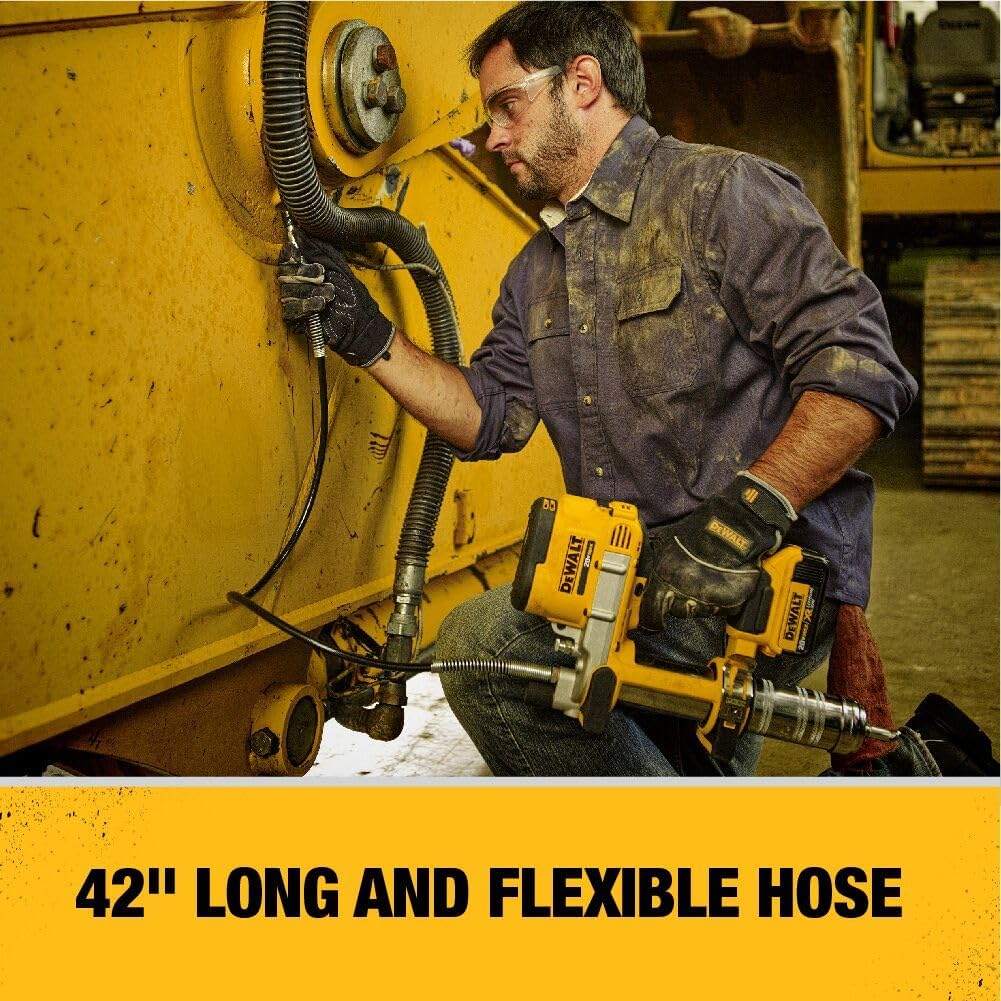

Connect the 42-inch flexible hose to the grease gun's output port by screwing it on securely. Ensure a tight connection to prevent leaks.
Figure 1.3: Grease Gun with Flexible Hose
1.5 Video: How to Change a Grease Cartridge
Video 1.1: Demonstrates the process of changing a grease cartridge in the DeWalt grease gun.
2. Uputstvo za upotrebu
Follow these steps for effective and safe operation of your cordless grease gun.
2.1 Applying Grease
- Ensure the grease gun is properly loaded and primed.
- Attach the coupler at the end of the flexible hose firmly onto the zerk fitting of the component to be lubricated. Ensure a secure connection to prevent grease leakage.
- Press the variable speed trigger to dispense grease. The motor delivers up to 10,000 max PSI and a high-volume pump pushes up to 5.0 oz/min for efficient application.
- Continue dispensing until fresh grease appears at the fitting or as recommended by the component manufacturer.
- Release the trigger and detach the coupler from the zerk fitting.
Figure 2.1: Applying Grease to a Fitting
2.2 Korištenje LED svjetla
The integrated bright LED light assists in locating hard-to-see grease fittings in low-light situations. The light activates when the trigger is pressed.
Figure 2.2: LED Light for Improved Visibility
2.3 Video: Simple Grease Gun Operation
Video 2.1: A quick demonstration of the grease gun's simple operation.
2.4 Video: DEWALT 20V MAX Cordless Grease Gun in Action
Video 2.2: Detailed demonstration of the DEWALT 20V MAX Cordless Grease Gun's features and use.
3. Održavanje
Regular maintenance ensures the longevity and optimal performance of your grease gun.
3.1 Čišćenje i skladištenje
Wipe down the grease gun after each use to remove excess grease and debris. Store the tool in its kit box in a clean, dry place away from extreme temperatures.
Figure 3.1: DEWALT Grease Gun in Storage Case
3.2 Pump Filter Screen
The pump filter screen prevents dirt and contamination from clogging the pump mechanism. Periodically inspect and clean the filter screen to maintain proper function.
Figure 3.2: Pump Filter Screen
3.3 Njega baterija
Always use the recommended DEWALT charger for your 20V MAX batteries. Store batteries in a cool, dry place and avoid fully discharging them for extended periods.
4. Otkrivanje problema
If you encounter issues with your grease gun, refer to the following common problems and solutions.
4.1 No Grease Flow
- Air in the System: Loosen the air-bleeder valve until grease flows, then retighten.
- Empty Cartridge: Zamijenite uložak s mašću.
- Clogged Fitting: Ensure the zerk fitting is not clogged. Clean or replace if necessary.
- Niska baterija: Napunite ili zamenite bateriju.
4.2 Grease Leakage
- Labave veze: Check all connections (barrel, hose, coupler) and tighten them securely.
- Damaged Coupler: Replace the coupler if it is worn or damaged.
5. Specifikacije
| Feature | Specifikacija |
|---|---|
| Broj modela | DCGG571M1 |
| Izvor napajanja | Napajanje baterijama (20V MAX) |
| Max PSI | 10,000 PSI |
| Flow Rate | 5.0 oz/min |
| Dužina creva | 42 inča |
| Cartridges per Charge | Up to 16 (with 4.0Ah battery) |
| Težina artikla | 14.8 funte |
| Dimenzije proizvoda | 23.5 x 4.31 x 13.38 inča |
| Uključene komponente | 20V Grease Gun, 4.0Ah Battery, Fast Charger, Shoulder Strap, Kit Box |
6. Garancija
Ovaj DEWALT proizvod je pokriven 3 godine ograničene garancije. For detailed terms and conditions, please refer to the warranty information included in your kit box or visit the official DEWALT website.
7. Podrška
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact DEWALT customer support. Refer to your product packaging or the official DEWALT webstranicu za ažurne kontakt informacije.
