Olympus E-PM2 Mirrorless Digital Camera Instruction Manual

1. Uvod

This manual provides essential instructions for the safe and effective use of your Olympus E-PM2 Mirrorless Digital Camera. The E-PM2 is equipped with a 16 MP Live MOS sensor and a TruePic VI Image Processor, designed to deliver high-quality images in a compact form factor. Please read this manual thoroughly before using your camera.

Ključne karakteristike:

• 16MP CMOS Micro Four Thirds sensor for detailed images.
• 8 frames per second continuous shooting for capturing fast action.
• 35-area contrast detect AF with touch focus for precise and quick focusing.
• ISO sensitivity range of 100-25,600 for versatile low-light performance.
• 1080 HD video recording capability.
• 3.0 inch touchscreen LCD with 460,000 dots for intuitive control.
• In-body sensor-shift image stabilization to reduce blur.
• RAW and RAW + JPEG shooting options.
• Compatible with SD/SDHC/SDXC memory cards.

2. Komponente kamere

Familiarize yourself with the main parts of your Olympus E-PM2 camera.

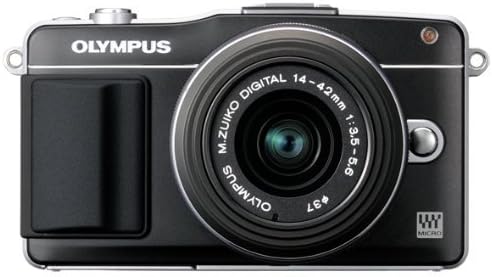

Slika 2.1: Front view of the Olympus E-PM2 camera with the 14-42mm lens attached. This image shows the lens, grip, and overall compact design of the camera body.

Slika 2.2: Odozgo view of the Olympus E-PM2 camera. This perspective highlights the shutter button, mode dial (if present, or equivalent controls), and accessory port.

Slika 2.3: Pozadi view of the Olympus E-PM2 camera, showing the 3.0-inch touchscreen LCD and control buttons. This is where you will interact with the camera's menu and review slike.

3. Podešavanje

3.1. Pričvršćivanje objektiva

1. Skinite poklopac tijela s fotoaparata i stražnji poklopac objektiva s objektiva.
2. Align the mounting marks (usually a white dot) on the lens with the corresponding mark on the camera body.
3. Rotirajte sočivo u smjeru kazaljke na satu dok ne klikne na svoje mjesto.

3.2. Umetanje baterije

The Olympus E-PM2 uses a rechargeable battery. Although batteries are not included with all packages, ensure you have a compatible battery charged before use.

1. Otvorite poklopac pretinca za bateriju koji se nalazi na dnu kamere.
2. Insert the charged battery with the correct orientation, ensuring the contacts align.
3. Čvrsto zatvorite poklopac odeljka za baterije.

3.3. Umetanje memorijske kartice

Kamera podržava SD, SDHC i SDXC memorijske kartice.

1. Otvorite poklopac utora za memorijsku karticu, koji se obično nalazi sa strane ili na dnu fotoaparata.
2. Umetnite memorijsku karticu s naljepnicom okrenutom u ispravnom smjeru dok ne klikne na mjesto.
3. Čvrsto zatvorite poklopac utora za memorijsku karticu.

3.4. Početne postavke

Upon first power-on, you may be prompted to set the date, time, and language. Follow the on-screen instructions using the touchscreen or control buttons.

4. Upravljanje kamerom

4.1. Uključivanje/isključivanje

Press the power button to turn the camera on or off. The LCD screen will illuminate when the camera is on.

4.2. Osnovni načini fotografiranja

The E-PM2 offers various shooting modes to suit different situations:

• iAuto (Intelligent Auto): Kamera automatski detektuje scenu i primenjuje optimalne postavke.
• Program AE (P): The camera sets both aperture and shutter speed for optimal exposure, but you can shift the combination.
• Prioritet otvora blende (A): Vi podešavate otvor blende, a kamera automatski podešava brzinu zatvarača. Idealno za kontrolu dubine polja.
• Prioritet zatvarača (S): Vi podešavate brzinu zatvarača, a kamera automatski podešava otvor blende. Idealno za kontrolu zamućenja pokreta.
• Priručnik (M): Vi kontrolišete i otvor blende i brzinu zatvarača.
• Režimi scene: Select from various pre-set scene modes (e.g., Portrait, Landscape, Night Scene) for optimized results in specific situations.

4.3. Fokusiranje

The E-PM2 features a FAST (Frequency Acceleration Sensor Technology) AF system with 35 focus points.

• Automatsko fokusiranje: Press the shutter button halfway down to activate autofocus. The camera will focus on the subject within the selected AF area.
• Fokus na dodir: Tap on the desired area of the touchscreen LCD to focus on that point. You can also configure the camera to take a picture immediately after touching to focus.
• Ručno fokusiranje: Rotate the focus ring on the lens while observing the LCD screen to achieve sharp focus.

4.4. Kontrola ekspozicije

Adjusting exposure ensures your photos are neither too bright nor too dark.

• ISO osetljivost: Adjust the ISO setting (100-25,600) to control the camera's sensitivity to light. Higher ISO values are useful in low light but may introduce noise.
• Kompenzacija ekspozicije: Use the exposure compensation function to manually adjust the brightness of your image.
• Načini mjerenja: The camera offers Multi, Center-weighted, and Spot metering modes to measure light effectively.

4.5. Stabilizacija slike

The E-PM2 incorporates sensor-shift image stabilization to minimize blur caused by camera shake, especially in low light or with longer focal lengths.

4.6. Kontinuirano snimanje

For capturing fast-moving subjects, use the continuous shooting mode, which allows you to take up to 8 frames per second.

4.7. Korištenje blica

An attachable flash is included with the camera. Connect it to the accessory port when additional illumination is required. The flash offers various modes, including Auto and Red-eye Reduction.

4.8. Art Filters

The E-PM2 features 12 in-camera Art Filters (e.g., Pop Art, Soft Focus, Diorama) to add creative effects to your photos and videos. These can be applied in all shooting modes.

4.9. Live Guide

The Live Guide system allows you to preview effects like brightness, color saturation, and background blur on the LCD before capturing the image. Access it via the dedicated button or menu.

4.10. Video snimanje

To record video, switch to movie mode. The E-PM2 supports Full 1080i HD video recording with stereo sound in .MOV or .AVI formats. Art Filters can also be applied to videos.

5. Održavanje

5.1. Dust Reduction System

The E-PM2 features a Supersonic Wave Filter that vibrates silently each time the camera is turned on, dislodging dust from the sensor to ensure spot-free images.

5.2. Čišćenje kamere i objektiva

• Tijelo kamere: Koristite meku, suhu krpu za brisanje kućišta fotoaparata. Za tvrdokornu prljavštinu, laganoampIsperite krpu vodom. Izbjegavajte upotrebu organskih rastvarača.
• Objektiv: Use a lens blower brush to remove dust. For smudges, use a specialized lens cleaning solution and a microfiber cloth. Never touch the lens surface with your fingers.
• LCD ekran: Gently wipe with a soft, dry cloth. Avoid pressing too hard.

5.3. Održavanje baterije

• Always use genuine Olympus batteries and chargers.
• Čuvajte baterije na hladnom i suvom mestu kada nisu u upotrebi.
• Izbjegavajte izlaganje baterija ekstremnim temperaturama.

5.4. Skladištenje

When storing the camera for extended periods, remove the battery and memory card. Store the camera in a dry, well-ventilated area, preferably in a camera bag to protect it from dust and impact.

6. Otkrivanje problema

If you encounter issues with your Olympus E-PM2, refer to the following common problems and solutions:

6.1. Kamera se ne uključuje

• Provjerite je li baterija potpuno napunjena i pravilno umetnuta.
• Provjerite jesu li kontakti baterije čisti.
• Pokušajte koristiti drugu napunjenu bateriju ako je dostupna.

6.2. Mutne slike

• Provjerite je li objektiv pravilno pričvršćen i čist.
• Ensure the camera is properly focused on the subject.
• Increase shutter speed or use a tripod in low light conditions to prevent camera shake.
• Verify that image stabilization is enabled if shooting handheld.

6.3. Autofocus Not Working

• Ensure the lens is set to autofocus (AF) mode.
• Check for sufficient light on the subject; the AF illuminator may assist in dark conditions.
• Ensure there is enough contrast in the subject for the autofocus system to lock on.

6.4. Greška memorijske kartice

• Provjerite je li memorijska kartica ispravno umetnuta.
• Provjerite je li memorijska kartica zaključana (zaštićena od pisanja).
• Pokušajte formatirati karticu (ovo će izbrisati sve podatke, pa prvo napravite sigurnosnu kopiju).
• Koristite drugu memorijsku karticu kako biste isključili mogućnost kvara kartice.

7. Specifikacije

Detailed technical specifications for the Olympus E-PM2 Mirrorless Digital Camera.

8. Garancija i podrška

For detailed warranty information, product registration, and technical support, please refer to the official Olympus website or contact Olympus customer service. Keep your proof of purchase for warranty claims.

The Olympus E-PM2 is identified by Model Number V206021BU000 i UPC 050332184336.
