TICA LZ5000 Cambria Lz Series Spinning Reel Instruction Manual

Uvod

This manual provides detailed instructions for the proper setup, operation, and maintenance of your TICA LZ5000 Cambria Lz Series Spinning Reel. Please read this manual thoroughly before using your reel to ensure optimal performance and longevity. Retain this manual for future reference.

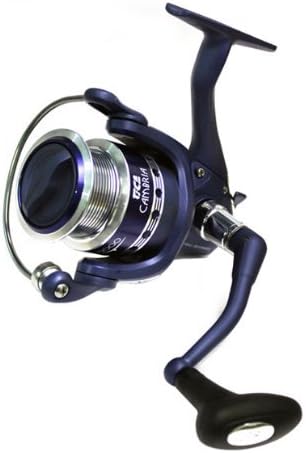

Slika 1: The TICA LZ5000 Cambria Lz Series Spinning Reel, showcasinnjegov cjelokupni dizajn i komponente.

Karakteristike proizvoda

The TICA LZ5000 Cambria Lz Series Spinning Reel incorporates several design elements for enhanced fishing experience:

• Computer Balanced Anti-Twist Rotor: Designed to minimize line twist and ensure smooth operation during retrieve.
• Intelligent Oscillating System: Facilitates even line lay on the spool, which aids in longer and smoother casts.
• 4 Precision Stainless Steel Rust-Resistant Ball Bearings: Provides smooth rotation and durability in various fishing environments.
• Double Anodized Machined Aluminum Spool: Features drilled holes for reduced weight, contributing to the reel's overall balance.
• Instant Anti-Reverse System with One-Way Clutch Roller Bearing: Eliminates back play in the handle, allowing for immediate hook sets.
• Orijentacija ambidekstralnih ruku: The handle can be configured for both left-hand and right-hand retrieve.
• Napomena: Some models in the Cambria Lz Series (e.g., LZ2550 & LZ3550) feature paddle handles. The LZ5000 model typically uses a standard handle design.

Setup

1. Attaching the Reel to a Fishing Rod

1. Otpustite maticu sjedišta role na vašem štapu za pecanje.
2. Slide the reel foot into the reel seat.
3. Čvrsto zategnite maticu sjedišta role dok rola ne bude čvrsto pričvršćena i ne bude se ljuljala.

2. Namotavanje najlona za pecanje

The LZ5000 reel comes with a double anodized machined aluminum spool. An additional spool may be included or purchased separately for different line types or capacities.

Slika 2: Two spools for the TICA Cambria Lz Series Spinning Reel, illustrating their design and line capacity markings.

1. Otvorite ručicu za kauciju.
2. Tie the fishing line to the spool using an arbor knot or a similar secure knot. Trim any excess tag kraj.
3. Zatvorite ručicu za kauciju.
4. Hold the line under slight tension and begin to reel slowly. Ensure the line is spooling evenly.
5. Fill the spool to approximately 1/8 inch (3mm) from the rim to prevent line overflow and tangles.

3. Adjusting Handle Orientation

The handle can be switched from left to right side operation:

Slika 3: Krupni plan view of the TICA LZ5000 spinning reel handle, showing its ergonomic design.

1. Unscrew the handle knob on the side opposite to where the handle is currently inserted.
2. Pull the handle out from the reel body.
3. Insert the handle into the desired side.
4. Screw the handle knob back into the opposite side to secure the handle.

Uputstvo za upotrebu

1. Kasting

1. Udobno držite štap i rolu.
2. Otvorite ručicu za kauciju.
3. Grip the fishing line with your index finger.
4. Zamahnite šipku naprijed, otpustiteasing the line with your index finger at the appropriate moment to cast your lure or bait.
5. As the lure approaches the water, close the bail arm manually or by turning the handle to prepare for retrieve.

2. Retrieving

Turn the handle clockwise (for right-hand retrieve) or counter-clockwise (for left-hand retrieve) to reel in the line. The intelligent oscillating system ensures even line lay.

3. Podešavanje povlačenja

The drag system controls the amount of resistance the line experiences when a fish pulls on it. Adjusting the drag correctly prevents line breakage.

Slika 4: A close-up of the drag adjustment knob on the TICA LZ5000 spinning reel, located at the front of the spool.

• Da biste povećali napetost vuče, okrenite dugme za vučenje u smjeru kazaljke na satu.
• Da biste smanjili napetost vuče, okrenite dugme za vuče u smjeru suprotnom od kazaljke na satu.
• Set the drag to approximately one-third of your line's breaking strength. Test by pulling line directly from the spool.

4. Anti-Reverse Function

The instant anti-reverse system prevents the rotor from turning backward, providing solid hook sets. This feature is always engaged on the LZ5000 model.

Održavanje

Regular maintenance extends the life and performance of your TICA LZ5000 spinning reel.

1. Cleaning After Use

• After each use, especially in saltwater, rinse the reel with fresh water. Do not submerge the reel.
• Wipe the reel dry with a soft cloth.
• Remove the spool and clean any debris or salt residue from under the spool and around the main shaft.

2. Podmazivanje

• Periodically apply a small amount of reel oil to moving parts such as the handle shaft, bail arm pivot points, and line roller.
• Apply reel grease to the main gear and worm shaft (if accessible) as needed. Avoid over-lubrication.

3. Skladištenje

• Store your reel in a dry, cool place away from direct sunlight and extreme temperatures.
• Loosen the drag knob slightly during storage to prevent compression of the drag washers.

Rješavanje problema

Specifikacije

Slika 5: Detaljno view of the TICA LZ5000 spool, showing the line capacity markings.
