One For All OARH01B Single Device Universal Remote Control User Manual

Uvod

This manual provides detailed instructions for the setup, operation, and maintenance of your One For All OARH01B Single Device Universal Remote Control. This remote is designed to provide simplified control for your television, featuring an intuitive layout and essential functions.

Karakteristike proizvoda

The One For All OARH01B remote control is engineered for ease of use and reliability. Key features include:

• Large, Easy-to-Use Buttons: Designed for comfortable handling and clear visibility.
• Intuitive Key Grouping: Buttons are logically arranged with easy-to-recognize icons for quick access to functions.
• Glow Keys: Volume, Channel, and Sleep keys illuminate for easy identification in low-light conditions.
• Braille Support: Tactile indicators for Power, Channel, and Volume buttons enhance accessibility.
• Sveobuhvatna funkcionalnost: Includes dedicated keys for Menu, Sleep, Input, Closed Captioning (CC), and Previous Channel.
• Digital Sub-Channel Capability: Supports navigation of digital sub-channels (e.g., 59.1) for modern TV programming.
• Sigurno pretinac za baterije: Features a secure screw for the battery door, preventing accidental opening.

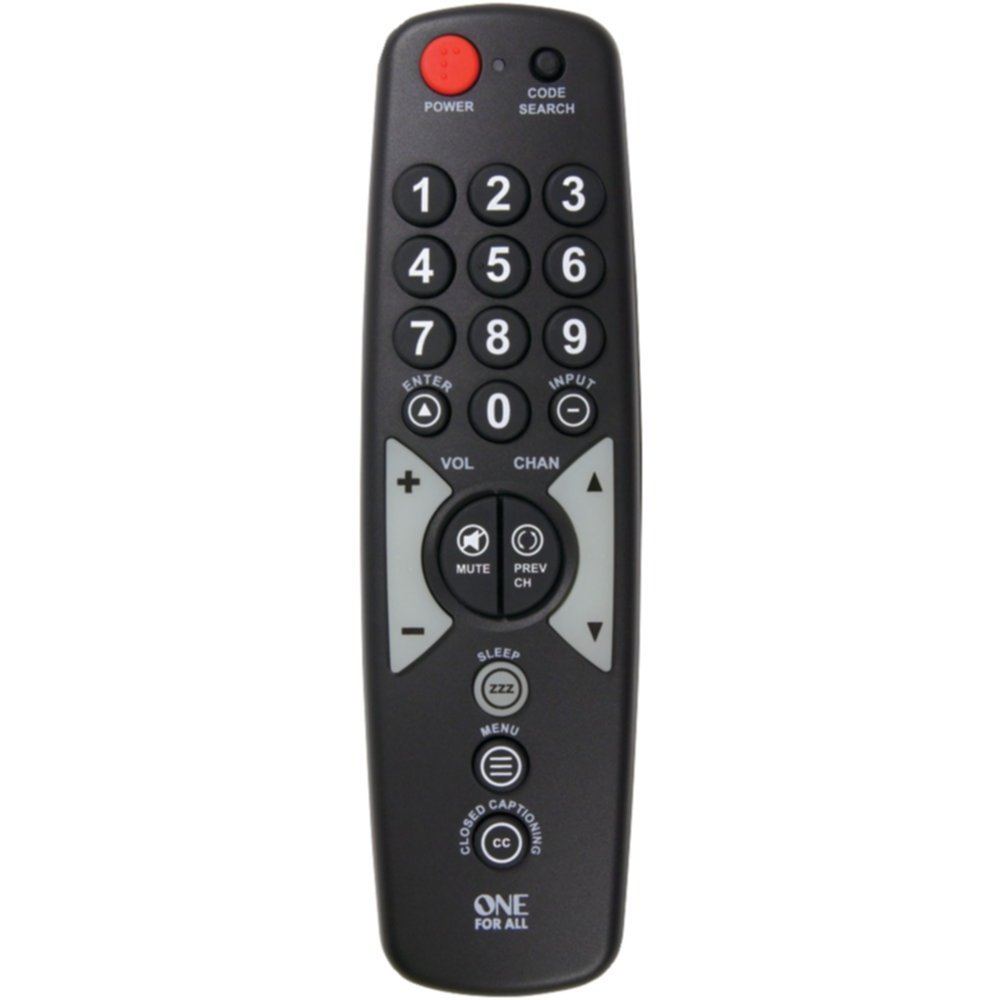

A black universal remote control with large, clearly labeled buttons. The top features a red power button and a code search button. Below are the numeric keypad (0-9), followed by navigation buttons for volume, channel, enter, and input. Mute and previous channel buttons are centrally located. Further down are buttons for sleep, menu, and closed captioning. The 'ONE FOR ALL' logo is at the bottom.

Getting Started: Battery Installation

To begin using your remote control, you must first install the batteries.

1. Pronađite odeljak za baterije na poleđini daljinskog upravljača.
2. Using a small screwdriver, carefully remove the secure screw from the battery compartment door.
3. Otvorite vratašca pretinca za baterije.
4. Insert two (2) AAA batteries (not included), ensuring the positive (+) and negative (-) terminals align with the indicators inside the compartment.
5. Close the battery compartment door and re-insert the secure screw to fasten it.

Napomena: Uvijek koristite nove baterije i odgovorno odložite stare baterije.

Setup: Programming the Remote

Your One For All OARH01B remote control needs to be programmed to operate your specific television. There are typically two methods for programming:

Metoda 1: Direktan unos koda

1. Uključite televizor kojim želite upravljati.
2. Pritisnite i držite PRETRAGA KODA button on the remote until the indicator light illuminates.
3. Refer to the code list provided with your remote (or available online from One For All) and find the 3-digit code for your TV brand.
4. Enter the 3-digit code using the number buttons on the remote. The indicator light should turn off after the last digit is entered.
5. Usmjerite daljinski upravljač prema televizoru i pritisnite POWER button. If the TV turns off, the remote is successfully programmed.
6. If the TV does not respond, repeat the process with the next code listed for your brand.

Method 2: Auto Code Search

1. Uključite televizor kojim želite upravljati.
2. Pritisnite i držite PRETRAGA KODA button on the remote until the indicator light illuminates.
3. Pritisnite POWER button once. The indicator light will flash, indicating the remote is searching for a code.
4. Point the remote at your TV and wait. The remote will send power codes to your TV every few seconds.
5. As soon as your TV turns off, immediately press the ENTER button to save the code. If you wait too long, the remote may pass the correct code.
6. Test the remote's functions (Volume, Channel, etc.). If all functions work correctly, programming is complete. If not, repeat the auto search process.

Upravljanje daljinskim upravljačem

Once programmed, your One For All OARH01B remote provides control over your television's primary functions.

• SNAGA: Uključuje ili isključuje vaš televizor.
• Numerička tastatura (0-9): Koristi se za direktan unos brojeva kanala.
• ENTER: Confirms channel selection or menu options.
• ULAZ: Cycles through available video inputs on your TV (e.g., HDMI 1, AV, Component).
• VOL (+/-): Increases or decreases the television's volume.
• MUTE: Silences the television's audio.
• CHAN (Up/Down): Mijenja televizijski kanal gore ili dolje.
• PRETHODNI CH: Switches to the previously viewed channel.
• SPAVANJE: Activates the TV's sleep timer function (if available).
• MENI: Accesses the television's on-screen menu. Use VOL and CHAN buttons to navigate menu options, and ENTER to select.
• CLOSED CAPTIONING (CC): Uključuje ili isključuje titlove.

Rješavanje problema

If you encounter issues with your remote control, refer to the following common solutions:

• Daljinski ne reaguje:
  • Check if the batteries are correctly installed and have sufficient power. Replace if necessary.
  • Ensure there is a clear line of sight between the remote and the TV's infrared sensor. Remove any obstructions.
• Remote Not Controlling TV:
  • The remote may not be programmed correctly for your TV. Re-attempt the programming steps (Direct Code Entry or Auto Code Search).
  • If using Direct Code Entry, try other codes listed for your TV brand.
• Specific Functions Not Working (e.g., Input, Menu):
  • Some advanced TV functions may not be fully supported by all universal remotes. Verify if your TV model is fully compatible with the remote's features.
  • When navigating TV menus, remember that VOL and CHAN buttons often serve as navigation arrows. Press ENTER to confirm selections.
• Indicator Light Not Functioning:
  • Ovo obično ukazuje na slabu bateriju. Zamijenite baterije.

Održavanje

Da biste osigurali dugotrajnost i optimalne performanse vašeg daljinskog upravljača, slijedite ove smjernice za održavanje:

• čišćenje: Obrišite daljinski upravljač mekom, suhom krpom. Za tvrdokornu prljavštinu, laganoampen the cloth with water or a mild cleaning solution, then wipe dry immediately. Avoid abrasive cleaners or solvents.
• Zamjena baterije: Replace batteries promptly when the remote's performance degrades or the indicator light fails to illuminate. Always replace both batteries at the same time.
• Skladištenje: Daljinski upravljač čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti, ekstremnih temperatura i visoke vlažnosti.
• Izbjegavajte kapi: Zaštitite daljinski upravljač od fizičkih udara, jer to može oštetiti unutrašnje komponente.

Specifikacije

Garancija i podrška

Your One For All OARH01B Universal Remote Control comes with a Ograničena doživotna garancija. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official One For All website.

For further assistance, troubleshooting tips, or to find the latest device codes, please visit the One For All support website. You may also contact their customer service for personalized support.
