ExpertPower 12V 1650mAh NiMh Replacement Battery User Manual

Uvod

Thank you for choosing the ExpertPower 12V 1650mAh NiMh Replacement Battery. This high-capacity battery is designed to provide reliable power for your Alinco two-way radios, serving as a direct replacement for Alinco EBP-22, EBP-22N, EBP-28, EBP-28N, and EBP-28H models. It is fully compatible with Alinco DJ-180, DJ-280, DJ-480, DJ-580, and DJ-582 series radios. This manual provides essential information for the safe and effective use of your new battery.

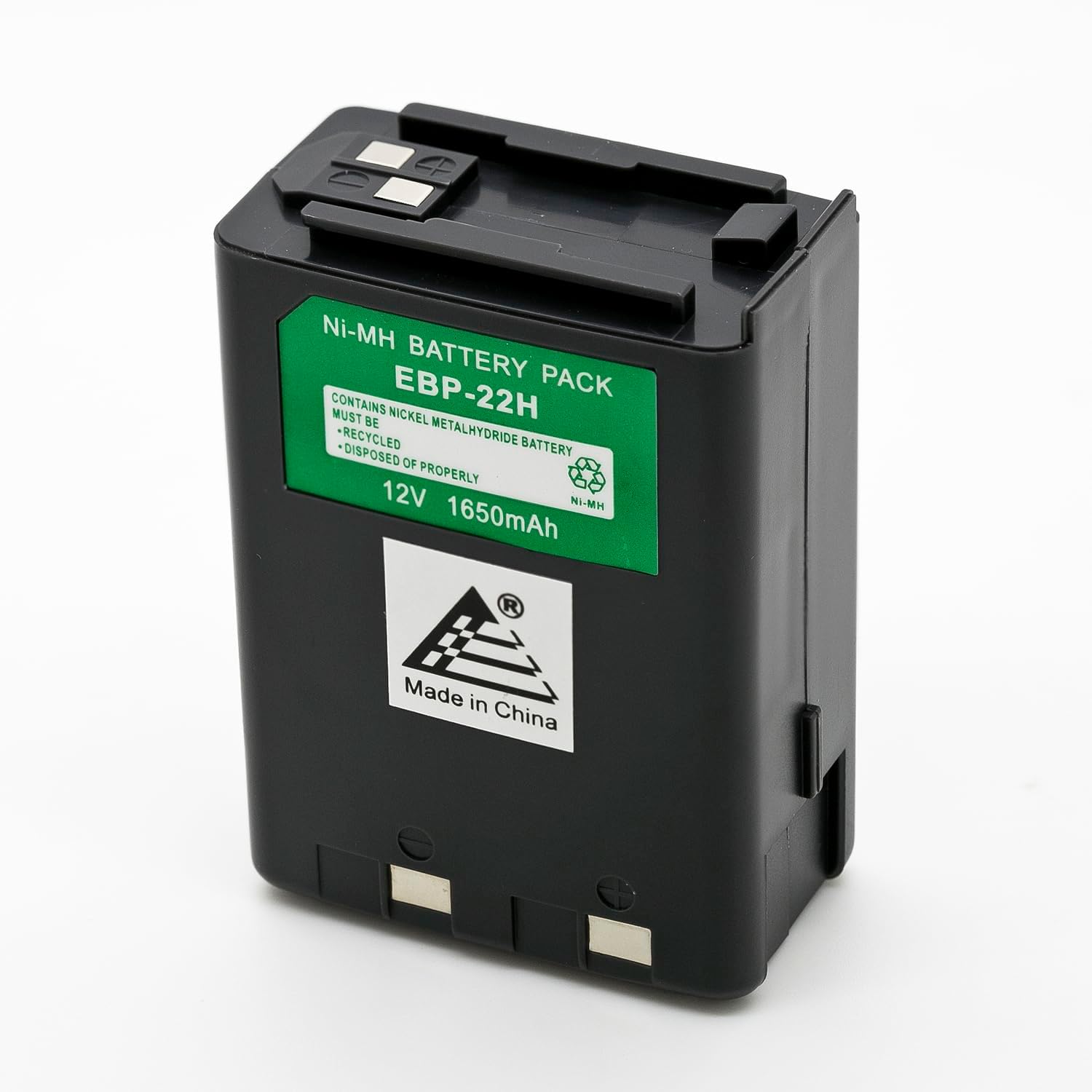

Image: ExpertPower 12V 1650mAh NiMh Replacement Battery, showing the product with its green label indicating specifications.

Postavljanje i instalacija

Prije prve upotrebe, preporučuje se potpuno napuniti bateriju.

Punjenje baterije

Ensure your charger is compatible with NiMh batteries and specifically designed for Alinco EBP series batteries or equivalent. This battery is compatible with OEM NiMh chargers.
Connect the battery to the charger according to the charger's instructions.
Allow the battery to charge until the charger indicates a full charge. Charging times may vary depending on the charger and the battery's initial charge level.

Installing the Battery into Your Radio

Turn off your Alinco radio.
Locate the battery compartment on the back of your radio.
Align the ExpertPower battery with the battery compartment, ensuring the contacts on the battery match the terminals in the radio.
Slide the battery into place until it clicks securely. Ensure it is firmly seated to prevent accidental disconnection.
Turn on your radio to confirm proper installation and power.

Dno view of ExpertPower battery showing contacts

Slika: Donja strana view of the ExpertPower battery, highlighting the contact points for connection to the radio.

Uputstvo za upotrebu

Once installed and charged, the ExpertPower battery operates seamlessly with your compatible Alinco radio.

Uključivanje/isključivanje: Use your radio's standard power button to turn the device on or off.
Trajanje baterije: The 1650mAh capacity provides extended talk time and standby time. Monitor your radio's battery indicator to determine remaining power.
Punjenje: Recharge the battery when the radio's low battery indicator appears or when performance diminishes. Regular recharging helps maintain battery health.

Održavanje i njega

Proper maintenance extends the lifespan and performance of your NiMh battery.

Redovno punjenje: For optimal performance, fully charge the battery before first use and after each significant discharge.
Skladištenje: If storing the battery for an extended period, charge it to about 50% capacity and store it in a cool, dry place away from direct sunlight and extreme temperatures. Recharge every 3-6 months to prevent deep discharge.
čišćenje: Keep the battery contacts clean using a dry, soft cloth. Avoid using abrasive cleaners or solvents.
temperatura: Avoid exposing the battery to extreme heat or cold, as this can degrade performance and lifespan.
odlaganje: NiMh batteries contain recyclable materials. Do not dispose of them in household waste. Follow local regulations for proper battery recycling. The battery label indicates it must be recycled and disposed of properly.

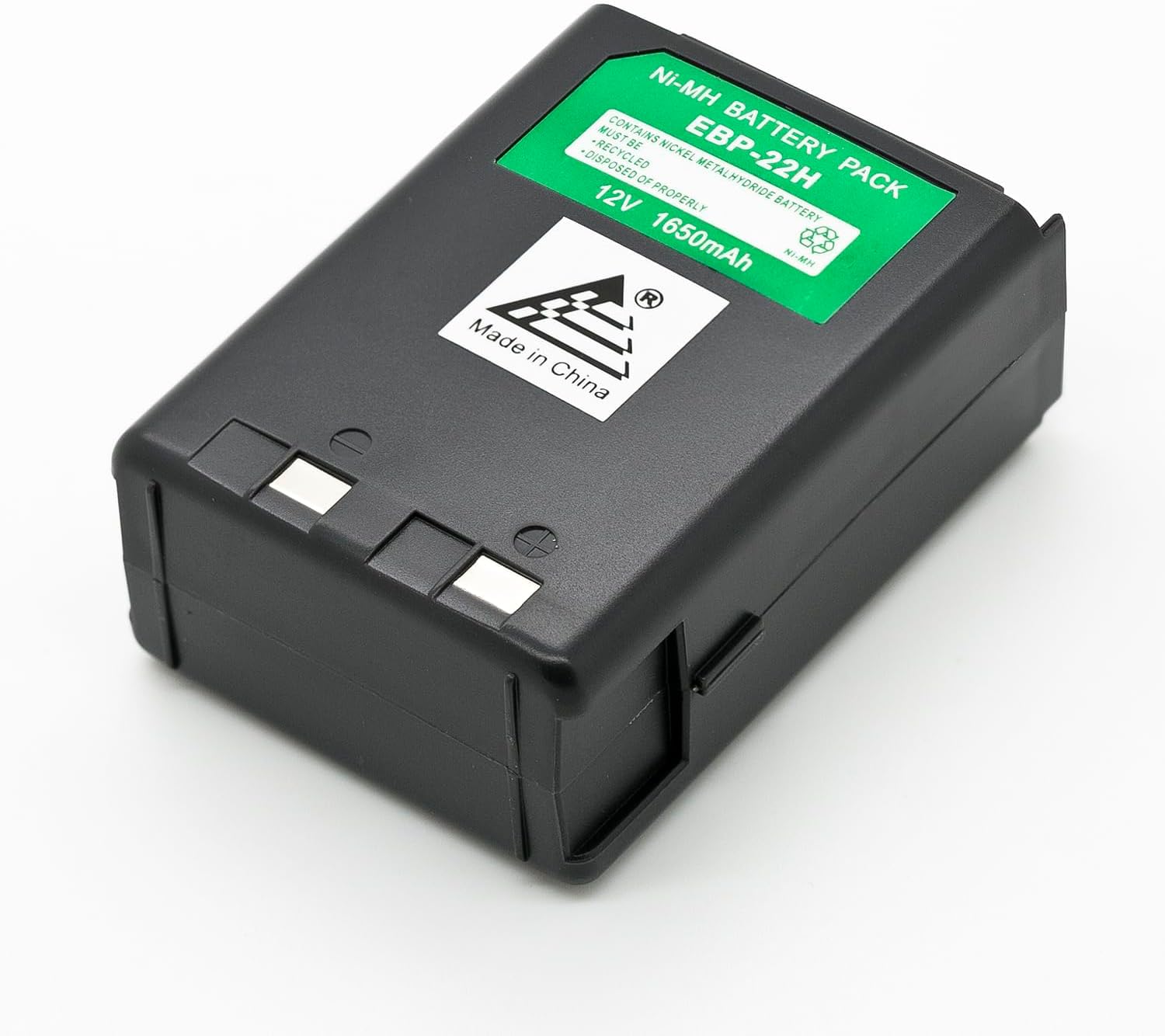

Top view of ExpertPower battery with recycling symbol

Slika: Vrh view of the ExpertPower battery, showing the Ni-MH battery pack label and recycling symbol, emphasizing proper disposal.

Rješavanje problema

If you encounter issues with your ExpertPower battery, refer to the following common problems and solutions:

Problem	Mogući uzrok	Rješenje
Baterija se ne puni	Punjač nije pravilno povezan. Neispravan punjač. Prljavi kontakti baterije. Baterija je prevruća ili prehladna.	Ensure charger is securely plugged in and battery is correctly seated. Try a different compatible charger. Clean battery contacts with a dry, soft cloth. Prije punjenja, ostavite bateriju da dostigne sobnu temperaturu.
Kratko trajanje baterije	Baterija nije potpuno napunjena. Baterija se bliži kraju životnog vijeka. Ekstremne radne temperature.	Prije upotrebe provjerite je li baterija potpuno napunjena. Consider replacing the battery if it's old and consistently has short life. Operate radio within recommended temperature ranges.
Radio not powering on with battery	Baterija nije pravilno instalirana. Battery completely discharged. Neispravna baterija.	Re-install the battery, ensuring it clicks into place. Punite bateriju nekoliko sati. If issues persist after charging and re-installation, contact customer support.

Specifikacije

Feature	Detalj
Broj modela	TW-BAAALEBP22
Vrsta baterije	NiMH (nikl-metal hidrid)
Voltage	12V
Kapacitet	1650 mAh (Milliamp sati)
Kompatibilnost	Alinco EBP-22, EBP-22N, EBP-28, EBP-28N, EBP-28H; DJ-180, DJ-280, DJ-480, DJ-580, DJ-582 Series Radios
Boja	Crna
Težina artikla	12 unce
Dimenzije paketa	3.19 x 2.27 x 1.31 inča
Posebne karakteristike	Eco-friendly alternative to disposables, OEM-compatible fit, Rechargeable NiMH chemistry, Rugged ABS housing, Works with Alinco OEM NiMH chargers

Garancija i podrška

Informacije o garanciji

The ExpertPower 12V 1650mAh NiMh Replacement Battery is backed by ExpertPower's trusted jednogodišnja garancijaOva garancija pokriva nedostatke u materijalu i izradi pri normalnoj upotrebi. Molimo sačuvajte dokaz o kupovini za potrebe reklamacije.

Korisnička podrška

For any questions, technical assistance, or warranty inquiries, please contact ExpertPower customer support.

Brand: ExpertPower
Webstranica: Visit the ExpertPower Store on Amazon
Please refer to the ExpertPower webnajnovije kontakt informacije potražite na web-mjestu ili pakiranju proizvoda.
