TecTake Travel Cot with Changing Table and Play Arch

Uvod

This manual provides essential instructions for the safe assembly, operation, and maintenance of your TecTake Travel Cot, Model 800032. Please read this manual thoroughly before use and retain it for future reference. This travel cot is designed for children up to 12 months old and weighing up to 11 kg.

Ključne karakteristike uključuju:

• Practical and easy folding mechanism for assembly and disassembly.
• Suitable for travel or home use.
• Mesh side panels for visibility and ventilation.
• Clip-on changing table for infants.
• Adjustable mattress height for two positions.
• Two wheels with brakes for easy movement.
• Removable play arch.
• Side opening with zipper for child access (when older).
• Includes a transport bag.

Važna sigurnosna upozorenja

Nepoštivanje ovih upozorenja i uputa može dovesti do ozbiljnih ozljeda ili smrti.

• Never leave your child unattended in the travel cot.
• Always secure the travel cot to the wall using the provided safety straps if applicable.
• To prevent entanglement injuries, remove the play arch with soft toys when the child begins to crawl or push up on hands and knees.
• The travel cot is suitable for children up to 12 months and 11 kg. Do not use for children exceeding these limits.
• Ensure all locking mechanisms are securely engaged before placing a child in the cot.
• Do not use the travel cot if any parts are broken, torn, or missing.
• Only use the mattress provided by the manufacturer. Do not add a secondary mattress, as this can create a gap between the mattress and the side of the cot, posing a suffocation hazard.
• Keep the travel cot away from open flames, heaters, and other sources of strong heat.
• Nemojte koristiti dodatnu opremu ili zamjenske dijelove osim onih koje je odobrio proizvođač.

Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• 1x TecTake Travel Cot
• 1x Changing Table attachment
• 1x Mattress (base pad)
• 1x Play Arch with toys
• 1x Transport Bag
• 1x Assembly Instructions (this manual)

Postavljanje i montaža

Predviđeno vrijeme montaže: 5 minuta.

Montaža korak po korak:

1. Raspakirajte: Remove the travel cot from its transport bag.
2. Position the Cot: Place the cot upright on a flat, stable surface.
3. Lock the Side Rails: Ensure the top side rails are fully extended and locked into place. You should hear a click. (Important: The side rails must be locked BEFORE pushing down the center base.)
4. Engage the Base: Push down the center base of the cot until it lies flat and is securely locked.
5. Umetnuti madrac: Place the provided mattress (base pad) into the bottom of the cot.
6. Instalirajte dodatnu opremu: Attach the changing table, adjustable height insert, or play arch as needed.
   • Adjustable Height Insert: For newborns, attach the insert to raise the sleeping surface. This is typically secured with a zipper system.
   • Sto za presvlačenje: Clip the changing table onto the top rails of the cot. Ensure it is securely fastened.
   • Igraj luk: Attach the play arch to the designated points on the cot.

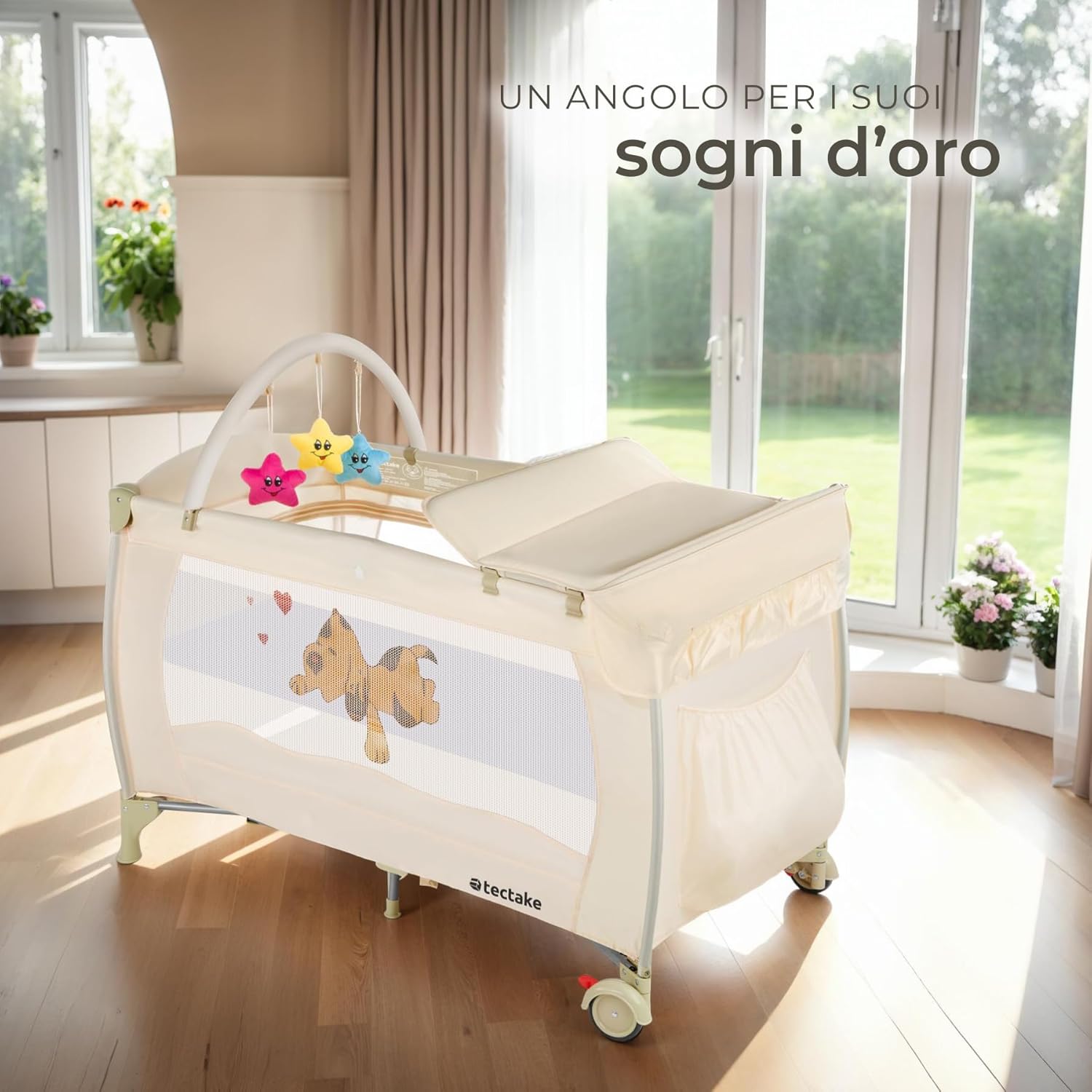

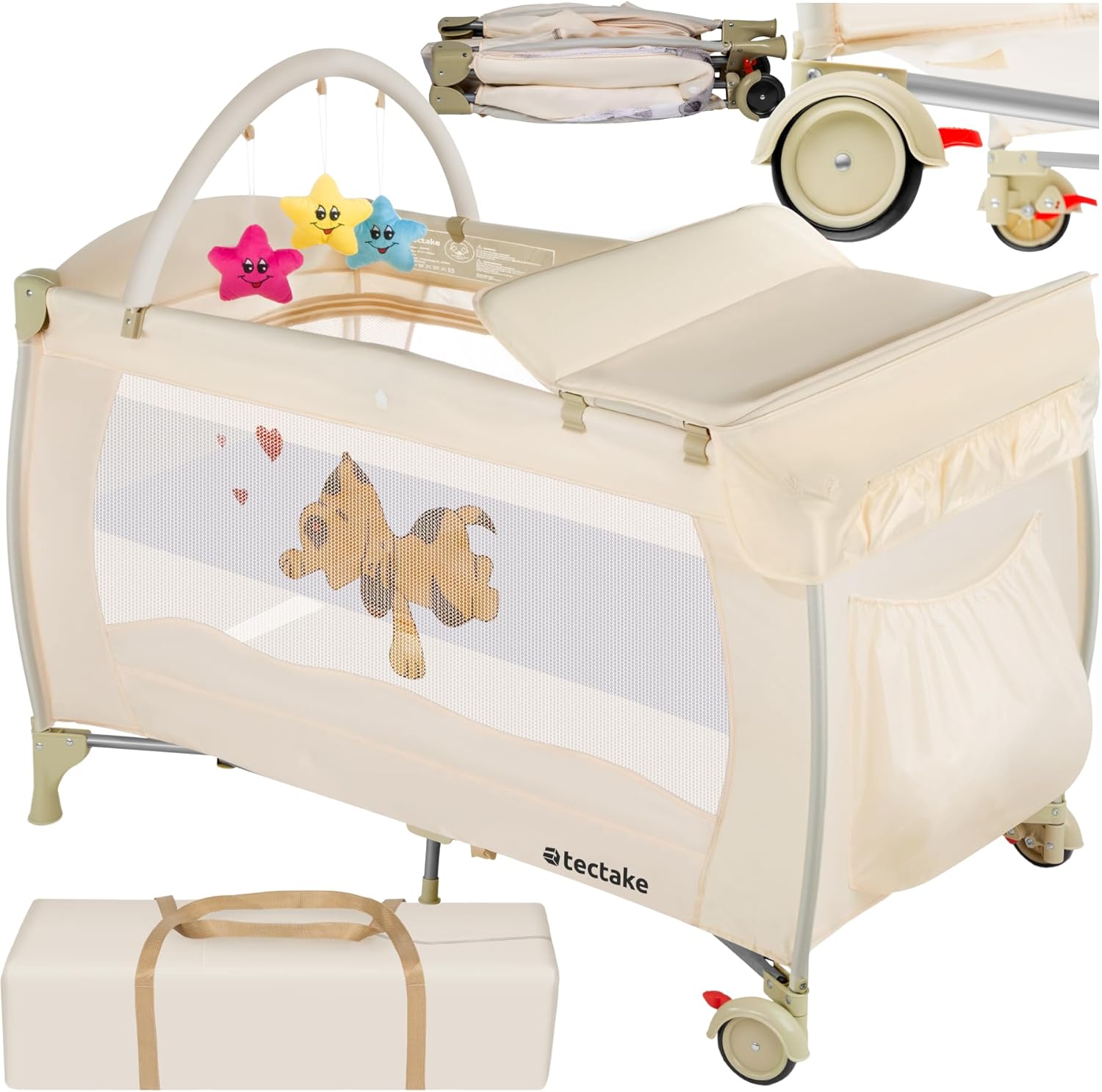

Image: The TecTake Travel Cot fully assembled, showing the changing table, play arch, and mesh sides.

Image: Close-up of the TecTake Travel Cot demonstrating the adjustable height feature for newborns.

Uputstvo za upotrebu

Adjustable Mattress Height:

The travel cot features two mattress height positions. The higher position is ideal for newborns, allowing easier access to your baby. As your child grows and becomes more active (e.g., starts to push up or sit), lower the mattress to the bottom position to prevent them from climbing out.

Image: Visual representation of the flexible and versatile height adjustment options for the cot mattress.

Sto za presvlačenje:

The clip-on changing table provides a convenient surface for diaper changes. Ensure it is securely attached to the cot rails before use. Always keep one hand on your baby while using the changing table. The changing table is designed for infants up to 12 months and 11 kg.

Image: The TecTake Travel Cot with the changing table securely attached, showing its practical use.

Mobility and Brakes:

The travel cot is equipped with two wheels for easy movement. To move the cot, lift the end without wheels slightly and roll it to the desired location. Once positioned, engage the brakes on both wheels to prevent accidental movement. To disengage, simply release the brake levers.

Image: Detail of the cot's wheels, highlighting the reliable braking system for stability.

Side Zipper Opening:

One side of the cot features a zippered opening. This allows an older child to crawl in and out independently when the cot is used as a playpen. Ensure the zipper is fully closed when the cot is used for sleeping, especially for younger infants.

Image: The TecTake Travel Cot showing the side zipper opening, allowing access for older children.

Igraj luk:

The removable play arch with soft toys provides entertainment for your child. Attach it to the designated points on the cot. Remember to remove the play arch when your child starts to crawl or push up to prevent entanglement.

Image: The TecTake Travel Cot featuring the play arch with colorful star-shaped toys.

Održavanje i njega

To ensure the longevity and hygiene of your TecTake Travel Cot, follow these care instructions:

• čišćenje: Clean the fabric surfaces with a damp cloth and mild soap. Wipe dry immediately. Do not use abrasive cleaners or harsh chemicals.
• okvir: Wipe the metal frame with a dry cloth.
• Skladištenje: When not in use, store the cot in its transport bag in a dry, cool place, away from direct sunlight.
• inspekcija: Regularly inspect the cot for any signs of wear, damage, or loose parts. Discontinue use if any damage is found.

Sklapanje i odlaganje

The TecTake Travel Cot is designed for easy folding and compact storage.

Step-by-Step Folding:

1. Uklonite dodatnu opremu: Detach the changing table, play arch, and adjustable height insert.
2. Remove Mattress: Take out the mattress (base pad).
3. Lift Center Base: Pull the strap in the center of the cot floor upwards to release the base locking mechanism.
4. Release Side Rails: Locate the release buttons or levers on the middle of each top rail. Press these mechanisms to unlock and fold each side rail inwards. You may need to apply slight upward pressure on the rails while pressing the release. (Tip: If rails are difficult to unlock, ensure the center base is fully pulled up and not pushing against the rails.)
5. Fold Compactly: Once all four side rails are unlocked and folded, bring the ends of the cot together to collapse it into a compact form.
6. Sigurno za transport: Wrap the mattress around the folded cot and secure it. Place the folded cot and accessories into the transport bag.

Image: The TecTake Travel Cot in its folded, compact state, ready for transport or storage.

Rješavanje problema

If you encounter issues with your TecTake Travel Cot, refer to the following common solutions:

• Difficulty Locking Side Rails During Setup: Ensure the center base of the cot is NOT pushed down. The side rails must be fully extended and locked into place BEFORE the base is pushed down. If the base is already down, pull it up slightly, lock the rails, then push the base down.
• Difficulty Unlocking Side Rails During Folding: Ensure the center base of the cot is fully pulled up and released. The side rails cannot be unlocked if the base is still locked in the down position. Apply gentle upward pressure on the rails while pressing the release buttons. Avoid excessive force.
• Cot Does Not Fold Compactly: Double-check that all four side rails are unlocked and folded inwards. Ensure the mattress and any other accessories have been removed.
• Wobbly Cot: Verify that all side rails are securely locked and the center base is fully engaged. Check that the wheels are locked if the cot is stationary.

Tehničke specifikacije

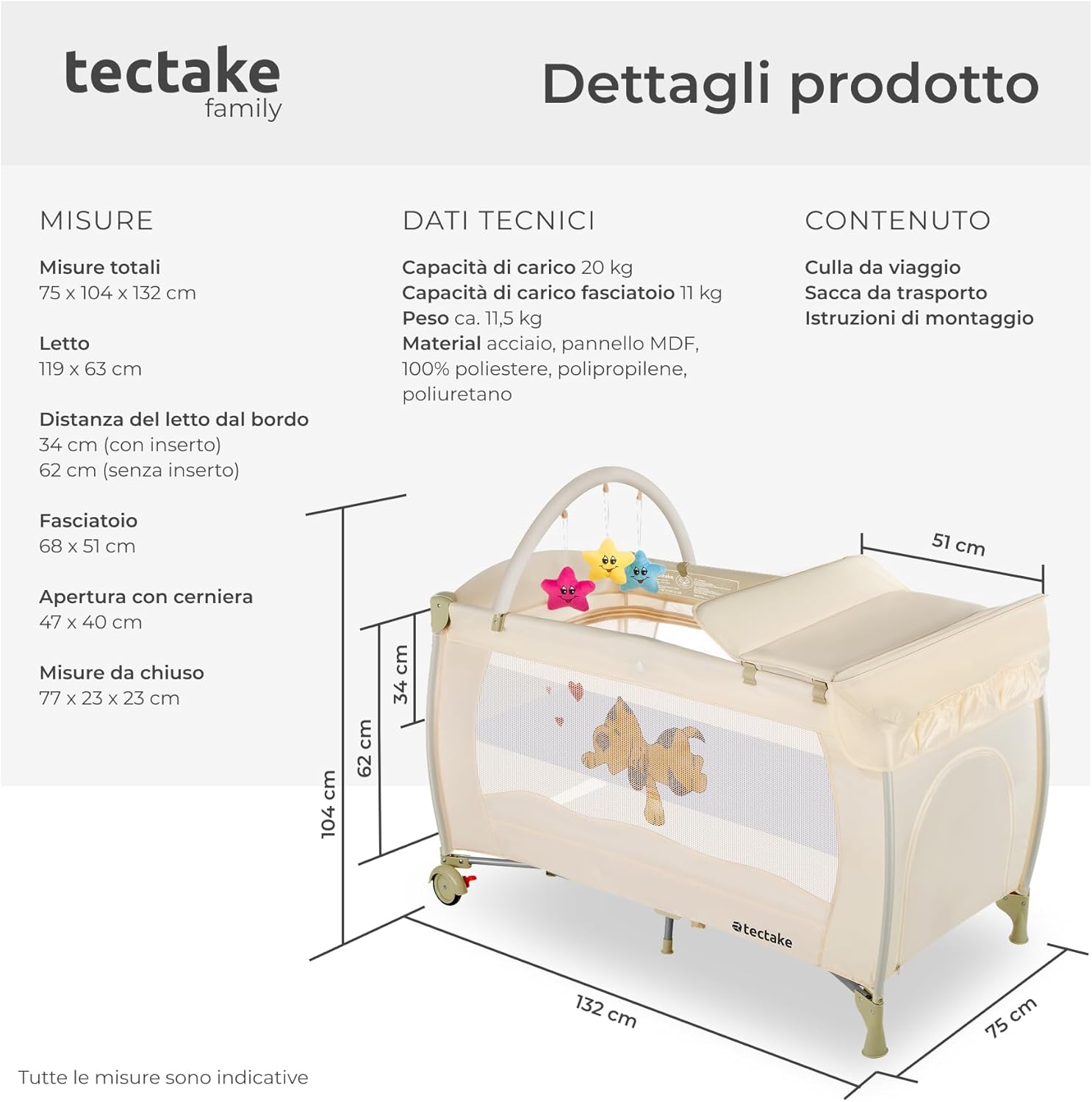

Image: Infographic detailing the dimensions and technical specifications of the TecTake Travel Cot.

Garancija i podrška

Specific warranty information is not provided in this manual. For warranty details, product support, or to purchase replacement parts, please contact TecTake customer service or refer to the official TecTake webSačuvajte dokaz o kupovini za eventualne reklamacije.
