1. Uvod
This manual provides detailed instructions for the safe and correct installation, operation, and maintenance of your RICOO R02 Tilting TV Wall Mount. Please read all instructions carefully before beginning installation to ensure proper setup and to prevent damage or injury. Keep this manual for future reference.
2. Sigurnosne informacije
- Kapacitet težine: Nemojte prekoračiti maksimalnu nosivost od 30 kg (66 lbs).
- Veličina ekrana: Ovaj nosač je dizajniran za televizore dijagonale između 22 i 37 inča.
- Vrsta zida: The included dowels are suitable for concrete walls only. For other wall types (e.g., wood stud, brick, drywall), consult a professional or purchase appropriate mounting hardware.
- Profesionalna instalacija: If you are unsure about the installation process, seek assistance from a qualified professional.
- Alati: Ensure you have all necessary tools before starting installation.
- djeca: Držite djecu dalje od područja instalacije tokom postavljanja.
- Šteta: Do not install if any parts are damaged. Contact customer support for replacement parts.
3. Sadržaj paketa
Prije nego što nastavite s instalacijom, provjerite jesu li sve komponente prisutne i neoštećene.
- Pre-assembled TV bracket
- Dowels (for concrete walls only)
- Screws for screen attachment (various sizes)
- Wall screws and other mounting accessories
Slika 3.1: Technical drawing showing the dimensions and movement capabilities of the R02 wall mount. All measurements are in millimeters.
4. Specifikacije
| Brand | RICOO |
| Broj modela | R02 |
| Kompatibilne veličine ekrana | 22 - 37 inča (56 - 94 cm) |
| Maksimalni kapacitet opterećenja | 30 kg (66 lbs) |
| VESA kompatibilnost | 75x75 mm, 100x100 mm, 200x100 mm, 200x200 mm |
| Ugao nagiba | +/- 15 stepeni |
| Ugao okretanja | Up to 180 degrees (depending on screen width) |
| Wall Distance | 68 mm - 450 mm |
| Materijal | legirani čelik |
| Boja | Crna |
| Dimenzije proizvoda | 29 x 23 x 8 cm |
| Težina proizvoda | 2.88 kg |
Slika 4.1: The RICOO R02 wall mount is designed to safely support televisions weighing up to 30 kg.

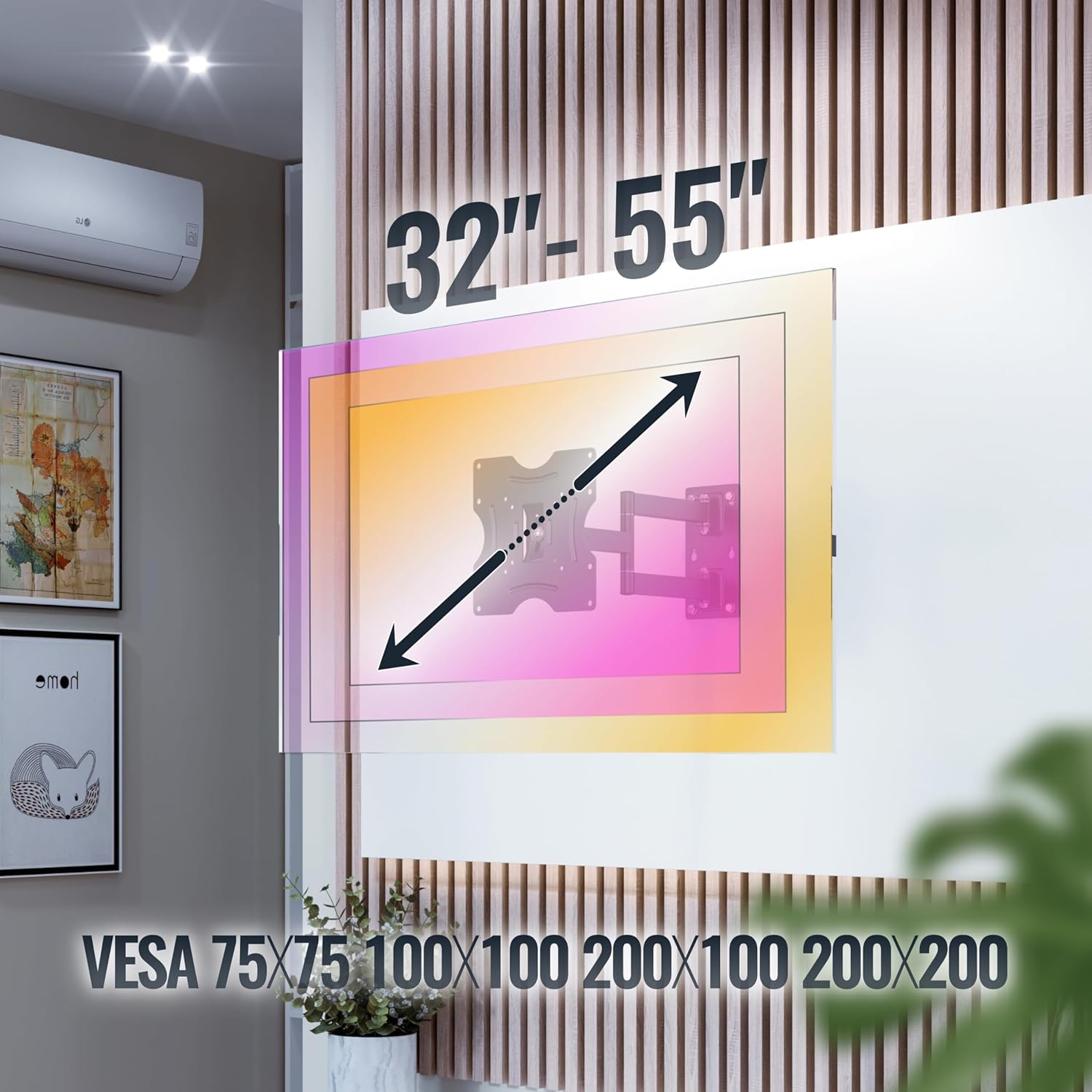

Slika 4.2: This image illustrates the VESA compatibility (75x75, 100x100, 200x100, 200x200 mm) and the recommended screen size range for the mount. Please note that while the image shows 32"-55", the product is specified for 22"-37" TVs.
5. Postavljanje i instalacija
Follow these steps carefully for a secure installation. It is recommended to have two people for installation.
- Pripremite zid:
- Identify the desired mounting location on your wall. Ensure the wall can support the weight of the mount and your TV.
- Use a stud finder to locate wall studs if mounting on a wood stud wall. For concrete walls, ensure there are no hidden pipes or electrical wires.
- Mark the drilling points for the wall plate using the mount as a template.
- Izbušite rupe:
- Drill pilot holes at the marked locations. The drill bit size will depend on your wall type and the provided screws/dowels.
- Insert the appropriate wall anchors (dowels for concrete walls) into the drilled holes.
- Pričvrstite zidnu ploču:
- Secure the wall plate of the mount to the wall using the provided wall screws. Ensure it is level and tightly fastened.
- Pričvrstite nosače za TV na TV:
- Pažljivo postavite televizor ekranom prema dolje na meku, čistu površinu.
- Identifikujte VESA rupe za montažu na poleđini vašeg TV-a.
- Select the correct size screws from the provided hardware that fit your TV's VESA holes.
- Attach the TV brackets to the back of your TV using these screws. Do not overtighten.
- Montiranje TV-a na zidnu ploču:
- Uz pomoć, pažljivo podignite TV pomoću priloženih nosača.
- Pričvrstite nosače TV-a na zidnu ploču. Provjerite je li TV sigurno postavljen na nosač.
- Aktivirajte sve sigurnosne mehanizme za zaključavanje na nosaču kako biste spriječili slučajno pomicanje.

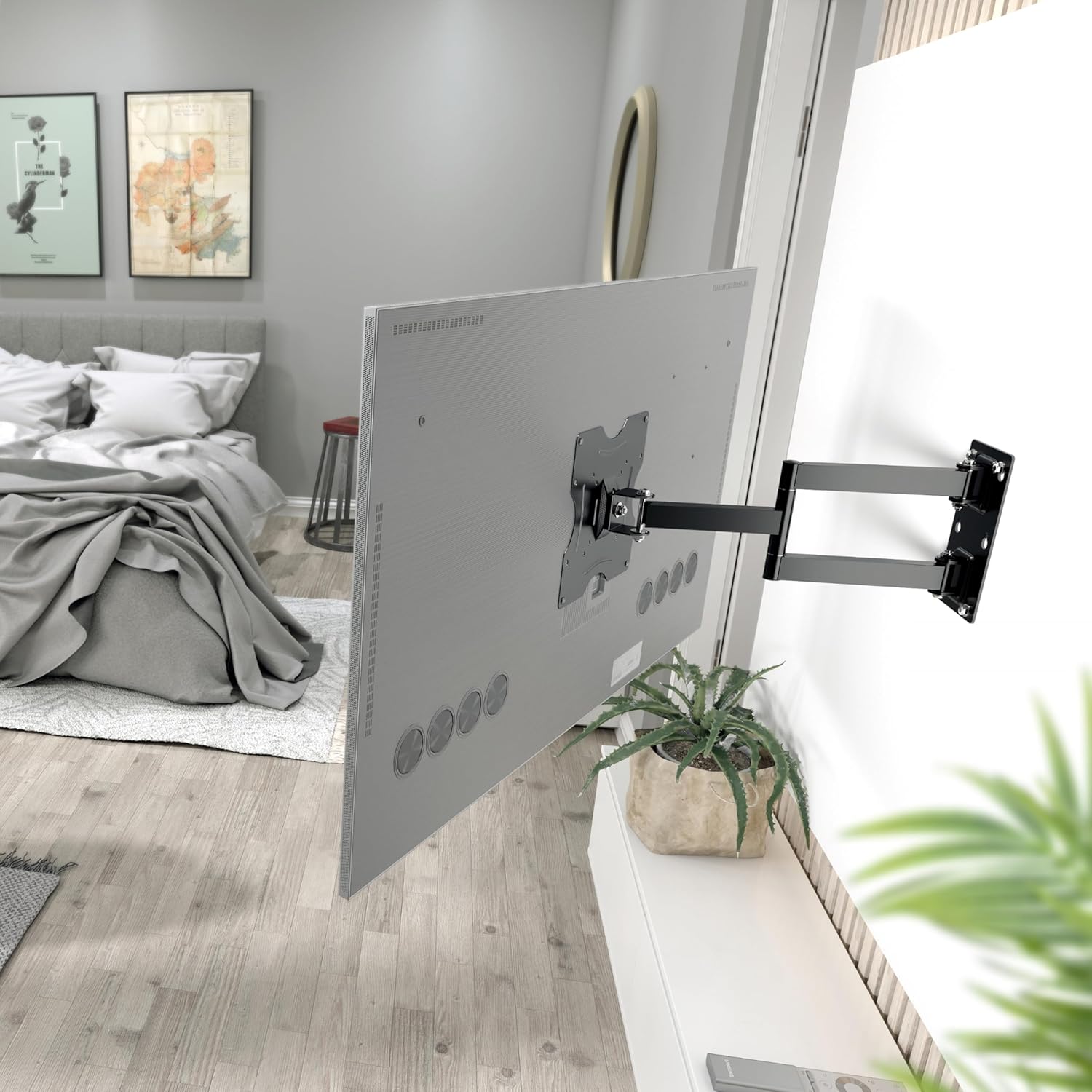

Slika 5.1: The RICOO R02 wall mount securely installed, holding a television at an extended position from the wall.
6. Uputstvo za upotrebu
The RICOO R02 mount offers flexible viewing opcije:
- Naginjanje: Gently push or pull the top or bottom of the TV to adjust the tilt angle up to +/- 15 degrees. This helps reduce glare and optimize viewing.
- Okretno: The mount allows for swiveling the TV up to 180 degrees horizontally. Carefully push the TV left or right to achieve the desired viewing angle. The maximum swivel range depends on the width of your TV and its distance from the wall.
- Izvlačenje/Uvlačenje: The mount can extend the TV from the wall between 68 mm and 450 mm. Gently pull the TV forward or push it back towards the wall.
Slika 6.1: Illustration of the mount's tilt range (+/- 15 degrees) and swivel range (up to 180 degrees), allowing for optimal viewing sa raznih pozicija.
7. Održavanje
Redovno održavanje osigurava dugotrajnost i siguran rad vašeg zidnog nosača za TV.
- čišćenje: Obrišite nosač mekom, suhom krpom. Izbjegavajte abrazivna sredstva za čišćenje ili rastvarače.
- Provjera nepropusnosti: Povremeno provjeravajte sve vijke i šrafove kako biste bili sigurni da su dobro zategnuti. Po potrebi ih ponovo zategnite, ali ih nemojte previše zatezati.
- Provjera kretanja: Occasionally move the TV through its full range of motion (tilt, swivel, extend) to ensure smooth operation.
- Pregled oštećenja: Inspect the mount for any signs of wear, damage, or corrosion. If any issues are found, discontinue use and contact customer support.
8. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| TV nije ravan. | Zidna ploča nije postavljena ravno. | Remove TV, adjust wall plate, and re-mount. Use a spirit level during installation. |
| Nosač se čini labavim ili nestabilnim. | Screws are loose; incorrect wall anchors; wall material not strong enough. | Check and tighten all screws. Ensure correct wall anchors were used for your wall type. If the wall is insufficient, consult a professional. |
| Difficulty tilting or swiveling the TV. | Joints are too tight; TV is too close to the wall or other obstructions. | Check for adjustment screws on the mount's joints and loosen slightly if needed. Ensure sufficient clearance around the TV. |
| TV ne odgovara nosaču. | Nepravilan VESA uzorak ili veličina/težina TV-a. | Verify your TV's VESA pattern and weight against the mount's specifications (Section 4). Ensure your TV is within the 22-37 inch range and under 30 kg. |
9. Garancija i podrška
For warranty information or technical support, please contact RICOO customer service. Keep your purchase receipt as proof of purchase.
Proizvođač: ENZ Engineering GmbH
GTIN: 04260201860186
For further assistance, please visit the official RICOO webstranicu ili kontaktirajte njihove kanale za podršku.
