1. Uvod
This document provides essential information and instructions for the Pentair LA375 Drain Plug O-Ring. This O-ring is a replacement component designed to maintain a watertight seal for compatible pool and spa pumps. Proper installation and maintenance are crucial for the efficient operation of your pump system.
1.1. Proizvod je gotovview
The Pentair LA375 Drain Plug O-Ring is a small, circular rubber gasket that fits around the drain plug of specific Pentair pump models. Its primary function is to prevent water leakage from the pump's drain port, ensuring the pump operates effectively and maintains system pressure.

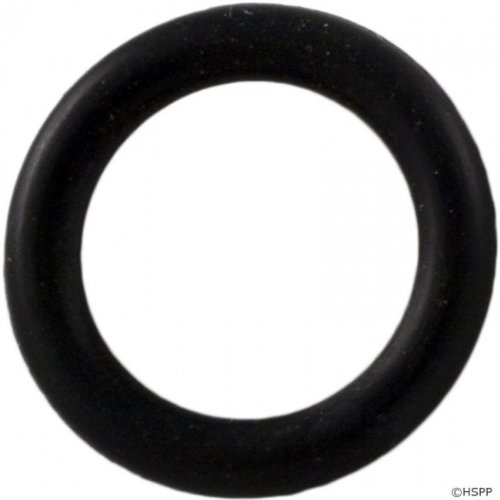

Image 1.1: The Pentair LA375 Drain Plug O-Ring, a critical component for sealing pump drain plugs.
1.2. Kompatibilnost
This drain plug O-ring is specifically designed for use with:
- Pentair universal booster pool and spa pumps.
2. Instalacija
Follow these steps to properly install or replace the drain plug O-ring. Ensure the pump system is powered off and depressurized before beginning any maintenance.
- Iskljuciti: Turn off all power to the pool or spa pump at the circuit breaker to prevent accidental startup.
- Odvod vode: If the pump contains water, locate the drain plug(s) on the pump housing. Place a bucket or container beneath the drain plug to collect water.
- Uklonite stari O-prsten: Unscrew the drain plug. Carefully remove the old O-ring from the drain plug or the pump housing. Inspect the old O-ring for signs of wear, cracking, or flattening.
- Čiste površine: Clean the drain plug and the O-ring groove on both the plug and the pump housing. Remove any debris, dirt, or old lubricant.
- Lubricate New O-Ring: Apply a thin, even coat of a silicone-based lubricant (specifically designed for pool and spa O-rings) to the new Pentair LA375 O-ring. This lubrication helps create a better seal and prevents the O-ring from pinching or tearing during installation.
- Ugradite novi O-prsten: Place the lubricated O-ring onto the drain plug, ensuring it sits correctly in its groove.
- Ponovo postavite čep za odvod: Carefully screw the drain plug back into the pump housing. Hand-tighten only. Overtightening can damage the O-ring or the pump housing.
- Provjerite ima li curenja: Restore power to the pump and turn it on. Observe the drain plug area for any signs of water leakage. If leaks occur, turn off the pump, re-check the O-ring placement, and ensure the plug is properly tightened.
Image 2.1: Visual representation of a drain plug and O-ring, demonstrating the components involved in the installation process.
2.1. Video referenca za instalaciju
Video 2.1: A short demonstration showing the drain plug and O-ring, highlighting its components and how the O-ring fits onto the plug. This video is provided by a seller and is 16 seconds long.
Video 2.2: This video illustrates the drain plug with an O-ring, demonstrating its quality and how it forms a seal. This video is provided by a seller and is 45 seconds long.
3. Funkcija i rad
The LA375 Drain Plug O-Ring is a passive component critical for the proper operation of your pool or spa pump. It does not have active operational controls but performs a vital sealing function.
3.1. Sealing Function
When installed correctly, the O-ring creates a tight, waterproof seal between the drain plug and the pump housing. This prevents water from leaking out of the pump, which is essential for maintaining prime, preventing air intrusion into the system, and ensuring the pump operates at its intended efficiency. A compromised O-ring can lead to air leaks, reduced pump performance, and potential damage to the pump motor due to cavitation.
4. Održavanje
Regular inspection and timely replacement of the drain plug O-ring are key to prolonging the life of your pump and preventing costly repairs.
4.1. Raspored inspekcije
It is recommended to inspect the drain plug O-ring at least once per swimming season, or more frequently if you notice any signs of leakage or reduced pump performance. Inspect the O-ring whenever you drain the pump for winterization or other maintenance tasks.
4.2. Signs of Wear
Look for the following indicators that the O-ring may need replacement:
- Pukotine ili poderotine: Visible damage to the rubber material.
- Flattening: The O-ring appears compressed and has lost its round shape.
- Brittleness: The rubber feels hard and inflexible.
- curenja: Water dripping or spraying from around the drain plug.
- mjehurići zraka: Air entering the pump system, often visible in the pump's strainer basket lid.
4.3. Zamjena
Replace the O-ring immediately if any signs of wear are observed. Refer to the Instalacija section for detailed replacement steps.
5. Otkrivanje problema
Most issues related to the drain plug O-ring involve leaks or air intrusion.
5.1. Water Leakage from Drain Plug
- Uzrok: Damaged, worn, or improperly seated O-ring. Drain plug not tightened sufficiently.
- Rješenje: Turn off pump power. Unscrew the drain plug. Inspect the O-ring for damage; replace if necessary. Ensure the O-ring is properly seated in its groove and lubricated. Hand-tighten the drain plug firmly. Restore power and check for leaks.
5.2. Air Entering Pump System (Loss of Prime)
- Uzrok: Air being drawn into the pump through a faulty drain plug seal.
- Rješenje: Follow the steps for water leakage. A compromised O-ring can allow air to be sucked into the pump, leading to a loss of prime and reduced water flow.
6. Specifikacije
| Feature | Detalj |
|---|---|
| Broj modela | LA375 |
| Dimenzije proizvoda | 1 x 1 x 1 inča |
| Težina artikla | 0.16 unce |
| Proizvođač | Pentair |
| Materijal | High-quality material (as indicated by seller videos for similar products) |
7. Garancija i podrška
Specific warranty information for the Pentair LA375 Drain Plug O-Ring is not provided in the product data. For details regarding warranty coverage, returns, or technical support, please refer to the official Pentair webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Uvijek sačuvajte dokaz o kupovini za bilo kakve reklamacije u vezi s garancijom.
