1. Sigurnosne informacije
Prije upotrebe ovog uređaja pročitajte sva uputstva. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.
- električna sigurnost: Always unplug the vacuum cleaner from the electrical outlet before servicing or cleaning. Do not use with a damaged cord or plug.
- Opća upotreba: Nemojte koristiti na otvorenom ili na mokrim površinama. Ne dozvoliti da se koristi kao igračka. Posebna pažnja je neophodna kada se koristi od strane dece ili u blizini.
- Opasni materijali: Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Prilozi: Koristite samo dodatke koje preporučuje proizvođač.
- Održavanje: Maintain the vacuum cleaner with care. Keep the cleaning path clear of obstructions.
2. Proizvod je gotovview
The Koblenz U-800 is a commercial upright vacuum cleaner designed for efficient floor care. It features a robust construction and a powerful motor for effective cleaning.

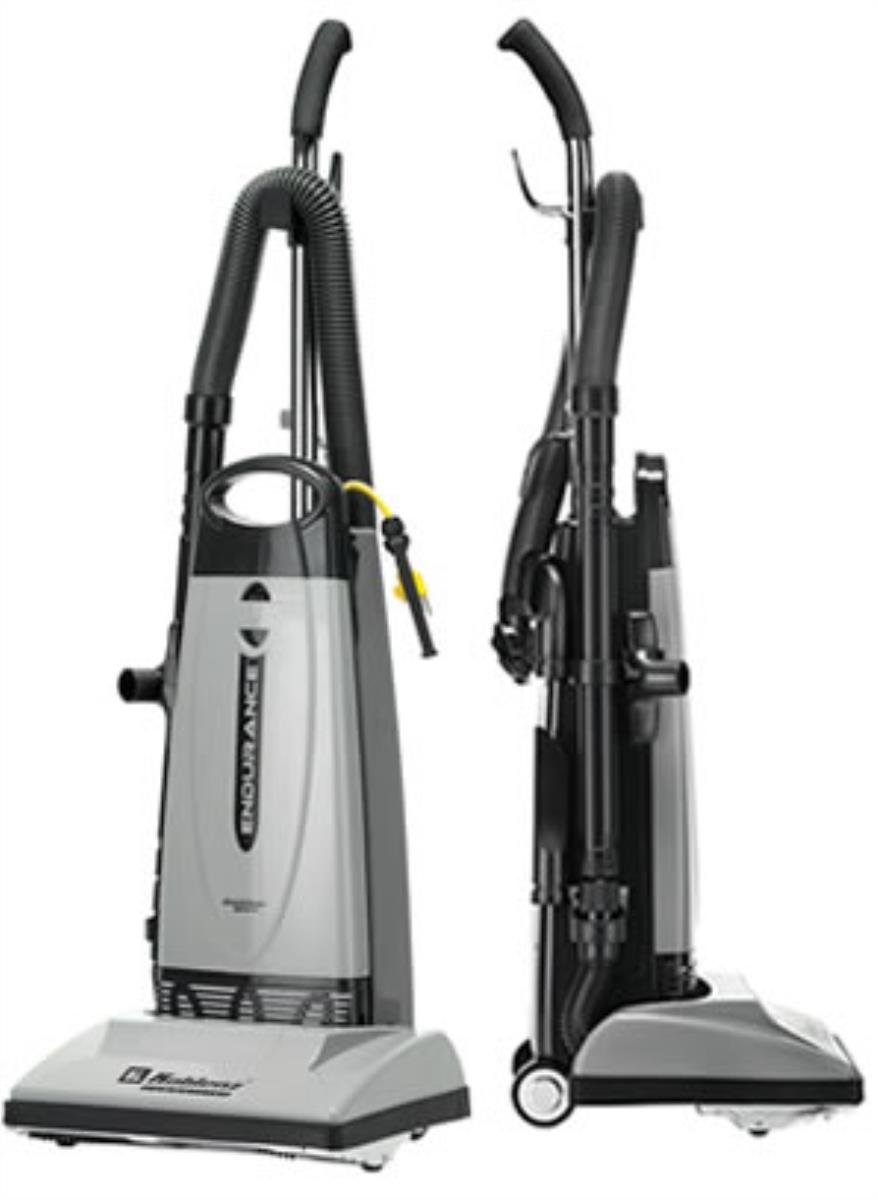

Slika 1: Koblenz U-800 Endurance Clean Air Commercial Upright Vacuum. This image displays the overall design of the vacuum cleaner, highlighting its upright form factor and commercial-grade appearance.
Ključne karakteristike:
- Clean air single motor design.
- 14-inch cleaning path for efficient coverage.
- Snažan motor od 1000 W.
- Rugged ABS construction for durability.
- Exclusive 50 ft. detachable pigtailed line cord.
- Integrated suction carburetor for adjustable suction on delicate surfaces.
- Includes crevice tool, upholstery tool, and dust brush.
- Telescopic wand for extended reach.
3. Postavljanje i montaža
The Koblenz U-800 requires some assembly before first use. Follow these steps carefully.
- Raspakujte komponente: Pažljivo izvadite sve dijelove iz ambalaže. Provjerite da li su prisutne sve komponente navedene u pakovanju.
- Sklop ručke: Insert the handle into the main body of the vacuum cleaner. Ensure it clicks securely into place or is fastened with the provided screws, if applicable.
- Cord Attachment: Attach the 50 ft. detachable pigtailed line cord to the vacuum cleaner's power input. Secure it using the cord hooks provided on the back of the refuse tank.
- Skladištenje alata: Place the crevice tool, upholstery tool, and dust brush into the recessed slots on the back of the refuse tank for convenient storage.
- Ugradnja torbe: Open the refuse tank compartment and install a new vacuum bag according to the instructions on the bag packaging. Ensure it is properly seated to prevent dust leakage.
Note: Assembly is required for this product. Refer to the included assembly diagram for visual guidance.
4. Uputstvo za upotrebu
4.1 Uključivanje/isključivanje
- Priključite napajanje: Plug the 50 ft. detachable line cord into a suitable electrical outlet.
- Uključeno: Press the power button (Controller Type: Push Button) located on the vacuum cleaner to turn it on.
- Iskljuciti: Press the power button again to turn the vacuum cleaner off. Unplug the unit from the outlet when not in use.
4.2 Adjusting Suction (Carburetor System)
The Koblenz U-800 features a suction carburetor system to adjust suction power, which is beneficial for cleaning delicate surfaces.
- Locate the suction carburetor control near the intake suction hose connection on the refuse tank.
- Rotate the control to increase or decrease the amount of suction.
- Reduce suction for lightweight rugs, curtains, or delicate upholstery to prevent damage or pulling.
- Increase suction for heavily soiled carpets or robust surfaces.
4.3 Korištenje priloga
The vacuum comes with a crevice tool, upholstery tool, and dust brush for specialized cleaning tasks.
- Alati za pričvršćivanje: Disconnect the main suction hose from the vacuum's base. Attach the desired tool directly to the end of the hose or to the telescopic wand.
- Alat za pukotine: Ideal for cleaning tight spaces, corners, and along baseboards.
- Tapetarski alat: Designed for cleaning furniture, drapes, and other fabric surfaces. Use with adjusted suction for delicate materials.
- Dust Brush: Suitable for dusting delicate surfaces, blinds, and intricate objects.
- Teleskopski štapić: Extend the wand to reach high areas, ceilings, or under furniture without bending.
5. Održavanje
Regular maintenance ensures optimal performance and extends the life of your Koblenz U-800 vacuum cleaner. Always unplug the unit before performing any maintenance.
5.1 Replacing the Vacuum Bag
- Isključite i izvucite utikač: Ensure the vacuum is off and unplugged from the power outlet.
- Otvoreni odjeljak: Locate and open the refuse tank compartment.
- Uklonite staru torbu: Carefully remove the full vacuum bag, sealing it if possible to contain dust.
- Instalirajte novu torbu: Insert a new, compatible vacuum bag, ensuring it is properly seated and sealed within the compartment.
- Zatvori odjeljak: Close the refuse tank compartment securely.
5.2 Čišćenje/zamjena filtera
Check and clean or replace filters regularly as per manufacturer recommendations to maintain suction power and air quality.
- Locate the vacuum's filters (specific location may vary, refer to diagram).
- Remove filters and clean them by tapping out loose dirt or rinsing if they are washable (allow to dry completely before reinstallation).
- Replace filters if they are heavily soiled, damaged, or cannot be cleaned effectively.
5.3 Brush Roll Inspection
Periodically inspect the brush roll for tangled hair, threads, or debris that can reduce cleaning effectiveness.
- Isključite i isključite usisivač.
- Carefully turn the vacuum over to access the brush roll.
- Use scissors or a brush to remove any tangled debris from the brush roll.
- Osigurajte da se valjak četke slobodno okreće.
6. Otkrivanje problema
Before attempting any repairs, ensure the vacuum cleaner is unplugged.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Vakuum se ne uključuje. | No power to the unit; power cord not fully plugged in; circuit breaker tripped. | Provjerite utičnicu; uvjerite se da je kabel sigurno priključen; resetirajte osigurač. |
| Gubitak usisavanja. | Full vacuum bag; clogged hose or filter; brush roll obstructed. | Replace vacuum bag; clear any clogs from hose or filters; clean brush roll. |
| Usisivač ne usisava otpad. | Brush roll not spinning; brush roll worn; height adjustment incorrect. | Check for obstructions in brush roll; replace brush roll if worn; adjust vacuum height setting. |
| Neobična buka. | Object caught in brush roll or fan; motor issue. | Turn off and unplug, inspect brush roll and fan for obstructions. If noise persists, contact customer support. |
7. Specifikacije
| Naziv modela: | U-800 |
| Brand: | Koblenz |
| Izvor napajanja: | Corded Electric |
| Wattage: | 1000 vati |
| Voltage: | 220 Volts |
| konjske snage motora: | 1.34 konjskih snaga |
| Put čišćenja: | 14 inča |
| Form Faktor: | Uspravno |
| Težina artikla: | 19.3 funte |
| Dimenzije proizvoda: | 43.1 x 11.5 x 22.5 inča |
| Nivo buke: | 82 decibela |
| Preporučena upotreba: | Carpet, Rug |
| Potrebna montaža: | Da |
8. Jamstvo i podrška
Informacije o garanciji:
The Koblenz U-800 Endurance Clean Air Commercial Upright Vacuum comes with a 1 godine garancije na dijelove i rad. This warranty excludes wear items.
For specific warranty claims or details, please retain your proof of purchase and contact Koblenz customer support.
Korisnička podrška:
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Koblenz customer support. Refer to the official Koblenz webAktuelne kontakt informacije potražite na web-mjestu ili pakovanju proizvoda.
