Sony BDP-S370 Blu-ray Disc Player Instruction Manual

1. Uvod

This manual provides essential information for the safe and efficient operation of your Sony BDP-S370 Blu-ray Disc Player. The BDP-S370 allows you to enjoy Blu-ray Disc movies in Full HD 1080p and enhances the quality of standard DVDs to near-HD resolution. It also offers internet connectivity for a variety of streaming services and supports media playback via USB. Please read this manual thoroughly before using the player and retain it for future reference.

2. Sigurnosne informacije

• Izvor napajanja: Ensure the player is connected to a power source within the specified voltage range.
• ventilacija: Ne blokirajte ventilacijske otvore. Osigurajte dovoljno prostora oko uređaja za pravilan protok zraka kako biste spriječili pregrijavanje.
• Izloženost tečnosti: Do not expose the player to rain, moisture, or liquids.
• Strani predmeti: Do not insert any objects into the player's openings other than discs or USB devices.
• servisiranje: Do not attempt to service the player yourself. Refer all servicing to qualified service personnel.
• Laserski proizvod: Ovaj proizvod je laserski proizvod klase 1. Izbjegavajte direktno izlaganje laserskom snopu.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• Sony BDP-S370 Blu-ray Disc Player
• Daljinski upravljač
• Kabl za napajanje
• HDMI kabl
• Korisnički priručnik (ovaj dokument)
• AA baterije (za daljinski upravljač)

4. Proizvod je gotovview

4.1 Prednja ploča

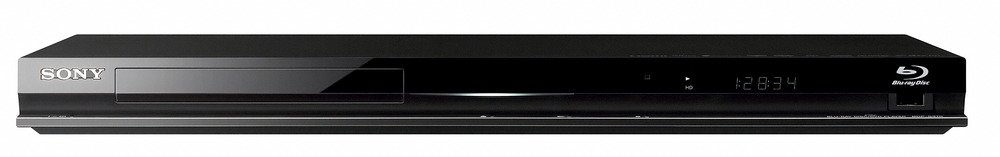

Slika 1: Front view of the Sony BDP-S370 Blu-ray Disc Player. The front panel features the Sony logo on the left, a disc tray, a display window, and control buttons for power, play, stop, and open/close. A USB port is also visible on the right side of the front panel.

• Dugme za napajanje (I/O): Uključuje ili isključuje plejer.
• Uložak za disk: Ovdje ubacite Blu-ray diskove, DVD-ove ili CD-ove.
• Dugme za otvaranje/zatvaranje: Otvara i zatvara fioku za disk.
• Dugmad za reprodukciju/pauzu/zaustavljanje: Controls disc playback.
• USB port: For connecting USB devices to play photos, music, and videos.
• Prozor: Shows playback status and other information.

4.2 Zadnja ploča

The rear panel provides various connection ports for audio and video output, as well as network connectivity.

• HDMI izlaz: Connects to an HDMI input on your TV or receiver for high-definition video and audio.
• LAN (Ethernet) port: For wired network connection to access internet features.
• Komponentni video izlaz (Y, Pb, Pr): Connects to component video inputs on your TV for high-quality analog video.
• Kompozitni video izlaz: Connects to a composite video input on your TV for standard-definition analog video.
• Analogni audio izlaz (L/R): Connects to analog audio inputs on your TV or audio system.
• Digitalni audio izlaz (optički/koaksijalni): Connects to a digital audio input on your audio receiver for multi-channel audio.
• Ulazna snaga: Connects the power cord to the player.

5. Podešavanje

5.1 Povezivanje s TV-om

For the best picture and sound quality, use an HDMI cable to connect the player to your TV.

1. Spojite jedan kraj HDMI kabela na HDMI OUT port on the back of the Blu-ray Disc Player.
2. Spojite drugi kraj HDMI kabela na dostupni HDMI-IN priključak na TV-u.
3. If your TV does not have an HDMI input, use component video cables (Y, Pb, Pr) for video and analog audio cables (L/R) for audio, or a composite video cable and analog audio cables.

5.2 Priključak za napajanje

1. Spojite priloženi kabel za napajanje na ULAZ NAPAJANJA on the rear of the player.
2. Uključite drugi kraj kabla za napajanje u zidnu utičnicu.

5.3 Mrežna veza

A network connection is required to access internet streaming services and firmware updates.

1. Žična veza: Spojite Ethernet kabel s vašeg rutera na LAN (Ethernet) priključak na zadnjoj strani plejera.
2. Bežična veza: The BDP-S370 is Wi-Fi adapter ready. If you have a compatible Sony Wi-Fi adapter (sold separately), connect it to a USB port on the player. Follow the on-screen instructions to configure the wireless settings.

6. Uputstvo za upotrebu

6.1 Osnovna reprodukcija diska

1. Uključite TV i odaberite ispravan ulazni izvor (npr. HDMI 1).
2. Pritisnite Snaga button on the player or remote control to turn it on.
3. Pritisnite Otvori/Zatvori dugme za otvaranje ležišta za disk.
4. Postavite Blu-ray disk, DVD ili CD u ladicu za disk s naljepnicom okrenutom prema gore.
5. Pritisnite Otvori/Zatvori ponovo pritisnite dugme da biste zatvorili ležište diska. Uređaj će automatski započeti reprodukciju ili prikazati meni.
6. Koristite Igraj, Pauza, i Stani dugmad na daljinskom upravljaču za upravljanje reprodukcijom.

6.2 Reprodukcija USB medija

You can play photos, music, and videos stored on a USB device.

1. Umetnite USB uređaj u USB port na prednjoj ploči.
2. Navigate to the USB media section on the player's home menu using the remote control.
3. Odaberite željeno file type (photos, music, or videos) and then select the file želite da igrate.

6.3 Internet Features

Access a wide variety of online content through BRAVIA Internet Video, including Netflix, YouTube, Amazon Video on Demand, and Pandora.

• Ensure the player is connected to your home network (see Section 5.3).
• From the player's home menu, select the desired internet service application.
• Follow the on-screen instructions to log in or register for the service.

6.4 DLNA Wireless Streaming

Stream photos, videos, and music wirelessly from compatible DLNA-enabled devices on your home network.

1. Ensure your DLNA server (e.g., a computer with Windows Media Player 11) is set up and sharing media.
2. From the player's home menu, select the DLNA option to browse and play media from your network.

6.5 Quick Start/Load Function

The Quick Start/Load function allows for faster startup times and quicker disc loading. This feature can be enabled or disabled in the player's settings menu.

7. Postavke

Access the player's settings menu to customize various options.

1. Pritisnite HOME button on your remote control to access the main menu.
2. Idite do Setup ikonicu i pritisnite ENTER.

7.1 Video postavke

• rezolucija: Adjust the video output resolution (e.g., 1080p, Auto).
• Povećanje DVD-a: Enable or disable DVD upscaling to near HD quality.
• Kvalitet slike: Fine-tune brightness, contrast, color, etc.

7.2 Audio postavke

• Digitalni audio izlaz: Select output format (e.g., Bitstream, PCM) for optical/coaxial connections.
• HDMI audio izlaz: Configure audio output via HDMI.
• Dolby Digital/DTS: Enable or disable these audio formats.

7.3 Mrežne postavke

• Easy Network Setting: Guides you through setting up your network connection.
• Ažuriranje firmvera: Check for and install the latest software updates for your player. Regular updates ensure optimal performance and compatibility.

8. Održavanje

• Čišćenje plejera: Za čišćenje vanjske strane uređaja koristite meku, suhu krpu. Ne koristite abrazivna sredstva za čišćenje ili rastvarače.
• Čišćenje diskova: Nježno obrišite diskove od središta prema van mekom krpom koja ne ostavlja dlačice.
• Skladištenje: Store the player in a cool, dry place away from direct sunlight and heat sources.

9. Otkrivanje problema

Ako naiđete na probleme s vašim playerom, pogledajte sljedeća uobičajena rješenja:

• Nema napajanja: Ensure the power cord is securely connected to both the player and the wall outlet.
• Nema slike/zvuka: Verify that the HDMI or AV cables are correctly connected and that your TV is set to the correct input source.
• Disk se ne reproducira: Check if the disc is inserted correctly and is clean and free of scratches. Ensure the disc format is supported by the player.
• Problemi s mrežnom vezom: Check your router and network settings. Ensure the Ethernet cable is connected or the Wi-Fi adapter is properly configured.
• Daljinski upravljač ne radi: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the player.

10. Specifikacije

11. Garancija i podrška

Za informacije o garanciji, molimo pogledajte dokumentaciju koja je priložena uz vašu kupovinu ili posjetite službenu Sonyjevu podršku website. For technical assistance, troubleshooting, or service inquiries, please contact Sony customer support.
