Digitus DA-70156 USB 2.0 na RS232 serijski adapter - uputstvo za upotrebu

1. Uvod

This manual provides comprehensive instructions for the Digitus DA-70156 USB 2.0 to RS232 Serial Adapter. This device is designed to facilitate the connection of serial devices, such as weather stations, sensors, motor controls, set-top boxes, and gaming consoles, to your computer via a standard USB port. It ensures reliable data transfer and broad compatibility across various operating systems.

2. Sigurnosne informacije

• Keep the adapter away from water and moisture.
• Avoid exposing the adapter to extreme temperatures.
• Ne pokušavajte sami rastavljati ili popravljati uređaj. Za servis se obratite kvalifikovanom osoblju.
• Osigurajte odgovarajuću ventilaciju tokom upotrebe kako biste spriječili pregrijavanje.

3. Sadržaj paketa

Provjerite da li se sve stavke nalaze u vašem paketu:

• Digitus DA-70156 USB 2.0 to RS232 Serial Adapter
• USB Extension Cable (80cm)
• Product Support CD-ROM (for drivers, if needed)

4. Proizvod je gotovview

4.1. Komponente

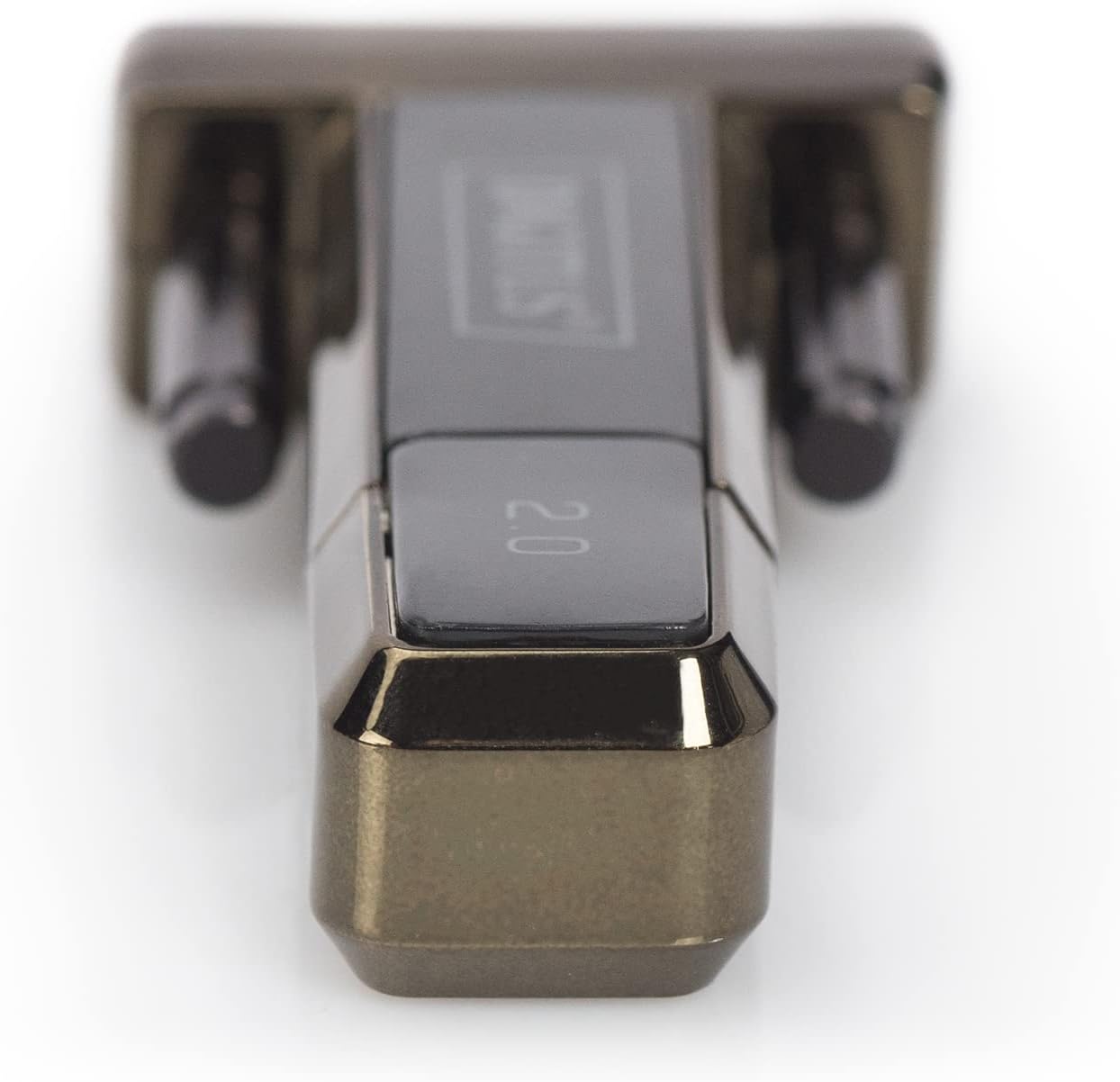

The Digitus DA-70156 adapter features a USB-A connector on one end and a DB9 male serial connector on the other.

4.2. Ključne karakteristike

• German Technical Design Serial Adapter.
• Supports Windows 10, 8, 7, Vista, XP, Mac OS X, and Linux operating systems.
• Integrated FTDI / FT232RL Chipset for reliable performance.
• Supports remote wake-up and power management functions.
• Compliant with USB 2.0 standards.
• Data transfer rates of 1Mbps and more.

5. Podešavanje

5.1. Instalacija drajvera

The Digitus DA-70156 adapter utilizes the FTDI / FT232RL chipset. For most modern operating systems (Windows 8/8.1/10/11), drivers are often installed automatically when the device is connected to an active internet connection. For older Windows versions (7, Vista, XP), Mac OS X, or Linux, manual driver installation may be required.

1. Automatic Installation (Windows 8/8.1/10/11): Connect the adapter to an available USB port on your computer. If connected to the internet, the operating system should automatically detect and install the necessary drivers.
2. Ručna instalacija: If automatic installation fails or for other operating systems, insert the provided Product Support CD-ROM. Follow the on-screen instructions to install the FTDI drivers. Alternatively, the latest drivers can be downloaded from the official FTDI website.
3. After installation, verify the adapter is recognized in your device manager (Windows) or system information (Mac/Linux) as a USB Serial Port.

5.2. Fizička veza

1. Connect the USB-A end of the Digitus DA-70156 adapter to an available USB 2.0 port on your computer. You may use the included USB extension cable for added reach.
2. Connect your RS232 serial device (e.g., modem, printer, industrial equipment) to the DB9 male serial connector on the adapter. Ensure the connection is secure by tightening the screws on the DB9 connector.

6. Uputstvo za upotrebu

6.1. Connecting Serial Devices

Once the drivers are installed and the adapter is physically connected, your computer will recognize the serial port. You can then use software applications designed for serial communication to interact with your connected devices. Examples of compatible devices include:

• Meteorološke stanice
• Senzori
• Kontrole motora
• Set-top box
• Igraće konzole
• Modemi
• Štampači

6.2. Prijenos podataka

The adapter supports data transfer rates of 1Mbps and higher, ensuring efficient communication with your serial devices. Configure your serial communication software with the appropriate baud rate, data bits, parity, and stop bits to match your connected device's requirements.

7. Otkrivanje problema

• Uređaj nije prepoznat: Ensure the adapter is firmly connected to a working USB port. Reinstall drivers from the CD-ROM or the FTDI website. Try a different USB port or computer.
• Greške u komunikaciji: Verify that the serial communication settings (baud rate, data bits, parity, stop bits) in your software match those of your connected serial device. Check the physical connection of the DB9 cable.
• Spor prijenos podataka: Ensure you are using a USB 2.0 compatible port for optimal speed. Check for conflicting drivers or background applications consuming system resources.
• Nema napajanja: The adapter draws power directly from the USB port. Ensure the USB port is functional.

8. Održavanje

• Clean the adapter and cables with a soft, dry cloth. Avoid liquid cleaners.
• Adapter čuvajte na hladnom i suhom mjestu kada ga ne koristite.
• Izbjegavajte pretjerano savijanje ili uvijanje kablova kako biste spriječili unutrašnja oštećenja.

9. Specifikacije

10. Garancija i podrška

This Digitus product is covered by the manufacturer's standard warranty. Please refer to the warranty information provided with your purchase or contact Digitus customer support for details. For technical assistance, consult the Product Support CD-ROM or visit the official Digitus website for updated drivers and support resources.
