BONECO Cool Mist Ultrasonic Humidifier 7145 Instruction Manual

1. Uvod

This compact BONECO Cool Mist Ultrasonic Humidifier 7145 provides optimal humidification for both office and home environments. It features an integrated hygrostat for automatic humidity adjustment and variable control for precise mist output. The unit includes a practical reminder indicator for water refilling, a double jet nozzle for two-directional mist distribution, and essential water maintenance accessories.

2. Sigurnosna uputstva

• Always unplug the humidifier from the power outlet before cleaning, refilling, or performing any maintenance.
• Place the humidifier on a firm, flat, and water-resistant surface at least 6 inches (15 cm) away from walls and appliances.
• Ne uranjajte bazu ovlaživača zraka u vodu ili druge tekućine.
• Ovlaživač zraka držite van dohvata djece i kućnih ljubimaca.
• Pazite da kabel za napajanje nije oštećen ili postavljen ispod teških predmeta.
• Use only clean, cool tap water in the water tank.

3. Sadržaj paketa

Your BONECO Cool Mist Ultrasonic Humidifier 7145 package includes the following items:

• BONECO Cool Mist Ultrasonic Humidifier 7145 Unit
• Practical reminder indicator
• Double jet nozzle
• Hidro ćelija
• Kartuša za demineralizaciju
• EZCal cleaning solution

4. Podešavanje

1. Raspakujte ovlaživač zraka: Pažljivo uklonite sav materijal za pakovanje sa ovlaživača zraka.
2. Pozicioniranje jedinice: Place the humidifier on a stable, level surface in the desired room. Ensure it is not directly against a wall or furniture to allow for optimal mist distribution.
3. Napunite rezervoar za vodu:

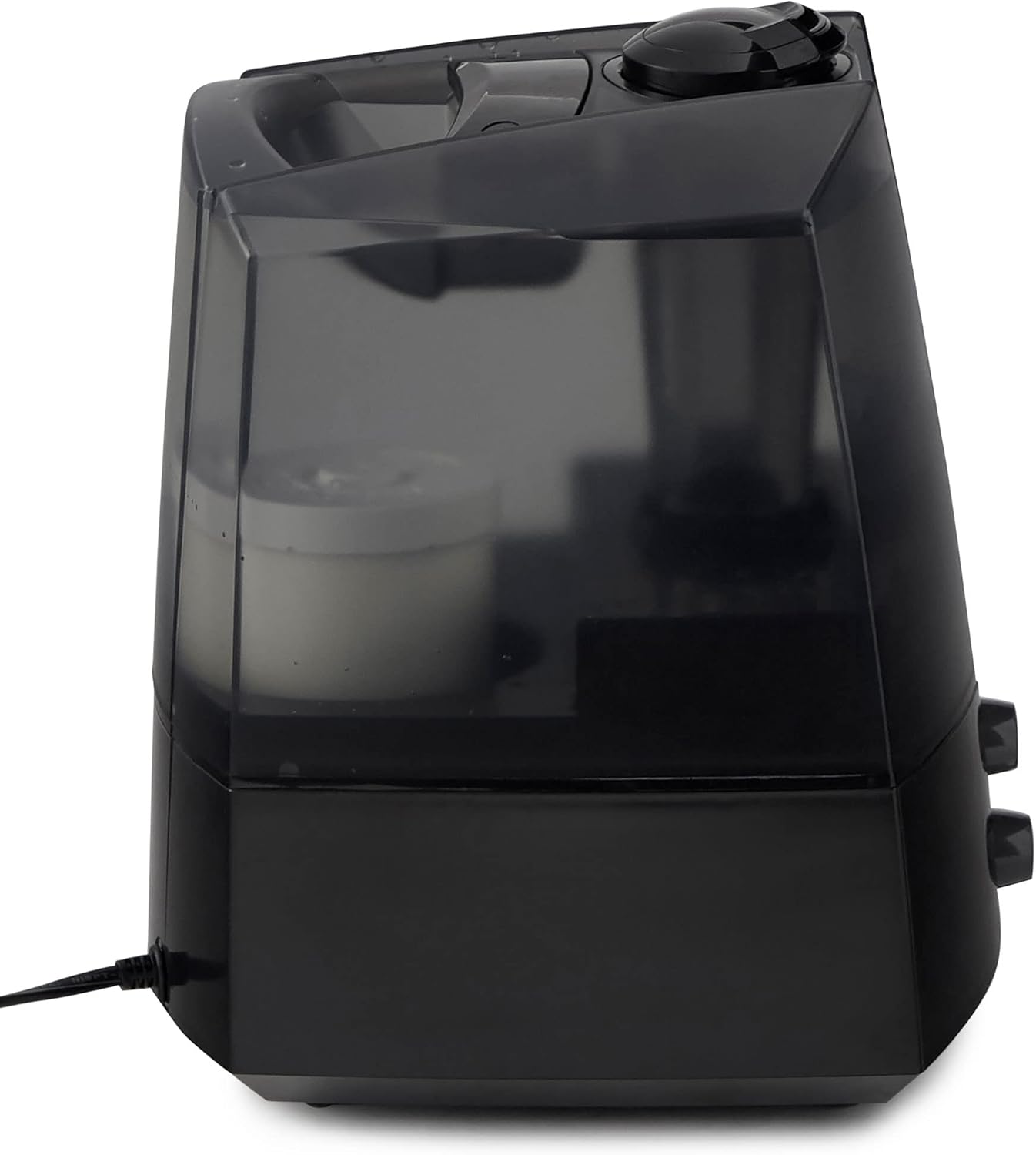

   Side view of the BONECO 7145 humidifier, highlighting the transparent water tank for easy level monitoring.

   Lift the top section of the humidifier to access the water tank. Fill the tank with clean, cool tap water. The unit has a 2.5-gallon capacity. Do not overfill. Ensure the Hydro Cell and Demineralization cartridge are correctly installed in the tank before refilling.

4. Replace Top Section: Carefully place the top section back onto the humidifier, ensuring it is securely seated.
5. Povežite se na napajanje: Uključite kabl za napajanje u odgovarajuću električnu utičnicu.

5. Uputstvo za upotrebu

1. Uključivanje/isključivanje:

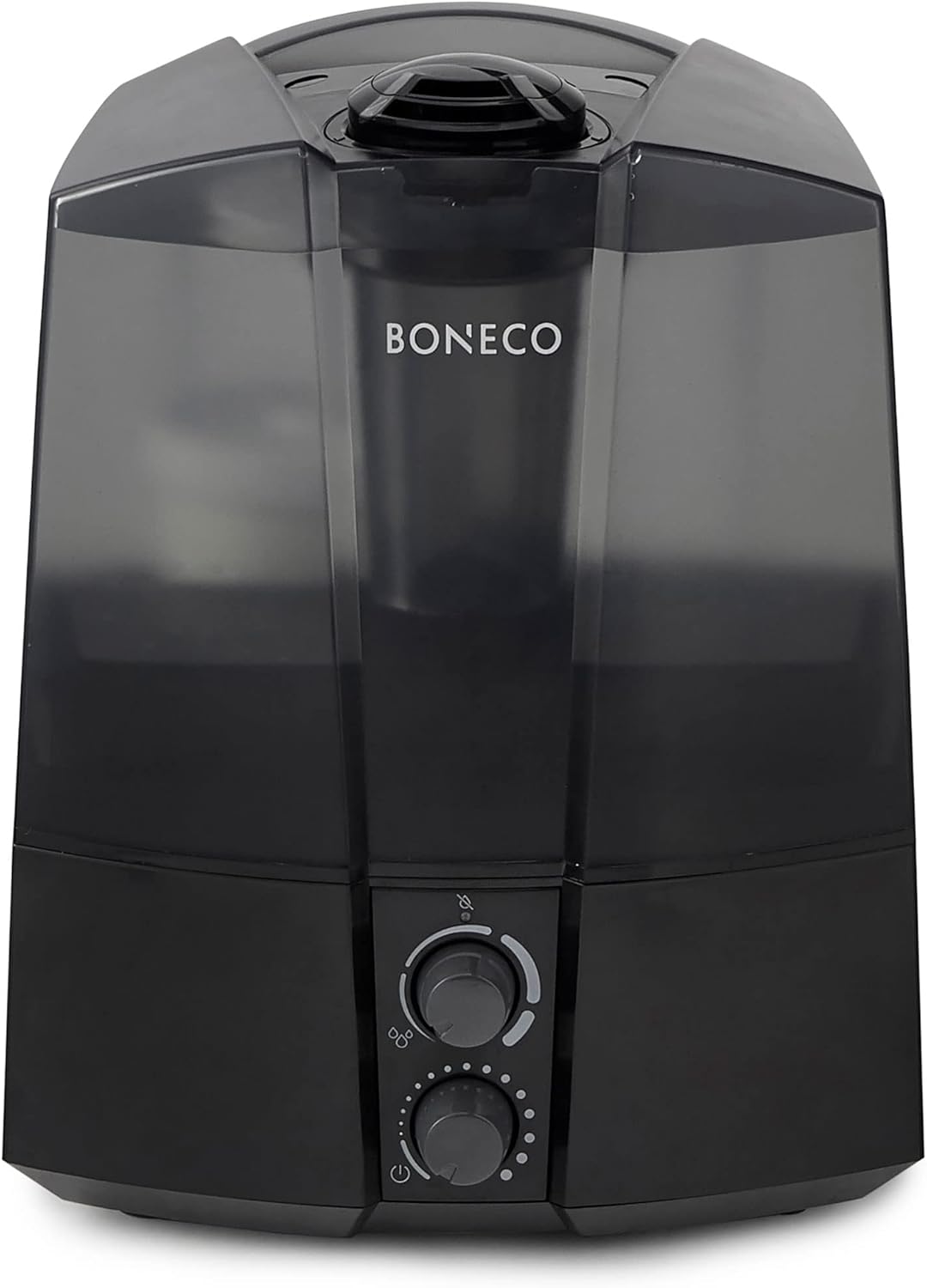

   Front view of the BONECO 7145 humidifier, displaying the control dials for power and mist adjustment.

   Turn the humidifier on or off using the designated control dial on the front of the unit.

2. Podesite izlaz magle: Use the variable control dial to adjust the mist output to your desired level. The humidifier can produce up to 2.5 gallons of mist per 24 hours.
3. Dvostruka mlaznica:


   Top view of the BONECO 7145 humidifier, illustrating the double jet nozzle emitting cool mist.

   The double jet nozzle allows you to direct the mist in two different directions. Rotate the nozzle manually to achieve the desired mist flow.

4. Integrated Hygrostat: The integrated hygrostat automatically monitors the room's humidity and adjusts the mist output to maintain your preset humidity level. The unit will automatically shut off when the target humidity is reached and resume operation if the humidity drops below the set point.
5. Automatsko isključivanje: The humidifier will automatically shut off when the water tank is empty. A practical reminder indicator will illuminate to signal that the tank needs refilling.

6. Održavanje

Regular maintenance ensures the longevity and efficient operation of your BONECO Cool Mist Ultrasonic Humidifier 7145.

• Dnevno: Refill the water tank with fresh, cool water.
• sedmično: Clean the water tank and base thoroughly. Use the EZCal cleaning solution as directed to descale the unit and prevent mineral buildup.
• Hidro ćelija: Replace the Hydro Cell every 1-2 months, depending on water quality and usage.
• Uložak za demineralizaciju: Replace the Demineralization cartridge every 2-3 months, or as indicated by reduced mist output or white dust accumulation.
• Generalno čišćenje: Wipe down the exterior of the humidifier with a soft, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje.

7. Otkrivanje problema

• Humidifier not turning on: Ensure the power cord is securely plugged into a working outlet. Check if the water tank is properly seated and filled.
• No mist output: Verify that the water tank is not empty. The automatic shut-off feature activates when water levels are low. Refill the tank if necessary.
• Reduced mist output or white dust: This may indicate that the Demineralization cartridge needs replacement or the unit requires descaling with EZCal.
• Neobična buka: Ensure the humidifier is placed on a stable, flat surface. Check for any obstructions in the water tank or mist outlet.
• Za detaljnije rješavanje problema, molimo pogledajte kompletan korisnički priručnik.

8. Specifikacije

9. Garancija i podrška

The BONECO Cool Mist Ultrasonic Humidifier 7145 comes with a 3 godine garancije.

For further assistance, detailed troubleshooting, or to inquire about replacement parts, please refer to the complete user manual provided with your product or contact BONECO customer support directly.
