Goobay 30003 LED transformator 30W/12V Uputstvo za upotrebu

1. Uvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Goobay 30003 LED Transformer. This device is designed to convert AC power to 12V DC, suitable for powering LED lighting systems with a total load of up to 30 watts.

Pažljivo pročitajte ove upute prije upotrebe i sačuvajte ih za buduću upotrebu.

2. Sigurnosna uputstva

• električna sigurnost: Installation and connection must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations.
• Isključivanje struje: Always disconnect the power supply before performing any installation, maintenance, or troubleshooting.
• Nosivost: Do not exceed the maximum load of 30 watts. Overloading can damage the transformer and connected LEDs, and poses a fire risk.
• ventilacija: Ensure adequate ventilation around the transformer to prevent overheating. Do not cover the unit.
• Okruženje: This transformer is designed for indoor use. Avoid exposure to moisture, direct sunlight, and extreme temperatures.
• Klasa zaštite II: The transformer features safe electronic separation as per protection class II, meaning it has reinforced insulation and does not require a protective earth connection.
• Furniture Installation: This unit is approved for installation in furniture, provided proper ventilation and safety clearances are maintained.

3. Proizvod je gotovview

The Goobay 30003 LED Transformer is a compact and efficient power supply for 12V DC LED applications. Key features include:

• DC current source for LEDs with electronic ballast unit.
• Flat design for space-saving installation.
• Approved for installation in furniture.
• Safe electronic separation as per protection class II.
• Konstantni izlaz voltage for parallel circuits.

Slika 1: Goobay 30003 LED Transformer. This image displays the top view of the white rectangular transformer, showing the input terminals (PRI: 200-240V~) on the left and output terminals (SEC: 12V===) on the right, with clear labeling for N, L, + and - connections.

4. Postavljanje i instalacija

Slijedite ove korake za pravilnu instalaciju:

1. Isključivanje struje: Ensure the main power supply is switched off before beginning any installation work.
2. Montaža: Select a suitable location for the transformer, ensuring it is dry, well-ventilated, and within the specified operating temperature range. The flat design allows for space-saving installation, including within furniture.
3. Input Connection (PRI): Connect the AC mains supply (200-240V~, 50/60 Hz) to the input terminals labeled 'N' (Neutral) and 'L' (Live) on the transformer. Use appropriate wiring and ensure secure connections.
4. Output Connection (SEC): Connect your 12V DC LED lighting system to the output terminals labeled '+' and '-' on the transformer. Ensure correct polarity (+ to + and - to -) for your LED devices. The transformer provides a constant 12V DC output suitable for parallel circuits.
5. Provjera opterećenja: Provjerite da li je ukupna vattage of all connected LED devices does not exceed 30 watts.
6. Sigurne veze: Double-check all wiring connections to ensure they are tight and correctly insulated.
7. Uključeno: Nakon što su svi priključci sigurni i provjereni, vratite napajanje u strujno kolo.

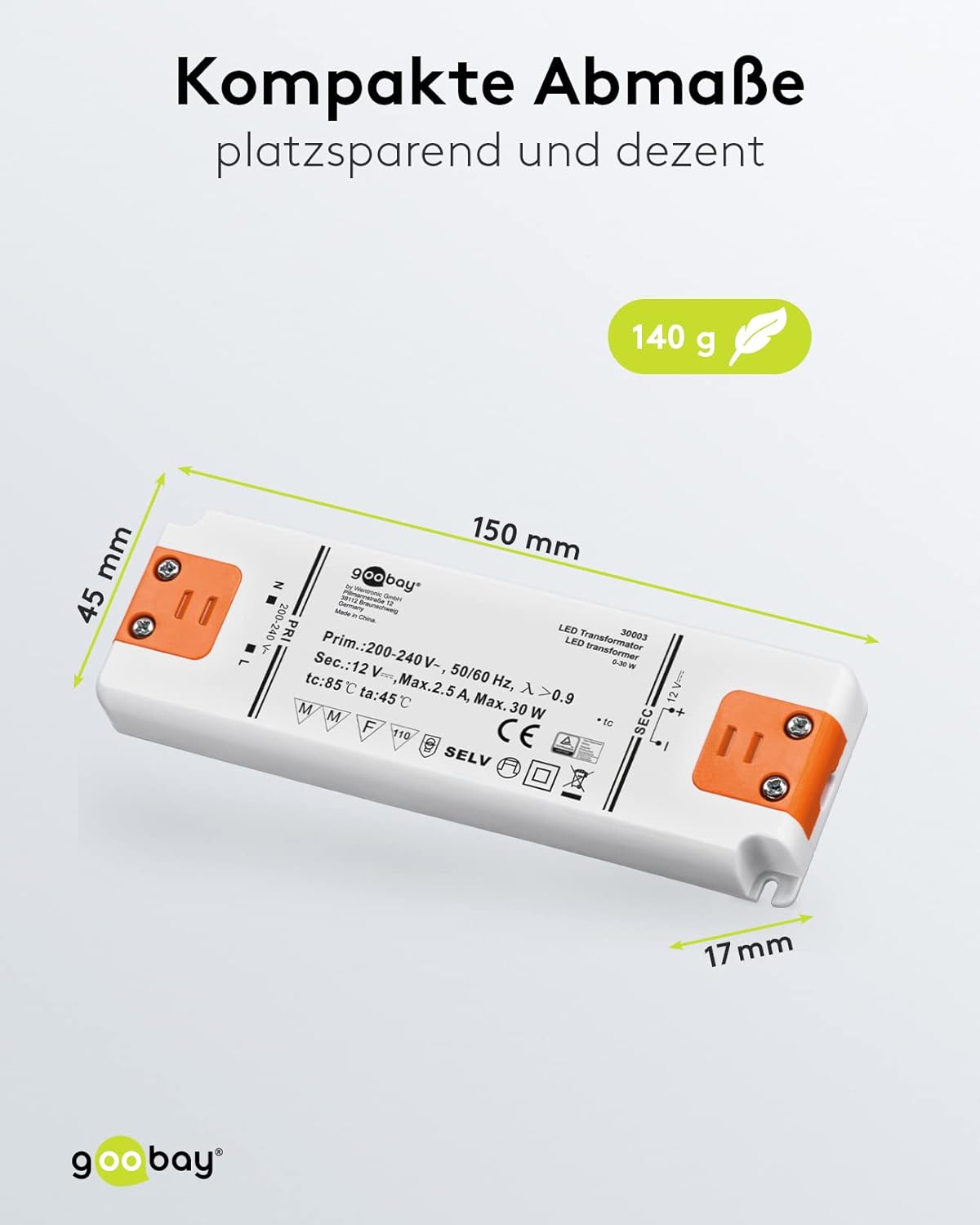

Slika 2: Goobay 30003 LED Transformer with dimensions. This image shows the transformer with its length (150 mm), width (45 mm), and height (17 mm) clearly indicated, alongside its weight (140 g).

5. Uputstvo za upotrebu

The Goobay 30003 LED Transformer operates automatically once correctly installed and powered. It provides a stable 12V DC output for your connected LED devices.

• Ensure the total load of connected LEDs does not exceed 30W.
• The transformer is designed for continuous operation within its specified parameters.

6. Održavanje

The Goobay 30003 LED Transformer requires minimal maintenance.

• čišćenje: Disconnect power before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• inspekcija: Periodically check the wiring for any signs of damage or loose connections.
• ventilacija: Pazite da otvori za ventilaciju nisu blokirani.

7. Otkrivanje problema

If you encounter issues with your transformer, refer to the following table:

If the problem persists after following these steps, disconnect the power and contact customer support or a qualified electrician.

8. Specifikacije

• Broj modela: 30003
• Brand: Goobay
• Ulazni voltage (Primary): 200-240V~, 50/60 Hz
• Output Voltage (Secondary): 12V DC
• Maksimalna izlazna struja: 2.5 Amps
• Maksimalno ukupno opterećenje: 30 Watts
• Izvor napajanja: Electricity, Male Plug
• Klasa zaštite: II (Safe electronic separation)
• Certifikacija: CE
• Vrsta montaže: Bodenmontage (Floor Mounting - typically refers to surface mounting)
• Dimenzije proizvoda: 1.77 x 0.67 x 5.91 inča (45 x 17 x 150 mm)
• Težina: Otprilike 5.59 unci (140 g)
• Operating Temperature (ta): 45 °C
• Case Temperature (tc): 85 °C

9. Garancija i podrška

Za informacije o garanciji ili tehničku podršku, molimo pogledajte dokumentaciju koja je priložena uz kupovinu ili se obratite prodavaču. Sačuvajte dokaz o kupovini za potrebe reklamacije.
