1. Uvod

This manual provides essential information for the safe and efficient use of your new Smeg SE70SGH-5 integrated gas hob. Please read these instructions carefully before installation and use, and keep them for future reference. Proper installation, operation, and maintenance are crucial for optimal performance and safety.

2. Sigurnosne informacije

Your safety and the safety of others are paramount. This appliance is designed for domestic use only. Incorrect installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read all instructions thoroughly before using this appliance.

• Sigurnost plina: Ensure the appliance is installed by a qualified technician in accordance with local regulations and standards. Verify that the gas supply type matches the appliance specifications.
• električna sigurnost: If an electrical connection is required for ignition, ensure it is correctly earthed and installed by a qualified electrician.
• ventilacija: Adequate ventilation must be provided in the room where the appliance is installed to prevent the build-up of unburnt gases.
• Djeca i ugrožene osobe: Ovaj uređaj nije namijenjen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako im je dat nadzor ili upute o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.
• Vruće površine: The hob and pan supports become very hot during use. Always use oven mitts or appropriate protection when handling hot items.
• Zapaljivi materijali: Do not store or use flammable materials near the hob.
• čišćenje: Uvijek isključite uređaj i ostavite ga da se ohladi prije čišćenja.

3. Proizvod je gotovview

The Smeg SE70SGH-5 is an integrated gas hob featuring five burners, designed for efficient and versatile cooking. Its stainless steel surface ensures durability and ease of cleaning.

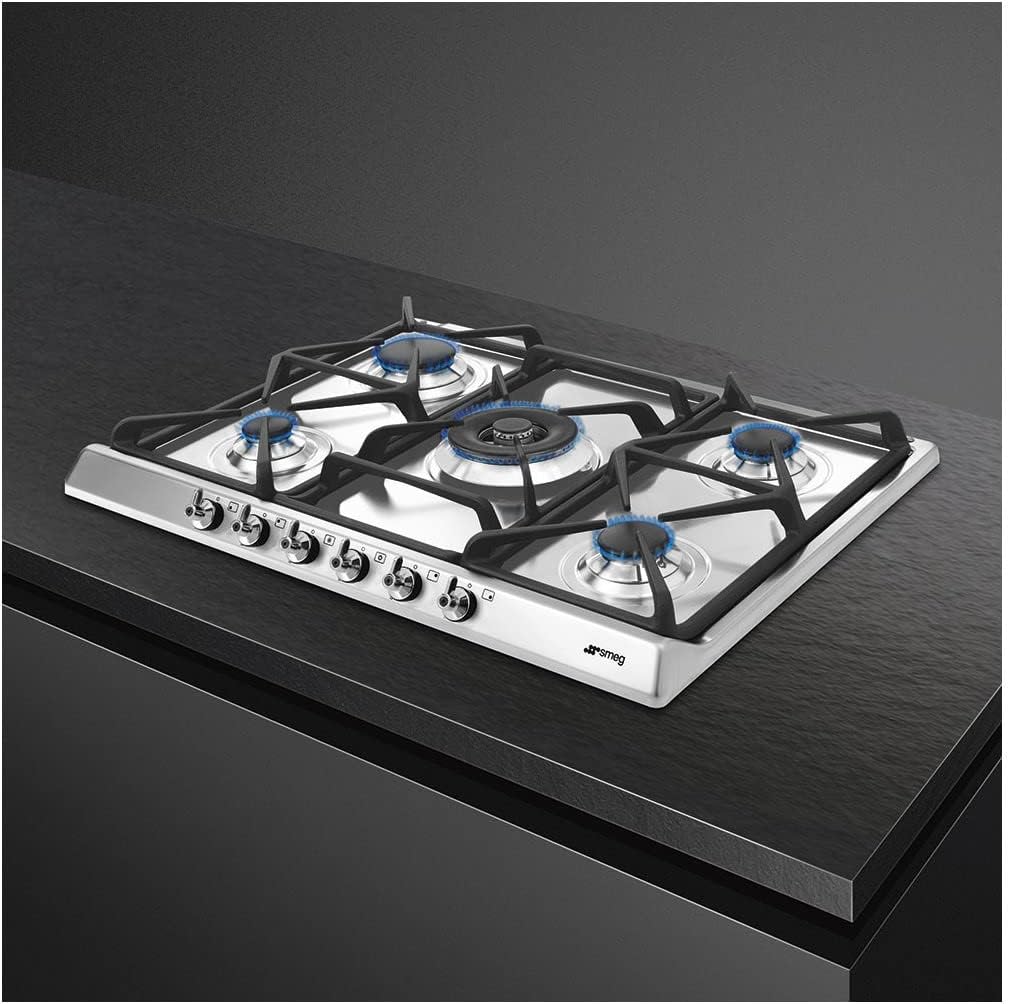

Slika 1: Odozgo view of the Smeg SE70SGH-5 gas hob. This image displays the five gas burners, including a central wok burner, and the corresponding control knobs located at the front of the unit. The robust cast-iron pan supports are also visible.

Komponente:

• Gorionici: Five gas burners of varying sizes, including a central high-power wok burner.
• Nosači za tavu: Durable cast-iron pan supports for stable placement of cookware.
• Kontrolna dugmad: Individual control knobs for each burner, located at the front for easy access.
• Sistem paljenja: Integrated automatic ignition for convenient burner lighting.
• Uređaj za kvar na plamenu: A safety mechanism that automatically cuts off the gas supply if the flame accidentally extinguishes.

4. Postavljanje i instalacija

Installation of this gas hob must be carried out by a qualified and registered installer in accordance with all relevant local and national regulations and standards.

4.1 Raspakivanje

• Pažljivo izvadite ploču za kuhanje iz ambalaže.
• Check for any damage during transit. If damage is found, do not install the appliance and contact your supplier.
• Retain packaging materials for potential future transport or return.

4.2 Cut-out Dimensions

Ensure the countertop cut-out dimensions are precise for a secure and flush installation.

Slika 2: Installation diagram illustrating the required cut-out dimensions for the Smeg SE70SGH-5 gas hob. The diagram specifies a width of 555-560mm and a depth of 478-482mm for the opening, with a minimum clearance of 50mm from the rear edge.

• Dimenzije ploče za kuvanje: 68.5 cm (širina) x 50 cm (dubina) x 3.2 cm (visina).
• Cut-out Width: 555-560 mm.
• Cut-out Depth: 478-482 mm.
• Minimalni razmak: A minimum of 50 mm from the rear edge of the cut-out to the wall.

4.3 Priključak plina

The gas connection must be performed by a qualified gas fitter. Ensure the gas supply pressure and type (Natural Gas or Propane) are compatible with the appliance. A gas shut-off valve must be installed in an accessible location near the hob.

4.4 Električni priključak

If your model includes an electric ignition system, the electrical connection must be performed by a qualified electrician. Ensure the voltage and frequency match the appliance's requirements and that the appliance is properly earthed.

4.5 Ventilacija

Proper ventilation is essential. Ensure the kitchen is adequately ventilated to disperse heat and combustion products. This may involve an extractor hood or an open window.

5. Uputstvo za upotrebu

Familiarize yourself with the control knobs and burner layout before operating the hob.

Slika 3: The Smeg SE70SGH-5 gas hob in operation, showcasing its integrated design within a kitchen countertop. The image highlights the active flames on the burners, demonstrating the appliance during use.

5.1 Paljenje plamenika

1. Place your cookware centrally on the pan support over the desired burner.
2. Push down the corresponding control knob and turn it counter-clockwise to the maximum flame setting (large flame symbol).
3. Hold the knob down for a few seconds to allow the flame failure device to activate. You should hear a clicking sound as the igniter sparks.
4. Once the flame is lit, release the knob. If the flame goes out, repeat the process, holding the knob down for a slightly longer period.

5.2 Podešavanje plamena

• To increase the flame, turn the knob further counter-clockwise towards the large flame symbol.
• To decrease the flame, turn the knob clockwise towards the small flame symbol.
• To turn off the burner, turn the knob clockwise until it clicks into the 'off' position (dot symbol).

5.3 Using Cookware

• Use pots and pans with flat bases that are appropriate for the size of the burner.
• Ensure the flame does not extend beyond the base of the cookware to prevent energy waste and damage to handles.
• The central wok burner is designed for larger pans and high-heat cooking.

6. Održavanje

Redovno čišćenje i održavanje osigurat će dugotrajnost i optimalne performanse vaše ploče za kuhanje.

6.1 Čišćenje površine ploče za kuhanje

• Uvijek se uvjerite da je ploča za kuhanje hladna prije čišćenja.
• Wipe the stainless steel surface with a soft cloth and a mild detergent solution.
• For stubborn stains, use a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
• Izbjegavajte abrazivna sredstva za čišćenje, abrazivne spužvice ili jake hemikalije jer mogu ogrebati ili oštetiti površinu.

6.2 Cleaning Burner Components and Pan Supports

• Remove the pan supports, burner caps, and burner crowns when cool.
• Wash these components in warm soapy water. For stubborn food residues, they can be soaked.
• Ensure all components are thoroughly dry before reassembling them. Moisture can affect ignition.
• Periodically check that the burner holes are clear of debris. Use a small brush or needle if necessary.

7. Otkrivanje problema

Prije kontaktiranja servisa, molimo pogledajte sljedeće uobičajene probleme i rješenja:

If you are unable to resolve an issue using the troubleshooting guide, please contact a qualified service technician.

8. Specifikacije

Detailed technical specifications for the Smeg SE70SGH-5 gas hob:

9. Garancija i podrška

For warranty information, please refer to the warranty card included with your product or contact your retailer. In case of technical issues or for spare parts, please contact Smeg customer service or an authorized service center. Always provide the model number (SE70SGH-5) when seeking support.
