1. Proizvod je gotovview
This manual provides essential information for the installation, operation, and maintenance of your Grothe Alarm Bell, model 4011459240752. This compact, white alarm bell is designed for reliable signaling in various applications, featuring an 8V operating tension and an audible output of 84 dB.

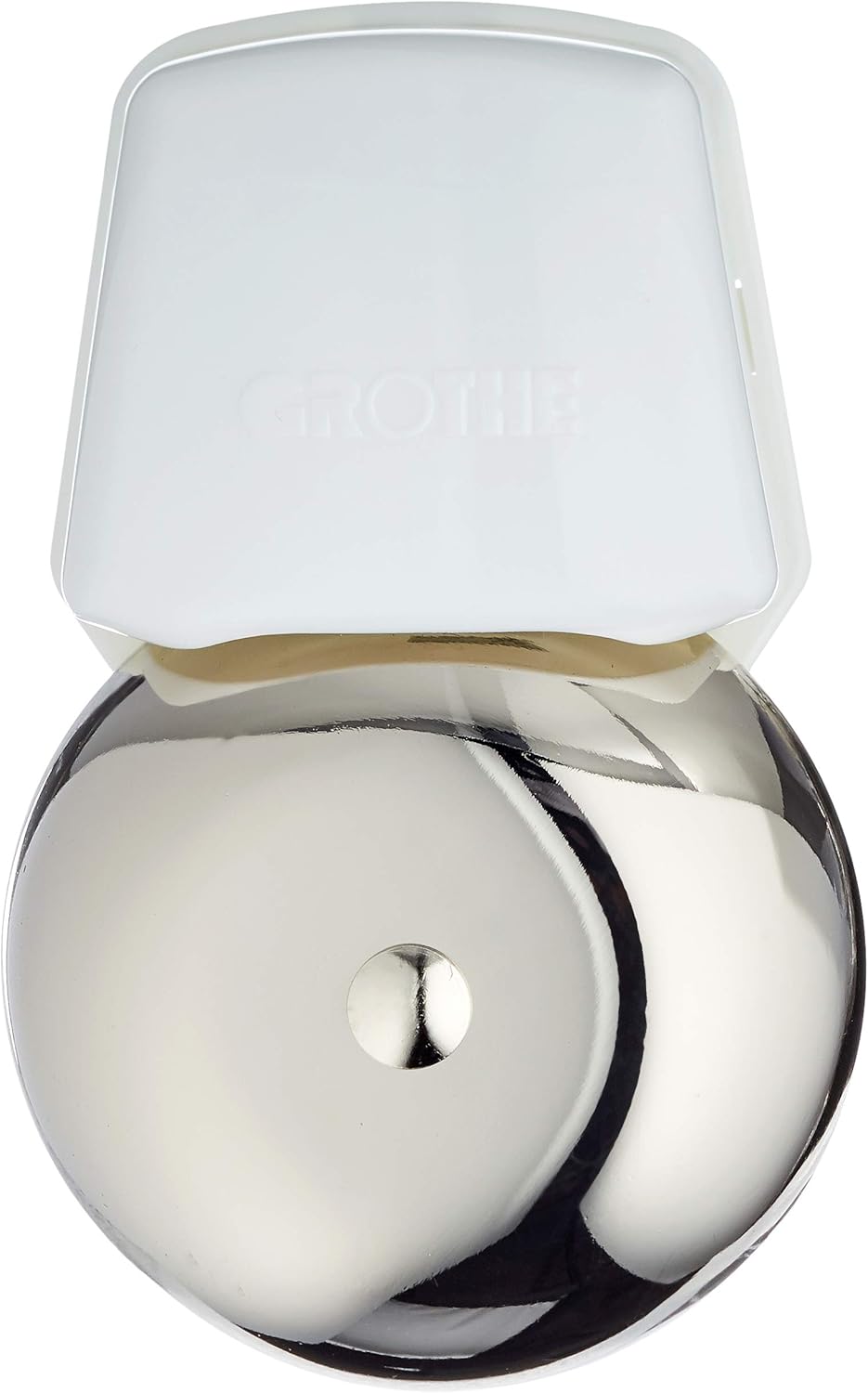

Slika 1.1: Prednja strana view of the Grothe Alarm Bell, showcasing its compact design and white casing with a metallic bell.
Ključne karakteristike:
- Izlaz zvuka: 84 dB for clear audibility.
- Operating Voltage: Designed for 8V systems.
- Boja: White casing for discreet integration.
- Dimenzije: Approximately 12 x 6 x 7 cm (4.72 x 2.36 x 2.76 inches).
2. Postavljanje i instalacija
Proper installation is crucial for the optimal performance and longevity of your alarm bell. Ensure all power is disconnected before beginning installation.
2.1. Components Overview
Slika 2.1: Interni view of the alarm bell, showing the electromagnetic coil and hammer mechanism responsible for producing sound.
2.2. Montiranje zvona
- Odaberite lokaciju: Select a suitable indoor location, away from direct moisture or extreme temperatures. The bell should be mounted on a flat, stable surface.
- Označite tačke bušenja: Use the bell's mounting holes as a template to mark the drilling points on the wall or surface.
- Izbušite rupe: Drill pilot holes at the marked points, suitable for your chosen mounting screws.
- Secure Bell: Attach the bell securely to the surface using appropriate screws. Ensure it is firmly fixed and does not wobble.

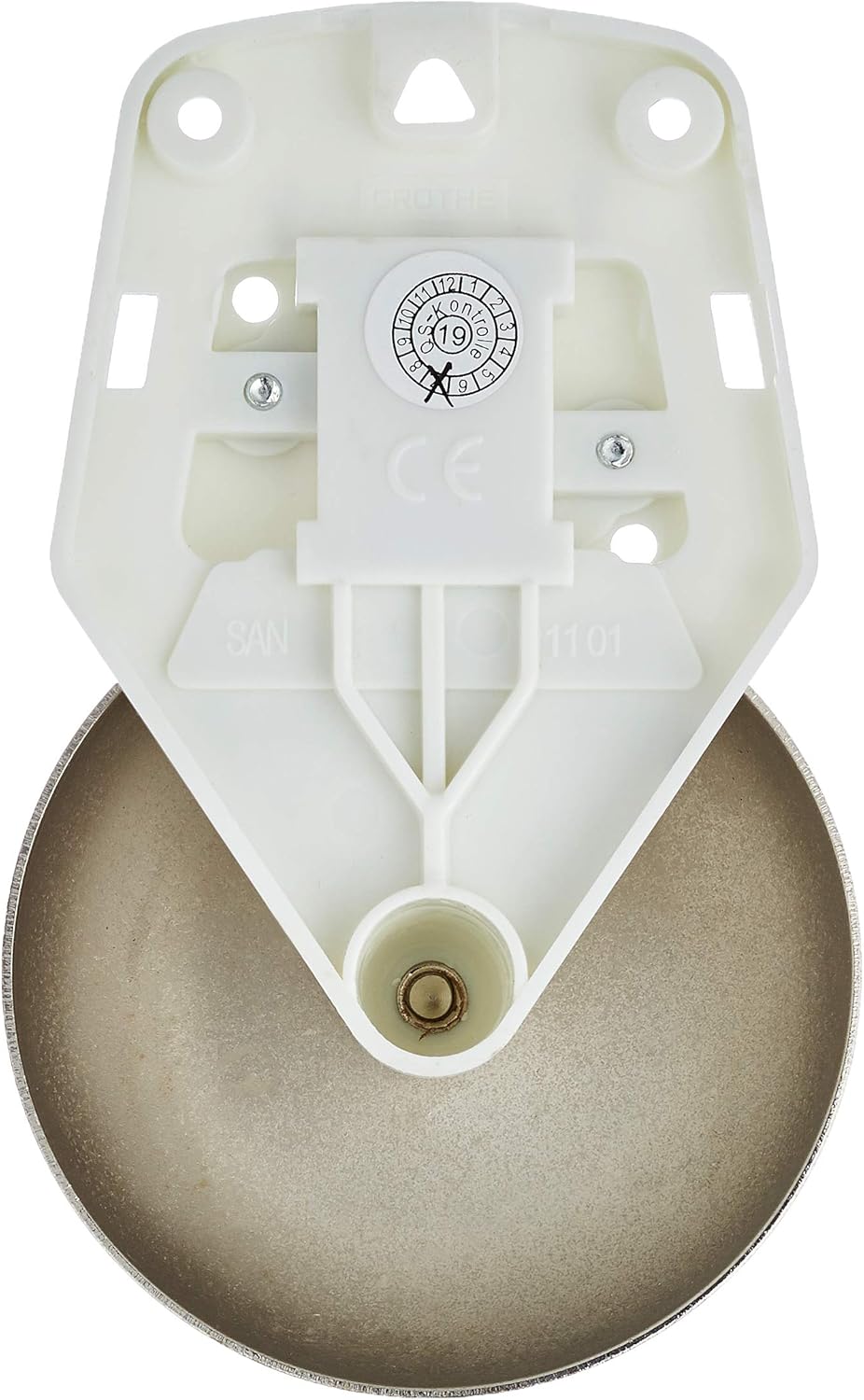

Slika 2.2: Pozadi view of the alarm bell, highlighting the mounting points and internal structure for secure installation.
2.3. Električni priključak
This alarm bell operates on an 8V electrical supply. Connect the bell to your existing 8V doorbell or alarm circuit. Consult a qualified electrician if you are unsure about wiring procedures.
- Ensure the power supply is disconnected before making any electrical connections.
- Connect the two wires from your 8V circuit to the terminals on the bell. Polarity is typically not critical for AC bells, but follow any specific markings if present.
- Secure all connections to prevent loose wiring.
- Once connections are complete, restore power and test the bell's operation.
3. Uputstvo za upotrebu
The Grothe Alarm Bell is designed for simple operation. Once properly installed and connected to an 8V power source, it will activate when the circuit is closed (e.g., by pressing a doorbell button or triggering an alarm system).
- When the circuit is closed, the internal electromagnetic coil is energized, causing a hammer to strike the metallic bell, producing a loud, clear sound.
- The bell will continue to sound as long as the circuit remains closed.
- The sound output is approximately 84 dB, providing effective audible signaling.
4. Održavanje
The Grothe Alarm Bell requires minimal maintenance to ensure long-term performance.
- čišćenje: Periodically wipe the exterior of the bell with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
- inspekcija: Occasionally check the mounting screws to ensure the bell remains securely attached. Inspect the wiring for any signs of wear or damage.
- Nema dijelova koje može servisirati korisnik: The internal mechanism is not designed for user servicing. Do not attempt to disassemble the bell beyond what is necessary for installation.
5. Otkrivanje problema
If you encounter issues with your alarm bell, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Bell does not sound. | No power supply; loose wiring; faulty button/switch; incorrect voltage. | Check power supply to the circuit. Verify all wiring connections are secure. Test the button or switch. Ensure the power supply is 8V. |
| Bell sounds weak or intermittent. | Nedovoljna voltage; loose connections; internal obstruction. | Confirm stable 8V power supply. Tighten all wiring connections. Check for any debris obstructing the hammer mechanism (with power off). |
| Bell sounds continuously. | Stuck button/switch; short circuit in wiring. | Inspect and free the button/switch. Disconnect power and check wiring for any short circuits. |
Ako problem i dalje postoji nakon što ste pokušali pronaći ova rješenja, obratite se korisničkoj podršci ili kvalificiranom električaru.
6. Specifikacije
Detailed technical specifications for the Grothe Alarm Bell 4011459240752:
| Feature | Specifikacija |
|---|---|
| Broj modela | 4011459240752 |
| Proizvođač | Grothe |
| Dimenzije proizvoda | 4.72 x 2.36 x 2.76 inča (12 x 6 x 7 cm) |
| Težina artikla | 2.82 unce |
| Operating Voltage | 8V |
| Nivo zvuka | 84 dB |
| Boja | Bijelo |
| Baterije su potrebne | br |

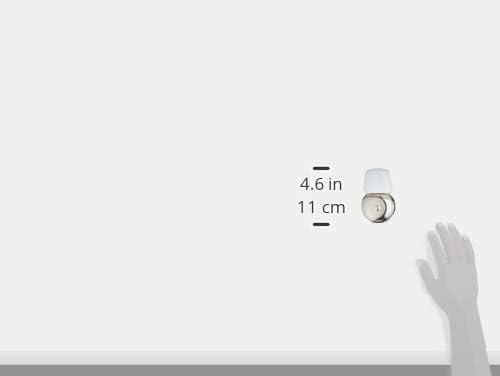

Figure 6.1: Dimensional diagram of the alarm bell, indicating its compact size.
7. Garancija i podrška
For information regarding warranty coverage, returns, or technical support, please contact the retailer where you purchased the Grothe Alarm Bell or refer to the official Grothe website for manufacturer contact details.
Molimo sačuvajte dokaz o kupovini za bilo kakve reklamacije u vezi s garancijom.
