NorthStar 37-Ton Horizontal/Vertical Log Splitter with 270cc Honda GX270 Engine Instruction Manual

1. Uvod

This manual provides essential information for the safe and efficient operation, maintenance, and assembly of your NorthStar 37-Ton Horizontal/Vertical Log Splitter. Please read and understand all instructions before operating the equipment. Proper use and maintenance will ensure optimal performance and longevity of your log splitter.

Slika 1: Sveukupno view of the NorthStar 37-Ton Horizontal/Vertical Log Splitter.

2. Sigurnosne informacije

Vaša sigurnost i sigurnost drugih su najvažnija. Uvijek slijedite ove sigurnosne smjernice:

• Read and understand the entire manual before operating the log splitter.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and steel-toed boots.
• Never operate the log splitter under the influence of alcohol or drugs.
• U svakom trenutku držite ruke i noge dalje od klina za cijepanje i klipa.
• Osigurajte da u radnom području nema prolaznika, djece i kućnih ljubimaca.
• Koristite cijepač drva na ravnoj, stabilnoj površini.
• Do not attempt to split logs larger than the recommended capacity.
• Always use two hands to operate the control lever to prevent accidental activation.
• Regularly inspect the log splitter for damaged or worn parts.
• Ovaj proizvod sadrži hemikalije za koje je država Kalifornija utvrdila da uzrokuju rak i urođene mane ili druge reproduktivne štete (upozorenje iz Prijedloga 65).

3. Postavljanje i montaža

Proper assembly is crucial for safe and effective operation. Refer to the detailed instructions below and consult the provided video for visual guidance.

3.1 Raspakivanje i identifikacija komponenti

Carefully unpack all components and verify against the packing list. Ensure all parts are present and undamaged. Place the shipping crate on a solid, flat surface and cut the shipping bands to disassemble the crate. Identify the main components:

• Beam with wedge and hydraulic cylinder
• Hidraulični rezervoar
• Engine and pump (Honda GX270)
• Wheels and fenders
• Log catchers (small and large)
• Tow bar and support leg
• High-pressure hoses and clear oil hose
• Hardverski komplet

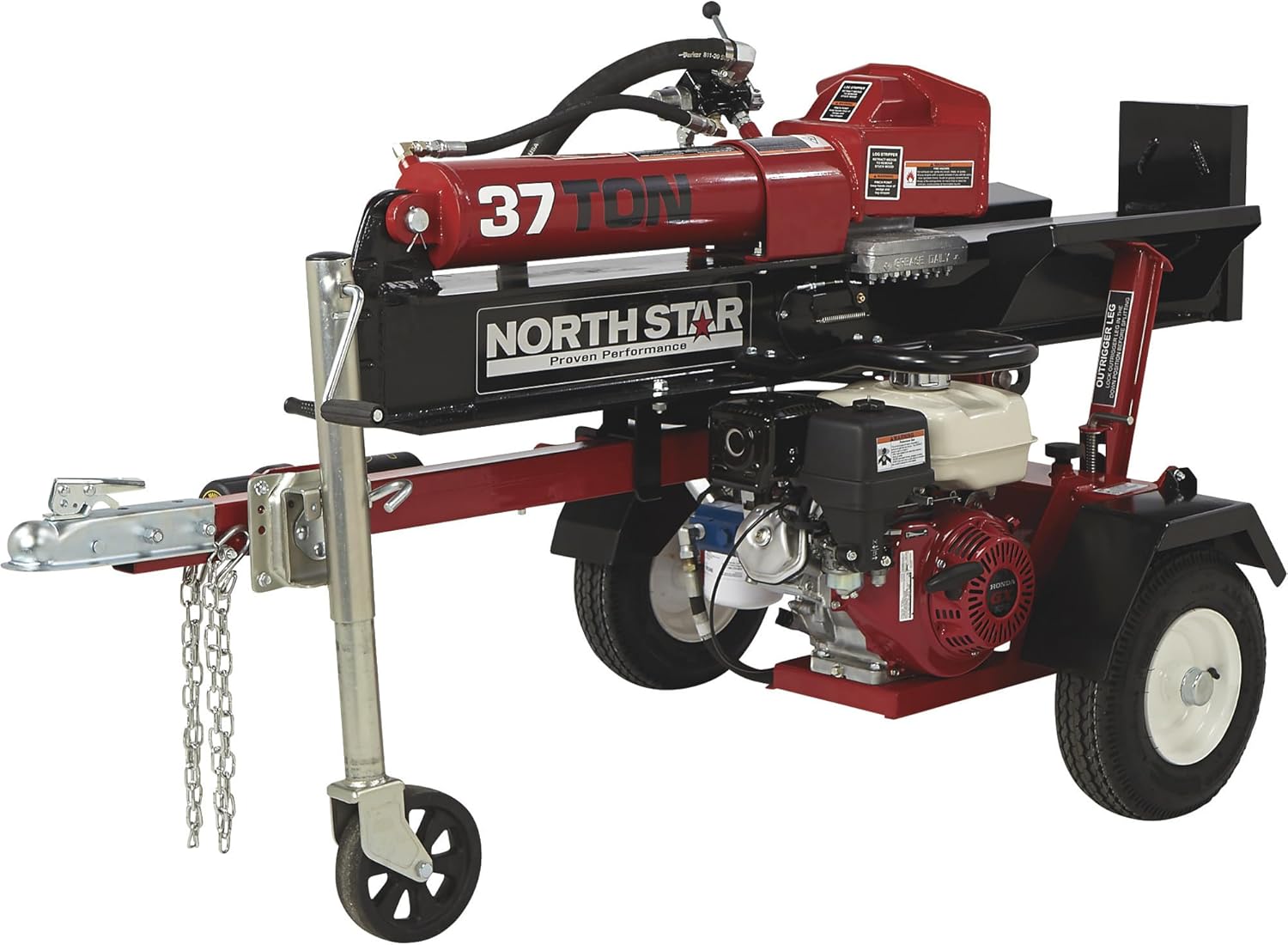

Figure 2: NorthStar Log Splitter in horizontal operating position.

3.2 Koraci montaže (Opći vodič)

Sljedeći koraci daju opći završetakview of the assembly process. Always refer to your specific product manual for detailed instructions and torque specifications. For visual assistance, a general log splitter assembly video is provided below.

1. Install the Oil Filter: Using a 27mm wrench, install the oil filter into the corresponding port of the hydraulic tank. Tighten to 60 N·m (a tolerance of ±5° is allowed).
2. Install the Tow Bar: Remove bolts, washers, and lock nuts from the hydraulic oil tank. Rotate the support leg to a vertical position and lock it with the lock pin, ensuring the tow bar is approximately level with the ground. Attach the tow bar to the bracket on top of the hydraulic tank using the appropriate bolts, nuts, and washers.
3. Ugradite kotače: Remove the cotter pin and castle nut from the axle of the hydraulic oil tank. Remove plastic shipping caps, ensuring the tire valve stem faces out, and slide the wheel onto the axle. If the wheel bearing is accidentally knocked out, reinstall it. Thread the castle nut onto the axle and tighten by hand. Adjust the castle nut to align the holes, making sure not to overtighten. Insert the cotter pin and bend with pliers. Install the axle cap using a soft mallet. Repeat for the other wheel.
4. Install the Beam: Stand the beam vertically on the foot plate (recommended by 2 people). Remove the hitch pin and R pin. Roll the tank into position so pivot holes on the tank and beam are aligned. Secure the beam with the hitch pin and R pin. Block the wheels to prevent rolling and pivot the beam into the horizontal position. Check that the lock pin aligns and inserts smoothly into the corresponding hole on the tow bar.
5. Install the Engine: Place the engine and gear pump assembly onto the engine mounting plate of the hydraulic oil tank. Secure it with appropriate hardware as specified in your manual. You will need a 13mm or 14mm wrench.
6. Install the Hoses: Remove the red shipping plug from the gear pump. Using provided hose clamps, connect one end of the clear oil hose to the pump inlet and the other end to the hydraulic tank. Ensure the two high-pressure hoses are connected to the correct positions. Remove the white shipping plug from the gear pump, install the O-ring into the outlet fitting, then attach the hydraulic hose assembly's A-end to the pump outlet connector, tightening to 50-60 N·m (using a 27mm or adjustable wrench). Screw the B-end nut of the return hydraulic hose into the oil filter inlet connector, tightening to 70-80 N·m (using a 27mm or adjustable wrench).
7. Install the Log Catchers: Attach the large log catcher to the engine side of the beam using a 16mm wrench and appropriate bolts, nuts, and washers. Attach the small log catcher on the opposite side with appropriate bolts, nuts, and washers. You will need a 17mm wrench and 6mm Allen wrench.
8. Install the Fenders: Attach the first fender to the side of the hydraulic oil tank using a 16mm wrench and appropriate bolts, nuts, and washers. The safety reflector should face the back of the hydraulic tank. Repeat for the second fender.
9. Kompletna instalacija: Remove the pins from the control valve lever, then secure the lever by reinserting the pins once it has been raised to the proper position.

4. Uputstvo za upotrebu

Your NorthStar log splitter is designed for efficient wood processing. Follow these steps for safe and effective operation:

4.1 Kontrolna lista prije operacije

• Check engine oil level and fuel level.
• Verify hydraulic fluid level.
• Pregledajte sva crijeva i priključke na curenje ili oštećenje.
• Ensure all nuts, bolts, and pins are securely fastened.
• Clear the work area of any obstacles or debris.
• Confirm the log splitter is on a stable, level surface.

4.2 Pokretanje motora

Follow the engine manufacturer's instructions for starting the 270cc Honda GX270 engine. Typically, this involves:

1. Okrenite ventil za gorivo u položaj 'UKLJUČENO'.
2. Move the choke lever to the 'CLOSED' position (for cold starts).
3. Move the throttle lever to the 'FAST' position.
4. Okrenite prekidač motora u položaj 'UKLJUČENO'.
5. Čvrsto povucite uže za pokretanje dok se motor ne pokrene.
6. Once the engine is running, gradually move the choke lever to the 'OPEN' position.

4.3 Splitting Logs

The NorthStar log splitter can operate in both horizontal and vertical positions. The horizontal position is ideal for smaller, lighter logs, while the vertical position is suitable for larger, heavier logs that are difficult to lift.

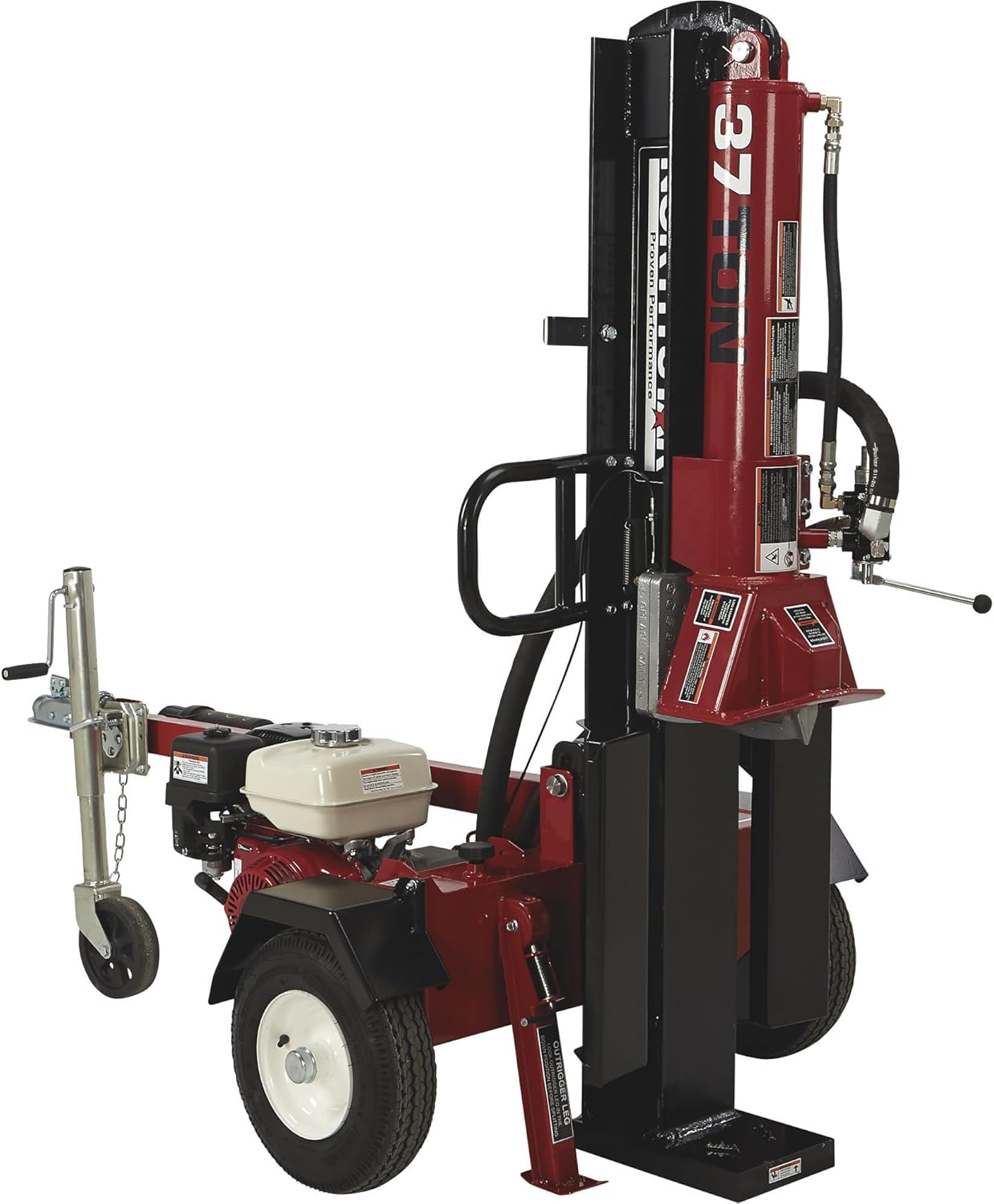

Figure 3: NorthStar Log Splitter in vertical operating position.

Horizontal Splitting:

1. Place the log securely on the beam against the wedge.
2. Using both hands, engage the control lever to extend the ram and push the log into the wedge.
3. Once the log is split, release the control lever. The ram will automatically retract.

Vertical Splitting:

1. Carefully pivot the beam to the vertical position and secure it according to the manual.
2. Roll a log onto the base plate.
3. Using both hands, engage the control lever to extend the ram and push the log down onto the wedge.
4. Once the log is split, release the control lever. The ram will automatically retract.

Figure 4: Close-up of the split control lever, showing forward, neutral, and return positions.

5. Održavanje

Regular maintenance is essential for the longevity and safe operation of your log splitter.

5.1 Održavanje motora

Refer to the Honda GX270 engine manual for specific maintenance schedules. General tasks include:

• Check engine oil level before each use and change as recommended.
• Clean or replace the air filter regularly.
• Inspect and clean the spark plug.
• Check fuel lines and fuel filter.

Slika 5: Krupni plan view of the Honda GX270 engine, highlighting key maintenance areas.

5.2 Hydraulic System Maintenance

• Check hydraulic fluid level before each use. Use recommended hydraulic fluid.
• Inspect hydraulic hoses and fittings for leaks or damage.
• Replace the hydraulic filter as recommended in the manual.
• Bleed the hydraulic system if air is present (refer to manual).

5.3 Opšte održavanje

• Keep the log splitter clean and free of debris.
• Lubricate all moving parts as specified in the manual.
• Inspect the wedge for sharpness and damage.
• Proverite pritisak i stanje pneumatika.

6. Otkrivanje problema

Ovaj odjeljak pruža rješenja za uobičajene probleme s kojima se možete susresti pri korištenju cijepača drva.

7. Specifikacije

Key technical specifications for the NorthStar 37-Ton Horizontal/Vertical Log Splitter:

• Sila razdvajanja: 37 tona
• motor: Honda GX270, 270cc
• Operacija: Horizontalna / Vertikalna
• Hidraulična pumpa: American-made Concentric pump
• Hydraulic Valve: Brand valve
• Hidraulični cilindar: NorthStar with premium Halite seals
• crijevo: Heavy-duty steel-reinforced
• Engine Features: Cast iron cylinder sleeve, low oil shutdown, steel fuel tank, auto throttle control
• Dimenzije proizvoda: 90 x 45 x 45 inča
• Težina artikla: 625 funte
• Broj modela: 1131

8. Garancija i podrška

For warranty information, customer support, or to order replacement parts, please contact NorthStar directly or refer to the warranty documentation included with your purchase. You can also visit the NorthStar Store za dodatne resurse.
