Microsoft bežični optički miš plave boje (model K80-00004) - uputstvo za upotrebu

Uvod

This manual provides instructions for the setup, operation, maintenance, and troubleshooting of your Microsoft Wireless Optical Mouse Blue, Model K80-00004. Please read this manual thoroughly before using your device.

Šta je u kutiji

Provjerite da li su sve stavke prisutne u paketu:

• Microsoft Wireless Optical Mouse
• Bežični prijemnik
• 2 AA baterije (unaprijed instalirane ili uključene zasebno)

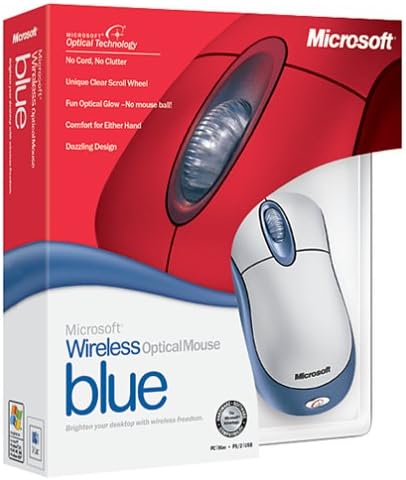

Image: Retail packaging of the Microsoft Wireless Optical Mouse Blue, showing the mouse and receiver.

Setup

1. Instalirajte baterije

1. Pronađite pretinac za bateriju na donjoj strani miša.
2. Otvorite poklopac odeljka za baterije.
3. Umetnite dvije AA baterije, pazeći na ispravan polaritet (+/-).
4. Zatvorite poklopac odeljka za baterije.

Slika: Front view of the Microsoft Wireless Optical Mouse Blue, showing the top buttons and scroll wheel. The battery compartment is on the underside.

2. Connect the Wireless Receiver

• Priključite bežični USB prijemnik u dostupan USB priključak na računaru.
• Allow your operating system to detect and install the necessary drivers. This process is usually automatic.
• For optimal performance, ensure the receiver is placed at least 12 inches away from other wireless devices or large metal objects.

3. Optional Software Installation (IntelliPoint)

• While not required for basic functionality, installing Microsoft IntelliPoint software provides advanced customization options for your mouse buttons and scroll wheel.
• Refer to the Microsoft support website for the latest IntelliPoint software compatible with your operating system.

4. Set Orientation (Calibration)

• After initial setup, it is recommended to perform an "Orientation Set" or calibration if available through the IntelliPoint software or your operating system's mouse settings. This helps optimize tracking performance.

Uputstvo za upotrebu

The Microsoft Wireless Optical Mouse Blue is designed for comfortable and precise navigation.

Osnovne funkcije

• Lijevi klik: Primarno dugme za odabir stavki, otvaranje filei interakcija sa softverom.
• Desni klik: Sekundarno dugme za pristup kontekstnim menijima i dodatnim opcijama.
• Točak za pomicanje: Okrenite kotačić gore ili dolje da biste se pomicali kroz dokumente i web pages. The scroll wheel may also function as a clickable button for additional commands, depending on software configuration.

Bežični rad

• The mouse operates wirelessly up to 6 feet (approximately 1.8 meters) from its receiver.
• Optical technology scans the desktop surface for precise cursor movement without the need for a mouse pad on most surfaces.
• The mouse is designed for comfortable use with either the right or left hand.

Slika: Ugaona view of the Microsoft Wireless Optical Mouse Blue, highlighting its ergonomic shape and blue/silver design.

Održavanje

Zamjena baterije

• The mouse requires two AA batteries.
• When battery power is low, your computer may display a notification (if IntelliPoint software is installed) or mouse performance may degrade.
• Replace batteries as described in the "Install Batteries" section under Setup.
• Always use fresh, high-quality batteries for optimal performance.

Čišćenje

• To clean the mouse, gently wipe the surface with a soft, damp tkanina.
• Izbjegavajte upotrebu jakih hemikalija ili abrazivnih sredstava za čišćenje, jer mogu oštetiti završnu obradu.
• Pazite da tekućina ne uđe u unutrašnje komponente miša.

Travel Considerations

• The Microsoft Wireless Optical Mouse is a transmitting device. When traveling by air, it is recommended to remove the batteries from the mouse before boarding to comply with airline regulations regarding electronic devices.

Rješavanje problema

Mouse Not Responding or Lagging

• Provjerite baterije: Provjerite da li su baterije pravilno instalirane i da li su dovoljno napunjene. Zamijenite ih ako je potrebno.
• Provjerite vezu prijemnika: Ensure the wireless receiver is securely plugged into a functioning USB port. Try a different USB port.
• blizina: Ensure the mouse is within 6 feet of the receiver. Reduce obstacles between the mouse and receiver.
• smetnje: Other wireless devices (e.g., Wi-Fi routers, cordless phones) can cause interference. Move the receiver away from such devices.
• Površina: Ensure the mouse is used on a suitable surface. Highly reflective or transparent surfaces may affect optical tracking.
• Ponovo sinhroniziraj: Some wireless mice have a re-sync button on both the mouse and receiver. Consult the full product manual or Microsoft support for specific re-sync procedures for this model if issues persist.

Clicking Issues

• If clicks are not registering or require multiple presses, check for physical obstructions or debris around the buttons.
• Provjerite je li miš uključen i povezan.

Softverska kompatibilnost

• The IntelliPoint software may have specific operating system requirements. For example, older versions may not be compatible with newer operating systems like Windows Vista or later.
• Always download the latest software from the official Microsoft support webstranicu za vaš specifični operativni sistem.

Specifikacije

Informacije o garanciji

According to the legal disclaimer, this product is sold without a warranty. Please refer to your point of purchase for any return or exchange policies.

Podrška

For further assistance, driver downloads, or updated information regarding your Microsoft Wireless Optical Mouse Blue, please visit the official Microsoft support website.

You can typically find support resources by searching for "Microsoft support" and your product model number (K80-00004).
