1. Proizvod je gotovview
The Westinghouse 7006500 White Outlet Concealer is designed to cover and aesthetically improve the appearance of outdated or discolored electrical outlet boxes. This flat, white plate seamlessly blends with most surroundings and can be painted or wallpapered to match your decor. It is specifically designed for 4-inch outlet boxes.
Slika 1.1: Prednja strana view of the Westinghouse 7006500 White Outlet Concealer.
2. Sigurnosne informacije
UPOZORENJE: Ovaj proizvod vas može izložiti hemikalijama za koje je u državi Kaliforniji poznato da uzrokuju rak i urođene mane ili druge reproduktivne štete. Za više informacija posjetite www.P65Warnings.ca.gov. Always ensure power is disconnected before working with electrical components.
3. Sadržaj paketa
- 1 x Westinghouse 7006500 White Outlet Concealer Plate
- 2 x 8-32 by 3/4-inch white head screws
4. Upute za instalaciju
Follow these steps to properly install your outlet concealer:
- Sigurnost na prvom mjestu: Before beginning installation, ensure the power to the electrical outlet box is turned off at the circuit breaker.
- Pripremite prostor: Carefully remove any existing cover or fixture from the 4-inch outlet box.
- Position the Concealer: Place the Westinghouse 7006500 White Outlet Concealer over the 4-inch outlet box, aligning the two holes on the concealer with the screw holes on the outlet box. The holes are spaced 3-1/2 inches apart.
- Secure the Concealer: Insert the two provided 8-32 by 3/4-inch white head screws into the aligned holes and tighten them securely. Do not overtighten.
- Vrati snagu: Once the concealer is firmly in place, you may restore power to the circuit.
5. Customization and Maintenance
The white finish of the concealer is designed to be easily integrated into your home decor. For a more customized look, you can paint or wallpaper the concealer to match the surrounding wall surface.

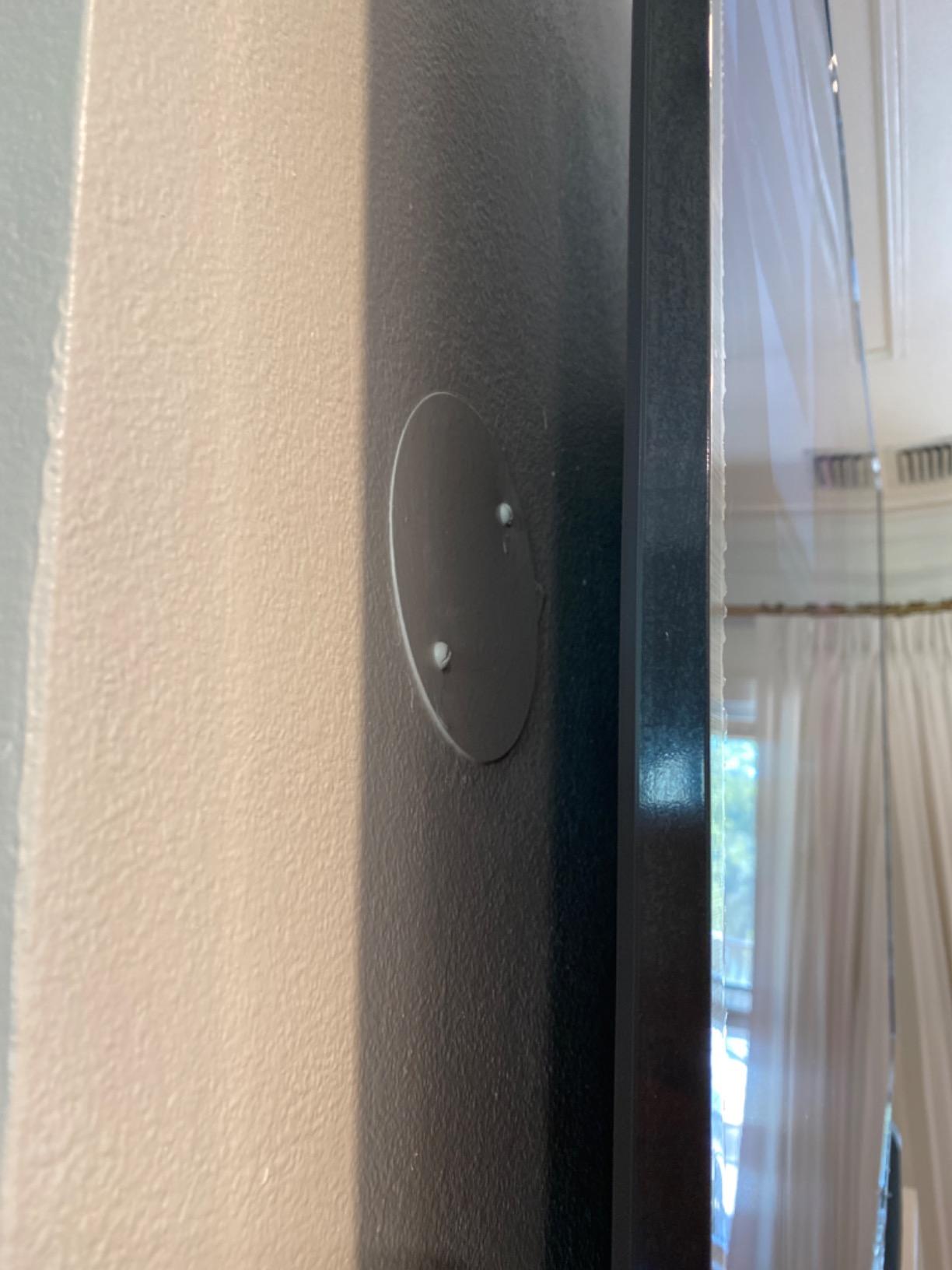

Slika 5.1: Primjerample of the outlet concealer painted to blend with the wall color.
To clean the concealer, wipe it with a soft, damp tkanina. Izbjegavajte abrazivna sredstva za čišćenje koja mogu oštetiti završni sloj.
6. Otkrivanje problema
- Concealer does not fit the outlet box: Ensure your outlet box is a standard 4-inch round box and that the screw holes are spaced 3-1/2 inches apart. This concealer is designed for these specific dimensions.
- Screws do not align: Double-check the alignment of the concealer with the outlet box screw holes. If the holes on your box are not 3-1/2 inches apart, this product may not be compatible.
- Concealer appears flimsy or gaps after installation: Ensure the screws are tightened sufficiently, but do not overtighten. The plate is designed to be flat; if the underlying surface is uneven, minor gaps may occur.
7. Specifikacije
| Feature | Specifikacija |
|---|---|
| Broj modela | 7006500 |
| Brand | Westinghouse |
| Boja | Bijelo |
| Prečnik | 4-3/4 inča |
| Montaža | On 4-inch outlet boxes |
| Razmak vijaka | 3-1/2 inča (od centra do centra) |
| Uključeni vijci | Two 8-32 by 3/4-inch white head screws |
| Dimenzije proizvoda | 4.75 x 4.75 x 4.75 inča; 0.96 unci |
| Zemlja porijekla | Kina |
8. Informacije o garanciji
Specific warranty details for the Westinghouse 7006500 White Outlet Concealer are not provided in this manual. For information regarding product warranty, please refer to the packaging or contact Westinghouse customer support directly.
9. Korisnička podrška
For further assistance, technical support, or inquiries about the Westinghouse 7006500 White Outlet Concealer, please visit the official Westinghouse webweb-stranicu ili kontaktirajte njihovu službu za korisnike. Kontakt informacije se obično mogu pronaći na pakovanju proizvoda ili na službenoj stranici brenda website.
Također možete posjetiti Westinghouse trgovina na Amazonu za više informacija o proizvodu.
