Lugia 1.8L Slushie Maker with Compressor - Instruction Manual

1. Uvod

Thank you for choosing the Lugia 1.8L Slushie Maker. This appliance is designed to prepare a variety of frozen beverages, including slushies, milkshakes, frappés, smoothies, and frozen cocktails, using an integrated compressor for automatic cooling. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

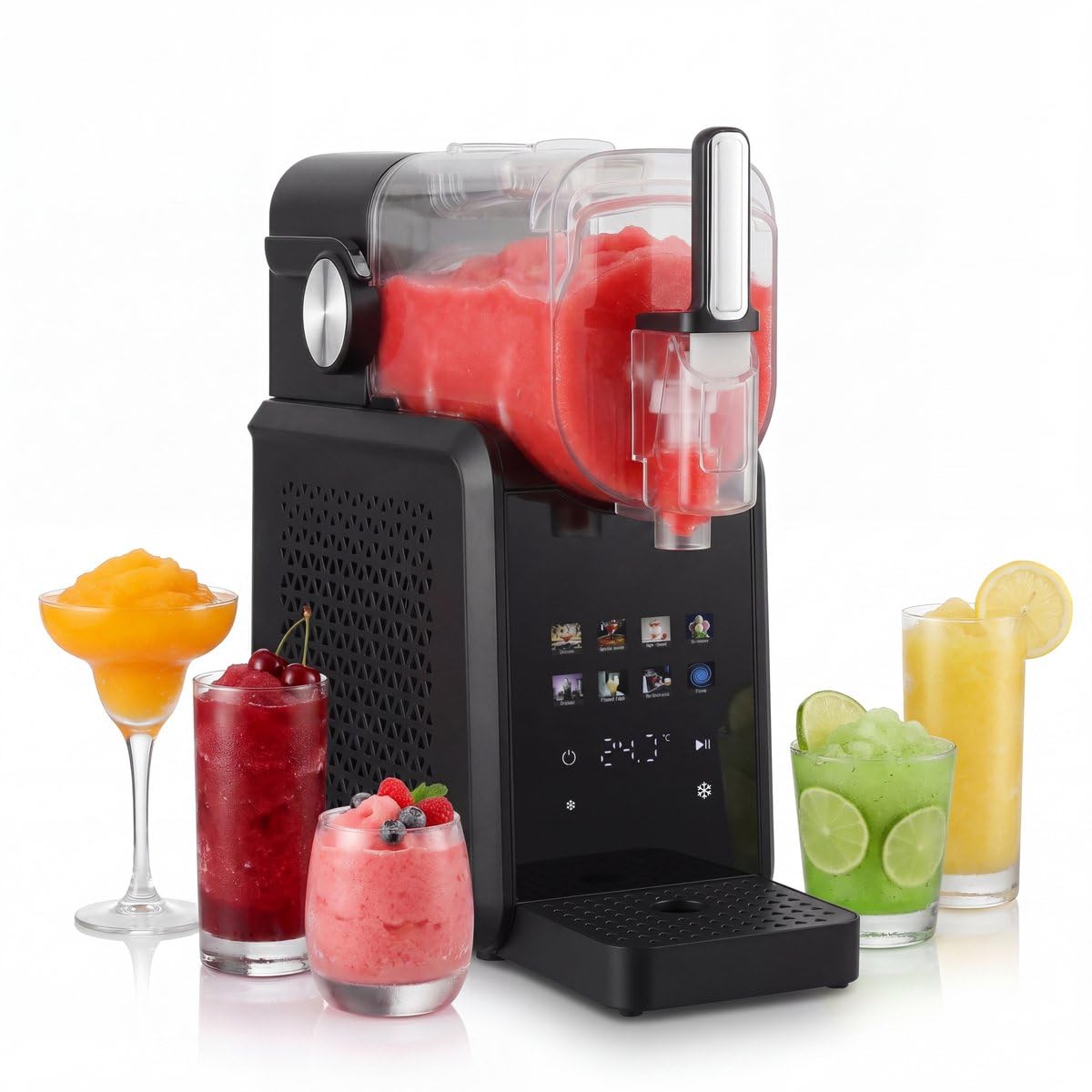

The Lugia 1.8L Slushie Maker, ready to prepare a variety of frozen beverages.

2. Sigurnosna uputstva

Molimo vas da pažljivo pročitate sva sigurnosna uputstva prije upotrebe uređaja. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.

• Osigurajte da je uređaj postavljen na stabilnu, ravnu i suhu površinu.
• Ne uranjajte glavnu jedinicu u vodu ili bilo koju drugu tečnost.
• Držite uređaj dalje od izvora topline i direktne sunčeve svjetlosti.
• Nemojte koristiti uređaj sa oštećenim kablom ili utikačem.
• Isključite uređaj iz utičnice kada ga ne koristite i prije čišćenja.
• Ovaj uređaj nije namijenjen za upotrebu osobama sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili osobama bez iskustva i znanja, osim ako nisu pod nadzorom ili im nisu date upute.
• Djeca trebaju biti pod nadzorom kako bi se osiguralo da se ne igraju s uređajem.
• Koristite samo dodatnu opremu koju preporučuje proizvođač.

3. Komponente proizvoda

Familiarize yourself with the main parts of your Lugia Slushie Maker:

• Main Unit with Integrated Compressor
• 1.8L Transparent Mixing Bowl
• Mixing Paddle
• Dispensing Tap
• Drip Tray
• Poklopac
• LED Touch Control Panel

4. Podešavanje

Slijedite ove korake za početno podešavanje:

1. Raspakivanje: Pažljivo izvadite sve komponente iz ambalaže. Sačuvajte ambalažu za buduće skladištenje ili transport.
2. plasman: Place the main unit on a clean, dry, stable, and level surface. Ensure there is adequate ventilation around the appliance.
3. Početno čišćenje: Before first use, wash the mixing bowl, lid, mixing paddle, and drip tray with warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp tkanina.
4. Montaža: Insert the mixing paddle into the mixing bowl. Place the mixing bowl onto the main unit, ensuring it is securely seated. Attach the lid. Position the drip tray under the dispensing tap.
5. Priključak za napajanje: Uključite kabl za napajanje u uzemljenu električnu utičnicu.

The self-cleaning function simplifies initial and post-use cleaning.

5. Uputstvo za upotrebu

The Lugia Slushie Maker features an intuitive LED touch screen and 7 automatic programs for various frozen treats.

5.1. Preparing Your Beverage

1. Uključeno: Touch the power icon on the LED screen to turn on the appliance.
2. Napunite rezervoar: Pour your desired liquid ingredients (juice, soda, milk, cocktail mix, etc.) into the 1.8L mixing bowl. Do not exceed the maximum fill line.
3. Odaberite program: Choose one of the 7 automatic programs from the touch screen:
   • Slush: For classic frozen slush drinks.
   • mlečni šejk: Za kremaste, guste milkšejkove.
   • Frappé: For coffee-based or similar blended iced drinks.
   • Frozen Juice: Za smrznute napitke na bazi voća.
   • Hladni napitci: To simply chill beverages without freezing.
   • Soft Ice: For a softer, ice cream-like consistency.
   • Spiked Slush: For alcoholic frozen cocktails.
4. Započni proces: Press the 'Start' button. The integrated compressor will begin cooling and mixing automatically. The process typically takes 15-60 minutes depending on the program and initial temperature of ingredients.
5. Doziranje: Once the program is complete, place a glass under the dispensing tap and pull the tap handle to serve.

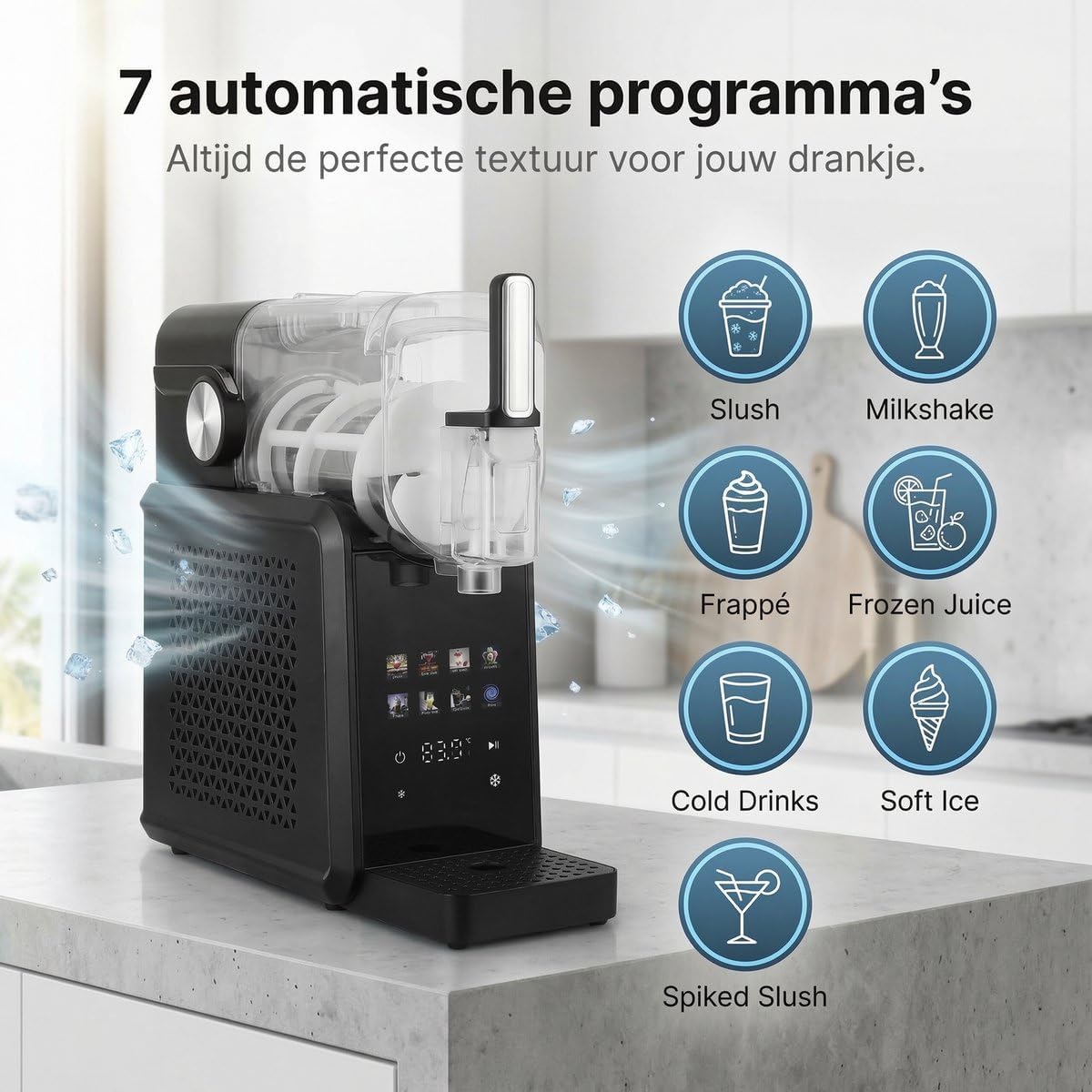

The 7 automatic programs offer versatility for various frozen beverages.

Easily create perfect slushies at home in 15-60 minutes.

5.2. Ključne karakteristike

• Integrisani kompresor: No pre-freezing or ice cubes are required. The machine automatically cools and mixes ingredients.
• Kapacitet 1.8L: Ideal for preparing multiple servings for families, parties, or summer gatherings.
• Zadržavanje temperature: Beverages remain perfectly cooled for up to 3 hours after preparation.
• Convenient Dispensing Tap: Designed for easy, mess-free serving.

The self-cooling technology eliminates the need for ice cubes, automatically cooling and mixing.

The large 1.8L capacity is perfect for parties, family, and summer days.

The convenient tap allows for easy and mess-free dispensing of slushies.

The machine keeps drinks perfectly cooled for up to 3 hours, maintaining the ideal temperature.

6. Čišćenje i održavanje

Redovno čišćenje osigurava higijenu i produžava vijek trajanja vašeg uređaja.

6.1. Auto-Cleaning Function

1. After use, empty any remaining liquid from the mixing bowl.
2. Fill the mixing bowl with clean water up to the maximum fill line.
3. Select the auto-cleaning program (refer to the LED screen icons).
4. Allow the program to run. This will rinse the internal components.
5. Once complete, drain the water through the dispensing tap.

6.2. Ručno čišćenje

1. Isključite uređaj iz električne utičnice.
2. Disassemble the mixing bowl, lid, mixing paddle, and drip tray.
3. Operite ove uklonjive dijelove toplom vodom i sapunom. Za teško dostupna mjesta koristite meku četku.
4. Rinse all parts thoroughly with clean water and dry completely before reassembly or storage.
5. Obrišite vanjski dio glavne jedinice oglasnim materijalomamp krpom. Ne koristite abrazivna sredstva za čišćenje niti uranjajte glavnu jedinicu u vodu.

7. Otkrivanje problema

Pogledajte ovaj odjeljak za uobičajene probleme i njihova rješenja.

8. Specifikacije

• Brand: Lugia
• Naziv modela: Arctic
• Broj modela: 8721249467424
• Kapacitet: 1.8 litara
• Posebne karakteristike: Digital Display, Integrated Compressor, Touch Pad Control, Automatic Cleaning
• Način rada: Električni
• Preporučena upotreba: Preparation of slushies, milkshakes, frappés, smoothies, frozen cocktails for festive occasions, family use, or casual desserts.

9. Garancija i podrška

For warranty information or technical support, please refer to the warranty card included with your purchase or contact Lugia customer service. Please have your model number (Arctic, 8721249467424) and purchase date available when contacting support.
