VEVOR 80 CFM Bathroom Exhaust Fan with LED Light

1. Sigurnosna uputstva

Read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Always disconnect power at the service panel before wiring or servicing the unit.
• Ensure all wiring complies with local electrical codes and standards.
• Ova jedinica mora biti pravilno uzemljena.
• Do not install this fan in a cooking area.
• Never place objects into the fan grille.
• Nosite zaštitne naočale i rukavice tokom instalacije.
• Držite djecu podalje od radnog područja.

2. Proizvod je gotovview

The VEVOR 80 CFM Bathroom Exhaust Fan with LED Light is designed to provide efficient ventilation and adjustable lighting for various indoor spaces. It features a low-noise AC motor and three color temperature options for the integrated LED light.

Ključne karakteristike:

• Snažna ventilacija: Delivers 80 CFM airflow, suitable for areas up to 161 sq. ft. (15 m²).
• tihi rad: Operates at a low noise level of 1.5 sones (≤60dB).
• Podesivo LED svjetlo: Offers 3000K (warm), 4000K (neutral), and 5000K (cool) color temperatures.
• Izdržljiva konstrukcija: ETLus certified with a damp-resistant housing and cold-rolled steel material.

Image: The VEVOR exhaust fan installed in a bathroom ceiling, demonstrating its airflow for effective damp i uklanjanje mirisa.

Slika: Presjek view of the fan's internal components, highlighting the efficient AC motor and the ETLus certification for quality assurance.

3. Sadržaj paketa

Prije početka instalacije provjerite da li su sve komponente prisutne:

• 1 x VEVOR Bathroom Exhaust Fan with LED Light
• 4 x Large Flat Self-Tapping Screws
• 1 x Two-Way Switch
• 1 x Korisnički priručnik (ovaj dokument)

4. Specifikacije

Image: Detailed dimensions of the exhaust fan unit and a summary of its technical specifications.

5. Instalacija

Follow these steps for proper installation of your exhaust fan. Professional installation is recommended if you are not familiar with electrical wiring.

Koraci instalacije:

1. Pripremite plafonski otvor: Confirm the ceiling cutout dimensions are approximately 7.68 x 7.60 inches (195.1 x 193.0 mm).
2. Detach Wiring Box Lid: Locate and detach the lid of the wiring box on the fan unit.
3. Povežite ožičenje: Connect the household electrical wires to the fan's quick connectors. Ensure correct connections: Black (Live), White (Neutral), Green (Ground).
4. Install Ducting: Connect a standard 4-inch duct (not included) to the fan's exhaust port and seal it securely.
5. Insert into Ceiling: Carefully insert the fan unit into the prepared ceiling opening.
6. Osigurajte ventilator: Pinch the installation springs on the fan housing and push the unit up until it fits snugly against the ceiling.
7. Konačna provjera: Ensure the fan is securely mounted and all connections are tight.

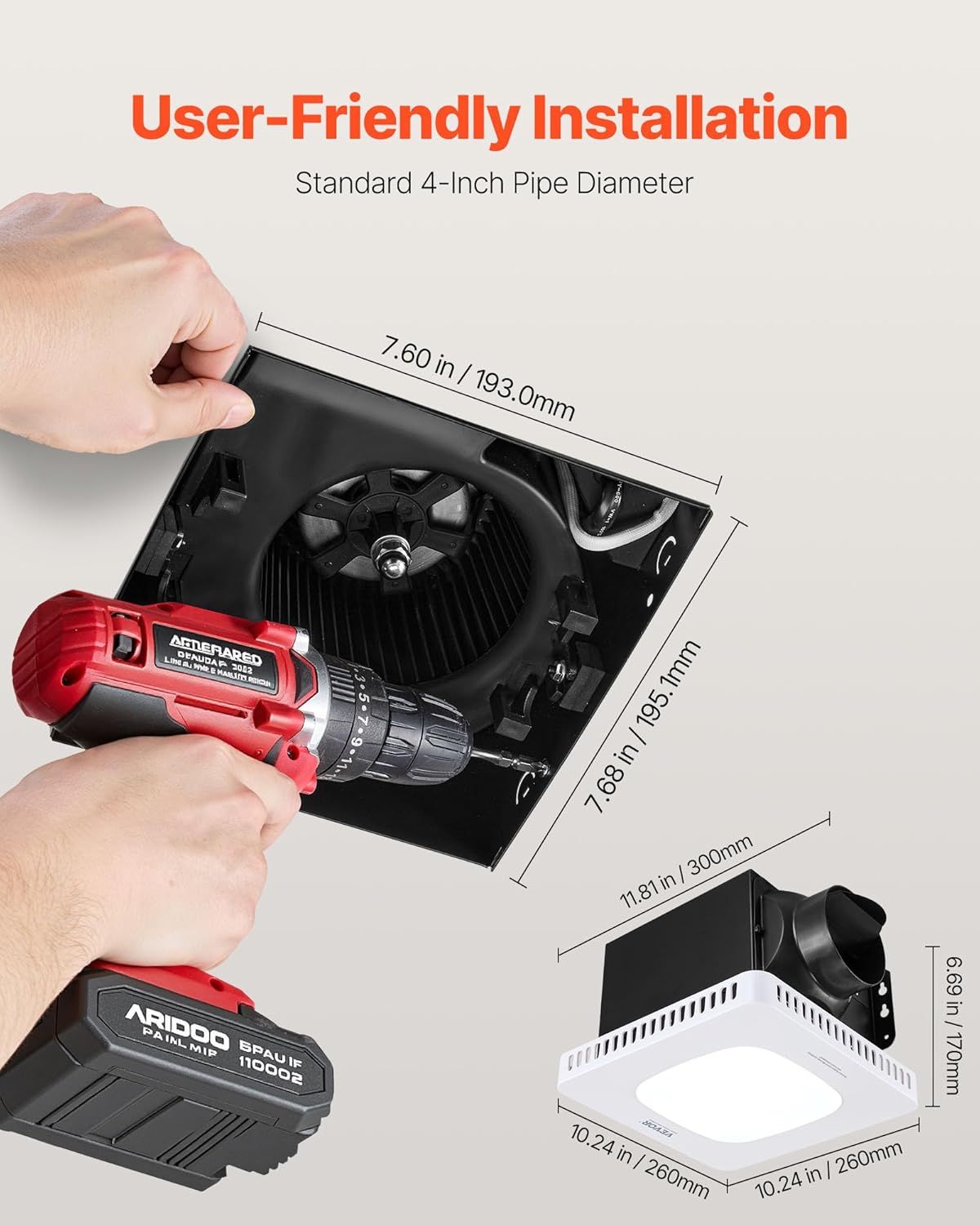

Image: A visual guide to the fan's dimensions and the use of a drill for securing the unit during installation.

Image: A diagram illustrating the seven key steps for installing the exhaust fan, from preparing the opening to securing the unit.

Instalacijski video:

6. Operacija

The VEVOR exhaust fan features separate controls for the fan and the LED light, allowing independent operation and light color adjustment.

Rad ventilatora:

Use the designated fan switch on your wall control to turn the exhaust fan ON or OFF. The fan will operate at its standard 80 CFM setting.

LED Light Operation and Color Temperature Adjustment:

The LED light offers three color temperature options: 3000K (Warm), 4000K (Neutral), and 5000K (Cool). To cycle through these options:

1. Turn the light switch ON. The light will illuminate at its last-used color temperature.
2. To change the color temperature, quickly toggle the light switch OFF and then ON again. The light will switch to the next color temperature in the sequence.
3. Repeat toggling the switch until your desired color temperature is achieved.

Image: Visual representation of the three adjustable light color temperatures (5000K, 4000K, 3000K) available with the fan's LED light.

7. Održavanje

Redovno održavanje osigurava optimalne performanse i dugotrajnost vašeg ispušnog ventilatora.

Čišćenje rešetke:

1. Isključite napajanje: Uvijek isključite napajanje na prekidaču prije čišćenja.
2. Uklonite rešetku: Lagano povucite rešetku prema dolje da biste je odvojili od kućišta ventilatora.
3. Čisti: Wash the grille with a mild detergent and warm water. Rinse thoroughly and dry completely before reattaching.
4. Ponovo pričvrstite rešetku: Align the grille springs with the slots in the fan housing and push up until it snaps into place.

Cleaning the Fan Motor and Blades:

Periodically, inspect the fan motor and blades for dust buildup. If necessary, carefully wipe them with a damp cloth. Do not immerse electrical components in water.

8. Otkrivanje problema

Ako naiđete na probleme s vašim VEVOR ispušnim ventilatorom, pogledajte sljedeće uobičajene probleme i rješenja:

Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci VEVOR-a.

9. Garancija i podrška

VEVOR proizvodi su dizajnirani za izdržljivost i performanse. Za informacije o garanciji ili tehničku podršku, molimo pogledajte garantni list koji dolazi uz vaš proizvod ili posjetite službenu VEVOR stranicu webSačuvajte račun kao dokaz o kupovini.
