Uvod
Welcome to your new GOFLAME Extendable Dining Table. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your table. Please read these instructions carefully before assembly and retain this manual for future reference.
Sigurnosne informacije
- Prije montaže i upotrebe pročitajte sve upute.
- Držite sve male dijelove i materijale za pakovanje dalje od djece.
- Sastavite stol na mekoj, čistoj površini kako biste spriječili ogrebotine.
- Prije upotrebe provjerite jesu li svi zavrtnji i vijci dobro zategnuti.
- Nemojte stajati ili sjediti na stolu.
- Ne prekoračujte maksimalnu nosivost od 110 kg (240 lbs).
- Budite oprezni prilikom izvlačenja ili uvlačenja stola kako biste izbjegli priklještenje prstiju.
Sadržaj paketa
Molimo Vas da provjerite da li su sve komponente prisutne prije početka montaže.
- Tabletop (Main sections)
- Extension Board
- L-shaped Legs (4 pieces)
- Paket hardvera (vijci, matice, imbus ključ)
- Korisnički priručnik
Postavljanje i montaža
Follow these steps to assemble your GOFLAME Extendable Dining Table. It is recommended to have two people for assembly.
- Raspakujte sve komponente i položite ih na čistu, meku površinu kako biste spriječili oštećenja.
- Identify the L-shaped legs and the main tabletop sections.
- Attach the L-shaped legs to the designated mounting points on the underside of the main tabletop sections using the provided hardware. Ensure all connections are reinforced and secure.
- Once the legs are securely attached, carefully turn the table upright.
- Ensure the table is stable and all connections are tight before proceeding.
Image: Detail showing the anti-slip foot pads, reinforced connection points, and the L-shaped design of the supporting legs.
Operating the Extension Mechanism
Your GOFLAME dining table features a smooth extension mechanism to easily adjust its length.
- To extend the table, gently pull the main tabletop sections apart towards the sides. The smooth sliding railings will guide the sections.
- Place the extension board into the gap created between the main tabletop sections. Ensure the board joints align properly.
- Push the main tabletop sections inward until they merge seamlessly with the extension board, creating a larger surface.
- To retract the table, reverse the process: pull the main tabletop sections apart, remove the extension board, and push the main sections back together.

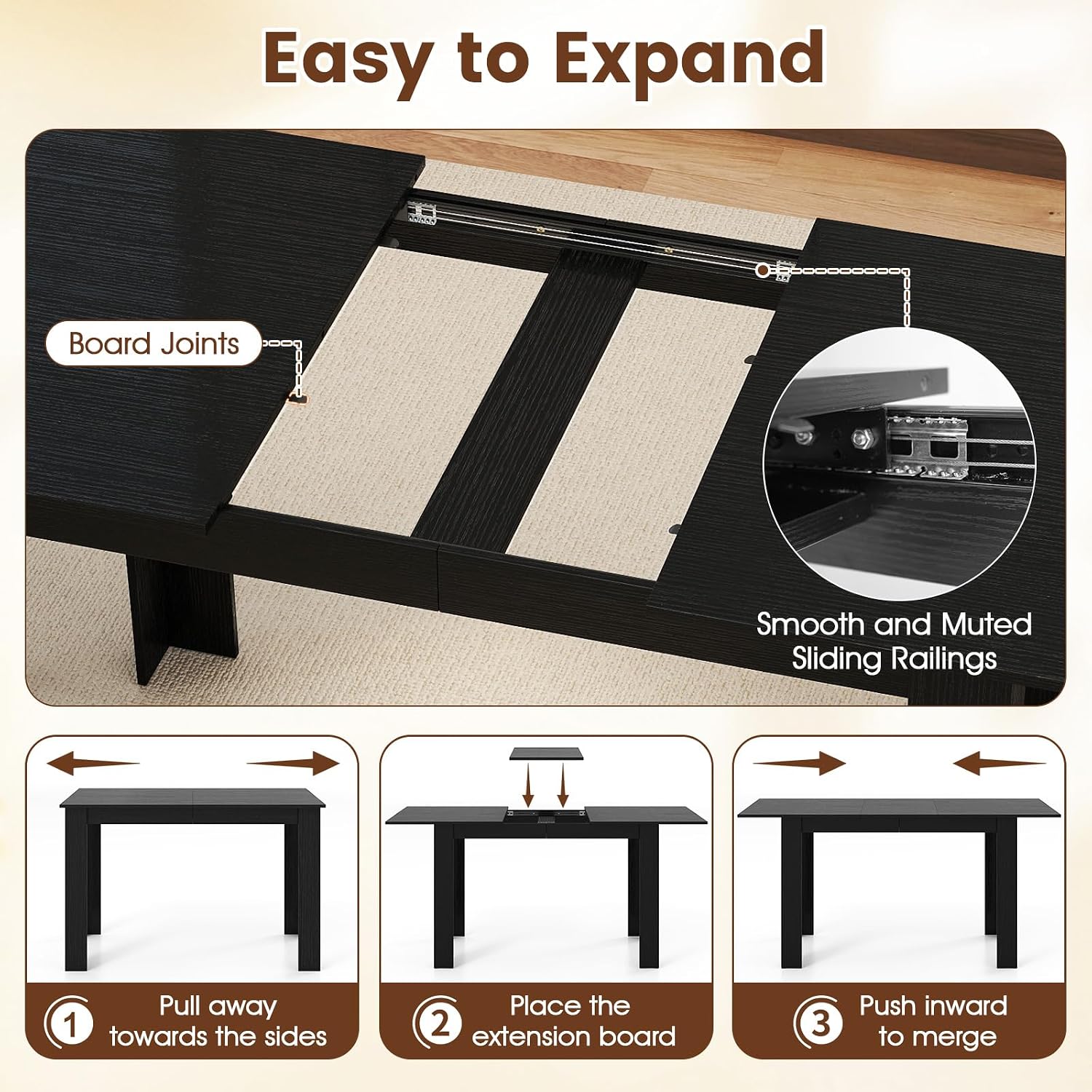

Image: Visual guide demonstrating the three steps for extending the table: pulling the main sections apart, inserting the extension board, and pushing the sections back together to merge.
Image: A visual comparison showing the table at its compact 47-inch length, suitable for 4-6 chairs, and its extended 62-inch length, suitable for 6-8 chairs.
Održavanje i njega
Pravilna njega će osigurati dugotrajnost i izgled vašeg trpezarijskog stola.
- čišćenje: Obrišite površinu stola mekom,amp cloth. For spills, clean immediately to prevent staining. Avoid abrasive cleaners or harsh chemicals.
- zaštita: Use placemats or coasters to protect the surface from hot items, spills, and scratches.
- zatezanje: Povremeno provjeravajte i zategnite sve vijke i šrafove kako biste održali stabilnost.
- Okruženje: Izbjegavajte dugotrajno izlaganje direktnoj sunčevoj svjetlosti ili ekstremnim promjenama temperature, što može uzrokovati savijanje ili blijeđenje.

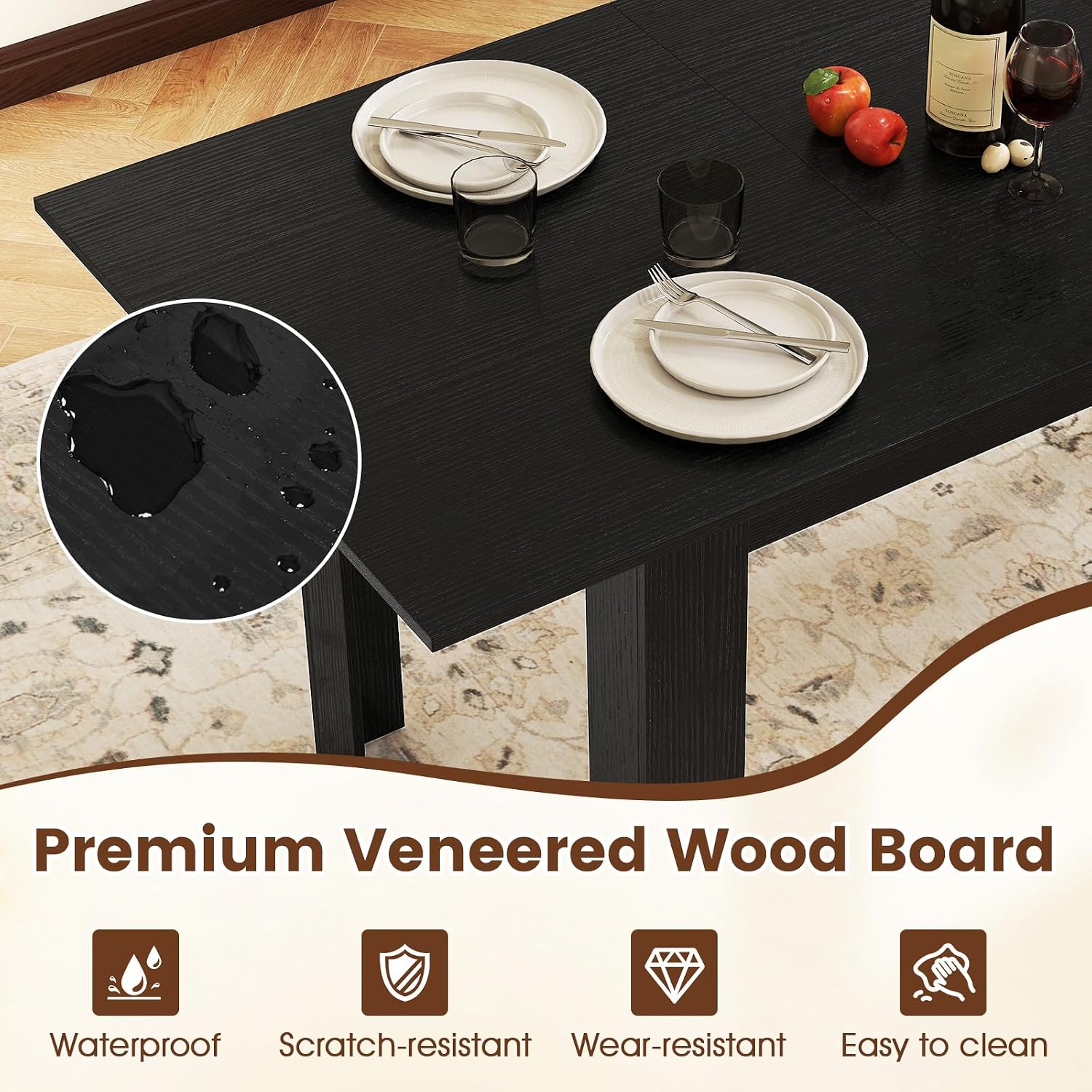

Slika: Krupni plan view of the table's veneered wood board, highlighting its waterproof, scratch-resistant, wear-resistant, and easy-to-clean features.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Stol je klimav. | Labavi vijci ili neravan pod. | Check and tighten all assembly screws. Ensure the table is on a level surface. Adjust anti-slip foot pads if present. |
| Extension mechanism is stiff or not smooth. | Dust or debris in railings; misaligned sections. | Clean the sliding railings. Ensure the extension board is inserted correctly and aligned with the main tabletop sections. Apply a silicone-based lubricant if necessary (avoid oil-based). |
| Tabletop sections do not merge properly. | Misaligned board joints or obstruction. | Ensure the extension board is fully seated and the board joints are correctly aligned before pushing the main sections together. Check for any obstructions. |
| Nedostajući dijelovi ili oštećene komponente. | Proizvodni defekt ili oštećenje prilikom transporta. | Contact GOFLAME customer support immediately for assistance. |
Specifikacije
- Brand: GOFLAME
- Model: 57828KC-GL
- Materijal: Engineered Board
- Product Dimensions (Unexpanded): 120 cm D x 70 cm Š x 76 cm V
- Dimenzije proizvoda (prošireno): 158 cm D x 70 cm Š x 76 cm V
- Kapacitet težine: 240 lbs (110 kg)
- Kapacitet sjedenja: 4-6 (unexpanded), 6-8 (expanded)
- Boja: Crna
- Potrebna montaža: Da
Image: Detailed product dimensions, including length (47" unexpanded, 62" expanded), width (28"), height (30"), weight capacity (240 lbs), and seating capacity (4-8 persons).
Garancija i podrška
Your GOFLAME Extendable Dining Table is designed for durability and functionality.
- Povratak: This product is eligible for a 30-day easy return policy. Please refer to your purchase platform for specific return instructions and conditions.
- Korisnička podrška: For any questions regarding assembly, missing parts, or product issues, please contact GOFLAME customer support.
- prodavač: GOLFLAME
- Link prodavca: GOLFLAME Seller Information
