Philco Planetary Mixer PBP90B User Manual

1. Važna sigurnosna uputstva

Please read all instructions carefully before using the Philco Planetary Mixer PBP90B. Keep this manual for future reference.

• Always ensure the mixer is unplugged from the power outlet before assembling, disassembling, or cleaning.
• Ne uranjajte motornu jedinicu, kabel ili utikač u vodu ili druge tekućine.
• Ovaj uređaj nije namijenjen za upotrebu osobama sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili osobama bez iskustva i znanja, osim ako nisu pod nadzorom ili im nije data uputstva o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.
• Izbjegavajte kontakt s pokretnim dijelovima. Držite ruke, kosu, odjeću, kao i lopatice i drugi pribor dalje od miksera tokom rada kako biste smanjili rizik od povreda osoba i/ili oštećenja miksera.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari rad ili je pao ili oštećen na bilo koji način.
• Korištenje dodataka koje proizvođač nije preporučio ili prodao može uzrokovati požar, strujni udar ili ozljedu.
• Nemojte koristiti uređaj na otvorenom.
• Ne dozvolite da kabl visi preko ivice stola ili pulta.
• Ne postavljajte uređaj na ili blizu vrućeg plinskog ili električnog gorionika, ili u zagrijanu pećnicu.
• Always operate the mixer on a flat, stable, and dry surface.
• Prije upotrebe provjerite je li glava miksera sigurno zaključana.

2. Proizvod je gotovview

The Philco Planetary Mixer PBP90B is a versatile kitchen appliance designed for various mixing tasks, from whipping light creams to kneading heavy doughs. It features a powerful 900W motor, a 5-liter stainless steel bowl, and 12 speed settings plus a Turbo function.

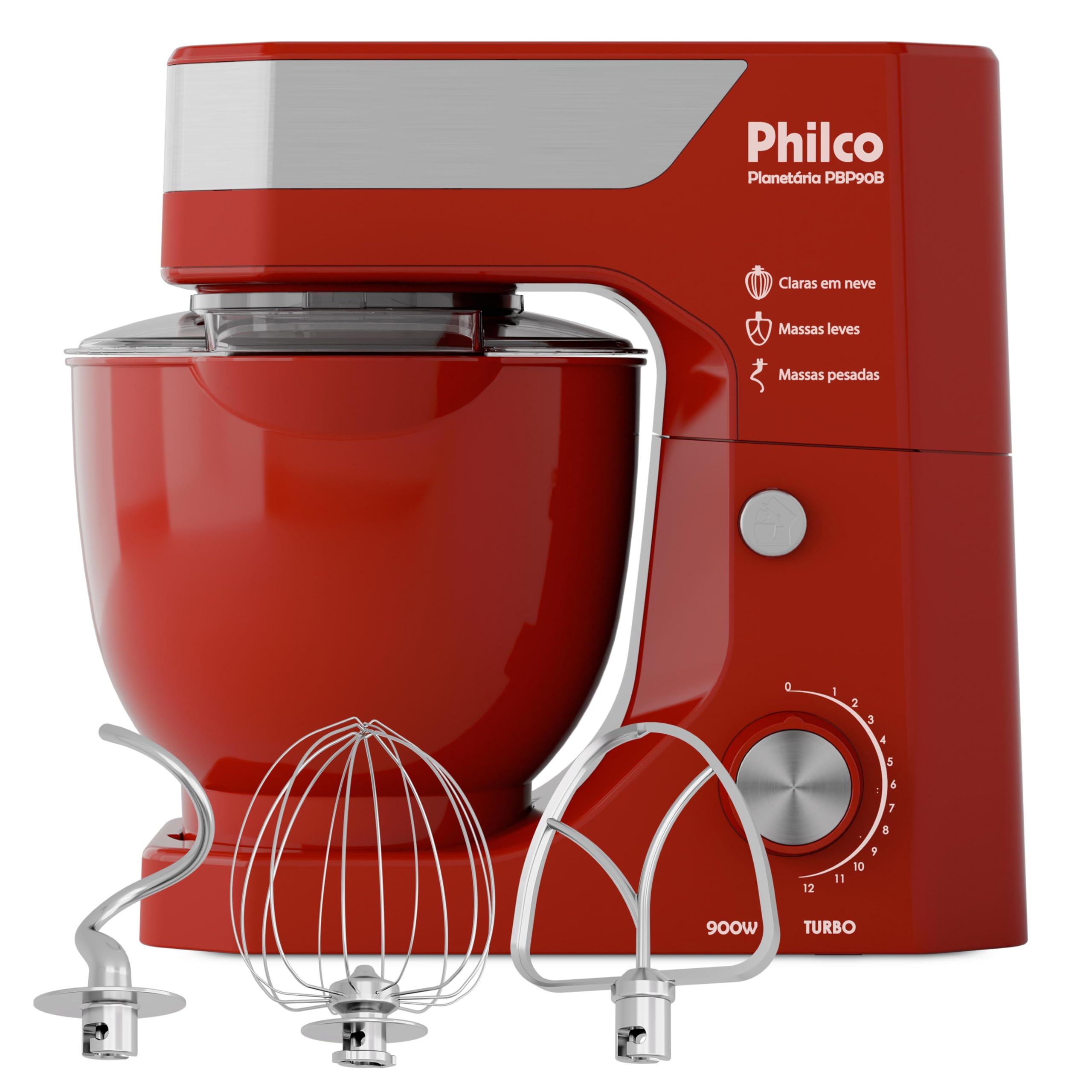

Image: Philco Planetary Mixer PBP90B with all included accessories.

Komponente:

• Motor Unit/Head: Contains the motor, speed control knob, and attachment hub.
• Tilt-Head Release Button: Allows the head to be tilted up for easy access to the bowl and beaters.
• Posuda od nehrđajućeg čelika od 5 litara: Posuda velikog kapaciteta za razne recepte.
• Zaštita od prskanja: Sprečava prskanje sastojaka tokom miješanja.
• Umutiti: For whipping eggs, cream, and light batters.
• Flat Beater: For mixing medium batters, cake mixes, and frostings.
• kuka za tijesto: Za miješenje teških tijesta poput kruha i pizze.
• Dugme za kontrolu brzine: Adjusts mixing speed from 1 to 12, with a Turbo function.
• Neklizajuća baza: Osigurava stabilnost tokom rada.

Image: The three interchangeable beaters: whisk, flat beater, and dough hook.

3. Podešavanje

1. Raspakirajte: Pažljivo izvadite sve komponente iz ambalaže. Uklonite sve zaštitne folije ili naljepnice.
2. Čisti: Before first use, wash the mixing bowl, splash guard, and all beaters in warm, soapy water. Rinse thoroughly and dry completely. Wipe the motor unit with a damp tkanina.
3. plasman: Place the mixer on a clean, dry, flat, and stable surface. Ensure there is enough space around the mixer for safe operation. The non-slip base will help keep the unit stable.
4. Priložite posudu: Press the tilt-head release button and lift the motor head. Place the 5-liter stainless steel bowl onto the base, twisting it clockwise until it locks securely into place.
5. Pričvrstite mutilicu: Select the appropriate beater for your recipe (whisk, flat beater, or dough hook). Insert the beater shaft into the attachment hub on the underside of the motor head, twisting it until it clicks into place.
6. Donji dio glave: Gently lower the motor head until it locks into position. You should hear a click. Ensure it is fully locked before proceeding.
7. Pričvrstite zaštitu od prskanja (opciono): If desired, place the splash guard over the bowl before lowering the head. The opening on the splash guard allows for easy addition of ingredients during mixing.
8. Priključite napajanje: Ensure the speed control knob is set to '0' (off). Plug the power cord into a suitable 127V electrical outlet.

Image: Mixer head tilted up for beater attachment.

4. Uputstvo za upotrebu

The Philco Planetary Mixer PBP90B offers 12 speeds and a Turbo function for precise control over your mixing tasks.

1. Dodajte sastojke: With the mixer head lowered and locked, add your ingredients to the mixing bowl. You can use the opening in the splash guard to add ingredients while mixing.
2. Odaberite brzinu: Turn the speed control knob to the desired speed setting (1-12). Start with a lower speed and gradually increase as needed to prevent splashing.
3. Turbo funkcija: For quick bursts of high power, turn the knob to the 'Turbo' setting. Release the knob to return to the previous speed or '0'.
4. Smjernice za miješanje:
   • Umutiti: Use for whipping egg whites, cream, meringues, and light batters. Start at low speed and gradually increase to higher speeds (e.g., 8-12).


     Image: Mixer with whisk attachment.

   • Flat Beater: Ideal for mixing cakes, cookies, frostings, mashed potatoes, and quick breads. Use medium speeds (e.g., 4-8).


     Image: Mixer with flat beater attachment.

   • kuka za tijesto: Designed for kneading heavy doughs such as bread, pizza, and pasta. Use low speeds (e.g., 1-3).


     Image: Mixer with dough hook attachment.
5. Prestanite miješati: When finished, turn the speed control knob to '0' (off). Unplug the mixer from the power outlet.
6. Remove Bowl and Beater: Press the tilt-head release button and lift the motor head. Remove the beater by twisting and pulling it down. Unlock the mixing bowl by twisting it counter-clockwise and lift it off the base.

5. Održavanje i čišćenje

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Philco Planetary Mixer PBP90B.

• Uvijek isključite iz struje: Prije čišćenja, uvijek se uvjerite da je mikser isključen iz električne utičnice.
• Motorna jedinica: Obrišite vanjski dio motorne jedinice mekom,amp krpom. Ne koristite abrazivna sredstva za čišćenje niti uranjajte motornu jedinicu u vodu.
• Mixing Bowl, Beaters, and Splash Guard: Wash these parts immediately after use in warm, soapy water. Rinse thoroughly and dry completely. These components are nije pogodno za pranje posuđa.
• Tvrdoglavi ostaci: For stubborn food residue, soak the bowl and beaters in warm, soapy water for a few minutes before cleaning.
• Skladištenje: Mikser i njegovu opremu čuvajte na čistom i suhom mjestu. Prije skladištenja provjerite jesu li svi dijelovi suhi.

6. Otkrivanje problema

If you encounter any issues with your Philco Planetary Mixer PBP90B, refer to the following common problems and solutions:

• Mikser se ne uključuje:
  • Provjerite je li kabel za napajanje sigurno uključen u ispravnu električnu utičnicu.
  • Check if the speed control knob is set to '0' before turning it to a speed setting.
  • Verify that the mixer head is fully lowered and locked into place.
• Beater does not reach ingredients at the bottom of the bowl:
  • The mixer is designed for planetary action, which covers the entire bowl. Ensure you are using the correct beater for the consistency of your ingredients.
  • For very small quantities, it might be necessary to scrape down the sides of the bowl manually.
• Excessive noise or vibration during operation:
  • Ensure the mixer is placed on a stable, flat surface.
  • Verify that the mixing bowl and beater are correctly installed and locked.
  • Avoid overloading the mixer with ingredients, especially heavy doughs. Reduce the quantity if necessary.
• Mixer stops during operation:
  • The mixer may have overheated due to prolonged use or heavy load. Turn off the mixer, unplug it, and let it cool down for at least 30 minutes before resuming use.
  • Check for any obstructions that might be preventing the beater from moving freely.

If the problem persists after trying these solutions, please contact Philco customer support.

7. Specifikacije

8. Garancija

This Philco Planetary Mixer PBP90B comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

Extended warranty options may be available for purchase from your retailer. Refer to the warranty card included with your product or contact Philco customer support for detailed warranty information.

9. Podrška

For technical assistance, spare parts, or any questions regarding your Philco Planetary Mixer PBP90B, please contact Philco customer support.

You can find contact information, FAQs, and service center locations on the official Philco webstranica:

Visit Philco Official Website

Please have your product model number (PBP90B) and serial number (if applicable) ready when contacting support.
