KAMINIO Kalle Electric Fireplace Instruction Manual

1. Važna sigurnosna uputstva

Please read all instructions carefully before using this electric fireplace. Retain this manual for future reference.

• Zaštita od pregrijavanja: The device is equipped with an automatic overheating protection system. In case of overheating, the fireplace will shut down automatically.
• Cool-Touch Surface: The exterior surfaces remain cool to the touch during operation, minimizing the risk of burns.
• Sigurnost djece i kućnih ljubimaca: Designed to be safe for households with children and pets, as there is no open flame, ash, or dangerous carbon monoxide.
• Otkrivanje otvorenog prozora: The heating function automatically deactivates if open windows are detected, preventing energy waste.
• Safety Glass: Features robust and unbreakable safety glass.
• CE certifikat: All KAMINIO products are thoroughly tested and certified for safety according to CE standards.
• plasman: Ensure the fireplace is placed on a stable, level surface. Do not block air inlets or outlets.
• Napajanje: Only connect the fireplace to a standard household electrical outlet with the correct voltage.

slika: This image demonstrates the safety features of the KAMINIO Kalle Electric Fireplace, showing a family with a child and a pet near the fireplace. Key safety aspects highlighted are overheating protection with automatic shutdown, a cool-touch surface to prevent burns, open window detection that turns off heating, and robust, unbreakable safety glass.

2. Proizvod je gotovview

The KAMINIO Kalle Electric Fireplace is a modern, freestanding unit designed to enhance any room with its realistic 3D flame effect and efficient heating capabilities. It combines elegant design with advanced technology for a comfortable and safe experience.

Ključne karakteristike:

• Unique 3D Flame Effect: Energy-efficient LED technology creates a natural and non-static flame appearance.
• Innovative 2-Level Heating System: Provides rapid and quiet warmth with 900W or 1800W power settings.
• daljinski upravljač: Pogodno prilagođavanje postavki iz daljine.
• Samostojeći dizajn: Flexible placement in any room without complex installation.

slika: This image shows the KAMINIO Kalle Electric Fireplace in a modern living room setting, highlighting its elegant design and how it complements home decor. It features a man relaxing on a sofa, with the fireplace positioned nearby.

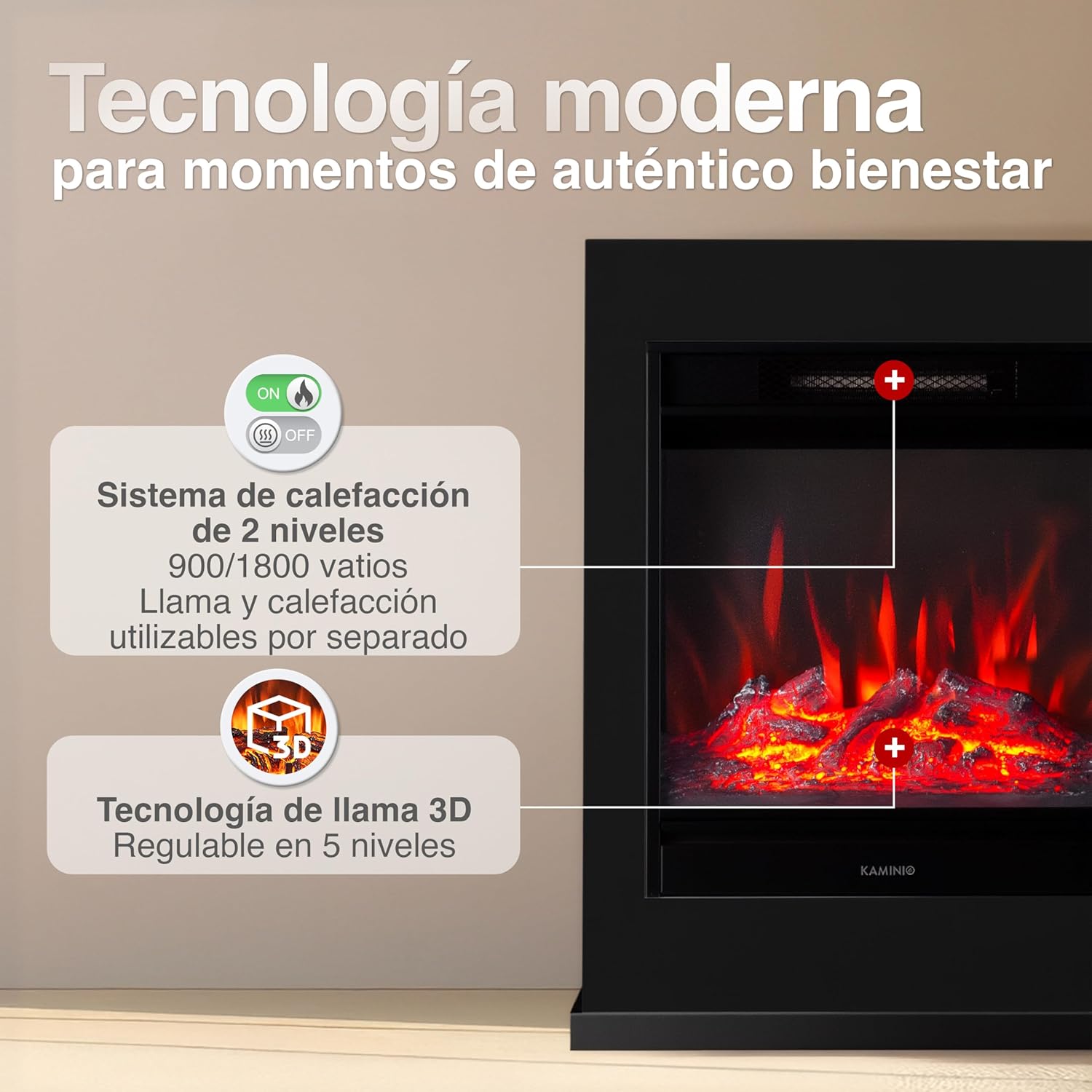

slika: This diagram details the advanced features of the KAMINIO Kalle Electric Fireplace. It highlights the 2-level heating system (900/1800 watts) with separate flame and heating operation, and the adjustable 3D flame technology with 5 levels.

3. Postavljanje i instalacija

The KAMINIO Kalle Electric Fireplace is designed for simple 'Plug & Play' setup, requiring no complex installation.

Koraci instalacije:

1. Raspakirajte: Pažljivo izvadite kamin iz ambalaže.
2. plasman: Choose a suitable location in your room. Ensure there is adequate space around the unit for air circulation and that it is placed on a stable, level surface.
3. Povežite se: Plug the power cord directly into a standard electrical wall outlet. No special wiring, electrician, or chimney sweep is required.
4. zaštita: The fireplace includes felt glides to protect your floor from scratches.

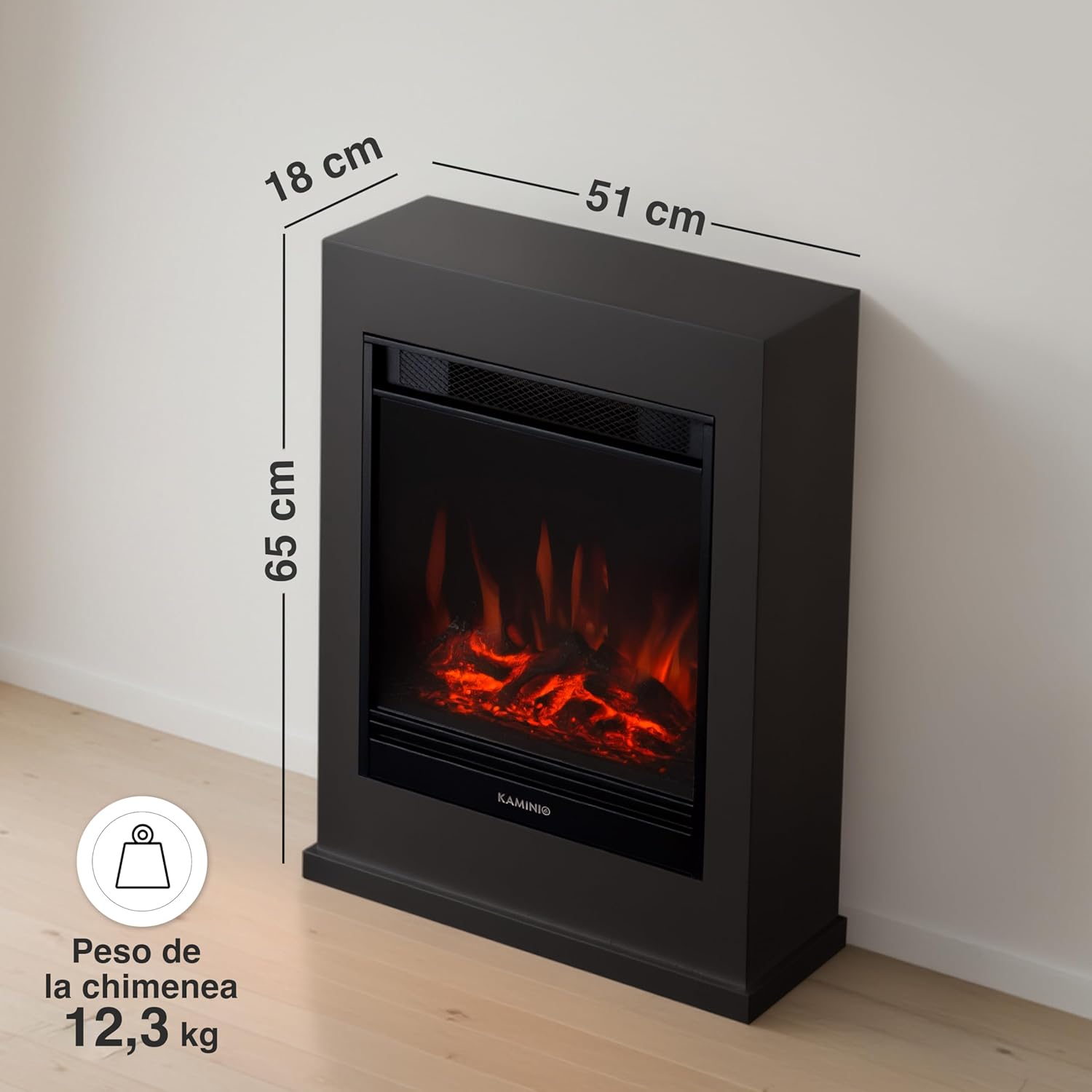

slika: This image provides the precise dimensions of the KAMINIO Kalle Electric Fireplace: 18 cm deep, 51 cm wide, and 65 cm high. The total weight of the fireplace is 12.3 kg.

4. Operacija

The KAMINIO Kalle Electric Fireplace can be operated using the controls on the unit or the included remote control.

Korištenje daljinskog upravljača:

• Uključivanje/isključivanje: Pritisnite dugme za napajanje da uključite ili isključite jedinicu.
• Efekat plamena: Activate the 3D flame effect. The flame intensity can be adjusted through 5 different levels to suit your preference. The flame effect can be used independently of the heating function.
• Funkcija grijanja: Select between two heating levels: 900 watts for gentle warmth or 1800 watts for faster heating. The heating function can be used independently or in conjunction with the flame effect.
• Termostat: (If applicable) Adjust the desired room temperature. The unit will cycle on and off to maintain this temperature.

slika: This image illustrates the efficient heating performance of the KAMINIO Kalle Electric Fireplace. It emphasizes rapid heating, low noise operation due to a silent fan, suitability for rooms up to 30 m², and energy savings from modern components.

5. Održavanje

The KAMINIO Kalle Electric Fireplace requires minimal maintenance due to its design without an open flame.

čišćenje:

• Prije čišćenja: Always unplug the fireplace from the power outlet and allow it to cool completely.
• Eksterijer: Obrišite vanjske površine mekom krpom, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
• staklena ploča: Staklenu ploču očistite mekom krpom i neabrazivnim sredstvom za čišćenje stakla.
• No Ash or Soot: Since there is no real combustion, the fireplace does not produce ash or soot, simplifying cleaning.

6. Otkrivanje problema

If you encounter any issues with your KAMINIO Kalle Electric Fireplace, please refer to the following common solutions:

• Nema napajanja:
  • Provjerite je li kabel za napajanje sigurno uključen u ispravnu električnu utičnicu.
  • Provjerite je li se isključio prekidač.
• Efekat plamena ne radi:
  • Verify the unit is powered on.
  • If using the remote, check its batteries.
• Grijanje ne radi:
  • Ensure the heating function is activated (not just the flame effect).
  • Check if the room temperature setting is higher than the current room temperature.
  • Confirm that the overheating protection has not been triggered. Unplug the unit, wait 15 minutes, and plug it back in.
  • Check if the open window detection has deactivated the heating. Close any open windows.
• Neobična buka:
  • A slight fan noise is normal during heating operation. If the noise is excessive or unusual, unplug the unit and contact customer support.

If these steps do not resolve the issue, please contact KAMINIO customer support for further assistance.

7. Specifikacije

8. Garancija i podrška

For warranty information, technical support, or any questions regarding your KAMINIO Kalle Electric Fireplace, please contact KAMINIO customer service directly. Refer to the product packaging or the official KAMINIO webweb mjesto za kontakt detalje.

Please have your model number (EF06) and purchase information ready when contacting support.
