1. Uvod
The APLOS AP150 Dive Light is a powerful and durable flashlight designed for underwater and outdoor use. With its high lumen output and robust waterproof construction, it provides reliable illumination for various activities such as scuba diving, snorkeling, camping, and hiking. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your AP150 Dive Light.
2. Ključne karakteristike
- 15000 Lumens Super Bright: Delivers an impressive 15,000 lumens of cold white light for clear visibility, with an effective beam distance up to 356 meters.
- Izdržljiva konstrukcija: Made from AL-6061-T6 aircraft-grade aluminum with military-grade Type III hard anodizing, ensuring resistance to wear, impact, and seawater corrosion. Features a tempered glass lens for durability and water resistance.
- 4 Lighting Modes & Rotary Switch: Easily switch between High, Medium, Low, and SOS modes using a smooth rotary switch located behind the light head.
- IPX8 vodootporna ocjena: Professional sealing design allows for use up to 150 meters (492 feet) underwater.
- Svestrana upotreba: Suitable for scuba diving, snorkeling, camping, swimming, hiking, hunting, fishing, and other outdoor adventures.

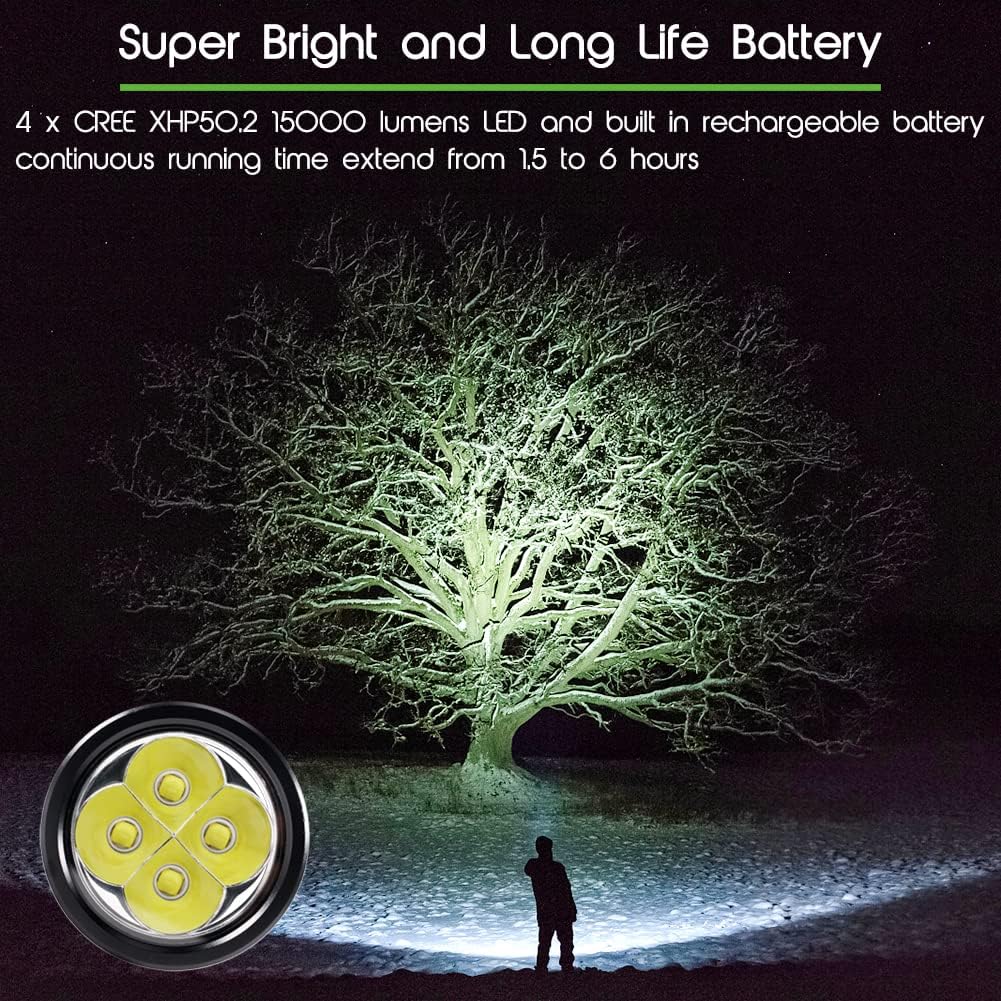

Image 1: The APLOS AP150 Dive Light's powerful 15000 lumen beam.
Image 2: Demonstrating the AP150's waterproof capability and beam distance.
3. Vodič za postavljanje
3.1. Instalacija baterije
- Unscrew the tail cap or the head of the flashlight by twisting it counter-clockwise.
- Insert the included rechargeable Lithium-Ion battery (CR5 type) into the battery compartment, ensuring correct polarity (positive end towards the light head).
- Carefully screw the tail cap or head back on clockwise until it is securely tightened. Ensure the O-rings are properly seated to maintain the waterproof seal.
3.2. Punjenje baterije
- Remove the battery from the flashlight as described in section 3.1.
- Place the battery into the provided external battery charger.
- Connect the charger to a power source using the included cable.
- Monitor the charger's indicator light for charging status. A full charge typically takes approximately 4 hours.
- Once fully charged, remove the battery from the charger and reinstall it into the flashlight.
4. Uputstvo za upotrebu
4.1. Uključivanje/isključivanje i odabir načina rada
The APLOS AP150 features a rotary switch for easy control:
- Da upalim svjetlo ON, rotate the switch clockwise from the OFF position.
- Continue rotating the switch clockwise to cycle through the four lighting modes: High (15000 lumens) > Medium (7000 lumens) > Low (2000 lumens) > SOS (7000 lumens).
- Da upalim svjetlo OFF, rotate the switch counter-clockwise back to the OFF position.

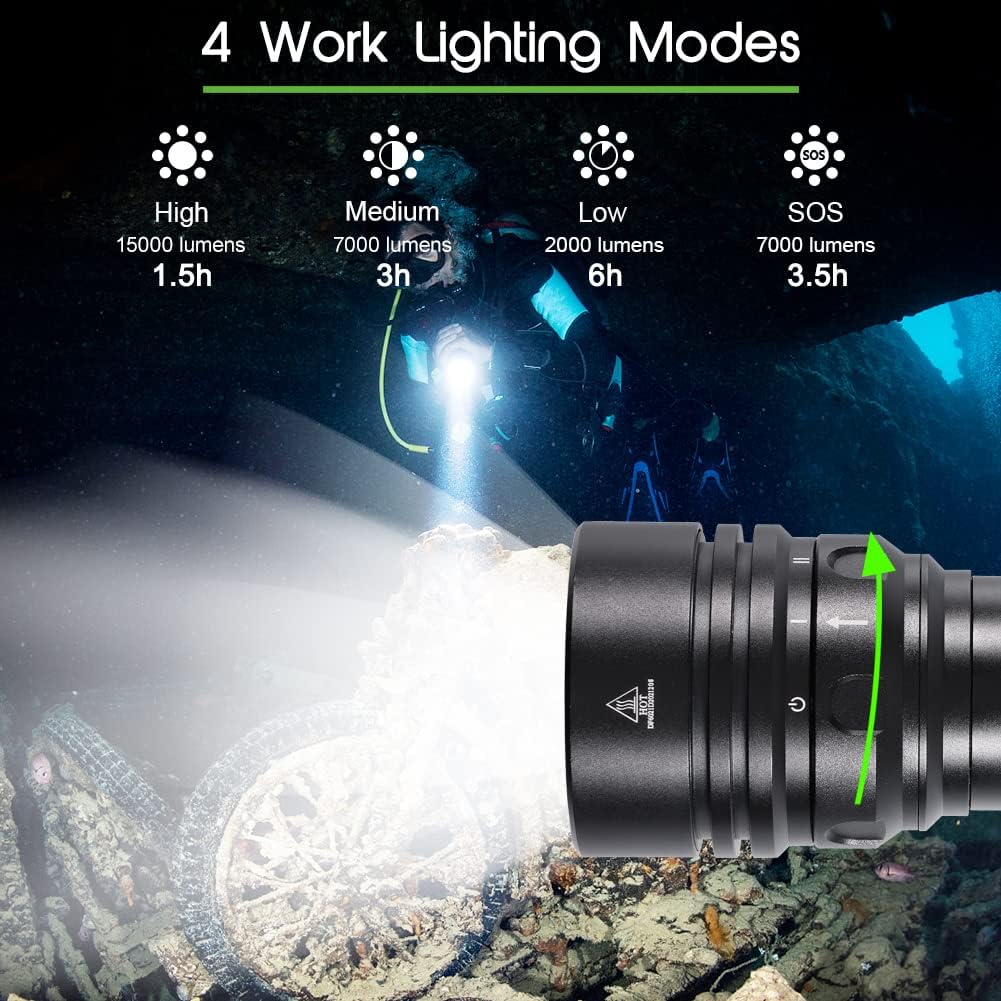

Image 3: The four lighting modes and rotary switch operation.
4.2. Indikator nivoa baterije
The flashlight is equipped with a battery level indicator light on the switch:
- zeleno svjetlo: Nivo baterije je između 50% i 100%.
- žuto svjetlo: Nivo baterije je između 20% i 50%.
- crveno svjetlo: Battery level is below 20%. Recharge the battery promptly.
5. Održavanje
- Ispiranje: After each use in saltwater, thoroughly rinse the dive light with fresh water to prevent corrosion and salt buildup.
- Održavanje O-prstena: Regularly inspect the O-rings for any signs of wear, cracks, or damage. Keep them clean and lightly lubricated with silicone grease to maintain a watertight seal. Replace damaged O-rings immediately using the provided spares.
- Održavanje baterije: Čuvajte bateriju na hladnom i suhom mjestu kada se ne koristi. Izbjegavajte potpuno pražnjenje baterije tokom dužeg perioda.
- čišćenje: Očistite spoljašnjost lampe mekom, damp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
6. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetlo se ne pali. | Baterija je prazna ili nepravilno instalirana. | Recharge the battery. Ensure the battery is inserted with correct polarity. Check for proper contact between the battery and terminals. |
| Svjetlo treperi ili je prigušeno. | Low battery charge or loose connections. | Recharge the battery. Ensure all parts are tightly screwed together. |
| Curenje vode. | Oštećeni ili nepravilno postavljeni O-prstenovi. | Inspect O-rings for damage. Clean and lubricate O-rings. Ensure O-rings are correctly seated and the flashlight is tightly sealed before use. |
| Baterija se ne puni. | Neispravan punjač ili baterija. | Ensure the charger is properly connected to power and the battery. Try a different charging cable or power adapter if available. If issues persist, the battery or charger may need replacement. |
7. Specifikacije proizvoda
- Broj modela: AP150
- Brand: APLOS
- Vrsta izvora svjetlosti: LED
- Bijela svjetlina: 15000 lumena
- Izvor napajanja: Napaja se baterijama (litijum jonski)
- Broj baterija: 1 CR5 baterija (uključena)
- Materijal: AL-6061-T6 Aluminijum avionskog kvaliteta
- Nivo vodootpornosti: IPX8 (Waterproof up to 150 meters / 492 feet)
- Dimenzije artikla (D x Š x V): 7 cm D x 1.5 cm Š x 1.28 cm V
- Vrsta montaže: Handheld
- Uključene komponente: APLOS AP150 Dive Light Set
8. Jamstvo i podrška
The APLOS AP150 Dive Light comes with a 2-godišnja garancija proizvođača. For warranty claims, technical support, or any inquiries regarding your product, please contact APLOS customer service through the retailer where the product was purchased or visit the official APLOS webstranica za kontakt informacije.
