Ntaanoo MP51 3-in-1 Magnetic Power Bank User Manual

1. Uvod

Thank you for choosing the Ntaanoo MP51 3-in-1 Magnetic Power Bank. This device is designed to provide convenient and efficient charging for your mobile devices, featuring magnetic wireless charging, a built-in USB-C cable, and an additional USB-C port, along with an integrated stand. Please read this manual thoroughly before use to ensure proper operation and to maximize the product's lifespan.

Image: The Ntaanoo MP51 3-in-1 Magnetic Power Bank, highlighting its sleek and portable form factor.

2. Proizvod je gotovview

The Ntaanoo MP51 is a versatile 10000mAh power bank offering multiple charging solutions. It features a strong magnetic attachment for compatible devices, a built-in USB-C cable, and an additional USB-C port for simultaneous charging of up to three devices. The integrated foldable stand allows for hands-free viewing tokom punjenja.

Ključne karakteristike:

• Kapacitet 10000mAh: Obezbeđuje ampnapajanje za višestruko punjenje.
• 3-u-1 punjenje: Supports magnetic wireless charging, built-in USB-C cable charging, and external USB-C port charging.
• Brzo punjenje: Up to 22.5W wired charging and 5-15W magnetic wireless charging.
• Integrated Foldable Stand: For convenient hands-free use in portrait or landscape mode.
• LED digitalni displej: Prikazuje postotak baterije u stvarnom vremenutage.
• Kompaktan i prenosiv: Designed for easy carrying in pockets or bags.
• Višestruki sigurnosni sistem zaštite: Includes temperature, overcharge, and short-circuit safeguards.

Slika: Detaljna view of the Ntaanoo MP51, illustrating its various components and features.

3. Šta se nalazi u kutiji

• 1 x Ntaanoo 10000mAh Magnetic Power Bank (MP51)
• 1 x Built-in USB-C Cable
• 1 x Uputstvo za upotrebu

4. Podešavanje

Punjenje Power Bank-a

1. Connect the power bank to a power adapter (not included) using the built-in USB-C cable or an external USB-C cable.
2. The LED digital display will show the charging progress.
3. Kada se na ekranu prikaže "100%, power bank je potpuno napunjen.

Za optimalne performanse, potpuno napunite power bank prije prve upotrebe.

5. Uputstvo za upotrebu

5.1 Magnetno bežično punjenje

1. Ensure your device is MagSafe compatible (e.g., iPhone 12/13/14/15/16/17 series).
2. Align the power bank with the back of your MagSafe-compatible device. The magnets will snap into place, and charging will begin automatically.
3. The LED display on the power bank will show its remaining charge, and your phone will indicate wireless charging.

Napomena: For best results, use without a case or with a MagSafe-compatible case. Non-MagSafe cases may prevent proper magnetic attachment and charging.

Image: Magnetic attachment of the power bank to an iPhone, showing the charging indicator on the phone screen.

5.2 Wired Charging (Built-in & External USB-C)

1. Korištenje ugrađenog USB-C kabela: Pull out the integrated USB-C cable from the side of the power bank and plug it directly into your compatible device (e.g., iPhone 15/16/17, Samsung Galaxy, USB-C Android phones).
2. Using the External USB-C Port: Connect your device's charging cable to the external USB-C port on the power bank.
3. Charging will begin automatically. The power bank can charge up to three devices simultaneously (one wirelessly, one via built-in cable, one via external port).

Image: Illustrates the Ntaanoo MP51 charging three devices concurrently using its magnetic, built-in USB-C, and external USB-C connections.

5.3 Korištenje integriranog postolja

1. Locate the foldable stand on the back of the power bank.
2. Gently pull out the stand until it locks into an open position.
3. Attach your phone magnetically to the power bank.
4. Place the power bank with your attached phone on a flat surface. The stand allows for both vertical and horizontal viewuglova tokom punjenja.

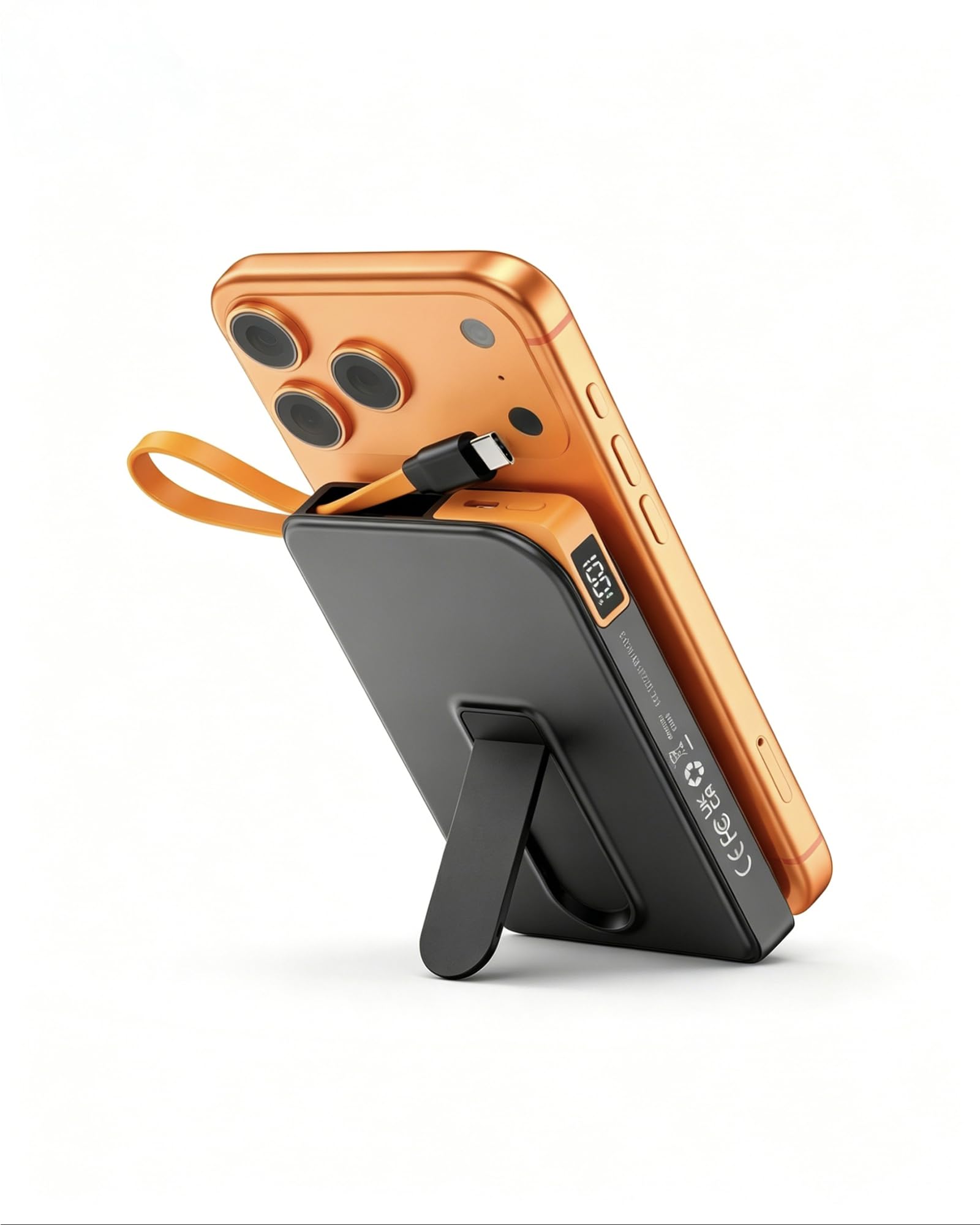

Image: The Ntaanoo MP51's foldable stand in use, supporting a phone for hands-free viewing during charging.

5.4 Provjera nivoa baterije

Press the power button on the side of the power bank. The LED digital display will illuminate, showing the current battery percentage.

6. Sigurnosne informacije

• Ne izlažite power bank ekstremnim temperaturama, direktnoj sunčevoj svjetlosti ili vatri.
• Izbjegavajte ispuštanje, udaranje ili rastavljanje uređaja.
• Čuvati dalje od vode i drugih tečnosti.
• Ne koristite uređaj ako je oštećen ili natečen.
• The power bank features built-in protections against overcharge, short-circuit, and high temperatures.
• A slight warming of the device during magnetic charging is normal and safe.
• Čuvati van domašaja djece.

Image: Visual representation of the power bank's advanced safety mechanisms.

7. Održavanje

• Očistite power bank mekom, suhom krpom. Ne koristite jake hemikalije ili abrazivne materijale.
• Čuvajte uređaj na hladnom i suvom mestu kada se ne koristi.
• Recharge the power bank at least once every three months to maintain battery health.

8. Otkrivanje problema

Uređaj se ne puni:

• Ensure the power bank itself is charged. Check the LED display.
• For magnetic charging, verify your device is MagSafe compatible and that no non-MagSafe case is interfering.
• For wired charging, ensure cables are securely connected to both the power bank and your device.
• Pokušajte s drugim kabelom za punjenje ili adapterom za napajanje.

Sporo punjenje:

• Ensure you are using a fast-charging compatible cable and adapter for the power bank.
• For wireless charging, ensure proper alignment and remove any non-MagSafe cases.
• Istovremeno punjenje više uređaja može smanjiti brzine pojedinačnog punjenja.

Magnetic Attachment is Weak:

• Ensure your phone is MagSafe compatible.
• Remove any non-MagSafe cases or use a MagSafe-compatible case.
• Check for any foreign objects between the power bank and your phone.

9. Specifikacije

Image: Compatibility and charge cycle information for different iPhone models.

10. Garancija i korisnička podrška

The Ntaanoo MP51 3-in-1 Magnetic Power Bank comes with a 2 godine garancije. Ntaanoo is committed to delivering high-quality products and offers responsive Korisnička podrška 24/7 for any inquiries, repairs, or replacements.

For assistance, please contact Ntaanoo customer support through the official webweb-stranicu ili vašu platformu za kupovinu.
