Uvod
Thank you for choosing the TUNENGE S15Pro Keychain Flashlight. This compact and powerful EDC (Everyday Carry) flashlight is crafted from durable 7075 aluminum alloy, offering a maximum output of 750 lumens, multiple lighting modes, and a versatile side light with UV detection. This manual provides essential information for safe and effective use of your device.
Image: TUNENGE S15Pro Keychain Flashlight showcasing its compact design and key features like 750 lumens output, 365nm UV light, 6500K neutral white, IP66 waterproof rating, 1.5m drop test, 158m beam distance, 30h max runtime, and double magnet.
Šta je u kutiji
Provjerite da li su svi artikli prisutni prilikom raspakivanja:
- S15Pro Flashlight
- USB-C kabl
- Uputstvo za upotrebu (ovaj dokument)
- Privjesak za ključeve
- Belt Clip
Image: The TUNENGE S15Pro package contents, including the flashlight, USB-C charging cable, keychain, and belt clip.
Specifikacije
| Feature | Detalj |
|---|---|
| Model | S15Pro |
| Materijal | 7075 Aluminijska legura |
| Vrsta izvora svjetlosti | LED/UV |
| Maksimalni izlaz (bijelo svjetlo) | 750 lumena |
| Temperatura boje | 6500 Kelvina (Neutralno bijela) |
| Režimi bočnog svjetla | White, Yellow, Red, Red & Yellow Flashing, 365nm UV |
| Baterija | 350mAh litijum-polimer (punjiva) |
| Port za punjenje | USB-C |
| Max Runtime | Do 30 sati (niski način rada) |
| Otpornost na vodu | IP66 (Dustproof, Water-resistant) |
| Drop Proof | 1.5m |
| Posebne karakteristike | Magnetic Base, Keychain, Belt Clip |
| Dimenzije | 1"D x 0.5"W x 1"H (Approx. 62 x 16.5 mm) |
| Težina | 0.74 oz (21 g) |
Image: Detailed technical parameters table for the TUNENGE S15Pro, showing output, runtime, and distance for various light modes, along with size, weight, and battery capacity.
Setup
Initial Charge
Before first use, fully charge the flashlight. Connect the provided USB-C cable to the charging port located at the tail of the flashlight and plug the other end into a USB power source. The indicator light on the button will show charging status:
- crveno svjetlo: Punjenje
- zeleno svjetlo: Potpuno napunjen
Potpuno punjenje obično traje otprilike 50 minuta.
Image: The TUNENGE S15Pro flashlight connected to a USB-C charger, showing the indicator light for charging status (red for charging, green for full).
Pričvršćivanje dodatne opreme
The S15Pro comes with a keychain and a belt clip for convenient carrying. Attach the keychain to the integrated lanyard loop at the tail. The belt clip can be attached to the side of the flashlight body for hands-free use, such as clipping it to a hat brim or pocket.
Image: The TUNENGE S15Pro flashlight shown attached to a keychain, clipped to a hat, and secured to a backpack, demonstrating its versatile carry options.
Radni režimi
The S15Pro features a main light with 6 modes and a multi-purpose COB side light with 5 modes. The flashlight has a memory function for the main light modes.
Operacija glavnog svjetla
- Instant On (Momentary): Press and hold the power button for instant illumination. Release to turn off.
- Uključi/isključi: Double-click the power button to turn the main light on. Double-click again to turn it off.
- Ciklus modova svjetline: When the main light is on, single-click the power button to cycle through modes: Moonlight (5lm) → Low (30lm) → Medium (230lm) → High (750lm). The flashlight will remember the last used mode.
- Strobe/SOS: Triple-click the power button to activate Strobe mode (750lm). Single-click to switch to SOS mode (100lm). Single-click again to return to the last memorized brightness mode.

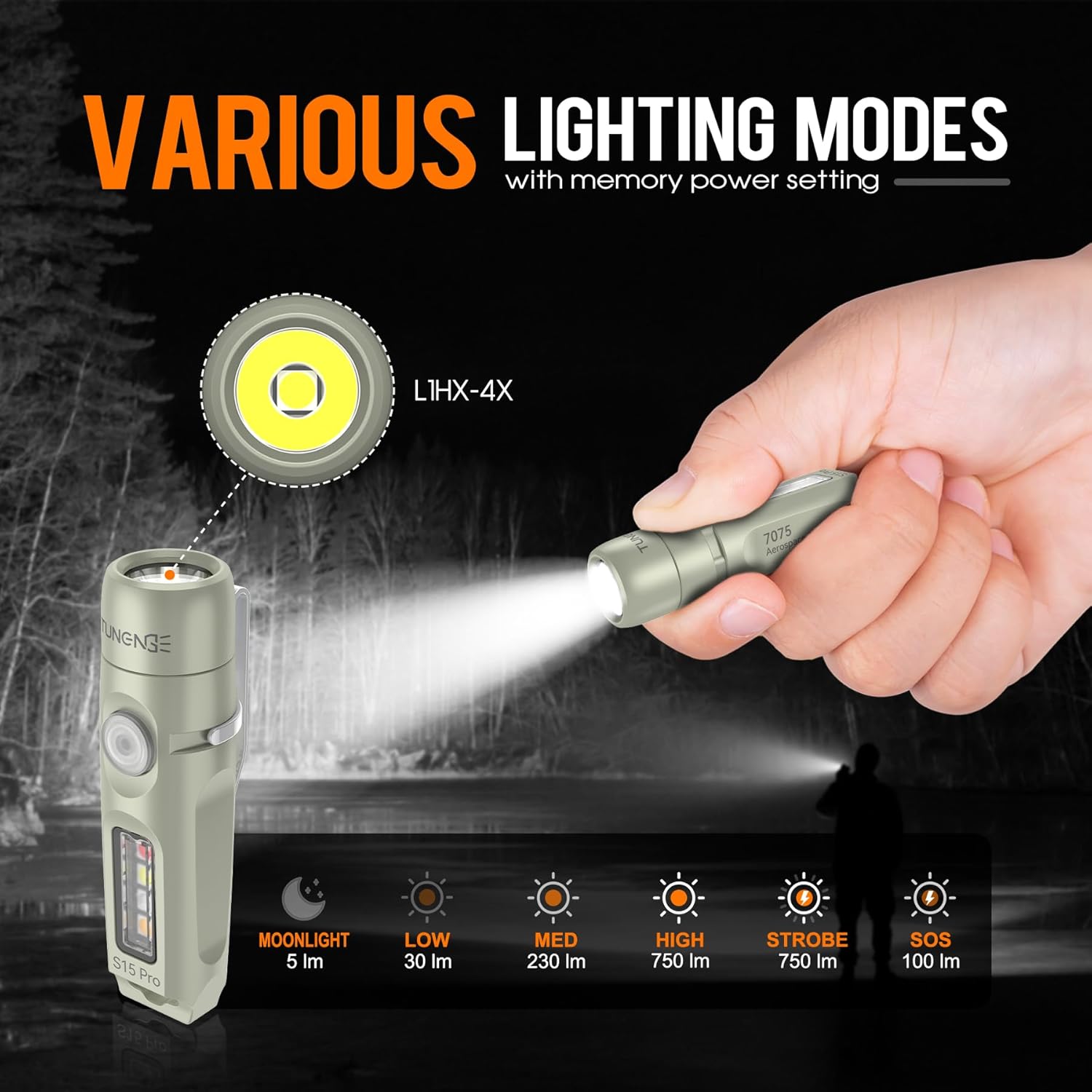

Image: The TUNENGE S15Pro main light demonstrating its various lighting modes, including Moonlight, Low, Medium, High, Strobe, and SOS, with corresponding lumen outputs.
Video: This video demonstrates the various operation modes of the TUNENGE S15 Pro keychain flashlight, showing how to activate and cycle through its different brightness and special modes.
COB Side Light Operation
- Uključi/isključi: Quick continuous triple-click the power button to turn on the COB side light. It will activate in the last memorized side light mode. Triple-click again to turn it off.
- Cycle Side Light Modes: When the side light is on, single-click the power button to cycle through modes: White Light → Yellow Light → Red Light → Red & Yellow Flashing → 365nm UV Light.

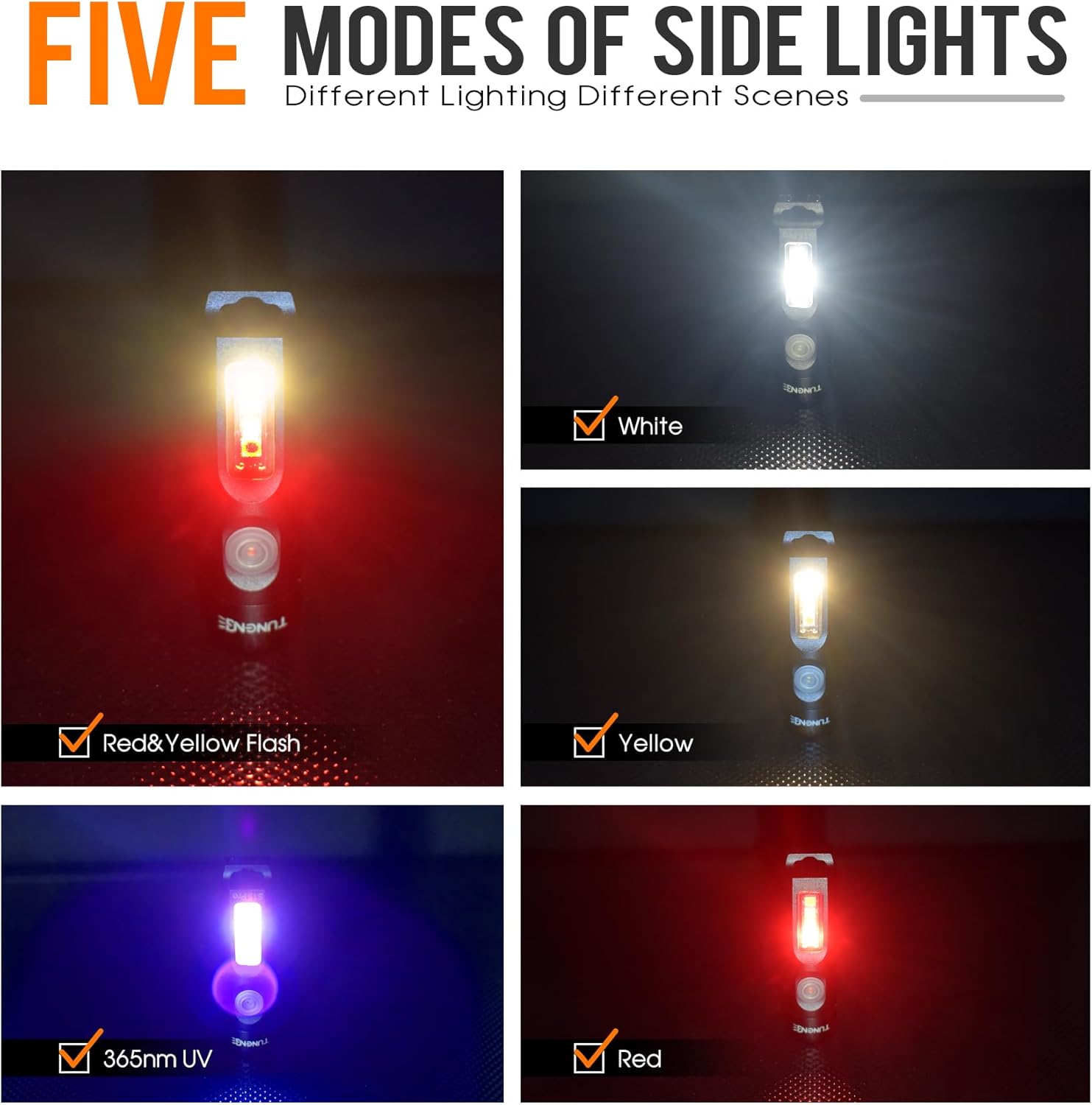

Image: The TUNENGE S15Pro COB side light displaying its five different modes: White, Yellow, Red, Red & Yellow Flash, and 365nm UV, suitable for various scenes.
Video: This video illustrates the 365nm UV detection capability of the TUNENGE S15Pro keychain flashlight, showing its effectiveness in revealing security features on banknotes.
Punjenje
The S15Pro is equipped with a 350mAh rechargeable battery and a USB-C charging port for convenience. The charging indicator on the button provides real-time status:
- crveno svjetlo: Indicates the flashlight is currently charging.
- zeleno svjetlo: Indicates the flashlight is fully charged.
A full charge takes approximately 50 minutes and provides up to 30 hours of operation in low mode. It is recommended to charge the flashlight at least once a month to maintain battery health.
Image: The TUNENGE S15Pro flashlight being charged via USB-C, illustrating compatibility with various power sources like wall chargers, laptops, and car chargers.
Održavanje
To ensure the longevity and optimal performance of your TUNENGE S15Pro flashlight, follow these maintenance guidelines:
- čišćenje: Obrišite tijelo svjetiljke mekom krpomamp tkanina. Nemojte koristiti jake hemikalije ili abrazivna sredstva za čišćenje.
- Skladištenje: Čuvajte baterijsku lampu na hladnom i suvom mestu dalje od direktne sunčeve svetlosti i ekstremnih temperatura.
- Održavanje baterije: Recharge the battery regularly, even if not in use, to prevent deep discharge and extend battery life.
- Otpornost na vodu: While IP66 rated, avoid submerging the flashlight in water for extended periods. Ensure the USB-C port cover is securely closed to maintain water resistance.
Rješavanje problema
If you encounter issues with your S15Pro flashlight, refer to the following common solutions:
- Lampa se ne uključuje: Provjerite je li baterija napunjena. Povežite je s USB-C izvorom napajanja i provjerite indikator punjenja.
- Izlaz svjetlosti je slab: Baterija je možda slaba. Napunite baterijsku lampu.
- Bočno svjetlo ne radi: Ensure you are triple-clicking the button to activate the side light modes.
- Problem s punjenjem: Pokušajte s drugim USB-C kabelom ili adapterom za napajanje. Provjerite je li priključak za punjenje čist i bez ostataka.
If problems persist, please contact TUNENGE customer support.
Sigurnosne informacije
Molimo pročitajte i slijedite ove sigurnosne mjere opreza:
- Sigurnost oka: Do not shine the flashlight directly into eyes or at other people. The high lumen output can cause temporary vision impairment.
- djeca: Čuvati izvan dohvata djece. Ovo nije igračka.
- toplina: The flashlight may become warm during prolonged use on high settings. This is normal.
- Rastavljanje: Do not attempt to disassemble or modify the flashlight, as this will void the warranty and may cause damage or injury.
- baterija: Use only the integrated rechargeable battery. Do not expose to fire or extreme heat.
Garancija i podrška
For warranty information or technical support, please visit the official TUNENGE webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini.
