YUEHISY 48MP FHD 1080P Vlogging Camera

YUEHISY 48MP FHD 1080P Vlogging Camera Instruction Manual

Model: 48MP FHD 1080P Vlogging Camera

1. Proizvod je gotovview

This manual provides instructions for the YUEHISY 48MP FHD 1080P Vlogging Camera. This compact digital camera is designed for capturing high-resolution photos and videos, featuring an 18X digital zoom, a 2.4-inch flip screen, and various creative functions.

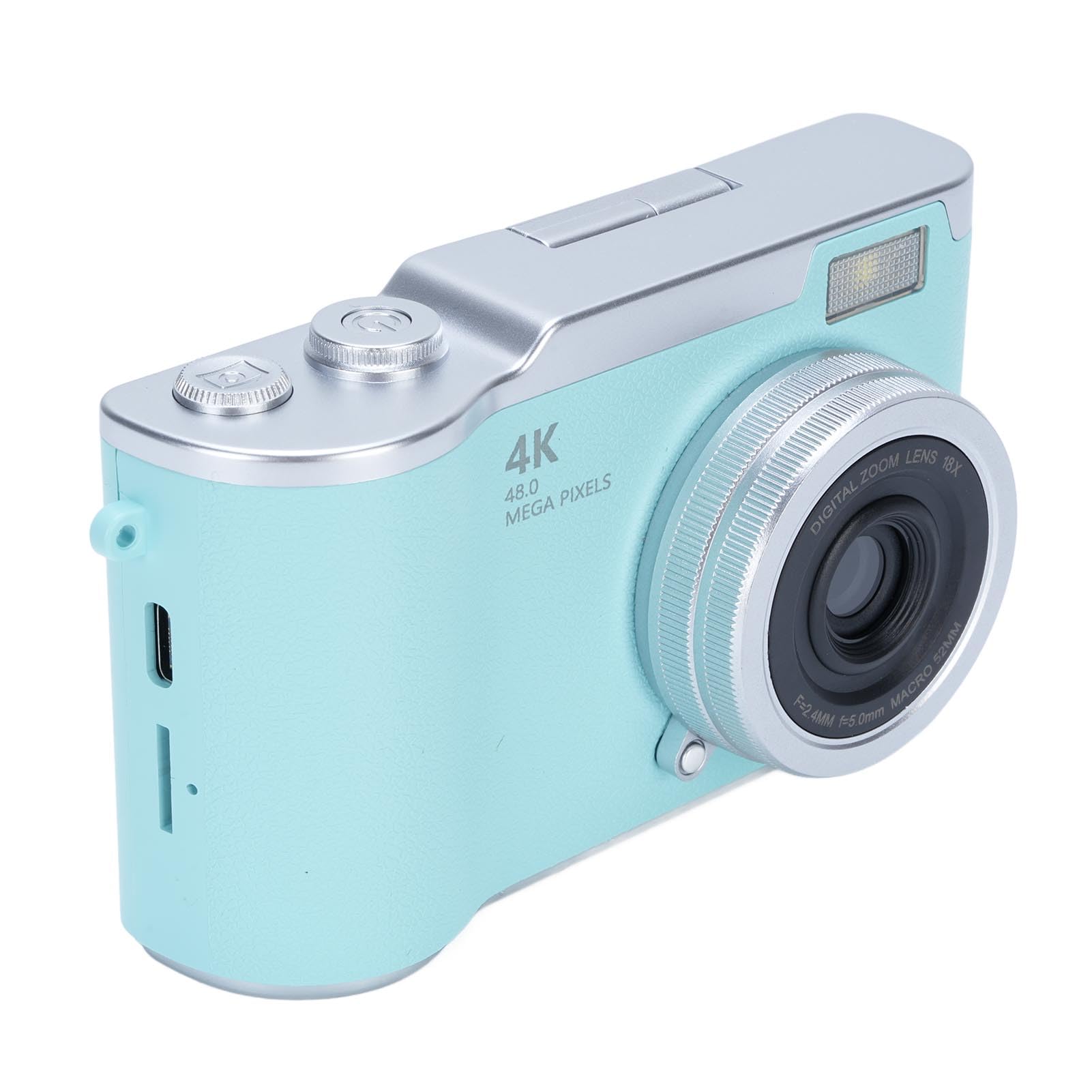

YUEHISY 48MP FHD 1080P Vlogging Camera, front view

Front view of the YUEHISY 48MP FHD 1080P Vlogging Camera, showcasing the lens, flash, and compact design.

2. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

YUEHISY Digital Camera
Remen za zapešće
Kabel za punjenje (USB)
Uputstvo za upotrebu

YUEHISY Digital Camera with included accessories: wrist strap and charging cable

The camera shown with its wrist strap and USB charging cable, which are included in the package.

3. Podešavanje

3.1. Ugradnja i punjenje baterije

Pronađite odeljak za bateriju na fotoaparatu.
Insert the provided Li-ion battery (800mAh) according to the polarity indicators.
Čvrsto zatvorite odeljak za baterije.
Connect the camera to a power source using the supplied USB charging cable. The charging indicator will illuminate.
Allow the battery to fully charge before first use. A full charge provides approximately 4 hours of continuous recording.

3.2. Instalacija memorijske kartice

This camera requires a memory card (not included) to store photos and videos. It supports up to 128GB memory cards.

Pronađite utor za memorijsku karticu, obično blizu odjeljka za bateriju.
Insert a compatible memory card (e.g., microSD with adapter) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
Da biste uklonili, lagano pritisnite karticu dok ne iskoči.

3.3. Početno uključivanje

After installing the battery and memory card, press and hold the Power On Key to turn on the camera. Follow any on-screen prompts for initial setup, such as setting the date and time.

4. Uputstvo za upotrebu

4.1. Kontrole kamere

Diagram of camera controls including Power On Key, Take Picture button, T and W zoom buttons, Flip Up screen, and navigation buttons (Left, Right, Down, Confirm)

An annotated diagram showing the location and function of the camera's main control buttons on the top and back.

Power On Key: Press and hold to turn the camera on or off.
Take Picture Button: Press to capture a photo or start/stop video recording.
T (Zoom In): Magnifies the view or playback image.
W (Zoom Out): Smanjuje view or playback image.
Flip Up Screen: The 2.4-inch HD screen can be flipped up for selfies or easy viewing.
Navigacijski gumbi (lijevo, desno, gore, dolje): Koristi se za navigaciju kroz menije i odabir opcija.
Dugme OK/Potvrdi: Potvrđuje odabire u menijima.

4.2. Fotografisanje

Ensure the camera is in photo mode. Frame your shot using the 2.4-inch flip screen. Press the Take Picture Button to capture a 48MP image. The camera features high-speed autofocus for clear and vivid shots. An LED fill light assists in low-light conditions.

Comparison image showing a woman photographed with and without the camera's flash fill light, demonstrating improved lighting with flash

This image illustrates the effect of the built-in flash fill light, showing a clearer and brighter photo when the flash is used.

4.3. Snimanje video zapisa

Switch the camera to video mode. Press the Take Picture Button to start recording 1080P video. Press it again to stop recording. The camera supports loop recording, which can be enabled in the settings menu.

4.4. Using the Flip Screen

The 2.4-inch HD screen can be flipped upwards, allowing for easy self-portraits (selfies) or convenient viewing from various angles. This feature helps in composing shots accurately.

YUEHISY Digital Camera with its 2.4-inch flip screen rotated upwards, displaying an image of flowers

The camera with its screen flipped up, ideal for vlogging or taking selfies, showing a vibrant image on the display.

4.5. Digitalni zum

Utilize the T (Zoom In) and W (Zoom Out) buttons to adjust the 18X digital zoom. This allows you to capture distant subjects with enhanced detail.

Comparison of two images: one wide shot of a person on a mountain, and another zoomed-in shot of the same person, demonstrating the 18X digital zoom capability

This image shows the camera's 18X digital zoom in action, comparing a wide shot to a magnified view of a distant subject.

4.6. Multifunkcionalne karakteristike

The camera includes various functions to enhance your photography and entertainment:

Self-Timers: Opcije za odgodu od 2, 5 ili 10 sekundi prije snimanja fotografije.
Timestamping: Add date and time to your photos and videos.
Efekti filtera: Apply different visual filters to your images.
Games and Music: Access built-in games and a music function for entertainment.

5. Održavanje

5.1. Čišćenje kamere

Za čišćenje kućišta fotoaparata koristite meku, suhu krpu.
Za objektiv i ekran koristite specijaliziranu krpu i otopinu za čišćenje objektiva kako biste izbjegli ogrebotine.
Nemojte koristiti jake hemikalije ili abrazivne materijale.

5.2. Održavanje baterije

Redovno punite bateriju, čak i ako se kamera ne koristi često, kako biste održali njeno stanje.
Izbjegavajte izlaganje baterije ekstremnim temperaturama.
Ako skladištite kameru duži period, izvadite bateriju.

5.3. Rukovanje memorijskim karticama

Uvijek formatirajte nove memorijske kartice u fotoaparatu prije prve upotrebe.
Safely eject the memory card from the camera or computer to prevent data corruption.
Držite memorijske kartice dalje od jakih magnetskih polja.

6. Otkrivanje problema

Problem	Mogući uzrok	Rješenje
Kamera se ne uključuje.	Baterija je prazna ili nepravilno instalirana.	Charge the battery fully. Reinstall the battery correctly.
Ne mogu snimati fotografije/video zapise.	Memorijska kartica je puna, nije umetnuta ili je oštećena.	Umetnite memorijsku karticu. Izbrišite nepotrebne files. Format the memory card (this will erase all data).
Slike su mutne.	Objektiv je prljav. Nedovoljno svjetla. Podrhtavanje kamere.	Clean the lens. Use the LED fill light or shoot in brighter conditions. Hold the camera steady.
Kamera se zamrzava ili prestaje reagovati.	Softverski kvar.	Izvadite i ponovo umetnite bateriju da biste resetovali kameru.

7. Specifikacije

Feature	Detalj
Kvalitet slike	Do 48 megapiksela
Video Rezolucija	1080P Full HD (Maximum)
Digitalni zum	18X
Ekran	2.4-inch HD Flip Screen
Vrsta baterije	Li-ion baterija
Kapacitet baterije	800mAh
Trajanje baterije (video)	Do 4 sati neprekidnog snimanja
Podrška za skladištenje	Up to 128GB memory card (not included)
Flash	Built-in LED Fill Light
File Formati	JPEG (fotografije), MP4 (videozapisi)
Tip senzora	CMOS
Dimenzije (približno)	117 mm x 64 mm x 29 mm (4.61 in x 2.52 in x 1.14 in)

Diagram showing the dimensions of the YUEHISY Digital Camera: 117mm length, 64mm height, 29mm thickness

Visual representation of the camera's approximate dimensions.

8. Informacije o garanciji

This product comes with a manufacturer warranty for 90 days from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects but does not cover damage caused by misuse, accidents, or unauthorized modifications.

9. Podrška

Za tehničku pomoć, rješavanje problema izvan ovog priručnika ili upite o garanciji, obratite se direktno prodavcu ili proizvođaču. Za konkretne kontakt podatke pogledajte dokumentaciju o kupovini.
