RC ERA C184 MD500 RC Helicopter Instruction Manual

1. Uvod

This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your RC ERA C184 MD500 RC Helicopter. Please read this manual thoroughly before operating the helicopter to ensure proper function and to prevent damage or injury.

Image 1.1: The RC ERA C184 MD500 RC Helicopter in flight, showcasing its yellow and blue design.

2. Sigurnosne mjere

Failure to follow these safety guidelines may result in injury, damage to the product, or property damage.

• Nadzor odraslih: Ovaj proizvod se preporučuje korisnicima od 16 godina i starijim. Za mlađe korisnike preporučuje se nadzor odraslih.
• Okruženje leta: Operate the helicopter in open, clear areas, away from people, animals, buildings, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Sigurnost baterije: Use only the specified charger and batteries. Do not overcharge or short-circuit batteries. Discontinue use if batteries show signs of damage or swelling.
• Sigurnost propelera: Keep hands, face, and loose clothing away from rotating propellers. Always power off the helicopter and remote control before handling the propellers.
• Izloženost vodi: Avoid exposing the helicopter to water or moisture, as this can damage electronic components.

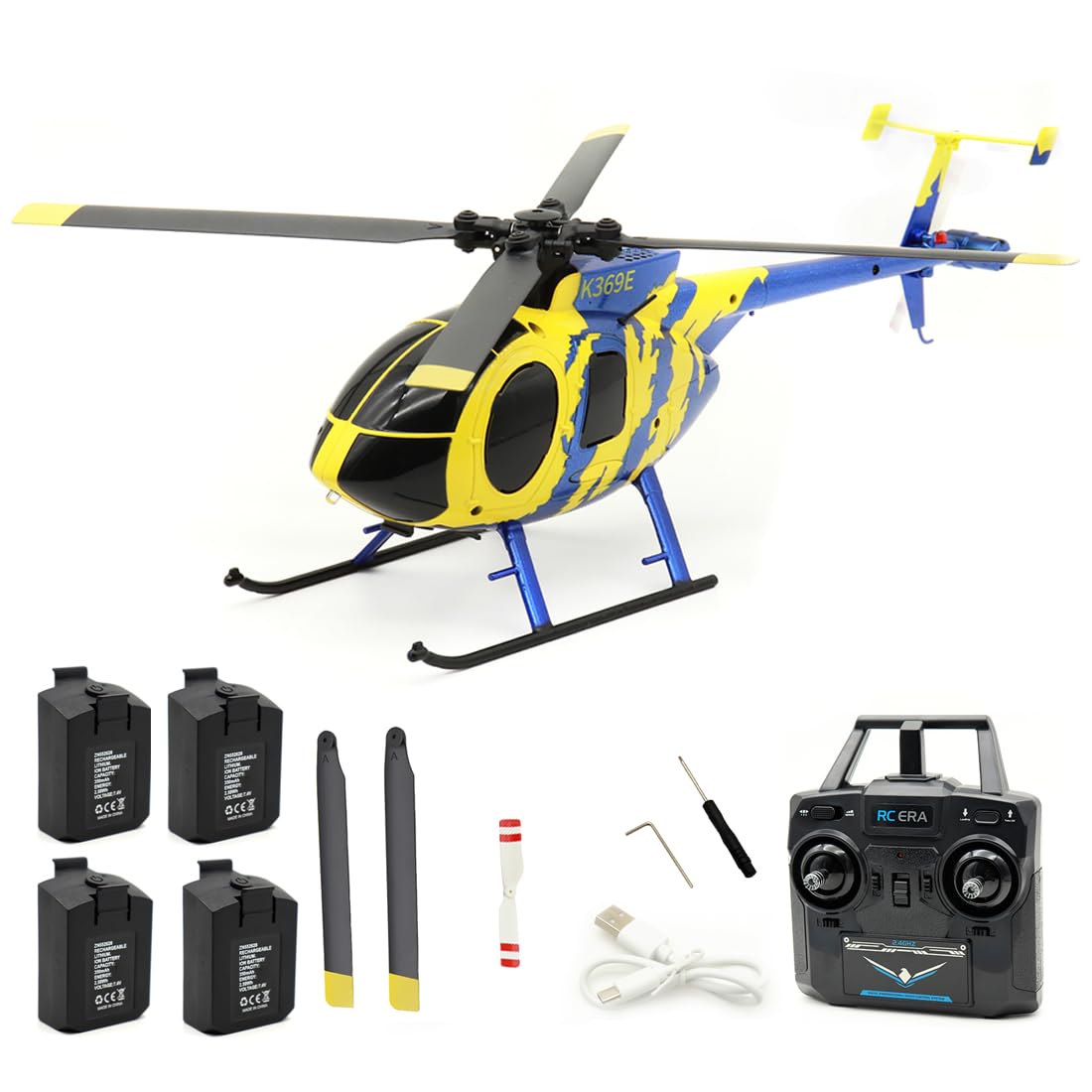

3. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• RC ERA C184 MD500 Helicopter (1)
• 2.4G Remote Control (1)
• USB Charger (1)
• Main Propellers (2 spare)
• Tail Propeller (1 spare)
• 7.4V 350mAh LiPo Batteries (Quantity varies by package, e.g., 1, 2, 3, or 4)
• Odvijač (1)
• Hexagonal Wrench (1)
• Uputstvo za upotrebu (1)

4. Značajke proizvoda

The RC ERA C184 MD500 RC Helicopter incorporates several advanced features for an enhanced flight experience:

• Innovative Aileronless Design: Utilizes an advanced aerodynamic structure with precision propeller blades for powerful lift and self-stabilizing performance.
• 6-Axis Gyroscope & 6G Mode: Built-in 6-axis gyroscope combined with 6G mode provides excellent stability and ease of operation, suitable for various skill levels.
• Barometer & Optical Flow Positioning: Equipped with a barometer for precise altitude maintenance and optical flow technology for stable hovering both indoors and outdoors.
• Intelligent Modular Battery System: Features a 7.4V 350mAh Li-Polymer battery with an intelligent power management system, clear battery level display, and convenient installation. Provides approximately 12 minutes of flight time per charge.
• Comprehensive Flight Functions: Supports a range of maneuvers including ascending, descending, forward, backward, sideways flight, 360° rotation, and preset route flight.
• Sigurnosne karakteristike: Uključuje nisku zapreminutage alarm, motor overload protection, runaway protection, dual rudder mode switching, and one-key take-off and landing.

5. Podešavanje

5.1. Punjenje baterije helikoptera

1. Connect the USB charger to a suitable USB power source (e.g., computer USB port, USB wall adapter).
2. Connect the helicopter's modular 7.4V 350mAh LiPo battery to the USB charger.
3. The charging indicator on the USB charger will illuminate (e.g., red) during charging and turn off (or change color, e.g., green) when fully charged.
4. Charging time is approximately 60 minutes. Do not leave batteries unattended while charging.

5.2. Ugradnja baterije helikoptera

1. Provjerite je li prekidač za napajanje helikoptera u položaju ISKLJUČENO.
2. Carefully insert the charged modular battery into the battery compartment of the helicopter. Ensure it is securely seated.
3. Zatvorite poklopac odeljka za baterije.

5.3. Instaliranje baterija za daljinski upravljač

1. Otvorite odeljak za baterije na poleđini daljinskog upravljača.
2. Insert four (4) 1.5V AA batteries (not included), ensuring correct polarity (+/-).
3. Zatvorite poklopac odeljka za baterije.

5.4. Binding the Helicopter and Remote Control

1. Postavite helikopter na ravnu, vodoravnu površinu.
2. Turn on the helicopter's power switch. The indicator lights on the helicopter will flash.
3. Turn on the remote control. The remote control's indicator light will flash.
4. Push the throttle stick (left stick) fully up, then pull it fully down.
5. The indicator lights on both the helicopter and remote control will become solid, indicating a successful binding.
6. If binding fails, repeat the steps. Ensure no other 2.4G devices are interfering.

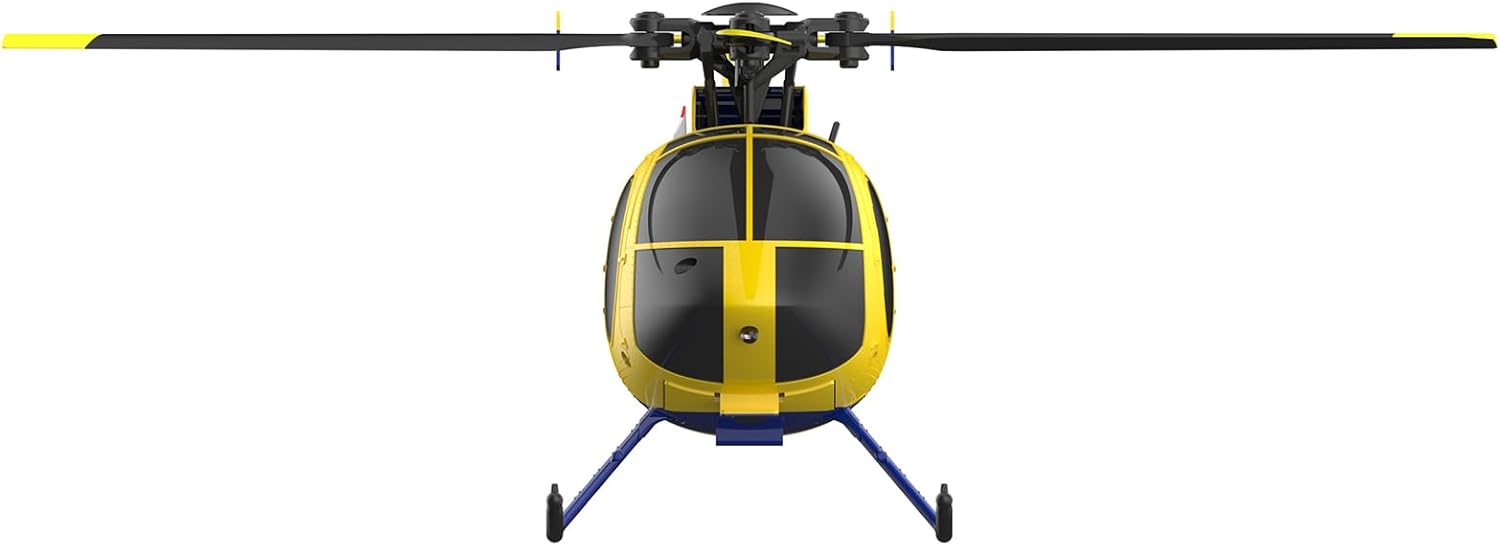

Slika 5.1: Prednja strana view of the RC ERA C184 MD500 RC Helicopter, showing its compact design.

6. Uputstvo za upotrebu

6.1. Osnovne kontrole

The 2.4G remote control typically features two main sticks:

• Lijeva palica (gas/kormilo):
  • Push up/down: Controls throttle (ascend/descend).
  • Push left/right: Controls rudder (yaw/rotate left/right).
• Desna palica (kormilo visine/krilce):
  • Push up/down: Controls elevator (pitch forward/backward).
  • Push left/right: Controls aileron (roll left/right for sideways flight).

6.2. Polijetanje i slijetanje jednim ključem

After binding, press the dedicated one-key take-off button on the remote control. The helicopter will automatically ascend to a stable hovering altitude. Press the one-key landing button to initiate an automatic descent and landing.

6.3. Flight Modes and Stability

• 6G način rada: Provides enhanced stability, making the helicopter easier to control for beginners. The 6-axis gyroscope actively stabilizes the aircraft.
• Zadržavanje nadmorske visine: The barometer maintains a consistent altitude, allowing you to focus on directional control without constantly adjusting the throttle.
• Pozicioniranje optičkog toka: For precise hovering, especially in indoor environments, the optical flow sensor helps the helicopter maintain its position.

6.4. Napredne funkcije leta

• 360° Rotacija: Consult your remote control's specific button layout for initiating 360-degree rotations or flips.
• Preset Route Flight: Some models allow programming a flight path. Refer to the remote control's specific instructions for this feature.

Image 6.1: The RC ERA C184 MD500 RC Helicopter held in a hand, illustrating its compact size.

7. Održavanje

7.1. Čišćenje

Gently wipe the helicopter with a clean, dry cloth after each use to remove dust and debris. Avoid using water or chemical cleaners.

7.2. Zamjena propelera

If propellers are damaged or bent, they should be replaced immediately to ensure stable flight. Use the provided screwdriver and hexagonal wrench to carefully remove the damaged propeller and install a new one, ensuring it is securely fastened.

7.3. Briga o bateriji i skladištenje

• Always disconnect the battery from the helicopter when not in use.
• Baterije čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Do not store fully charged or fully discharged batteries for extended periods. For long-term storage, charge batteries to approximately 50% capacity.

8. Otkrivanje problema

If you encounter issues with your RC ERA C184 MD500, refer to the following common problems and solutions:

9. Specifikacije

Detailed specifications for the RC ERA C184 MD500 RC Helicopter:

• Model: C184 MD500
• Prečnik rotora: 256mm
• Dužina trupa: 239mm
• Visina: 93mm
• Vrijeme leta: Otprilike 12 minuta
• Vrijeme punjenja: Otprilike 60 minuta
• Način rada daljinskog upravljača: 2.4G
• Udaljenost daljinskog upravljača: 80-100 metara
• Drive Motors: Dva
• Helikopterska baterija: 7.4V 350mAh Li-Polymer
• Baterija daljinskog upravljača: 4 x 1.5V AA (nije uključeno)
• Dimenzije proizvoda: 1.12 x 28.23 x 10.98 inča
• Težina artikla: 2.09 funte
• Broj modela stavke: X50T7291F15FU
• Preporučena starost proizvođača: 16 godina i više
• Proizvođač: Generic

Slika 9.1: Bočna strana view render of the RC ERA C184 MD500 RC Helicopter, highlighting its fuselage design.

10. Garancija i podrška

Za informacije o garanciji, tehničkoj podršci ili zamjenskim dijelovima, molimo vas da se direktno obratite prodavcu ili proizvođaču. Sačuvajte račun kao dokaz o kupovini.
