Uvod
This manual provides essential information for the safe installation, operation, and maintenance of your RL LIVE YOUR LIGHT Dimmable LED Ceiling Light, Model R67873180. Please read these instructions carefully before installation and retain them for future reference.

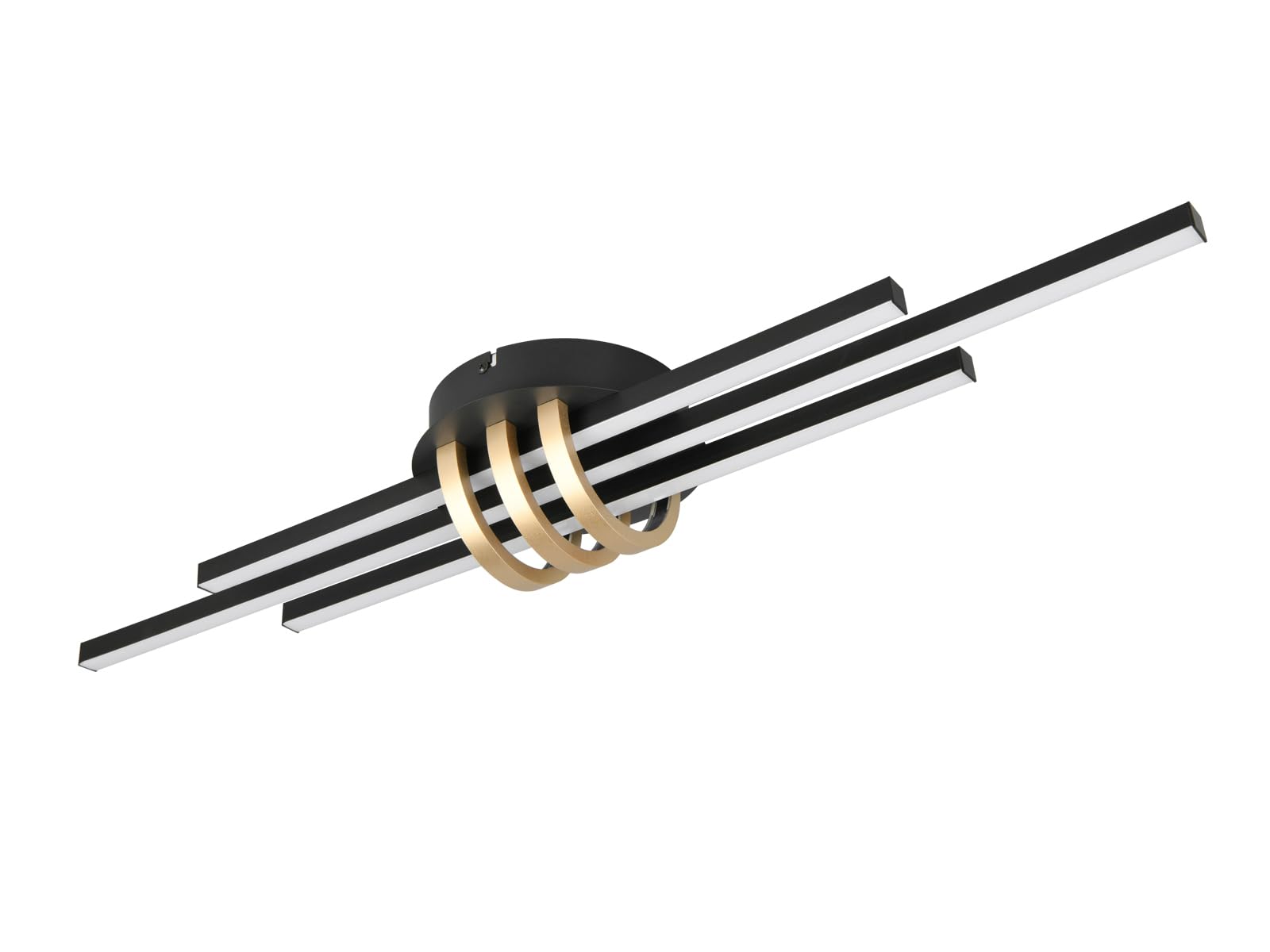

Image: The RL LIVE YOUR LIGHT Dimmable LED Ceiling Light, featuring a sleek black base with three horizontal LED bars and decorative gold rings, mounted on a ceiling.
Sigurnosna uputstva
- Always disconnect power at the main fuse or circuit breaker before installation or maintenance.
- Instalaciju mora izvršiti kvalificirani električar u skladu s lokalnim električnim propisima.
- Ne mijenjajte uređaj. Bilo kakve modifikacije mogu poništiti garanciju i stvoriti sigurnosne rizike.
- Osigurajte da površina za montažu može podnijeti težinu uređaja.
- Ne gledajte direktno u LED izvor svjetlosti kada je upaljen.
- Držite materijale za pakovanje van domašaja dece.
Sadržaj paketa
Prije početka instalacije provjerite da li su sve komponente prisutne:
- 1x RL LIVE YOUR LIGHT LED Ceiling Light (Model R67873180)
- Pribor za montažu (vijci, zidni tiplovi)
- Uputstvo za upotrebu
Postavljanje i instalacija
Potreban alat (nije uključen):
- Odvijač (Phillips glava)
- Bušilica
- Skidači žice
- Voltage tester
- Olovka
- Merna traka
Koraci instalacije:
- Isključite napajanje: Before starting, ensure the power supply to the installation area is completely disconnected at the circuit breaker or fuse box.
- Pripremite montažnu površinu: Mark the desired location for the ceiling light. Use the mounting bracket (if separate) as a template to mark drill holes.
- Izbušite rupe: Drill pilot holes at the marked locations. Insert wall anchors if necessary.
- Pričvrstite nosač za montažu: Pričvrstite montažni držač na plafon pomoću priloženih vijaka.
- Žične veze: Connect the household electrical wires to the fixture's wires. Typically, connect live (black/brown) to live, neutral (white/blue) to neutral, and ground (green/yellow) to ground. Ensure all connections are secure using wire nuts.
- Učvršćenje: Carefully align the ceiling light with the mounting bracket and secure it in place with the provided screws. Ensure no wires are pinched.
- Vrati snagu: Nakon što je uređaj sigurno instaliran, vratite napajanje na prekidaču.
Slika: Od vrha prema dolje view of the ceiling light, illustrating its overall dimensions of 81 cm in width and 18 cm in depth.
Image: Detailed technical drawing showing various dimensions of the ceiling light in millimeters, including overall length, width, and height of components.
Uputstvo za upotrebu
This LED ceiling light is designed for simple operation via a standard wall switch.
- Uključivanje/isključivanje: Flip the wall switch connected to the fixture to turn the light on or off.
- Funkcija zatamnjivanja: This fixture features dimmable LEDs controlled via a standard wall switch. Rapidly toggling the switch (off-on-off-on) will cycle through different brightness levels. Consult your switch's manual for specific dimming instructions if it's a dedicated dimmer switch.
Image: The RL LIVE YOUR LIGHT LED Ceiling Light fully illuminated, showcasing its bright, warm white light output.
Održavanje
- čišćenje: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- LED: The integrated LEDs are designed for long life and are not user-replaceable. Do not attempt to replace them.
- inspekcija: Periodically check for any loose connections or damage to the wiring. If any damage is found, consult a qualified electrician.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetlo se ne pali. | Nema napajanja. Slabo ožičenje. Neispravan prekidač. | Provjerite prekidač/osigurač. Provjerite da li su svi spojevi žica sigurni (prvo isključite napajanje). Testirajte ili zamijenite zidni prekidač. |
| Svjetlo neočekivano treperi ili se prigušuje. | Labavo ožičenje. Nekompatibilni prekidač za prigušivanje (ako je primjenjivo). Fluktuacije snage. | Check all wire connections (power off first). Provjerite je li vaš prekidač za prigušivanje svjetla kompatibilan s LED rasvjetnim tijelima. Consult an electrician if power fluctuations are suspected. |
| Svjetlo se ne prigušuje. | Incorrect operation of the switch. Standard on/off switch, not a dimmable one. | Ensure you are rapidly toggling the switch for dimming. Confirm that the wall switch is designed for dimming LED lights. |
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | ŽIVI SVOJE SVJETLO |
| Broj modela | R67873180 |
| Dimenzije proizvoda (D x Š x V) | 81 x 18 x 10.5 cm |
| Materijal | Metal |
| Boja | Crna |
| Tip završetka | Mat |
| Stil | Glam |
| Broj svjetala | 1 (integrated LED unit) |
| Specifične upotrebe | Apartment, Home, Office, Store |
| Shade Material | Metal |
| Vrsta izvora svjetlosti | LED |
| Izvor napajanja | Corded Electric |
| Stil prekidača | Switch (Dimmable via switch) |
| Vrsta instalacije | Wall Mount (Ceiling Mount) |
| Luminous Flux | 2380 lumena |
| Wattage | 20 Watts |
| Temperatura boje | 3000 Kelvina (topla bijela) |
Garancija i podrška
Za informacije o garanciji ili tehničku podršku, molimo pogledajte dokumentaciju koja je priložena uz kupovinu ili se obratite prodavaču. Sačuvajte dokaz o kupovini za potrebe reklamacije.
Manufacturer: RL LIVE YOUR LIGHT
