Soozier Weight Bench Model A91-385V00BK User Manual

1. Važne informacije o sigurnosti

Read all instructions before assembling and using this equipment. Keep this manual for future reference. Failure to follow these instructions can result in serious injury.

• Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
• Držite djecu i kućne ljubimce podalje od opreme tokom upotrebe.
• Postavite opremu na ravnu, stabilnu površinu. Osigurajte dovoljno prostora oko radne površine za siguran rad.
• Inspect the equipment for loose parts, wear, or damage before each use. Do not use if damaged.
• Prije upotrebe provjerite jesu li svi vijci i matice sigurno zategnuti.
• Do not exceed the maximum weight capacities: User: 331 lbs (150 kg), Barbell Rack: 661 lbs (300 kg), Weight Posts: 88 lbs (40 kg).
• Koristite pravilne tehnike dizanja i uvijek koristite osmatrača prilikom dizanja teških tegova.
• Nosite odgovarajuću odjeću i obuću za vježbanje.

2. Sadržaj paketa

Carefully unpack all components and verify against the parts list (not provided in this document, refer to physical manual). If any parts are missing or damaged, contact customer support.

Image: Soozier brand logo.

3. Upute za postavljanje i montažu

Assembly typically involves attaching the main bench, barbell racks, preacher curl station, and leg curl machine components. Follow the step-by-step diagrams provided in the physical assembly manual. Ensure all connections are secure before use.

Image: Overall dimensions of the assembled weight bench, including length, width, and height measurements for various components.

Ključne komponente za sastavljanje uključuju:

• Main Bench Frame: Connect the base supports and main bench structure.
• Barbell Racks: Attach the two adjustable barbell racks to the main frame.
• Propovjednik Curl stanica: Secure the preacher curl pad and its support arm.
• Noga Curl mašina: Install the leg curl attachment with its foam rollers.
• Weight Posts: Attach the three weight posts for plate storage.

Image: Detail of the stable, non-slip feet at the base of the weight bench, designed to protect floors and provide stability.

4. Uputstvo za upotrebu

This multi-functional weight bench allows for various exercises. Adjustments should be made carefully and securely before each exercise.

4.1 Adjusting the Barbell Racks

The barbell racks offer 5 height settings. To adjust, pull out the locking pin, slide the rack to the desired height, and re-insert the pin, ensuring it is fully engaged. The racks can accommodate up to 661 lbs (300 kg).

Image: Detail of the barbell rack adjustment mechanism, showing the pin and multiple height options.

4.2 Adjusting the Workout Bench and Preacher Curl Pad

The workout bench is multi-position adjustable for incline or flat exercises. The preacher curl pad has four height settings, ranging from 29.8" to 34.6" (75.8-87.8 cm). Adjust these components by locating the adjustment pins or levers, selecting the desired position, and ensuring they lock securely into place.

Image: Diagram showing the adjustable features of the bench, including four angle gym bench positions, four-height preacher curl pad, and five height barbell racks.

4.3 Using the Leg Curl Machine and Weight Posts

Attach weight plates to the three designated weight posts on the leg curl machine to customize resistance. The maximum load for these posts is 88 lbs (40 kg). Ensure plates are securely fastened before use. The leg curl machine also features foam rollers for comfort during exercises.

Image: Illustration of the three weight posts designed for adding weight plates to the leg curl attachment, allowing for customizable resistance.

Slika: Detaljna view of the leg curl attachment, highlighting the foam rollers for comfort and a handle for various exercises.

4.4 Integrated Exercises

This bench supports a range of exercises including bench press, preacher curls, low row, chest fly, and leg curls. Always maintain proper form and control during exercises.

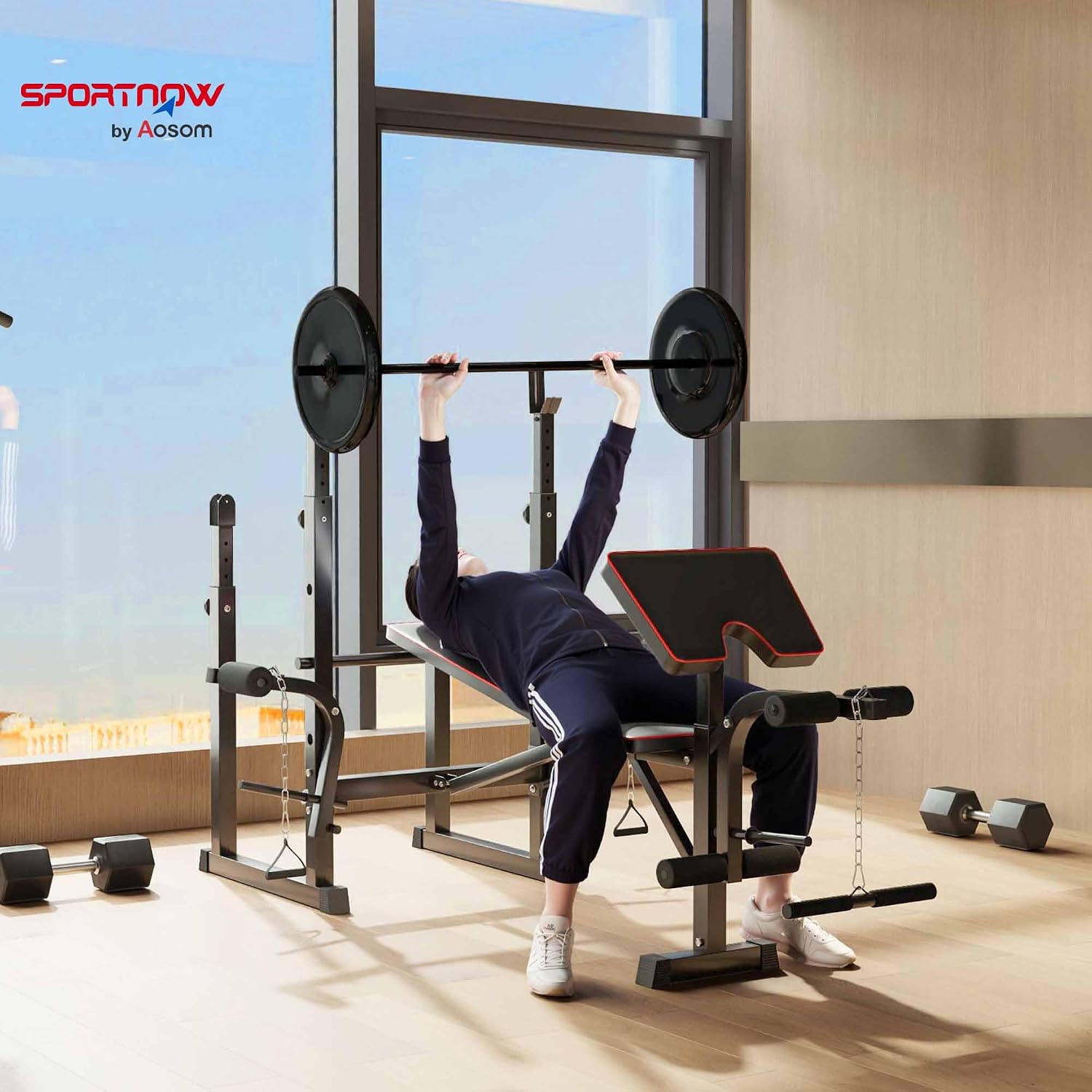

Image: A user performing a bench press with a barbell on the Soozier Weight Bench, demonstrating its use for strength training.

5. Održavanje

Redovno održavanje osigurava dugotrajnost i siguran rad vaše klupe za tegove.

• čišćenje: Wipe down the padded cushions and frame with a damp Obrišite krpom nakon svake upotrebe kako biste uklonili znoj i prljavštinu. Izbjegavajte abrazivna sredstva za čišćenje.
• inspekcija: Periodically check all bolts, nuts, and adjustment pins for tightness. Tighten any loose fasteners. Inspect cables, chains, and foam rollers for signs of wear or damage.
• Skladištenje: Klupu čuvajte na suhom, čistom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.

Slika: Detaljna view highlighting the construction materials: thick padded cushions, 50x50mm steel tubes, and comfortable foam rollers, all requiring regular inspection.

6. Otkrivanje problema

If you encounter issues with your weight bench, refer to the following common solutions:

• Klupa se čini nestabilnom: Ensure the bench is on a flat surface. Check all assembly bolts and nuts for tightness and re-tighten if necessary.
• Adjustment pins are difficult to engage: Ensure the components are aligned correctly. Clean any debris from the adjustment holes and pins. Apply a small amount of silicone lubricant if needed.
• Škripavi zvukovi tokom upotrebe: Inspect all connection points. Tighten any loose bolts. Lubricate moving parts with a silicone-based lubricant.

7. Specifikacije

8. Garancija i podrška

For warranty information or customer support, please refer to the documentation included with your purchase or contact Soozier customer service directly. Contact details may be found on the manufacturer's website or the original purchase receipt.

Manufacturer Contact Information: Markham, Ontario, CA Tel. 1-416-792-6088
