WADFOW 20V Cordless Impact Wrench WCD1B33 User Manual

Uvod

The WADFOW 20V Cordless Impact Wrench WCD1B33 is designed for high-performance applications, offering power and convenience in a compact cordless design. Whether you are working on car repairs, construction tasks, or heavy-duty fastening, this impact wrench provides the strength and reliability you need to get the job done efficiently. The brushless motor offers improved performance, longer life, and less maintenance compared to traditional brushed motors. It delivers up to 330 Nm of torque for superior tightening power.

Sigurnosna uputstva

Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih alata kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda. Pažljivo pročitajte sva uputstva prije upotrebe ovog alata.

• Sigurnost radnog područja: Održavajte svoje radno mjesto čistim i dobro osvijetljenim. Nered ili tamna područja mogu uzrokovati nesreće. Ne koristite električne alate u eksplozivnim atmosferama, kao što je prisustvo zapaljivih tekućina, plinova ili prašine.
• električna sigurnost: Izbjegavajte kontakt tijela sa uzemljenim površinama kao što su cijevi, radijatori, šporeti i frižideri. Ne izlažite električne alate kiši ili vlažnim uslovima.
• Lična sigurnost: Uvijek nosite zaštitu za oči. Koristite zaštitu za sluh prilikom rada s udarnim alatima. Obucite se prikladno; ne nosite široku odjeću ili nakit. Držite kosu, odjeću i rukavice dalje od pokretnih dijelova.
• Upotreba i njega alata: Ne forsirajte električni alat. Koristite odgovarajući električni alat za vašu primjenu. Isključite bateriju iz električnog alata prije bilo kakvih podešavanja, promjene pribora ili skladištenja električnog alata.
• Upotreba i održavanje baterijskog paketa: Recharge only with the charger specified by the manufacturer. Do not use battery packs other than those specifically designated for the tool.

Product Overview

The WADFOW WCD1B33 is a powerful 20V cordless impact wrench designed for efficiency and durability. Key features include a brushless motor, high torque output, and a comfortable, balanced design.

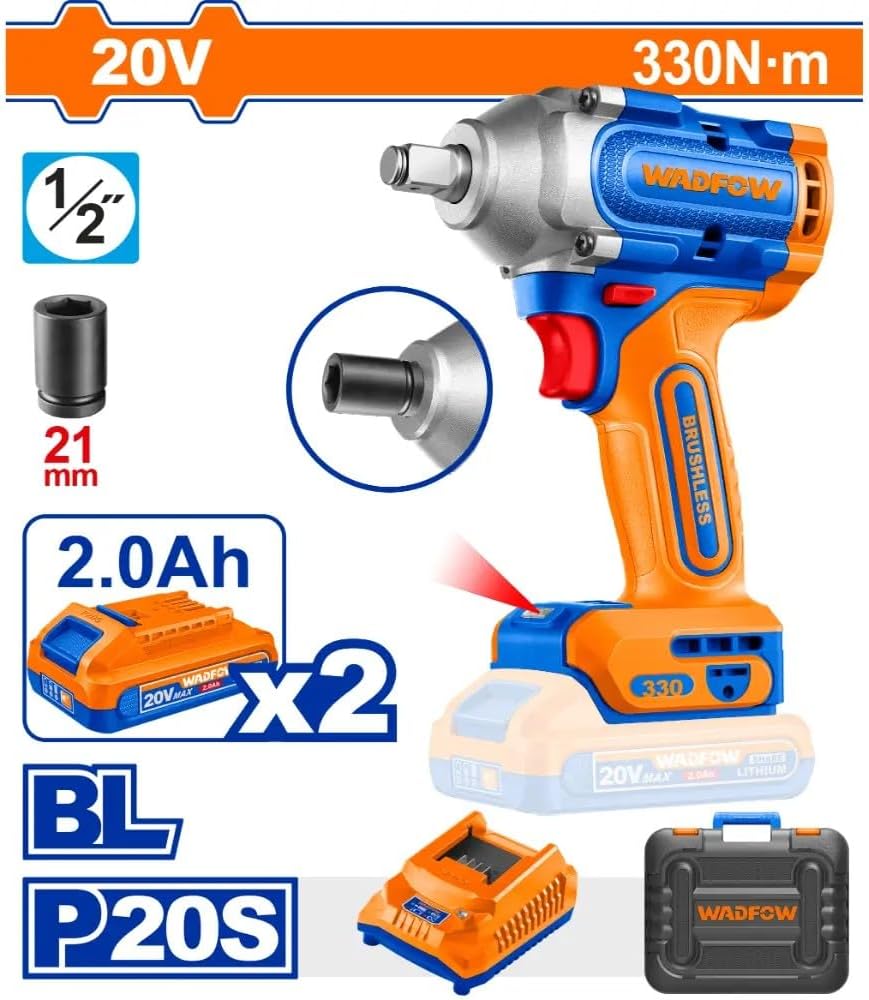

Opis slike: This image displays the WADFOW 20V Cordless Impact Wrench WCD1B33. The main tool is orange and blue, featuring a 1/2-inch square drive anvil, a red trigger, and a brushless motor label. Included in the image are two 2.0Ah 20V Lithium-ion batteries, a battery charger, a 21mm socket, and a black carrying case with the WADFOW logo. The image highlights the 20V power, 330 Nm torque, and the 1/2-inch drive size.

Ključne komponente:

• 1/2-inch Square Drive Anvil: Za pričvršćivanje utičnica.
• Motor bez četkica: Provides enhanced performance and longer tool life.
• Okidač promjenjive brzine: Allows for precise control over fastening speed.
• Selektor naprijed/nazad: For tightening and loosening applications.
• Integrirano LED svjetlo: Osvjetljava radno područje radi bolje vidljivosti.
• Baterija: 20V Lithium-ion battery for cordless operation.
• Dugme za otpuštanje baterije: For detaching the battery from the tool.

Specifikacije

Setup

1. Punjenje baterije

1. Priključite punjač na standardnu ​​utičnicu.
2. Umetnite baterijski paket na punjač dok ne klikne na svoje mjesto.
3. The indicator light on the charger will show the charging status. Refer to the charger's manual for specific light indications.
4. Nakon što se baterija potpuno napuni, izvadite je iz punjača.

2. Instaliranje baterije

1. Align the charged battery pack with the base of the impact wrench handle.
2. Slide the battery pack into the handle until it locks securely into place. Ensure it is fully seated to prevent accidental detachment during operation.

3. Attaching a Socket

1. Ensure the tool is off and the battery is removed before attaching or removing accessories.
2. Push the desired 1/2-inch square drive socket firmly onto the anvil of the impact wrench until it clicks into place.
3. Da biste ga uklonili, povucite utičnicu s nakovnja.

Uputstvo za upotrebu

1. Selecting Direction (Forward/Reverse)

• To tighten fasteners, push the forward/reverse selector to the left (viewed sa stražnje strane alata).
• To loosen fasteners, push the forward/reverse selector to the right.
• For safety, always set the selector to the center (lock position) when not in use or when changing accessories.

2. Pokretanje i zaustavljanje alata

• To start the tool, squeeze the variable speed trigger. The LED light will illuminate the work area.
• Da biste zaustavili alat, otpustite okidač.
• The speed of the tool is controlled by how far the trigger is pressed.

3. Impacting Operation

• Postavite utičnicu na pričvršćivač.
• Apply firm, steady pressure to the tool and squeeze the trigger.
• The tool will begin to rotate and then impact as resistance is met.
• Continue impacting until the desired tightness is achieved (for tightening) or the fastener is loose (for loosening). Avoid over-tightening.

Održavanje

Regular maintenance ensures optimal performance and extends the life of your WADFOW impact wrench.

• čišćenje: Održavajte ventilacijske otvore alata čistim i bez ostataka. Koristite meku,amp krpu za čišćenje vanjštine. Ne koristite jake hemikalije ili abrazivna sredstva za čišćenje.
• Održavanje baterije: Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods. Charge batteries before long-term storage and recharge every 3-6 months.
• inspekcija: Periodically inspect the tool for any signs of damage, loose screws, or worn parts. If any issues are found, discontinue use and contact customer support.
• podmazivanje: This tool features a brushless motor and sealed components, requiring no internal lubrication by the user.

Rješavanje problema

Garancija i podrška

WADFOW products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official WADFOW webSačuvajte račun kao dokaz o kupovini.
