WADFOW WLAP5322 Cordless Angle Grinder

Uvod

The WADFOW WLAP5322 Cordless Angle Grinder is a versatile and powerful tool designed for various cutting, grinding, and polishing tasks. Featuring a brushless motor, it delivers high-speed performance and extended runtime compared to traditional brushed motors. This tool is engineered with user safety and convenience in mind, offering double insulation protection and efficient heat dissipation. Its cordless design provides freedom of movement, making it suitable for both professional and DIY applications involving metal and wood.

Sigurnosna uputstva

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and serious injury. Keep this manual for future reference.

• Nosite ličnu zaštitnu opremu (LZO): Always wear safety goggles, hearing protection, and gloves. A dust mask is recommended for dusty operations.
• Sigurnost radnog područja: Održavajte svoje radno mjesto čistim i dobro osvijetljenim. Nered ili tamna područja mogu uzrokovati nesreće. Ne koristite električne alate u eksplozivnim atmosferama, kao što je prisustvo zapaljivih tekućina, plinova ili prašine.
• električna sigurnost: Izbjegavajte kontakt tijela sa uzemljenim površinama. Ne izlažite električne alate kiši ili vlazi.
• Upotreba i njega alata: Ne forsirajte električni alat. Koristite odgovarajući električni alat za vašu primjenu. Isključite bateriju iz električnog alata prije bilo kakvih podešavanja, promjene pribora ili skladištenja električnog alata.
• Upotreba i održavanje baterijskog paketa: Recharge only with the charger specified by the manufacturer. Do not use battery packs with power tools for which they are not designed.
• Održavanje: Neka Vaš električni alat servisira kvalifikovana osoba za popravku koristeći samo identične zamjenske dijelove.

Uključene komponente

Your WADFOW WLAP5322 Cordless Angle Grinder package typically includes the following items:

• 1 x WADFOW WLAP5322 Cordless Angle Grinder
• 2 x 20V 4.0Ah litijum-jonske baterije
• 1 x punjač baterije
• 1 x Pomoćna ručka
• 1 x Grinding Disc (115mm / 4-1/2")
• 1 x Zaštitni štitnik
• 1 x torbica za nošenje
• 1 x Uputstvo za upotrebu

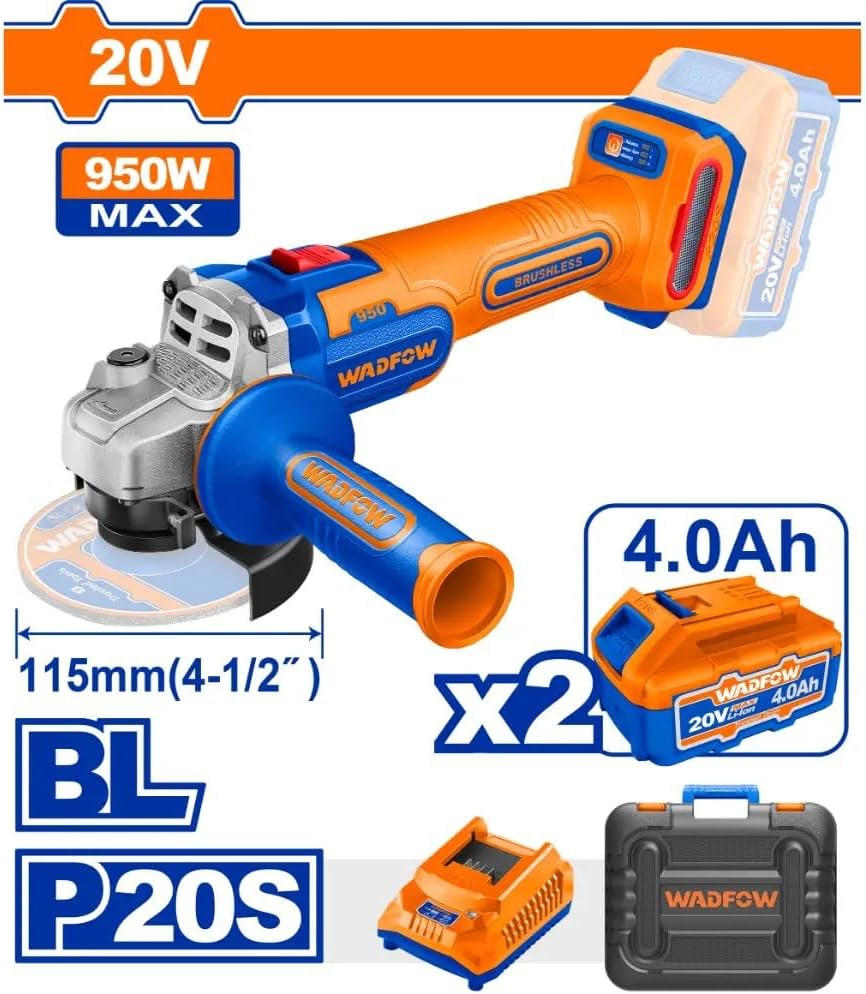

Image: The WADFOW WLAP5322 Cordless Angle Grinder shown with its included accessories: two 20V 4.0Ah batteries, a battery charger, and a durable carrying case. The grinder itself features a 115mm (4-1/2") disc and an auxiliary handle.

Specifikacije

Setup

1. Punjenje baterija: Before first use, fully charge both 20V 4.0Ah Lithium-Ion batteries using the provided charger. Ensure the charger is connected to a suitable power outlet and the battery is correctly inserted.
2. Pričvrstite pomoćnu ručku: Screw the auxiliary handle into one of the threaded holes on the grinder's gear housing. Choose a position that provides comfortable and secure grip for your application.
3. Install Protective Guard: Position the protective guard over the spindle housing. Ensure it is securely fastened and adjusted to protect against sparks and debris during operation. Never operate the grinder without the protective guard.
4. Montaža brusnog/reznog diska:
   • Pritisnite i držite dugme za zaključavanje vretena.
   • Postavite unutrašnju prirubnicu na vreteno.
   • Place the desired 115mm (4-1/2") grinding or cutting disc onto the inner flange. Ensure the disc is correctly seated.
   • Thread the outer flange onto the spindle and tighten it firmly using the spanner wrench.
   • Otpustite dugme za zaključavanje vretena.
5. Umetnite bateriju: Slide a fully charged battery pack into the battery port on the rear of the grinder until it clicks securely into place.

Uputstvo za upotrebu

1. Pokretanje alata: Ensure the work piece is securely clamped. Hold the grinder firmly with both hands. Press the ON/OFF switch to start the tool.
2. Working with the Grinder:
   • Pustite da disk dostigne punu brzinu prije nego što dođe u kontakt s radnim komadom.
   • Apply light, even pressure. Do not force the tool, as this can cause kickback or damage the disc/motor.
   • For cutting, use a cutting disc and make shallow passes. For grinding, use a grinding disc and maintain a slight angle to the surface.
   • Uvijek usmjeravajte varnice dalje od sebe i drugih.
3. Zaustavljanje alata: Release the ON/OFF switch to stop the tool. Wait for the disc to come to a complete stop before setting the tool down.

Održavanje

• čišćenje: Regularly clean the ventilation openings of the tool to prevent overheating. Use a soft brush or compressed air to remove dust and debris. Do not use water or chemical cleaners.
• Pregled diska: Before each use, inspect grinding and cutting discs for cracks, chips, or wear. Replace damaged discs immediately.
• Održavanje baterije: Baterije čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti. Ne skladištite potpuno prazne baterije duži period.
• Skladištenje: When not in use, store the angle grinder and its accessories in the provided carrying case, in a dry, secure location out of reach of children.

Rješavanje problema

Garancija i podrška

WADFOW products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official WADFOW webSačuvajte račun kao dokaz o kupovini.

For further assistance, please contact WADFOW customer service.
