1. Uvod
This manual provides detailed instructions for the safe and effective use of your Generic Trimmer Plus Zero Gap Hair Clipper. Please read this manual thoroughly before first use and keep it for future reference. This device is designed for personal hair trimming and styling.
2. Sigurnosne informacije
- Uređaj držite suhim. Ne koristite ga u blizini vode ili u vlažnim uslovima.
- Do not disassemble the unit. For repairs, contact qualified service personnel.
- Čuvati van domašaja djece.
- Za punjenje koristite samo priloženi USB kabl.
- Prije čišćenja ili održavanja provjerite je li uređaj isključen.
- Izbjegavajte ispuštanje trimera, jer to može oštetiti oštrice ili unutrašnje komponente.
3. Sadržaj paketa
Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:
- 1 x Trimmer Host
- 3 x Limit Combs (1mm, 2mm, 3mm)
- 1 x USB kabl za punjenje
- 1 x četka za čišćenje
- 1 x boca za ulje

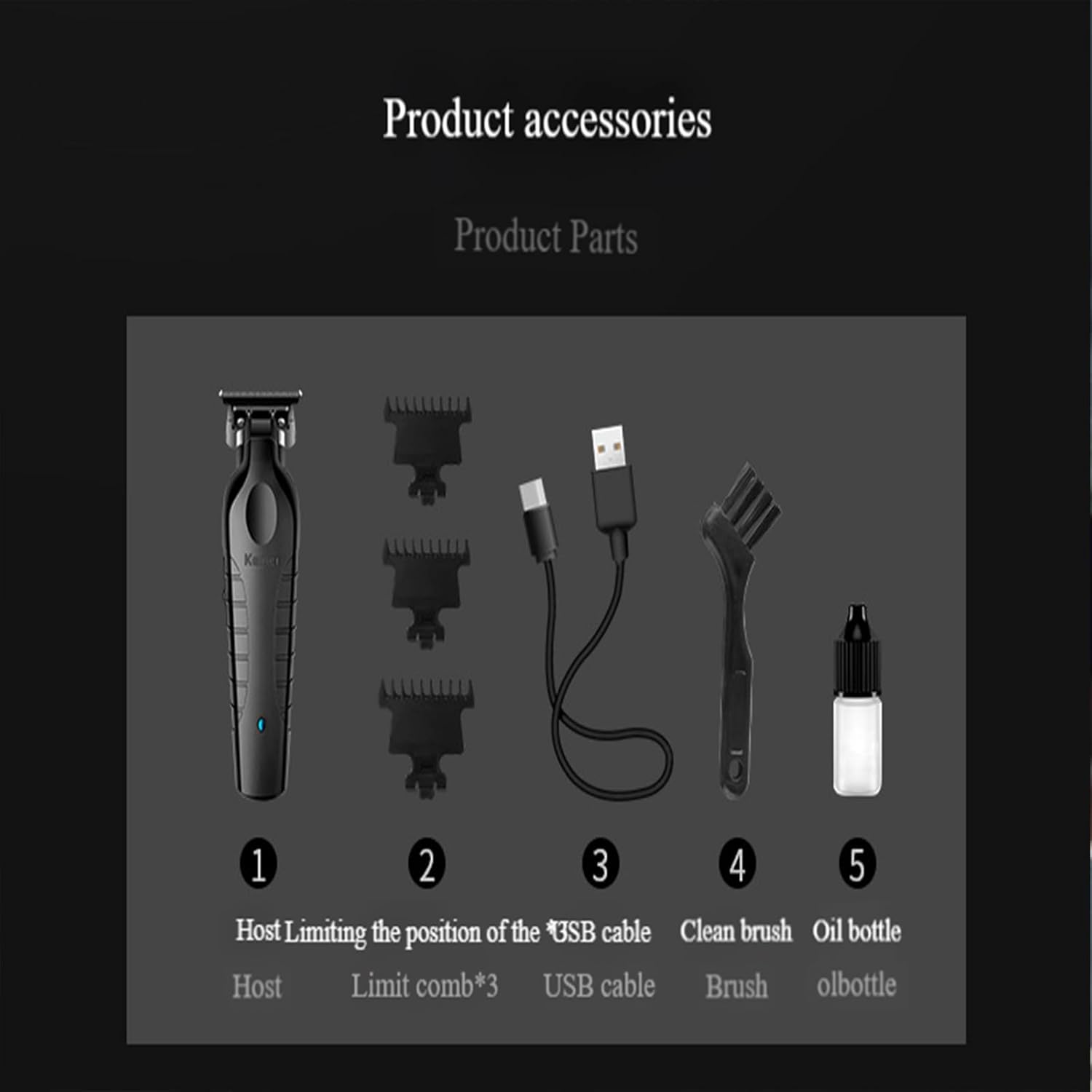

Figure 3.1: Included accessories with the Trimmer Plus Zero Gap Hair Clipper.
4. Proizvod je gotovview
The Trimmer Plus Zero Gap Hair Clipper is designed for precise grooming, offering features for sharp lines and smooth finishes.

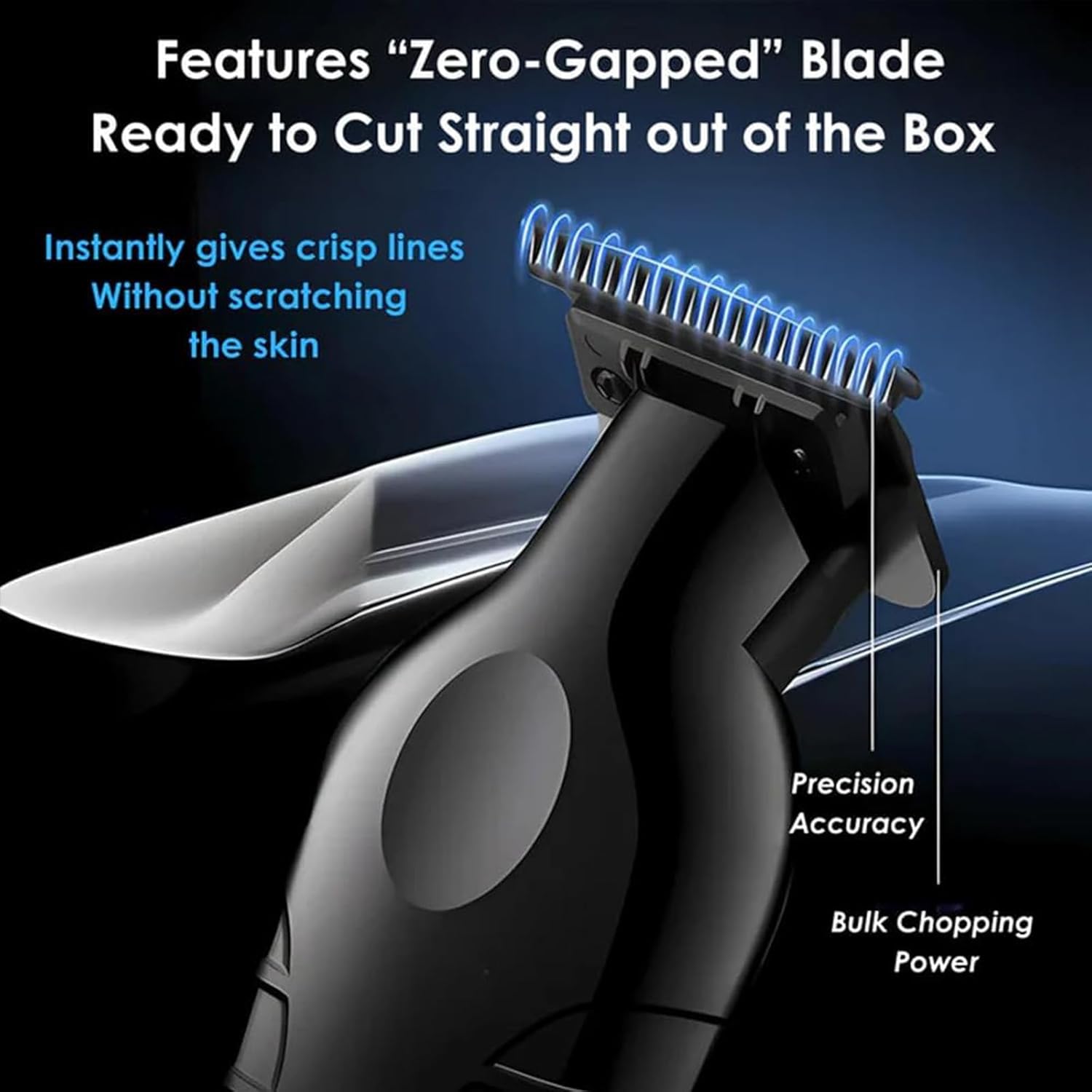

Figure 4.1: Zero-Gapped Blade for precision.
Ključne karakteristike uključuju:
- Zero-Gapped Blade: Designed for creating sharp lines and close cuts without scratching the skin.
- Snažan motor: Provides consistent performance for efficient trimming.
- Bežični dizajn: Offers flexibility and ease of use.
- USB punjenje: Praktično i brzo punjenje.
- Non-slip Grip: Ensures secure handling during use.
Figure 4.2: Product features and design elements.
5. Podešavanje
5.1 Početno punjenje
- Prije prve upotrebe, potpuno napunite trimer.
- Spojite USB kabel za punjenje na priključak za punjenje trimera.
- Drugi kraj USB kabla priključite na kompatibilni USB adapter za napajanje (nije uključen) ili na USB port računara.
- The indicator light will illuminate during charging. A full charge typically takes approximately 3 hours and provides up to 180 minutes of use.
5.2 Pregled lopatica
Before each use, inspect the blades for any damage or debris. Ensure the blades are clean and properly aligned for optimal performance and safety.
6. Uputstvo za upotrebu
6.1 Osnovno obrezivanje
- Uvjerite se da je trimer potpuno napunjen.
- Pritisnite dugme za napajanje da uključite trimer.
- Hold the trimmer at a comfortable angle and gently guide it against the direction of hair growth.
- For best results, use slow, controlled movements.
Figure 6.1: Demonstrating precise trimming for crisp lines.
6.2 Korištenje vodećih češljeva
The trimmer comes with three limit combs (1mm, 2mm, 3mm) for varying hair lengths.
- Select the desired guide comb (1mm, 2mm, or 3mm).
- Align the comb with the trimmer blade and snap it securely into place.
- Turn on the trimmer and begin trimming, moving against the direction of hair growth.
- To remove the comb, gently pull it away from the blade.
Figure 6.2: Guide combs for various hair lengths.
7. Održavanje
7.1 Čišćenje oštrica
- Ensure the trimmer is switched off and unplugged before cleaning.
- Use the provided cleaning brush to remove any loose hairs from the blades and the trimmer head.
- For a more thorough cleaning, the blade assembly can be carefully detached (refer to specific instructions if provided by manufacturer, otherwise proceed with caution).
- Do not rinse the trimmer under water unless explicitly stated as waterproof.
7.2 Podmazivanje noževa
- After cleaning, apply a small drop of the provided oil (or a suitable clipper oil) to the blades.
- Uključite trimer na nekoliko sekundi kako biste ravnomjerno rasporedili ulje.
- Wipe off any excess oil with a soft cloth. Regular oiling helps maintain blade sharpness and extends the life of the trimmer.
7.3 Skladištenje
Store the trimmer in a cool, dry place, away from direct sunlight and moisture. Ensure it is fully charged before long-term storage.
8. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Trimer se ne uključuje. | Baterija je prazna. | Punite trimer najmanje 3 sat. |
| Oštrice čupaju dlake ili ih loše režu. | Oštrice su prljave ili nisu podmazane. Oštrice mogu biti tupe. | Očistite i podmažite oštrice. Ako problem i dalje postoji, možda je potrebno zamijeniti oštrice. |
| Trimer proizvodi neobičan zvuk. | Blades are obstructed or misaligned. | Clean the blades thoroughly. Ensure blades are properly seated. |
9. Specifikacije
| Feature | Detalj |
|---|---|
| Model | Trimmer Plus Zero Gap |
| Boja | Crna |
| Izvor napajanja | Battery Powered |
| Materijal | Metal |
| Kapacitet baterije | 1200 mAh |
| Vrijeme punjenja | Pribl. 3 sati |
| Vrijeme rada | Do 180 minuta |
| Dimenzije | 7.09 x 2.36 x 2.36 inča (18 x 6 x 6 cm) |
| Težina | 10.58 unci (otprilike 300 g) |

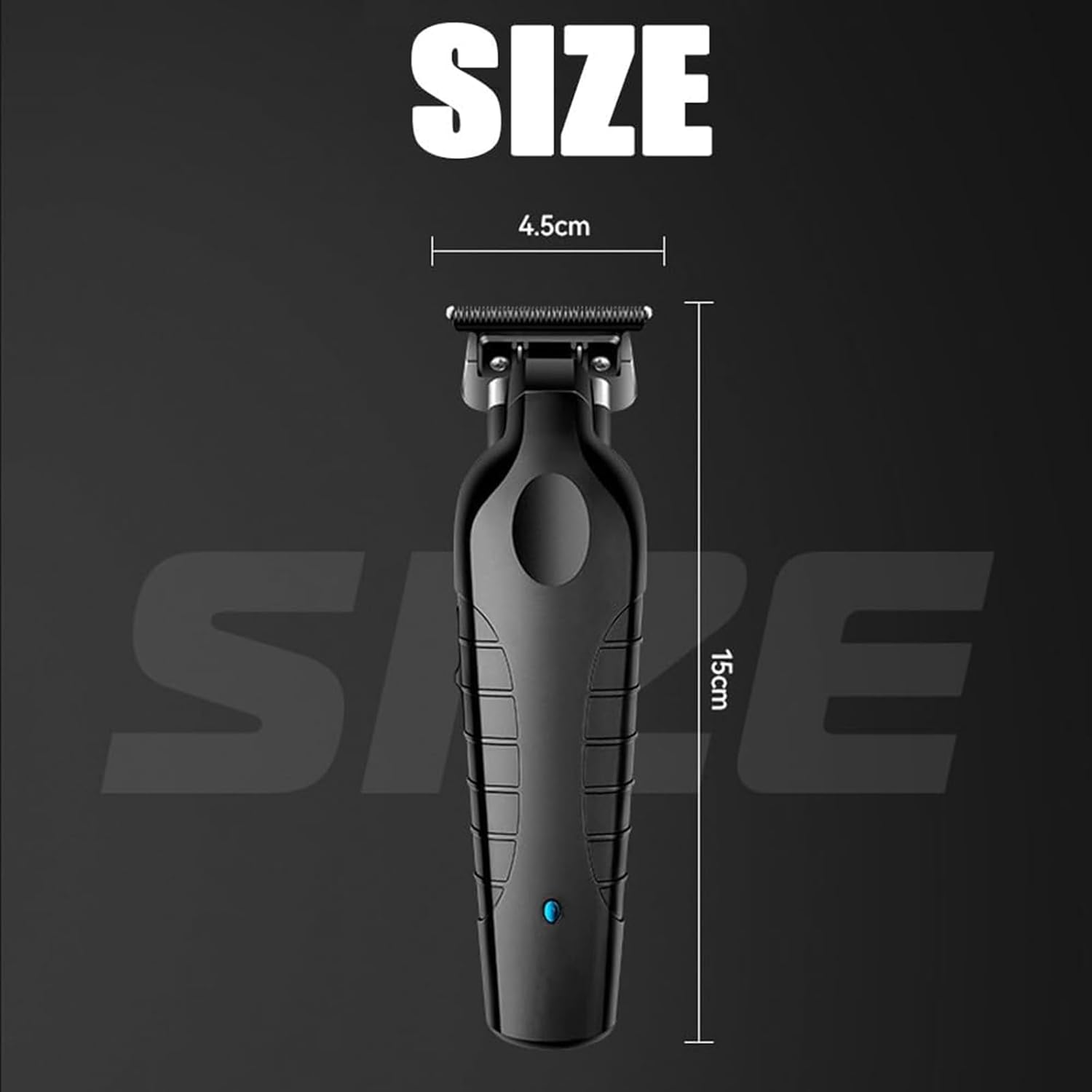

Slika 9.1: Dimenzije proizvoda.
10. Garancija i podrška
This product is manufactured by GNYBRNN77. For warranty information or technical support, please refer to the contact information provided with your purchase or contact the retailer.
