Yoidesu 27-Inch Monitor Sync LED Light Strip User Manual

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Yoidesu 27-Inch Monitor Sync LED Light Strip. This ambient light strip is designed to enhance your visual experience by syncing with your display colors, creating an immersive lighting effect for gaming, movies, or work environments. Please read this manual thoroughly before use and retain it for future reference.

2. Sigurnosne informacije

Molimo vas da se pridržavate sljedećih sigurnosnih mjera opreza kako biste spriječili oštećenje proizvoda ili ozljede sebe:

• Ensure the power source matches the product's requirements (USB 5V).
• Do not expose the light strip to water or excessive moisture.
• Avoid bending the light strip sharply or applying excessive force, which may damage the LEDs or wiring.
• Čuvati van domašaja djece.
• Ne pokušavajte rastaviti ili modificirati proizvod.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• 1 x Light Strip
• 7 x Light Strip Buckle Tapes
• 7 x Light Strip Buckles
• 3 x Cable Buckle Tapes
• 3 x kopče za kablove
• 1 x Uputstvo za upotrebu

4. Postavljanje i instalacija

The Yoidesu Monitor Sync LED Light Strip features a simple, three-step installation process. It is designed for 27-inch displays and automatically recognizes the display upon connection.

4.1 Koraci instalacije

1. Prepare your monitor: Ensure the back of your 27-inch monitor is clean and dry for optimal adhesion of the buckle tapes.
2. Attach the light strip: Use the provided light strip buckle tapes and buckles to securely attach the LED light strip to the back edges of your monitor. Position the strip along the top and sides, ensuring proper alignment.
3. Priključite na napajanje: Plug the USB connector of the light strip into an available USB data port on your computer. The system will automatically recognize the device and match the color settings. No manual configuration is required for basic operation.

Figure 4.1: Product installation diagram. Follow these steps to complete the installation.

4.2 Upravljanje kablovima

Utilize the included cable buckle tapes and buckles to manage the wiring neatly. This helps in achieving a clean setup and ensures the cables are hidden, preventing clutter and providing a more aesthetically pleasing okruženje.

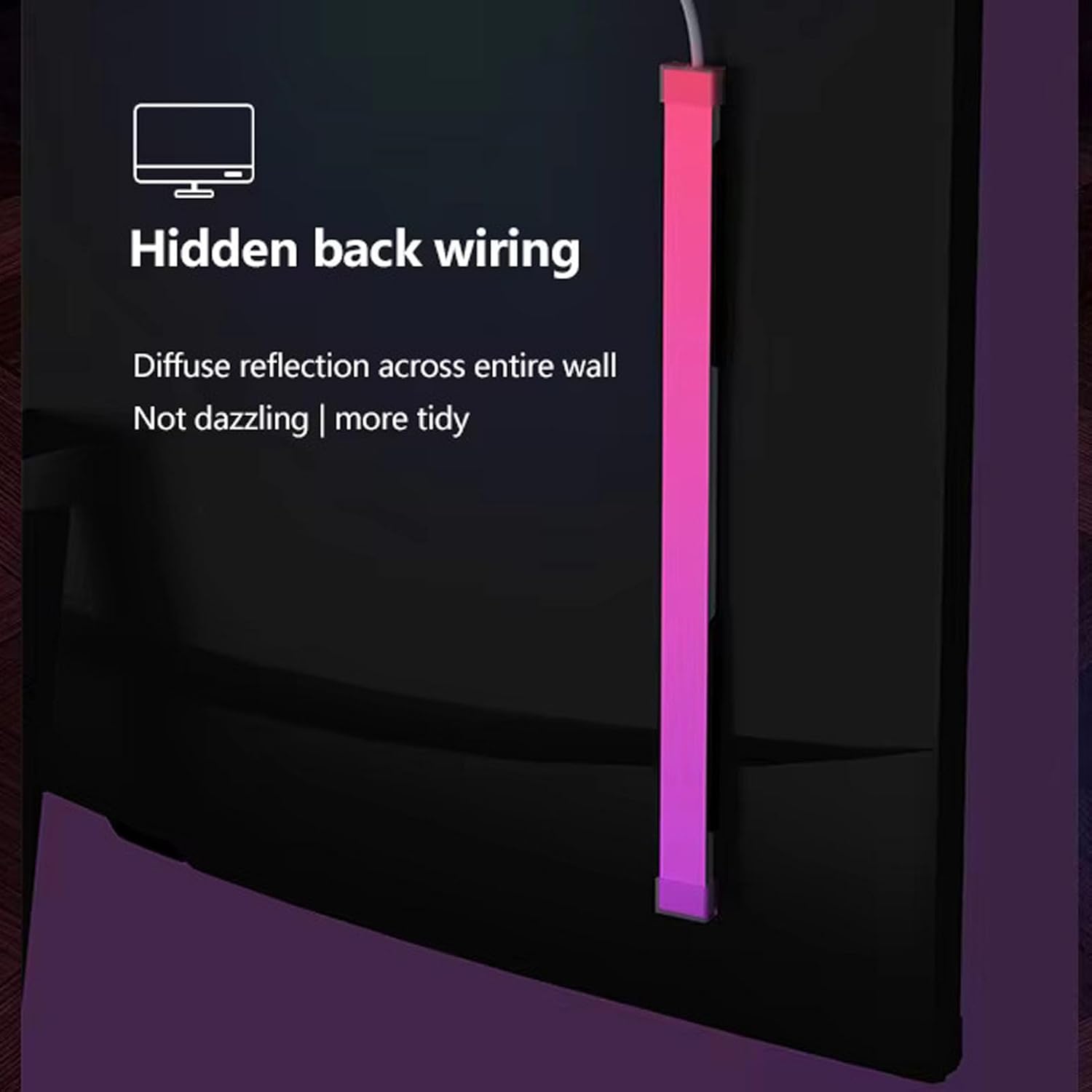

Figure 4.2: Hidden back wiring for a tidy setup and diffuse reflection.

Figure 4.3: Three-step quick installation and automatic display recognition. Compatible with 23.8, 24, and 32-inch displays.

5. Uputstvo za upotrebu

The Yoidesu Monitor Sync LED Light Strip offers various modes to customize your ambient lighting experience.

5.1 Screen Synchronization

The primary function of the light strip is to sync with your display's colors in real-time. This creates an immersive visual effect that extends the on-screen action beyond the monitor, enhancing gaming, movie watching, and general computing.

Figure 5.1: Key features including screen synchronization and versatile lighting options.

Figure 5.2: Screen light synchronized light strip with automatic display recognition.

5.2 Versatile Lighting Modes

Choose from a variety of lighting modes to suit your preference and occasion:

• Colorful Mode (RGB Flowing Racing): Displays dynamic, flowing color patterns.
• Monochrome Mode: Allows selection of a single, customized color from 16 million RGB options.
• Muzički način rada: The light colors change and react to the rhythm of music, creating an engaging audio-visual experience.

Figure 5.3: Enhance entertainment and movie-watching atmosphere with dynamic lighting.

Figure 5.4: Decorate a live broadcast room and improve visual ambiance.

5.3 PC Client Support

For advanced control and additional lighting effects, download and install the dedicated PC client software. This intuitive interface allows you to manage your lighting setup, customize colors, and explore more complex lighting patterns.

• Kompatibilnost: The PC client is compatible with Windows systems. (Not compatible with OS X).
• Karakteristike: Access a wider range of lighting effects, fine-tune color settings, and create personalized lighting scenes.

Figure 5.5: PC client interface for advanced lighting control.

6. Specifikacije

7. Održavanje

To ensure the longevity and optimal performance of your Yoidesu Monitor Sync LED Light Strip, follow these simple maintenance guidelines:

• čišćenje: Gently wipe the light strip with a soft, dry cloth to remove dust. Do not use abrasive cleaners or solvents.
• Skladištenje: If storing the light strip for an extended period, ensure it is clean, dry, and stored in a cool, dry place away from direct sunlight.
• Održavanje kablova: Izbjegavajte oštre savijanja ili uvrtanja USB kabla.

8. Otkrivanje problema

If you encounter any issues with your light strip, refer to the following common problems and solutions:

• Light strip does not turn on:
  • Ensure the USB cable is securely plugged into a functional USB data port on your computer.
  • Verify that your computer is powered on.
  • Pokušajte s drugim USB portom.
• Lights are not syncing with the screen:
  • Confirm that the PC client software is installed and running correctly on your Windows system.
  • Check the settings within the PC client to ensure screen synchronization is enabled.
  • Ensure the light strip is connected to the same computer whose screen you wish to sync.
• Colors appear incorrect or inconsistent:
  • Adjust color settings within the PC client software.
  • Ensure the light strip is properly attached and not obstructed.

Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci.

9. Garancija i podrška

For warranty information and technical support, please refer to the contact details provided with your purchase documentation or visit the official Yoidesu webSačuvajte račun kao dokaz o kupovini za reklamacije u slučaju reklamacije.
