Uvod
This manual provides essential information for the proper installation, use, and maintenance of the Generic R2MidW18688 Knurled Insert. This high-quality replacement part is designed for compatibility with Southbend Range equipment, ensuring optimal performance and durability. Please read these instructions carefully before proceeding with installation or use to ensure safety and extend the lifespan of your equipment.
Sigurnosne informacije
- Uvijek nosite odgovarajuću ličnu zaštitnu opremu (LZO), kao što su zaštitne naočale i rukavice, tokom instalacije.
- Ensure the equipment is powered off and disconnected from any power source before attempting installation or maintenance.
- Ako niste sigurni u vezi s bilo kojim korakom, obratite se kvalificiranom tehničaru.
- Držite male dijelove podalje od djece.
Sadržaj paketa
Provjerite da li se sve stavke nalaze u vašem paketu:
- 1 x Generic R2MidW18688 Knurled Insert

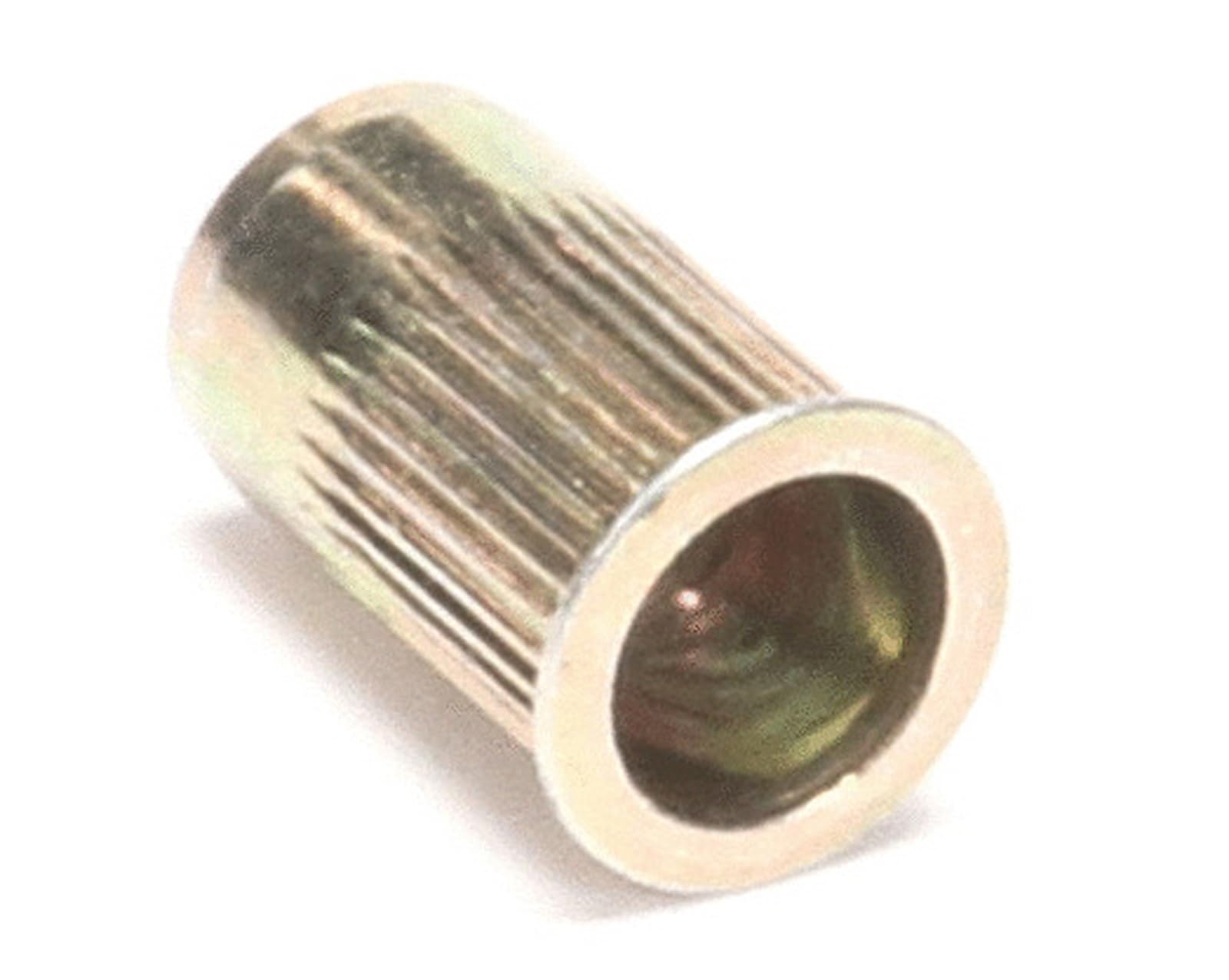

Image: The Generic R2MidW18688 Knurled Insert, a replacement part for Southbend Range equipment.
Uputstva za instalaciju
Follow these steps carefully to install the knurled insert:
- Priprema: Ensure the Southbend Range equipment is completely cool and disconnected from all power sources. Clear the work area of any obstructions.
- Pronađite stari dio: Identify the existing knurled insert or the location where the new insert needs to be placed. Refer to your equipment's specific service manual if necessary.
- Uklonite stari dio (ako je primjenjivo): Carefully remove the old insert. This may require specific tools depending on how it was secured. Dispose of the old part responsibly.
- Umetni novi dio: Align the Generic R2MidW18688 Knurled Insert with the designated opening. Apply gentle, even pressure to seat the insert firmly into place. Ensure it is flush and securely fitted.
- Sigurno (ako je primjenjivo): If the design requires additional securing (e.g., with a screw or clip), ensure these are properly fastened according to the equipment's specifications.
- Provjerite instalaciju: Once installed, gently test the insert to ensure it is stable and does not wobble.
- Ponovo priključite napajanje: Reconnect the equipment to its power source only after confirming the insert is correctly installed and all tools are removed from the work area.
Operating (Function)
The R2MidW18688 Knurled Insert functions as a critical component within your Southbend Range equipment, providing a secure and stable connection point. Once correctly installed, it contributes to the overall structural integrity and operational efficiency of the appliance. No direct user operation is required for the insert itself; its function is passive and integral to the equipment's design.
Održavanje
To ensure the longevity and optimal performance of your knurled insert:
- Redovni pregled: Periodically inspect the insert for any signs of wear, corrosion, or loosening.
- čišćenje: If accessible, gently clean the area around the insert with a soft, dry cloth to remove any dust or debris. Avoid harsh chemicals that could damage the material.
- Zamjena: If the insert shows significant signs of wear or damage, replace it promptly with a new Generic R2MidW18688 part to maintain equipment safety and function.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Insert feels loose after installation. | Improper seating or incorrect part. | Ensure the insert is fully seated and flush. Verify it is the correct part for your equipment. Re-install if necessary. |
| Difficulty inserting the part. | Nepravilno poravnanje ili prepreka. | Check for any debris in the opening. Ensure the insert is perfectly aligned before applying pressure. Do not force the part. |
| Visible damage or wear shortly after installation. | Defective part or improper use. | Contact customer support for a replacement. Review equipment usage to ensure it's within design parameters. |
Specifikacije
- Broj modela: R2MidW18688
- Kompatibilnost: Southbend Range (compatible with 1182347)
- Vrsta dijela: Knurled Insert
- ASIN: B0DGH29FV2
- Proizvođač: Generic
Garancija i podrška
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, returns, or technical assistance, please refer to the seller's policy on the purchase platform or contact the manufacturer directly. Keep your purchase receipt for warranty claims.
For further support, please visit the product page on Amazon: Stranica proizvoda na Amazonu
