1. Sigurnosna uputstva
Please read and understand all instructions before beginning assembly and installation. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.
- Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and sturdy footwear during assembly.
- Ensure the installation area is clear of obstructions and level.
- This product requires at least two people for safe assembly and installation due to its size and weight.
- Do not use power tools for final tightening unless specified, to avoid overtightening and damaging components.
- Verify all components are present and undamaged before starting assembly.
- Držite djecu i kućne ljubimce podalje od radnog područja.
2. Components Overview
The Casanoov EIGER swing gate is delivered as a kit. Carefully unpack all boxes and identify the components using the provided parts list (not included in this digital manual, refer to your physical packaging). Ensure all parts are accounted for before proceeding.
Figure 1: Detailed diagram of the Casanoov EIGER gate components and dimensions. This includes measurements for height (145cm, 150cm), width (397cm), and various component thicknesses (1.1mm, 1.2mm). Key accessories like the handle, hinges, and ground stops are also shown.

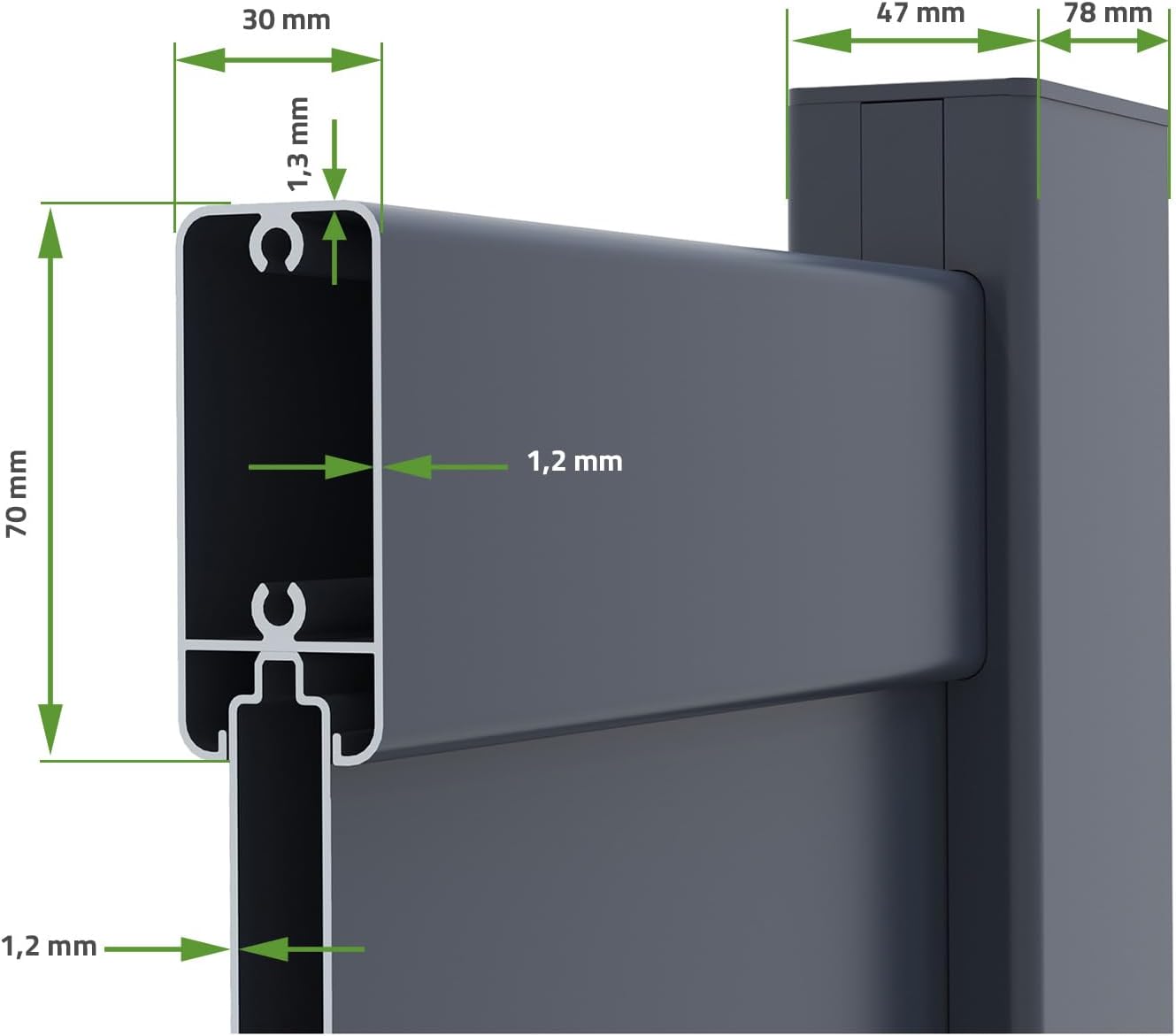

Slika 2: Presjek view of an aluminum gate profile, highlighting the 1.2mm material thickness and internal structure.

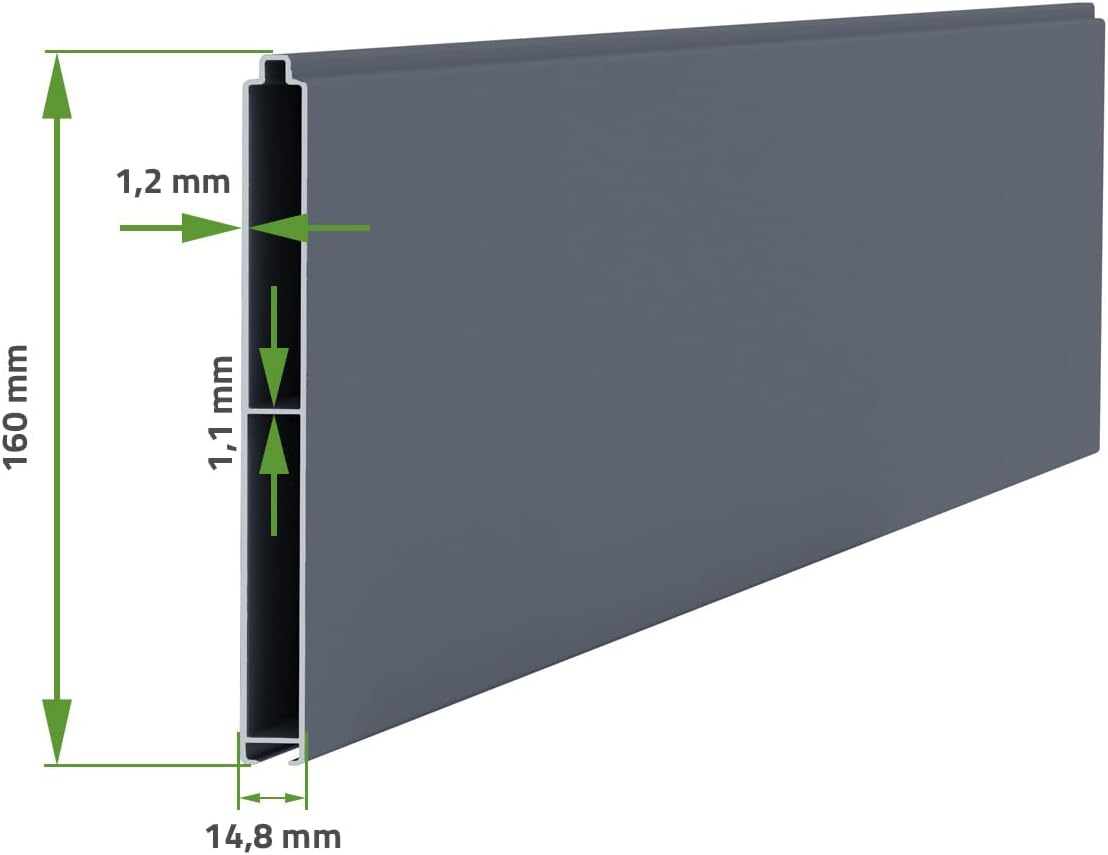

Slika 3: Detaljno view of an aluminum gate panel, indicating a thickness of 1.2mm and a panel height of 160mm.
Figure 4: Illustration of how two aluminum gate panels interlock, showing the 1.2mm and 1.1mm thicknesses and a 4mm gap.
3. Postavljanje i montaža
The Casanoov EIGER swing gate is designed for DIY assembly. Follow these general steps for installation. Specific details and component identifiers should be referenced from your physical instruction manual included with the product.
3.1. Priprema
- Očistite područje: Ensure the installation site is clean, level, and free from any obstacles.
- Skupite alate: Have all necessary tools ready, including a measuring tape, level, drill, wrenches, and a rubber mallet.
- Raspakujte komponente: Carefully unbox all packages and lay out the components on a protective surface (e.g., a blanket) to prevent scratches. Verify all parts against the packing list.
3.2. Gate Panel Assembly
Assemble the gate panels according to the detailed diagrams in your physical manual. This typically involves sliding the aluminum slats into the frame profiles and securing them with screws.
3.3. Hinge and Post Installation
Install the hinges onto your gate posts. Ensure the posts are securely anchored and perfectly vertical using a spirit level. The gate's height and width should be carefully measured to ensure proper fit and swing clearance.

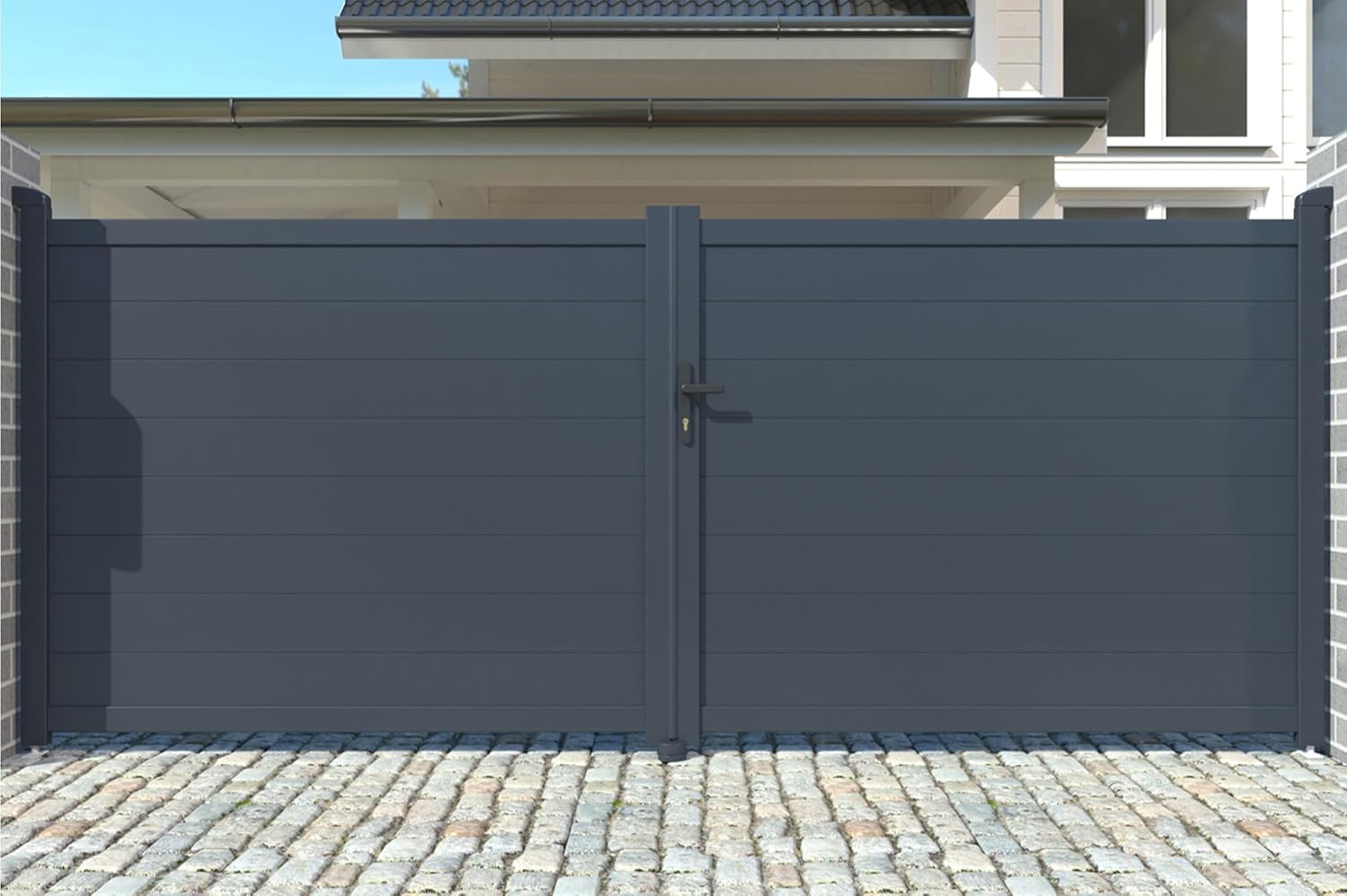

Slika 5: Prample of the installed Casanoov EIGER swing gate, demonstrating its appearance in a residential setting.
3.4. Gate Mounting
- With assistance, carefully lift each gate leaf and attach it to the pre-installed hinges on the posts.
- Adjust the hinges as needed to ensure the gate swings freely and is level.
- Install the gate stops (if included) to prevent the gate from swinging too far in either direction.
3.5. Lock and Handle Installation
Install the lock mechanism and handle according to the instructions provided with the hardware. Ensure the lock operates smoothly and securely.
4. Operacija
The Casanoov EIGER swing gate is designed for manual operation. To open, unlock the gate and gently push or pull the leaves open. To close, guide the leaves back into position and engage the lock. Ensure the path of the gate is clear before opening or closing.
5. Održavanje
Regular maintenance will ensure the longevity and optimal performance of your Casanoov EIGER swing gate.
Figure 6: Maintenance guidelines for different materials, emphasizing the ease of care for aluminum.
- čišćenje: Clean the aluminum surfaces regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that can damage the finish. Rinse thoroughly with clean water.
- šarke: Periodically lubricate the hinges with a silicone-based spray or grease to ensure smooth operation and prevent squeaking.
- Pričvršćivači: Check all screws and bolts periodically and tighten them if necessary. Do not overtighten.
- Prepreke: Keep the gate's path clear of debris, plants, or other obstructions that could impede its movement.
6. Otkrivanje problema
If you encounter issues with your Casanoov EIGER swing gate, refer to the following common troubleshooting tips:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Gate does not open/close smoothly | Obstructions in the gate's path, dry hinges, misaligned gate. | Clear obstructions. Lubricate hinges. Check gate alignment and adjust if necessary. |
| Gate squeaks when opening/closing | Dry or dirty hinges. | Clean and lubricate hinges. |
| Gate does not latch/lock properly | Misaligned latch/strike plate, worn lock mechanism. | Adjust the strike plate or latch mechanism. Inspect the lock for wear and replace if needed. |
| Gate appears uneven or sags | Loose hinge fasteners, uneven ground, damaged post. | Tighten hinge fasteners. Check ground level and post stability. Consult a professional if posts are damaged. |
If the problem persists after attempting these solutions, please contact Casanoov customer support.
7. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Casanoov |
| Broj modela | KIT-000021 |
| Materijal | Aluminijum |
| Boja | Portail Battant Gris (Grey Swing Gate) |
| Dimenzije proizvoda (D x Š) | 145L x 392l centimeters (Approx. 4m width x 1.45m height) |
| Obavezna montaža | Da |
| Stil | Moderne |
| Zemlja porijekla | Kina |
| Uključene komponente | EIGER 400B140 GRIS COLIS 1, EIGER 400B140 GRIS COLIS 2, EIGER 400B140 GRIS COLIS 3 |
8. Jamstvo i podrška
Casanoov is committed to providing a serene and satisfactory shopping experience. Your product is covered by legal guarantees.
- Služba za korisnike: Our after-sales service, based in France, is available to answer your questions and provide support.
- Dostupnost dijelova: Rezervni dijelovi su dostupni po potrebi.
- Secure Delivery: Your order is delivered securely.
- Follow-up Guarantee: We provide follow-up support after purchase.
For any inquiries or assistance, please refer to the contact information provided with your purchase or visit the official Casanoov website.
