1. Uvod
Thank you for choosing the KAMINIO LEA 50-inch Electric Fireplace. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read this manual thoroughly before installation and use, and keep it for future reference.
The KAMINIO LEA electric fireplace offers a realistic flame effect, adjustable heating, and versatile installation options to enhance the ambiance of any room.

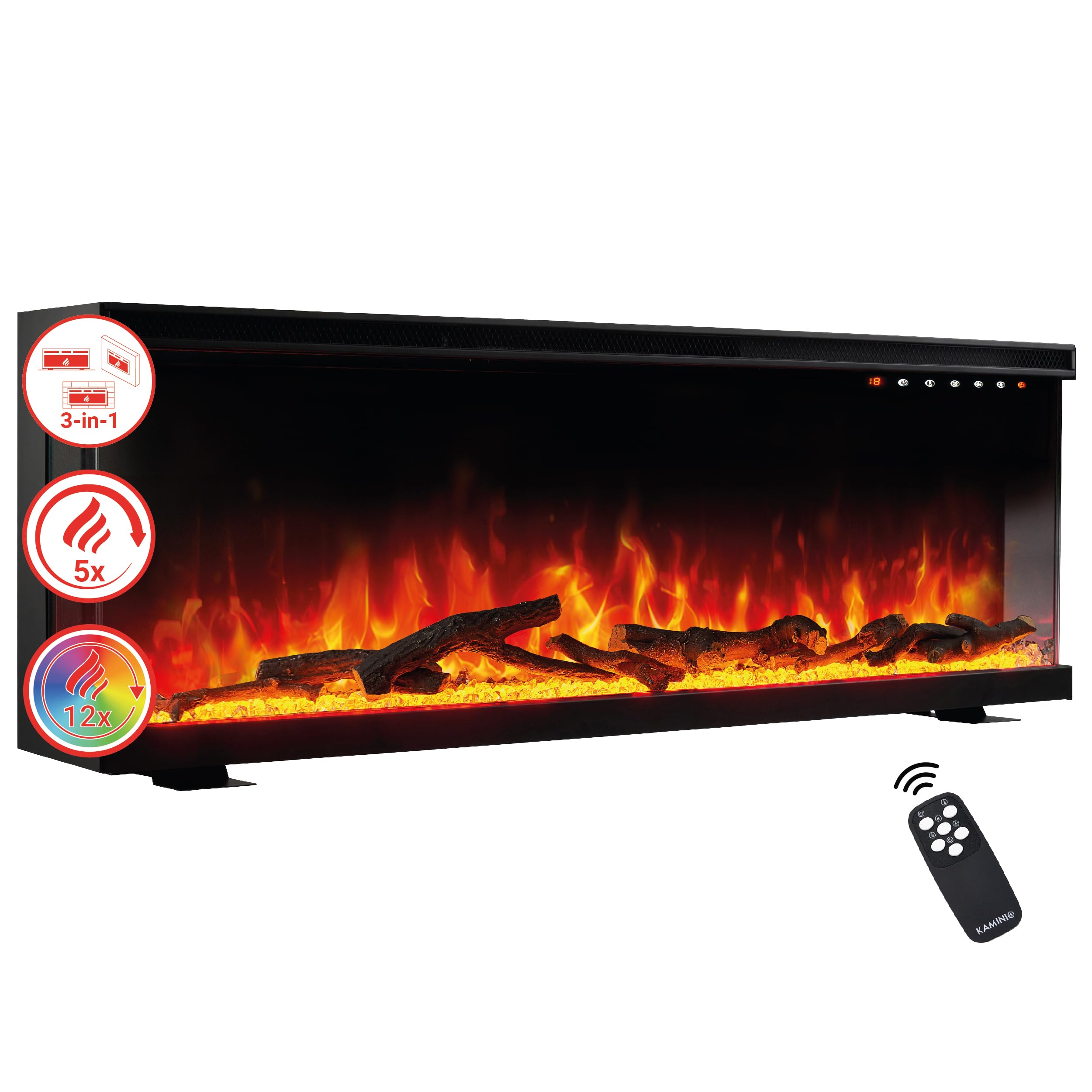

Image: KAMINIO LEA 50-inch Electric Fireplace in a modern living room setting.
2. Sigurnosna uputstva
- Pročitajte sva uputstva prije korištenja ovog kamina.
- Ovaj uređaj je vruć kada se koristi. Da biste izbjegli opekotine, ne dozvolite da gola koža dodiruje vruće površine.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the fireplace.
- Neophodan je izuzetan oprez kada bilo koju grijalicu koriste ili u blizini djeca ili invalidi i kad god je kamin ostavljen da radi i bez nadzora.
- Do not operate any fireplace with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
- Ne provlačite kabl ispod tepiha. Nemojte prekrivati kabel prostirkama za bacanje, vodilicama ili sličnim pokrivačima. Postavite kabl dalje od saobraćajne površine i na mestu gde se neće spotaknuti.
- Da biste isključili kamin, isključite kontrole, a zatim izvucite utikač iz utičnice.
- Ne ubacujte i ne dozvolite da strani predmeti uđu u bilo koji ventilacijski ili ispušni otvor jer to može uzrokovati strujni udar ili požar ili oštetiti kamin.
- Kako biste spriječili mogući požar, ne blokirajte dovode ili odvod zraka ni na koji način. Nemojte koristiti na mekim površinama, poput kreveta, gdje se otvori mogu blokirati.
- Ovaj kamin ima vruće dijelove koji varniče ili izazivaju iskrenje. Ne koristite ga u prostorima gdje se koriste ili skladište benzin, boje ili zapaljive pare ili tekućine.
- Koristite ovaj kamin samo onako kako je opisano u ovom priručniku. Svaka druga upotreba koju proizvođač ne preporučuje može prouzrokovati požar, električni udar ili ozljede ljudi.
- Uvijek priključite grijače direktno u zidnu utičnicu. Nikada nemojte koristiti s produžnim kablom ili pomičnom strujnom slavinom (utičnica/sponska traka).
- The fireplace is equipped with overheat protection and window opening detection for maximum safety.
3. Sadržaj paketa
Molimo provjerite da li su sve komponente prisutne i neoštećene:
- KAMINIO LEA Electric Fireplace Unit
- Montažni hardver
- Nosač za montiranje na zid
- Daljinski upravljač (baterije uključene)
- Uputstvo za upotrebu
4. Proizvod je gotovview
Ključne karakteristike:
- Instalacija 3 u 1: Can be used as a freestanding unit, wall-mounted, or recessed.
- Panoramic View: Nudi širok viewing angle of the flame effect.
- Advanced Flame Technology: Features a perfectly calibrated and energy-efficient 3D flame technology.
- 12 boja LED plamena: Customize the ambiance with a choice of 12 distinct flame colors.
- Adjustable Flame Intensity: 5 levels of flame brightness.
- Innovative Heating System: Powerful and energy-saving heater quickly warms rooms up to 30 m².
- tihi rad: Disperses warm air with minimal noise.
- daljinski upravljač: Pogodno prilagođavanje postavki iz daljine.
- Funkcija tajmera: Set the fireplace to operate for a specific duration.
- Sigurnosne karakteristike: Overheat protection and window opening detection.
- Plug & Play: Easy setup, no electrician or special permits required.
Komponente:
The KAMINIO LEA electric fireplace consists of the main unit, which includes the heating element, LED flame display, and control panel. The unit is designed for various installation types.
Slika: Prekoview of KAMINIO LEA electric fireplace features.
5. Postavljanje i instalacija
The KAMINIO LEA electric fireplace offers flexible installation options:
- Samostojeći: Postavite jedinicu na stabilnu, ravnu površinu.
- na zidu: Use the provided wall mount bracket and hardware to secure the fireplace to a suitable wall.
- udubljena: Integrate the fireplace into a wall opening for a seamless look.
Ensure the chosen location allows for proper ventilation and is away from combustible materials. The fireplace is designed for indoor use only. Refer to the included mounting hardware instructions for detailed steps specific to your chosen installation method.
Image: KAMINIO LEA Electric Fireplace installation options.
Once installed, simply plug the fireplace into any standard electrical outlet. No special wiring or ventilation is required.
Image: KAMINIO LEA 50-inch Electric Fireplace dimensions.
6. Uputstvo za upotrebu
The KAMINIO LEA electric fireplace can be operated using the control panel on the unit or the included remote control.
Kontrolna tabla/funkcije daljinskog upravljača:
- Uključivanje/isključivanje: Aktivira ili deaktivira uređaj.
- Efekat plamena: Cycle through 12 different LED flame colors and adjust the flame intensity (5 levels).
- grijanje: Turn the heating function on or off. Select between 2 heating levels.
- Termostat: Set your desired room temperature (range 16-28°C).
- Tajmer: Set an automatic shut-off timer for convenience.
Video: Demonstrates the various flame colors and intensity settings of the KAMINIO LEA electric fireplace.
Video: Shows the heating function in operation, with warm air being emitted from the top vent.
Image: Visual representation of the 12 flame colors available.
Image: Visual representation of the 5 flame intensity levels.
7. Održavanje
To ensure the longevity and optimal performance of your KAMINIO LEA electric fireplace, follow these maintenance guidelines:
- čišćenje: Uvijek isključite kamin iz struje prije čišćenja. Koristite meku,amp krpom obrišite vanjske površine. Ne koristite abrazivna sredstva za čišćenje ili sprejeve.
- Ventilacijski otvori: Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow for the heating element. Use a vacuum cleaner with a brush attachment to gently clean the vents.
- Sijalice: The LED flame effect uses long-lasting LED technology, which typically does not require replacement. If any issues arise, contact customer support.
- Skladištenje: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe, cool, and dry location.
8. Otkrivanje problema
If you encounter any issues with your KAMINIO LEA electric fireplace, please refer to the following common troubleshooting steps:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Kamin se ne uključuje. | Nema napajanja, prekidač za napajanje je isključen ili je osigurač aktiviran. | Ensure the unit is plugged into a working outlet. Check the main power switch on the unit. Reset the circuit breaker if necessary. |
| Nema izlaza topline. | Heating function not activated, thermostat set too low, or air vents blocked. | Activate the heating function via the control panel or remote. Increase the thermostat setting. Clear any obstructions from the air vents. |
| Efekat plamena ne radi. | Flame effect function not activated. | Ensure the flame effect is turned on. Adjust brightness settings. |
| Daljinski upravljač ne radi. | Dead batteries, remote out of range, or sensor blocked. | Replace batteries in the remote control. Ensure you are within range and pointing the remote at the fireplace sensor. Clear any obstructions between the remote and the fireplace. |
| Neobični zvukovi ili mirisi. | Dust accumulation, new unit odor, or internal malfunction. | Initial use may produce a slight odor, which will dissipate. Clean the unit and vents. If unusual noises or strong odors persist, discontinue use and contact customer support. |
If the problem persists after following these steps, please contact KAMINIO customer support.
9. Specifikacije
| Specifikacija | Detalj |
|---|---|
| Naziv modela | LEA |
| Broj modela | EF02 |
| Brand | KAMINIO |
| Dimenzije (D x Š x V) | 127.5 x 20 x 43 cm (50 x 7.9 x 16.9 inča) |
| Težina | 14.41 kg |
| Materijal | Metal |
| Boja | Crna |
| Izvor napajanja | Corded Electric |
| Tip grijaćeg elementa | Električni |
| Posebne karakteristike | Flame effect, LED flame, Adjustable flame, Timer, Overheat protection |
| Vrsta instalacije | Wall Mount, Freestanding, Recessed |
| Tip ventilacije | Bez ventilacije |
| Number of Batteries (for remote) | 2 |
10. Garancija i podrška
Your KAMINIO LEA Electric Fireplace comes with a limited warranty. Please retain your proof of purchase for warranty claims.
- Vrsta garancije: Ograničeno
- Dostupnost rezervnih dijelova: 3 godina
For technical support, warranty inquiries, or to order spare parts, please contact KAMINIO customer service through the retailer where you purchased the product or visit the official KAMINIO website.
Kontakt informacije:
- Webstranica: KAMINIO Store on Amazon
- prodavač: PIcommerce GmbH
