1. Uvod
Thank you for choosing the KAMINIO MARLON Electric Fireplace. This manual provides essential information for the safe and efficient operation of your new appliance. Please read all instructions carefully before installation and use, and retain this manual for future reference.
The KAMINIO MARLON electric fireplace offers versatile installation options: freestanding, wall-mounted, or recessed. It features a realistic 3D flame effect with 12 color options, adjustable intensity, and an efficient heating system to enhance the comfort of your living space.

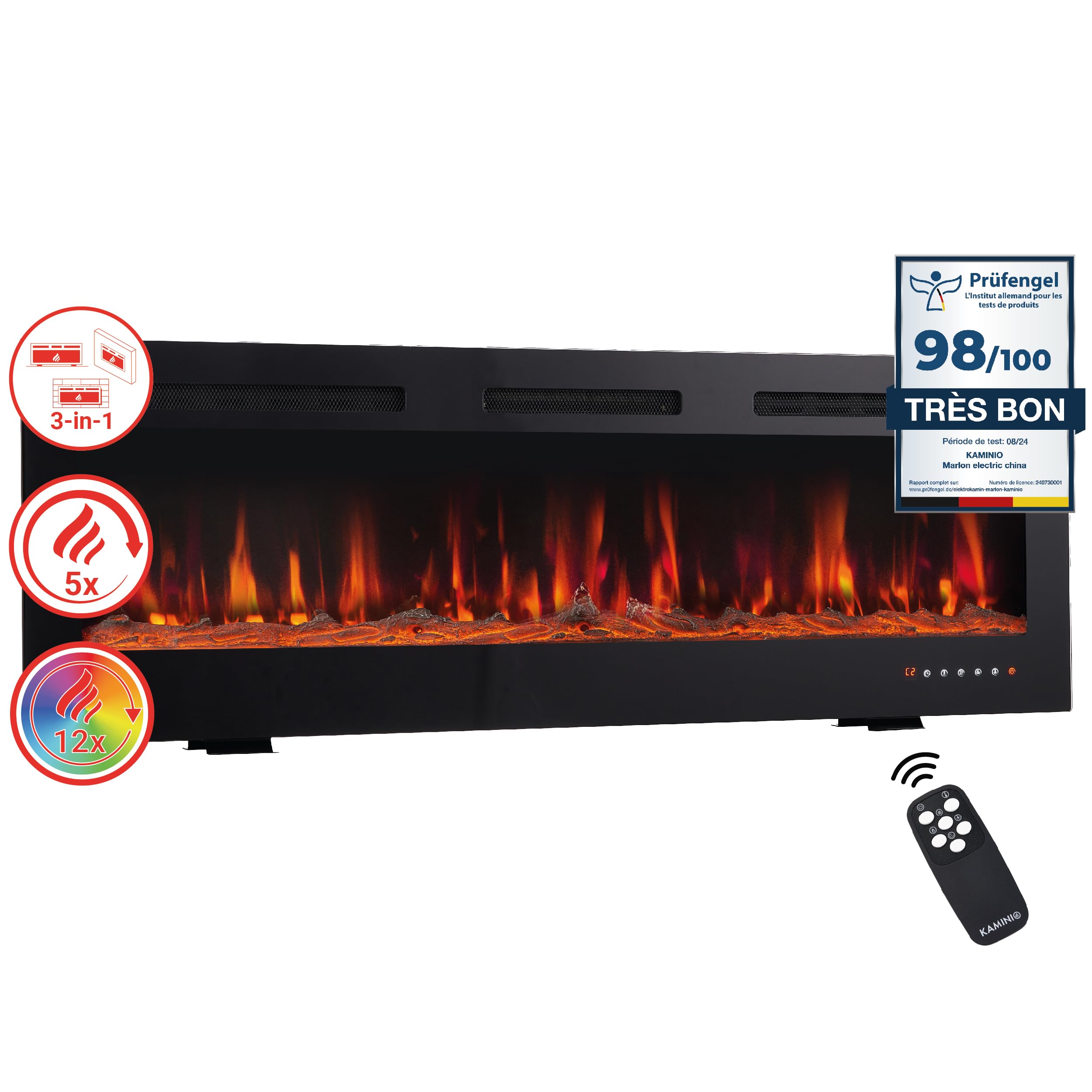

Image: The KAMINIO MARLON 42-inch electric fireplace, showcasing its realistic flame effect.
2. Važne informacije o sigurnosti
Da biste smanjili rizik od požara, strujnog udara ili povrede, uvijek slijedite ove osnovne mjere opreza:
- Pročitajte sva uputstva prije korištenja ovog kamina.
- This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 meters) from the front of the fireplace.
- Neophodan je izuzetan oprez kada bilo koju grijalicu koriste ili u blizini djeca ili invalidi i kad god je kamin ostavljen da radi i bez nadzora.
- Ne koristite kamin s oštećenim kabelom ili utikačem, ili ako je grijač neispravan, pao ili oštećen na bilo koji način.
- Ne postavljajte kabel za napajanje ispod tepiha. Ne prekrivajte kabel prostirkama, stazama ili sličnim pokrivačima. Postavite kabel dalje od područja gdje se kreće i tamo gdje se nitko neće spotaknuti o njega.
- Priključujte samo na pravilno uzemljene utičnice.
- Ne ubacujte i ne dozvolite da strani predmeti uđu u bilo koji ventilacijski ili ispušni otvor jer to može uzrokovati strujni udar ili požar ili oštetiti kamin.
- Kako biste spriječili mogući požar, ne blokirajte dovode ili odvod zraka ni na koji način. Nemojte koristiti na mekim površinama, poput kreveta, gdje se otvori mogu blokirati.
- This fireplace includes an overheat protection feature and window open detection for enhanced safety. If the unit overheats or a window is detected open, the heating function may automatically shut off.
3. Sadržaj paketa
Molimo provjerite da li su sve komponente prisutne i neoštećene:
- KAMINIO MARLON Electric Fireplace Unit
- Daljinski upravljač (baterije uključene)
- Montažni hardver
- Zidni nosač
- Uputstvo za upotrebu
4. Opcije instalacije
The KAMINIO MARLON electric fireplace offers three installation methods:
Image: Visual representation of the three installation options: freestanding, wall-mounted, and recessed.
4.1. Freestanding Installation
For freestanding use, ensure the fireplace is placed on a stable, level surface, such as a media console or stand. Maintain adequate clearance from combustible materials as specified in the safety guidelines.

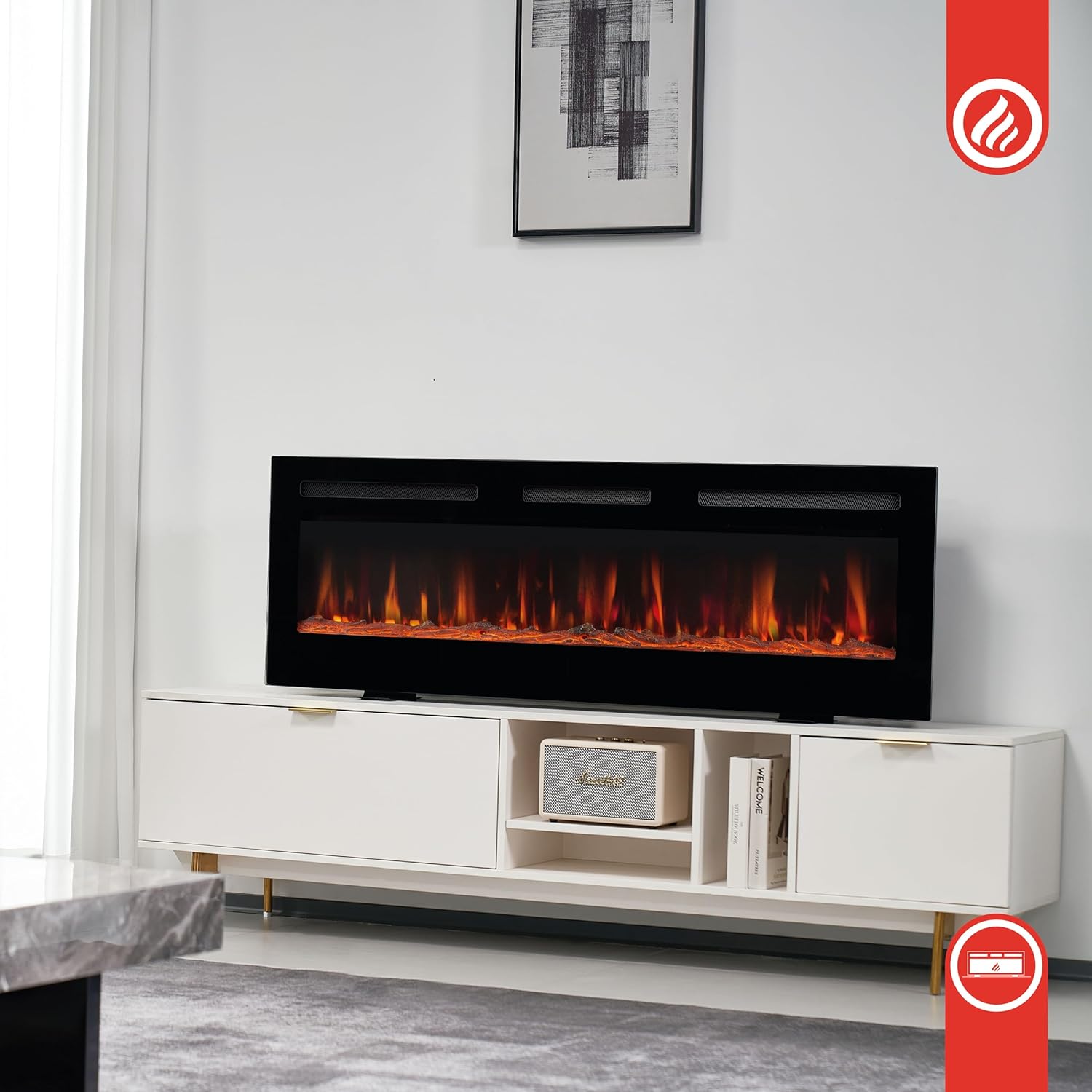

Image: The electric fireplace positioned freestanding on a media console.
4.2. Zidna instalacija
To wall-mount the fireplace, use the provided wall bracket and mounting hardware. Ensure the wall can support the weight of the unit (15.48 kg). Mark the desired height and position, drill pilot holes, and securely attach the bracket to wall studs if possible. Then, carefully hang the fireplace onto the bracket.
4.3. Ugradna instalacija
For a recessed installation, a suitable opening must be prepared in the wall or furniture. Refer to the detailed dimensions in the specifications section to ensure proper fit and ventilation. Professional installation is recommended for recessed applications.
5. Uputstvo za upotrebu
The KAMINIO MARLON fireplace can be operated using the control panel on the unit or the included remote control.
Image: The control panel of the fireplace, showing various function icons.
5.1. Uključivanje/isključivanje
Press the power button on the control panel or remote control to turn the fireplace on or off. The unit will typically start with the last used settings for flame and heat.
5.2. Flame Effects
The fireplace features a 3D flame effect with 12 color options and adjustable intensity levels.
- Changing Flame Colors: Use the flame color button on the remote or control panel to cycle through the 12 available colors.
- Podešavanje intenziteta plamena: Use the flame intensity button to select from 5 different brightness levels for the flame effect.
Image: A visual guide to the 12 distinct flame color options.
Image: Five examples illustrating the variable intensity of the flame effect.
Video: Demonstration of the various flame colors and effects available on the KAMINIO MARLON fireplace.
5.3. Funkcija grijanja
The fireplace features an innovative heating system with 1800 Watt power, capable of heating areas up to 20 m². The temperature can be adjusted between 16-28°C.
- Activating Heat: Press the heat button on the remote or control panel to turn the heating function on.
- Podešavanje temperature: Koristite tipke za podešavanje temperature gore/dolje da biste podesili željenu temperaturu prostorije.
- Funkcija tajmera: Set a timer for automatic shutdown of the heating function.
- Sigurnosne karakteristike: The unit includes overheat protection and window open detection, which will automatically shut off the heater if triggered.
Image: A visual representation of the heating function and warm air distribution.
Video: Demonstration of the heating mechanism and control panel functions.
5.4. Upotreba daljinskog upravljača
The remote control allows convenient operation of all fireplace functions from a distance. Ensure the batteries are correctly inserted. Point the remote directly at the fireplace sensor for optimal response.
6. Održavanje
Redovno održavanje osigurava dugotrajnost i optimalne performanse vašeg kamina.
- čišćenje: Uvijek isključite kamin iz struje prije čišćenja. Koristite meku,amp krpom obrišite vanjske površine. Ne koristite abrazivna sredstva za čišćenje ili sprejeve.
- ventilacija: Ensure that the air intake and exhaust vents are kept clear of dust and debris to prevent overheating.
- Skladištenje: Ako kamin skladištite duži period, isključite ga iz struje i čuvajte na suhom i mjestu bez prašine.
7. Otkrivanje problema
If you encounter issues with your KAMINIO MARLON fireplace, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Kamin se ne uključuje. | No power, power cord not plugged in, main power switch off. | Check power outlet, ensure cord is securely plugged in, turn on main power switch. |
| Nema izlaza topline. | Heating function not activated, temperature set too low, overheat protection triggered, window open detection triggered. | Activate heating, increase temperature setting, check for obstructions, close windows. |
| Efekat plamena ne radi. | Flame effect not activated, LED malfunction. | Activate flame effect. If issue persists, contact customer support. |
| Daljinski upravljač ne radi. | Dead batteries, remote not pointed at sensor, sensor obstructed. | Replace batteries, ensure clear line of sight to sensor, remove obstructions. |
If the problem persists after attempting these solutions, please contact KAMINIO customer support.
8. Specifikacije
Image: Detailed dimensions of the KAMINIO MARLON electric fireplace.
| Feature | Detalj |
|---|---|
| Broj modela | EF02 |
| Dimenzije (D x Š x V) | 11.9 x 107 x 46.6 cm (4.69 x 42.13 x 18.35 inča) |
| Težina | 15.48 kg (34.13 lbs) |
| Izvor napajanja | Električni kabel |
| Potrošnja energije | 1800 Watt |
| Pokrivenost grijanja | Do 20 m² |
| Materijal | Metal |
| Tip završetka | Lakirano |
| Vrsta instalacije | Wall Mount, Freestanding, Recessed |
| Posebne karakteristike | 3D Flame Effect, 12 LED Flame Colors, Dimmer, Timer, Overheat Protection, Window Open Detection |
| Uključene komponente | Mounting Hardware, Wall Bracket, Remote Control (batteries included) |
9. Garancija i podrška
KAMINIO provides a limited warranty for this product. Spare parts are available for 3 years from the date of purchase.
For warranty claims, technical support, or any questions regarding your KAMINIO MARLON electric fireplace, please contact KAMINIO customer service through your retailer or the official KAMINIO website.
