1. Uvod
This manual provides essential information for the safe and efficient operation of your KAMINIO MORITZ Crackling Speaker. Please read it thoroughly before use and retain it for future reference.
Ključne karakteristike
- Enhances the fireplace experience with authentic crackling sounds.
- Intuitive touch-sensitive control surface for track selection and volume.
- Elegant design with high-quality materials and a subtle silver finish.
- Versatile connectivity: pre-installed crackling sounds, MP3 playback via TF card, modern Bluetooth technology, AUX input, and convenient Micro-USB charging.
- Designed for maximum safety with thorough testing, modern technology, and a durable battery.
2. Sigurnosne informacije
Da biste osigurali siguran rad i spriječili oštećenja, molimo vas da se pridržavate sljedećih mjera opreza:
- Do not expose the device to water or excessive moisture. This product is not waterproof.
- Izbjegavajte ekstremne temperature i direktnu sunčevu svjetlost.
- Do not attempt to disassemble, modify, or repair the device yourself. Contact qualified service personnel if needed.
- Keep the speaker out of reach of children and pets.
- Use only the provided or a certified Micro-USB cable for charging.
- Osigurajte odgovarajuću ventilaciju oko uređaja tokom rada.
3. Sadržaj paketa
Molimo Vas da provjerite da li se u Vašem paketu nalaze svi artikli:
- KAMINIO MORITZ Crackling Speaker
- Micro-USB kabl za punjenje
- Uputstvo za upotrebu
4. Proizvod je gotovview
Familiarize yourself with the components and controls of your KAMINIO MORITZ speaker.
Kontrole i portovi
- Dugme za napajanje: Nalazi se sa strane, koristi se za uključivanje/isključivanje uređaja.

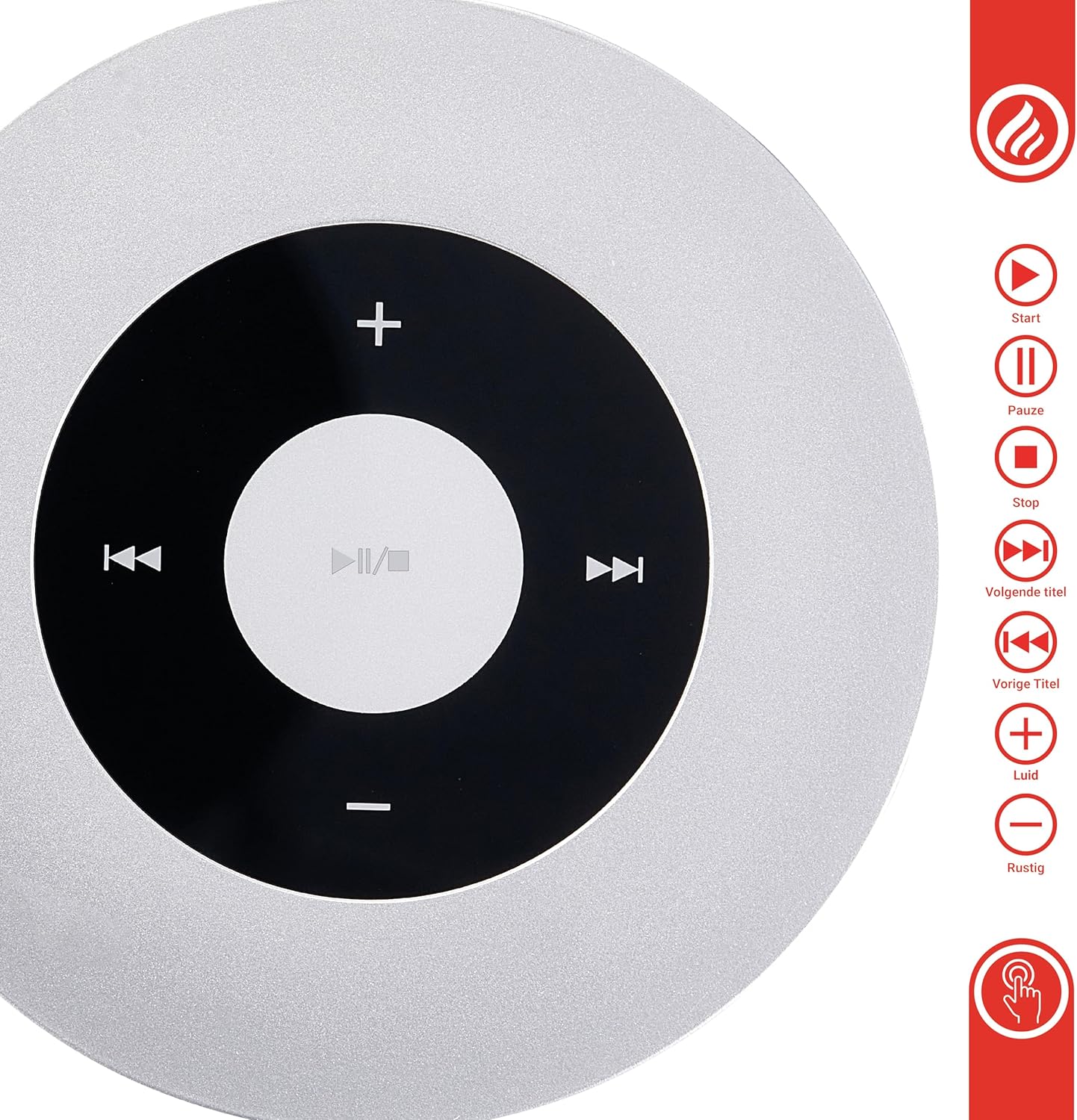

- Kontrolna tabla na dodir: Central top surface for playback and volume adjustments.
- Micro-USB port: Za punjenje uređaja.
- AUX ulaz: Za povezivanje eksternih audio uređaja.
- Utor za TF karticu: Za reprodukciju MP3 datoteka files from a memory card.
- mikrofon: For hands-free calling when connected via Bluetooth.
5. Podešavanje
Početno punjenje
- Connect the supplied Micro-USB cable to the speaker's charging port.
- Drugi kraj kabla priključite na USB adapter za napajanje (nije uključen) ili na USB port računara.
- The charging indicator light will illuminate. Charge the speaker fully before first use.
Uključivanje/isključivanje
- Da biste uključili uređaj, pritisnite i držite dugme za napajanje dok se indikatorska lampica ne upali.
- Za isključivanje, pritisnite i držite dugme za napajanje dok se indikatorska lampica ne ugasi.
6. Uputstvo za upotrebu
Bluetooth uparivanje
- Ensure the speaker is powered on and in Bluetooth pairing mode (the indicator light may flash).
- Na svom uređaju (pametnom telefonu, tabletu, laptopu) omogućite Bluetooth i potražite dostupne uređaje.
- Select "KAMINIO MORITZ" from the list of devices.
- Once paired, the indicator light will become solid, and you can play audio wirelessly.
Playing Pre-installed Crackling Sounds
The speaker comes with pre-installed crackling sounds. These will play automatically when no other audio source is connected or selected. Use the touch controls to cycle through different sound variations.
Reprodukcija TF kartice
- Umetnite TF (MicroSD) karticu sa MP3 audio zapisom files u otvor za TF karticu.
- The speaker will automatically switch to TF card mode and begin playing the audio files.
- Use the touch control panel to navigate tracks (previous/next) and adjust volume.
AUX ulaz
- Connect an audio cable (not included) from your external audio device's headphone jack to the speaker's AUX input.
- Zvučnik će se automatski prebaciti u AUX način rada.
- Kontrolirajte reprodukciju i jačinu zvuka sa svog eksternog uređaja.
Kontrola jačine zvuka
Use the '+' and '-' areas on the touch control panel to increase or decrease the volume.
Hands-free funkcija
When connected via Bluetooth to a smartphone, incoming calls can be answered directly through the speaker. Press the play/pause button on the touch panel to answer or end calls.
7. Održavanje
- čišćenje: Wipe the speaker with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals.
- Skladištenje: Čuvajte zvučnik na hladnom i suhom mjestu kada ga ne koristite duži period.
- Održavanje baterije: To prolong battery life, avoid fully discharging the battery frequently. Recharge regularly, especially if the device has not been used for a long time.
8. Otkrivanje problema
| Problem | Rješenje |
|---|---|
| Zvučnik se ne uključuje. | Ensure the battery is charged. Connect to a power source using the Micro-USB cable. |
| Nije moguće uparivanje putem Bluetootha. | Ensure the speaker is in pairing mode. Check that Bluetooth is enabled on your device. Move the speaker closer to your device. Disconnect from other Bluetooth devices. |
| No sound from TF card. | Ensure the TF card is inserted correctly. Check that the audio files su u MP3 formatu. |
| Mala jačina zvuka. | Podesite jačinu zvuka i na zvučniku i na povezanom uređaju. |
9. Specifikacije
| Brand | KAMINIO |
| Broj modela | SB01-S |
| Dimenzije proizvoda | 8.5D x 8.5Š x 3V cm |
| Težina | 180 g |
| Tehnologija povezivanja | AUX, Bluetooth, USB |
| Izvor napajanja | Baterija |
| Kontrolni metod | Dodirnite |
| Posebne karakteristike | Bluetooth, prenosivi |
| Boja | Srebro |
| Uključene komponente | Mikrofon |
10. Related Products and Videos
Explore other KAMINIO products and watch informational videos.
Informativni video zapisi
No specific instructional videos directly related to the KAMINIO MORITZ Crackling Speaker were found in the provided data.
11. Garancija i podrška
The KAMINIO MORITZ Crackling Speaker comes with a limited warranty. For detailed warranty information, product support, or service inquiries, please refer to the manufacturer's official webstranice ili kontaktirajte njihovu korisničku službu.
Manufacturer: KAMINIO
Za dalju pomoć posjetite KAMINIO Store on Amazon.
