LTS LXIP3C82WI-28SDL Pro-X 8MP IP Camera User Manual

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of the LTS LXIP3C82WI-28SDL Pro-X 8MP IP Camera. This camera is designed for both indoor and outdoor surveillance, offering high-resolution video and advanced detection features. Please read this manual thoroughly before using the product to ensure proper setup and functionality.

2. Sigurnosne informacije

• Ensure the power supply meets the camera's requirements (12V DC or PoE IEEE 802.3af).
• Ne izlažite kameru ekstremnim temperaturama, vlazi ili korozivnim okruženjima.
• Izbjegavajte usmjeravanje objektiva direktno prema jakim izvorima svjetlosti tokom dužeg perioda.
• Installation should be performed by qualified personnel and comply with local electrical codes.
• Keep the camera clean and free from dust to maintain optimal performance.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• LTS LXIP3C82WI-28SDL Pro-X 8MP IP Camera (1 unit)
• Montažni okovi (šrafovi, ankeri)
• Vodič za brzi početak

4. Proizvod je gotovview i karakteristike

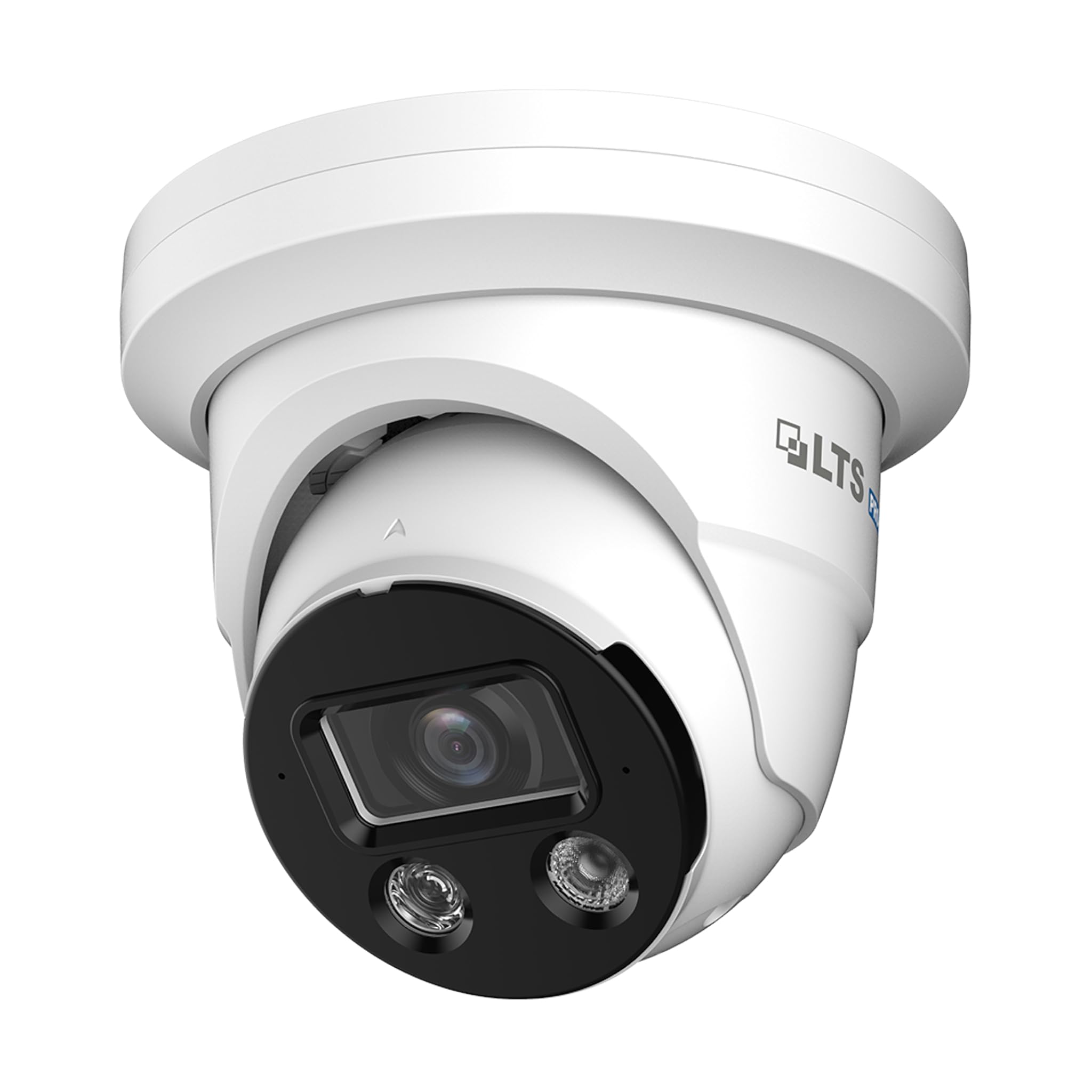

The LTS LXIP3C82WI-28SDL is an 8 Megapixel (3840 x 2160) IP camera designed for advanced surveillance. Key features include:

• visoka rezolucija: Captures video at up to 8 MP (3840 × 2160) at 30 frames per second.
• Fiksni objektiv: Equipped with a 2.8 mm fixed lens.
• Napredno osvjetljenje: Features built-in IR LED and warm light LED illuminators, providing clear images up to 98 feet (30 meters) even in low light conditions, enabling 24/7 color imaging.
• X-Deterrence: Integrated siren and visual alerts (red and blue flashing lights) for active deterrence.
• Dvosmjerni razgovor: Built-in dual microphones and speaker facilitate two-way audio communication.
• Detekcija pokreta 2.0: Intelligent motion detection focusing on human and vehicle recognition to reduce false alarms.
• Široki dinamički raspon (WDR): True WDR 120 dB for clear images in scenes with strong backlighting.
• Skladištenje: Supports MicroSD card storage up to 256 GB.
• Opcije napajanja: Can be powered via Power over Ethernet (PoE IEEE 802.3af) or 12V DC.
• Trajnost: IP67 rated for outdoor use, providing protection against dust and water.
• Kompresija: Utilizes Smart H.264 / H.265 compression for efficient storage and bandwidth usage.
• U skladu sa NDAA: This device adheres to NDAA compliance standards.

5. Podešavanje

5.1 Camera Wiring

The LXIP3C82WI-28SDL camera uses a network cable for both video and Power over Ethernet (PoE). It is not compatible with traditional DC power and BNC video connections.

Image 1: Camera Wiring Compatibility. This diagram illustrates the correct wiring method using a network cable for both video and Power over Ethernet (PoE), marked as 'Compatible' with a green circle. It also shows traditional DC power and BNC video cables marked as 'Not Compatible' with a red cross, indicating they should not be used with this camera model.

• Connect a standard Ethernet network cable to the camera's network port.
• If using PoE, connect the other end of the network cable to a PoE-enabled switch or NVR.
• If not using PoE, connect the network cable to a standard network switch/router and provide 12V DC power to the camera's power input.

5.2 Montaža

Kamera je dizajnirana za montažu na plafon.

1. Choose a suitable mounting location on the ceiling that provides the desired field of view.
2. Koristite priloženi šablon za montažu (ako je uključen) da označite rupe za bušenje.
3. Drill pilot holes and insert anchors if necessary.
4. Secure the camera base to the ceiling using the provided screws.
5. Podesite ugao kamere po potrebi za optimalnu pokrivenost.

5.3 Mrežna veza i početna konfiguracija

After physical installation and wiring, connect the camera to your network. For best compatibility, pair this Pro-X series camera with a Pro-X NVR. It is not plug & play compatible with LTS Platinum NVRs.

• Ensure your network is properly configured for IP cameras.
• Use the manufacturer's provided software or a standard IP camera tool to discover the camera on your network.
• Pristupite kameri web interface using its IP address to perform initial configuration, including setting a strong password, network settings, and video parameters.

6. Operativni

6.1 Video nadzor

Access live video feeds through a compatible NVR, PC software, or mobile application. The camera supports 8MP resolution for detailed surveillance.

6.2 Detekcija pokreta 2.0

Configure Motion Detection 2.0 settings via the camera's web interface or NVR. This feature distinguishes between human and vehicle movement, reducing false alarms from other sources.

• Define detection zones and sensitivity levels.
• Set up recording schedules and notification preferences (e.g., email alerts, push notifications).

6.3 X-Deterrence (Siren and Lights)

The X-Deterrence feature can be activated manually or triggered by motion detection events. When triggered, the camera will emit a siren sound and flash red and blue lights to deter intruders.

• Configure X-Deterrence actions within the camera's event settings.
• Adjust siren volume and light flashing patterns if available.

6.4 Dvosmjerni audio

Utilize the built-in microphone and speaker for two-way audio communication. This feature is accessible through compatible NVRs or client software.

• Ensure audio input/output settings are enabled in the camera's configuration.
• Use the talk button in your monitoring software to speak through the camera's speaker.

6.5 Local Storage (MicroSD)

The camera supports a MicroSD card up to 256 GB for local video storage. This provides a backup or primary recording solution.

• Insert a compatible MicroSD card into the designated slot (refer to the camera's physical diagram for location).
• Format the MicroSD card via the camera's web interfejs pre upotrebe.
• Configure recording schedules and overwrite settings for the MicroSD card.

7. Održavanje

7.1 Čišćenje

Regularly clean the camera lens and housing to ensure clear image quality and proper operation.

• Koristite meku, suhu krpu za brisanje kućišta fotoaparata.
• For the lens, use a lens cleaning solution and a microfiber cloth to avoid scratches.
• Ne koristite jake kemikalije ili abrazivna sredstva za čišćenje.

7.2 Ažuriranja firmvera

Povremeno provjeravajte proizvođačeve webStranica za ažuriranja firmvera. Ažuriranja firmvera mogu poboljšati performanse, dodati nove funkcije i poboljšati sigurnost.

• Download the correct firmware version for your camera model.
• Follow the update instructions provided by the manufacturer carefully to avoid damaging the device.

8. Otkrivanje problema

8.1 Nema napajanja

• Verify that the power source (PoE switch/injector or 12V DC adapter) is functioning correctly.
• Provjerite sve kablovske spojeve da li su sigurno pričvršćeni.

8.2 Nema video prijenosa

• Provjerite je li kamera uključena i povezana s mrežom.
• Verify network connectivity by pinging the camera's IP address.
• Check firewall settings on your network and viewing device.
• Confirm that the NVR or viewing software is compatible and correctly configured.

8.3 Loš kvalitet slike

• Očistite sočivo kamere.
• Adjust video settings (resolution, bitrate, exposure) in the camera's web interfejs.
• Ensure adequate lighting in the surveillance area, especially at night.

8.4 Detekcija pokreta ne radi

• Verify that motion detection is enabled and configured correctly in the camera settings.
• Podesite zone detekcije i osjetljivost.
• Provjerite da nema prepreka koje blokiraju kameru view.

9. Specifikacije

10. Garancija i podrška

For warranty information and technical support, please refer to the official LTS webstranicu ili kontaktirajte ovlaštenog prodavača. Sačuvajte račun za kupovinu u slučaju reklamacije.

• Proizvođač: LTS
• Podrška: Refer to the manufacturer's official support channels for assistance with product issues, firmware updates, and advanced configurations.
