ISUERFY 36W IP66 Waterproof Black LED Light Bar

1. Uvod

Thank you for choosing the ISUERFY 36W IP66 Waterproof Black LED Light Bar. This product is designed to provide powerful ultraviolet light effects for various applications, including parties, stage lighting, art illumination, and more. Its robust construction ensures durability and reliable performance.

This manual provides essential information for the safe and effective use of your new LED light bar. Please read it thoroughly before installation and operation.

Slika 1.1: Gotovoview of the ISUERFY 36W Black LED Light Bars.

2. Postavljanje i instalacija

The ISUERFY 36W Black LED Light Bar is designed for easy installation on various surfaces, including walls, floors, or T-bars. Each unit comes with adjustable brackets and a 1.5m (5ft) power cord with an on/off switch for convenient setup.

2.1 Sadržaj paketa

• ISUERFY 36W Black LED Light Bar(s)
• Podesivi nosači za montažu
• Kabl za napajanje sa prekidačem za uključivanje/isključivanje
• Necessary Accessories (screws, wall anchors)
• Uputstvo za upotrebu

2.2 Koraci instalacije

1. Raspakirajte: Carefully remove the light bar and all accessories from the packaging.
2. Odaberite lokaciju: Select a suitable location for installation, ensuring it is within reach of a power outlet and provides the desired illumination area.
3. Pričvrstite zagrade: Secure the adjustable mounting brackets to the light bar using the provided screws.
4. Montaža:
   • Montaža na zid/plafon: Mark the drilling points on the wall/ceiling using the bracket holes. Drill pilot holes, insert wall anchors (if necessary), and secure the light bar using screws.
   • Podni stalak: Position the light bar on a flat, stable surface. The brackets can be rotated to act as a stable base.
   • T-Bar Mount: Koristite odgovarajući clamps (not included) to attach the brackets to a T-bar or truss system.
5. Podesite ugao: Loosen the knobs on the brackets to adjust the light bar to the desired angle (up to 360° rotation), then tighten the knobs to secure it.
6. Priključite napajanje: Plug the power cord into a standard 100-240V AC power outlet.

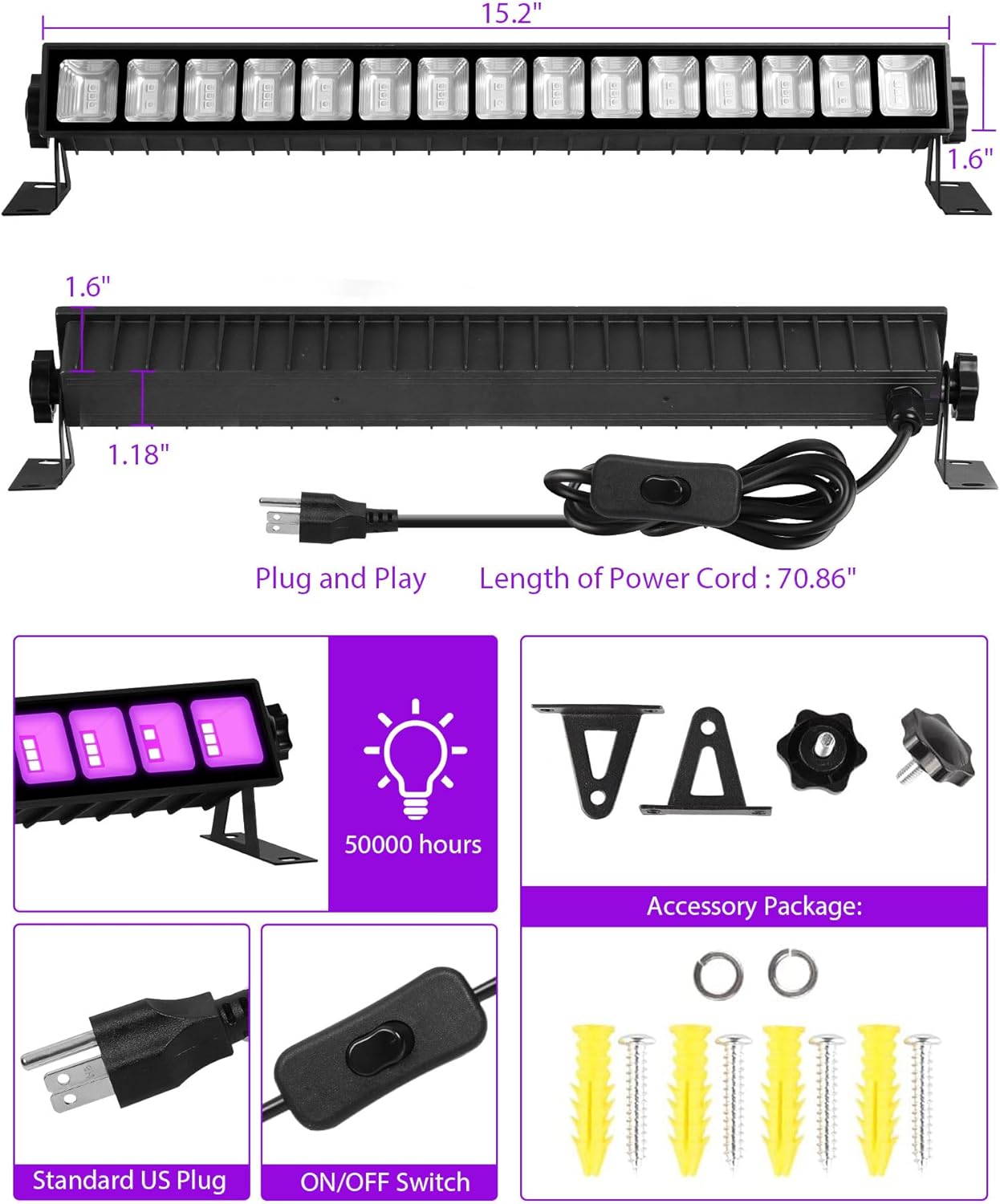

Image 2.1: Product dimensions and accessory package details.

Image 2.2: Key features for installation and heat dissipation.

3. Uputstvo za upotrebu

Operating the ISUERFY Black LED Light Bar is straightforward due to its simple on/off switch control.

3.1 Osnovni rad

• Ensure the light bar is securely installed and plugged into a power outlet.
• Locate the on/off switch on the power cord.
• Flip the switch to the 'ON' position to activate the black light.
• Flip the switch to the 'OFF' position to turn off the light.

3.2 Optimalna upotreba

For the best black light effect, it is recommended to use the light bar in a dark environment. Turning off other lighting devices in the area will enhance the fluorescent glow of reactive materials.

Image 3.1: Application range and wavelength information.

Image 3.2: Illustration of the 120° irradiation area.

Slika 3.3: Primjeramples of the black light bar in various settings.

4. Održavanje

Regular maintenance ensures the longevity and optimal performance of your ISUERFY Black LED Light Bar.

4.1 Čišćenje

• Uvijek isključite napajanje prije čišćenja.
• Wipe the light bar's surface with a soft, dry cloth.
• Za tvrdokornu prljavštinu koristite blagi damp krpom, a zatim dobro osušite.
• Ne koristite abrazivna sredstva za čišćenje, rastvarače ili jake hemikalije, jer mogu oštetiti završnu obradu ili unutrašnje komponente.

4.2 Skladištenje

When not in use for extended periods, store the light bar in a cool, dry place, away from direct sunlight and extreme temperatures. It is advisable to store it in its original packaging or a protective case to prevent damage.

4.3 Waterproofing Note

The light bar itself is rated IP66 waterproof, meaning it is protected against powerful water jets and dust. However, the switch and plug require further waterproofing if used in outdoor or wet environments. Ensure these components are protected from direct water exposure.

Image 4.1: IP66 Waterproof rating and important note.

5. Otkrivanje problema

If you encounter issues with your ISUERFY Black LED Light Bar, refer to the following common problems and solutions:

If you are unable to resolve the issue using the above steps, please contact ISUERFY customer support.

6. Specifikacije

Detailed technical specifications for the ISUERFY 36W Black LED Light Bar:

• Model: SUER-F36W-UV-10
• Snaga: 36 Watts
• Ulazni voltage: 100-240V AC
• Vrsta izvora svjetlosti: LED
• talasna dužina: 385-400 nm (UV-A)
• Ugao snopa: 120°
• Coverage Area (per unit): Approximately 6.4 x 6.4 meters (41 square meters / 441 square feet)
• Dužina kabla za napajanje: 1.5 metara (otprilike 5 stope)
• Materijal: Graphene + Tempered Glass
• Radna temperatura: -25 ℃ do 40 ℃ (-13 ℉ do 104 ℉)
• Životni vijek: 50,000 sati
• IP ocjena: IP66 (Light bar only; switch and plug require additional waterproofing for outdoor use)
• Dimenzije (D x Š x V): 3.99 x 3 x 18.29 cm (približno 1.57 x 1.18 x 7.2 inča)
• Težina: 3.75 kilograma (približno 8.27 lbs)
• Vrsta montaže: Wall, Floor, or T-bar Mount (adjustable 360° brackets)

7. Garancija i podrška

7.1 Informacije o garanciji

The ISUERFY 36W Black LED Light Bar comes with a 24-month risk-free warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.

7.2 Korisnička podrška

For any questions, technical assistance, or warranty claims, please contact ISUERFY customer support through the retailer's platform or the official ISUERFY website. Our support team is available to assist you with any product-related inquiries.
