Yoidesu E Bike Motor Controller Kit (Model Yoidesutp5sa3efxy) - Instruction Manual

1. Uvod

This manual provides essential information for the proper installation, operation, and maintenance of your Yoidesu E Bike Motor Controller Kit. This kit is designed to enhance electric bicycles and scooters by providing efficient motor control, an LCD display for real-time data, and Bluetooth app connectivity for advanced settings and monitoring. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

2. Sadržaj paketa

The Yoidesu E Bike Motor Controller Kit includes the following components:

• 1 x Motor Controller (Aluminum Alloy)
• 1 Pair x Shifter/Throttle Grips
• 1 x Pedal Assist Sensor (PAS)
• 1 x LCD Display Panel (ABS)
• 1 x Bluetooth Module (integrated with controller)
• Instruction Manuals for Display and Controller (digital versions provided here)

Image: All components of the Yoidesu E Bike Motor Controller Kit, including the controller, display, shifters, and assist sensor.

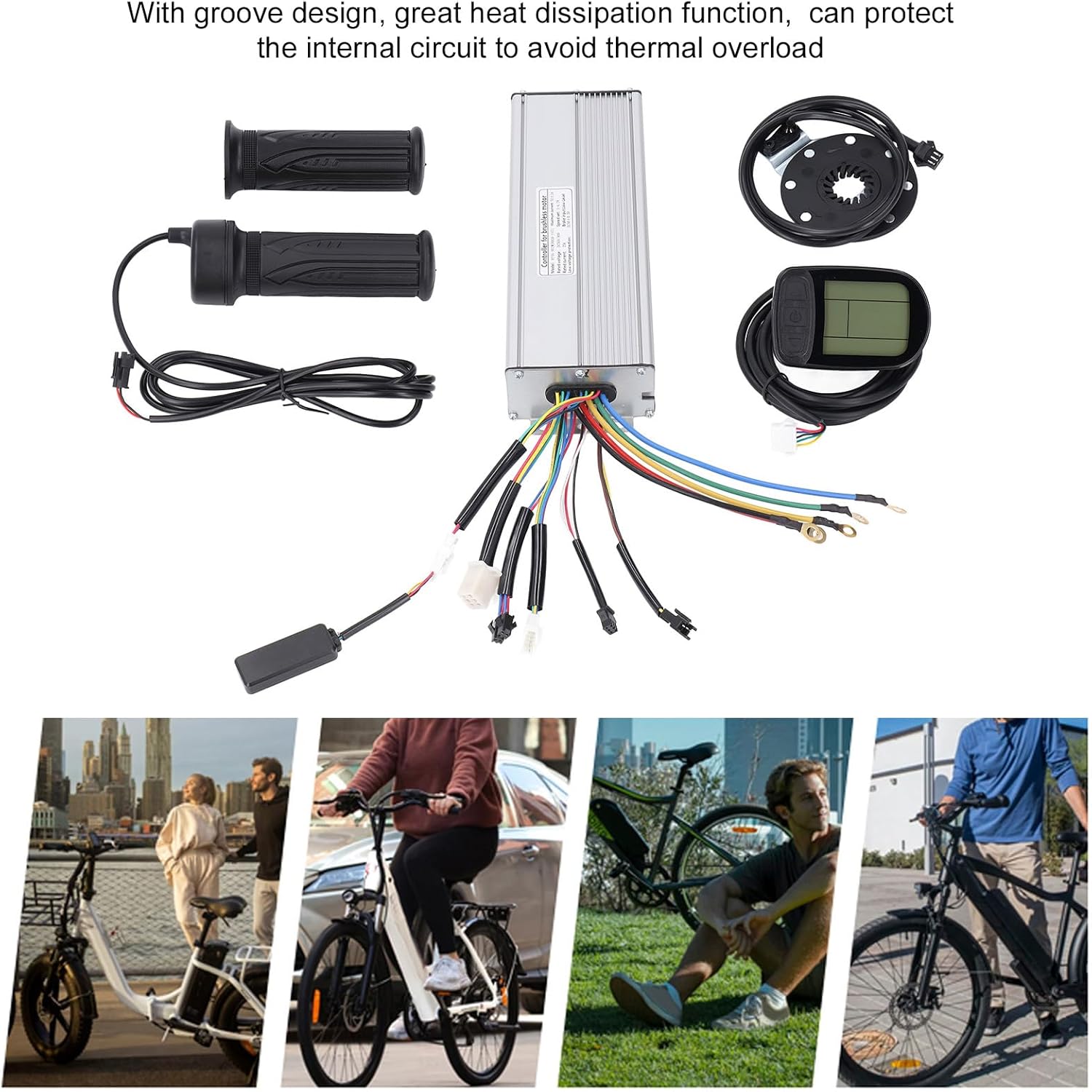

Image: The motor controller, display, shifters, and assist sensor. The controller features a grooved design for efficient heat dissipation.

3. Vodič za instalaciju

This section outlines the general steps for installing the Yoidesu E Bike Motor Controller Kit. Professional installation is recommended if you are unfamiliar with electric bicycle wiring.

3.1 Sigurnosne mjere

• Ensure the e-bike battery is disconnected before starting any installation.
• Nosite odgovarajuću zaštitnu opremu, uključujući rukavice i zaštitu za oči.
• Refer to your e-bike's original manual for specific component locations and wiring diagrams.
• Avoid exposing components to water or extreme temperatures during installation.

3.2 Koraci instalacije komponenti

1. Montirajte kontroler: Secure the aluminum alloy controller to a suitable location on your e-bike frame, ensuring good airflow for heat dissipation. The grooved design aids in cooling.


   Slika: Krupni plan view of the wiring connections on the motor controller, showing various colored wires for different functions.

2. Install Shifter/Throttle Grips: Replace your existing grips with the provided shifter/throttle grips on the handlebars. Connect the wiring to the controller as per the wiring diagram.


   Image: The pair of shifter/throttle grips with their connecting cable.
3. Attach Pedal Assist Sensor (PAS): Install the pedal assist sensor near the crank arm, ensuring it aligns correctly with the magnets. Connect its cable to the controller.


   Image: The pedal assist sensor (PAS) with its magnetic ring and sensor unit.

4. Mount LCD Display Panel: Secure the LCD display panel to your handlebars in a position that is easily visible and accessible. Connect the display cable to the controller.


   Image: The Yoidesu LCD display panel with its control buttons and connecting cable.

5. Connect Motor and Battery: Connect the motor phase wires and hall sensor wires from your e-bike motor to the controller. Finally, connect the battery power cables to the controller. Double-check all connections for security and correct polarity.

The controller's robust design and the display panel's durable ABS cover ensure protection for internal circuits, contributing to the kit's overall longevity.

4. Uputstvo za upotrebu

4.1 Osnovni rad

1. Uključivanje/isključivanje: Press and hold the power button on the LCD display to turn the system on or off.
2. Assist Level Adjustment: Use the up/down buttons on the display to cycle through different pedal assist levels (e.g., 0-5). Level 0 typically provides no assistance.
3. Kontrola gasa: If equipped, gently twist the throttle grip to engage motor power directly, independent of pedaling.
4. Prikaz informacija: The LCD display shows real-time data such as speed, battery level, assist level, trip distance, and total distance.

4.2 Bluetooth App Connectivity

The Yoidesu E Bike Motor Controller Kit features a dedicated Bluetooth APP for smartphones, allowing for advanced control and monitoring.

1. Preuzmite aplikaciju: Traži the "Yoidesu E Bike" or similar app in your smartphone's app store (iOS/Android).
2. Uparivanje: Ensure your e-bike system is powered on and Bluetooth is enabled on your smartphone. Open the app and follow the on-screen instructions to pair with your controller kit.
3. Funkcije aplikacije: The app provides real-time communication with the Bluetooth module, enabling functions such as:
   • Detailed ride data display (speed, distance, power consumption).
   • Customization of assist levels and motor parameters.
   • Diagnostic information and error codes.
   • GPS tracking and route mapping (if supported by the app).

Image: The Yoidesu E Bike Motor Controller Kit components, representing the system that connects to the smartphone app for enhanced control and monitoring.

5. Održavanje

Regular maintenance ensures the longevity and optimal performance of your Yoidesu E Bike Motor Controller Kit.

• čišćenje: Wipe down the controller and display with a soft, damp tkanina. Izbjegavajte korištenje jakih kemikalija ili abrazivnih materijala.
• Veze: Periodically check all electrical connections for tightness and corrosion. Ensure cables are not pinched or damaged.
• Rasipanje topline: Keep the controller's grooved casing free from dirt and debris to maintain effective heat dissipation.
• Ažuriranja softvera: Check the Bluetooth app regularly for any available firmware updates for the controller or display.
• Skladištenje: If storing the e-bike for an extended period, ensure the battery is partially charged (around 50-60%) and stored in a cool, dry place.

6. Otkrivanje problema

This section addresses common issues you might encounter with your Yoidesu E Bike Motor Controller Kit.

7. Specifikacije

8. Informacije o garanciji

Yoidesu products typically come with a standard manufacturer's warranty covering defects in materials and workmanship. For specific warranty terms, duration, and claim procedures, please refer to the warranty card included with your purchase or contact Yoidesu customer support. Keep your proof of purchase for warranty claims.

The product has a return policy duration of 30 days for refund/replacement.

9. Korisnička podrška

If you encounter any issues not covered in this manual or require further assistance, please contact Yoidesu customer support.

• Online podrška: Visit the official Yoidesu webstranica za često postavljana pitanja, resurse za podršku i kontakt obrasce.
• Podrška putem e-pošte: Pogledajte pakovanje proizvoda ili službene webweb-stranicu za adresu e-pošte korisničke podrške.
• Podrška prodavača: For purchases made through Amazon, you may contact the seller "Hakeeta us" for assistance.
