Uvod
The RL LIVE YOUR LIGHT Gravity LED Ceiling Light, model R67693800, offers a modern lighting solution with a distinctive star effect. This ceiling light is designed for ease of use and energy efficiency, featuring adjustable brightness and color temperature via an included remote control. It is suitable for various indoor environments, including living rooms and bedrooms, providing adaptable illumination to suit your mood and needs.
Sigurnosna uputstva
- Always disconnect the main power supply before installation, maintenance, or cleaning.
- Instalaciju treba izvršiti kvalificirani električar ako niste sigurni u vezi električnih instalacija.
- Osigurajte da površina za montažu može podnijeti težinu uređaja.
- Do not expose the light fixture to excessive moisture or direct water spray.
- Keep the remote control batteries out of reach of children. Dispose of used batteries responsibly.
- This product contains an LED light source which is not user-replaceable. Do not attempt to disassemble the LED module.
Sadržaj paketa
Prije početka instalacije provjerite da li su sve komponente prisutne:
- 1x Gravity LED Ceiling Light (Model R67693800)
- 1x Remote Control (batteries included)
- 1x Mounting Hardware Kit (screws, wall plugs)
- 1x Uputstvo za upotrebu (ovaj dokument)
Postavljanje i instalacija
Slijedite ove korake za sigurnu i pravilnu instalaciju:
- Isključite napajanje: Prije početka rada, provjerite je li napajanje područja instalacije isključeno glavnim prekidačem.
- Pripremite montažnu površinu: Mark the drilling points on the ceiling according to the light fixture's mounting bracket.
- Instalirajte nosač za montažu: Drill holes, insert wall plugs, and securely attach the mounting bracket to the ceiling using the provided screws.
- Povežite ožičenje: Connect the household electrical wires to the light fixture's terminals. Ensure correct polarity (Live, Neutral, Earth) as per local electrical codes.
- Pričvrstite rasvjetno tijelo: Carefully align the light fixture with the mounting bracket and secure it in place. Ensure all connections are firm and the fixture is stable.
- Vrati snagu: Once the light is securely installed, restore power at the main circuit breaker.
Uputstvo za upotrebu
The Gravity LED Ceiling Light is controlled using the included remote control.
Funkcije daljinskog upravljača:
- Uključivanje/isključivanje: Pritisnite dugme za napajanje da uključite ili isključite svetlo.
- Podešavanje svjetline: Use the dimmer buttons to continuously increase or decrease the light intensity.
- Podešavanje temperature boje: Adjust the light color continuously from 2700K (warm white) to 6500K (cool white) using the dedicated buttons.
- Način noćnog svjetla: Activate the night light function for a very low, soft illumination, ideal for nighttime use.
- Memorijska funkcija: The light will remember the last brightness and color temperature setting when turned off and on again.
Održavanje
Da biste osigurali dugotrajnost i optimalne performanse vaše LED stropne rasvjete, slijedite ove smjernice za održavanje:
- čišćenje: Isključite napajanje prije čišćenja. Koristite meku, suhu ili blago natopljenu krpu.amp cloth to wipe the surface of the light fixture. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or plastic shade.
- Životni vijek LED-a: The integrated LED module has an average lifespan of 30,000 hours and is not designed for user replacement.
- Baterije za daljinski upravljač: If the remote control stops responding, replace its batteries with new ones of the correct type. Ensure correct polarity when inserting new batteries.
Rješavanje problema
If you encounter issues with your Gravity LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetlo se ne pali. | No power supply; Loose wiring connection; Remote control battery depleted. | Check circuit breaker; Verify wiring connections (ensure power is off first); Replace remote control batteries. |
| Daljinski upravljač ne radi. | Batteries depleted or incorrectly inserted; Obstruction between remote and light; Remote out of range. | Replace batteries, ensuring correct polarity; Remove any obstructions; Operate remote within effective range. |
| Svjetlo neočekivano treperi ili se prigušuje. | Nestabilno napajanje; Labava veza ožičenja. | Consult an electrician to check power supply stability; Verify wiring connections (ensure power is off first). |
Specifikacije
Detailed technical specifications for the R67693800 Gravity LED Ceiling Light:
- Broj modela: R67693800
- Brand: ŽIVI SVOJE SVJETLO
- Proizvođač: Reality Leuchten

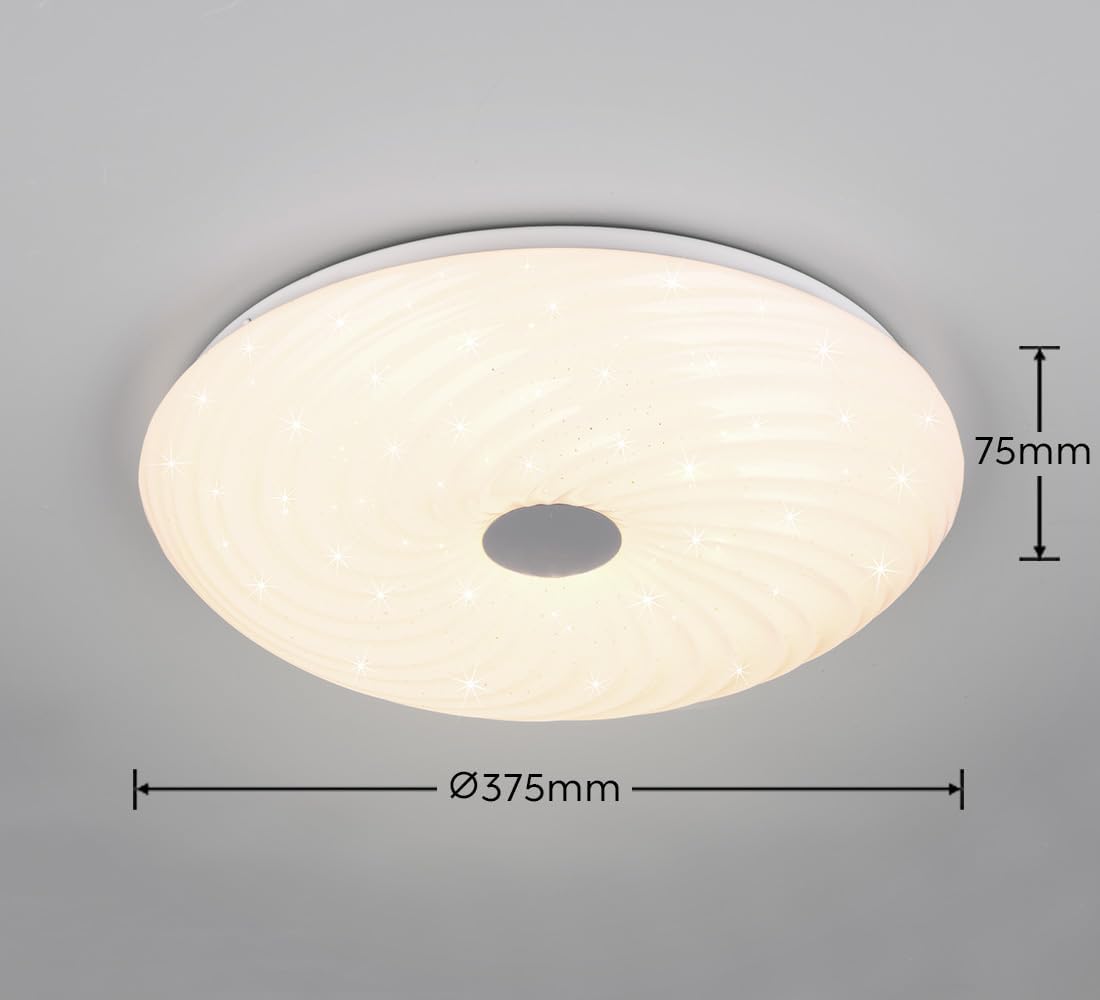

- Dimenzije (D x Š x V): 37.5 x 37.5 x 7.5 cm (14.76 x 14.76 x 2.95 inča)
- Težina: 640 grama (1.41 lbs)
- Materijal: Plastika
- Boja: Mat bela
- Vrsta izvora svjetlosti: Integrisana LED
- Broj izvora svjetlosti: 1
- Potrošnja energije: 22 Watts
- Svjetlosni tok: 2600 lumena (maks.)
- Temperatura boje: Continuously adjustable from 2700K (Warm White) to 6500K (Cool White)
- Posebne karakteristike: Dimmable, Color Temperature Control, Night Light Mode, Star Effect, Energy Efficient
- Metoda kontrole: Daljinski upravljač
- Klasa energetske efikasnosti: F
- Prosječan životni vijek: 30,000 sati
- Izvor napajanja: Corded Electric
- Baterije uključene: Da (za daljinski upravljač)
- Potrebne baterije: Da (za daljinski upravljač)
Garancija i podrška
This product is covered by the standard manufacturer's warranty. Please retain your proof of purchase for any warranty claims.
For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact your retailer or the manufacturer directly. Information regarding spare parts availability is not provided.
