H2ofloss Cordless Water Flosser User Manual

Uvod

Thank you for choosing the H2ofloss Cordless Water Flosser. This professional dental oral irrigator is designed to provide a convenient and effective solution for your daily oral hygiene. With its portable and rechargeable design, 300ML water tank, and IPX7 waterproof rating, it is suitable for both home and travel use. This manual will guide you through the proper setup, operation, and maintenance of your device to ensure optimal performance and a healthier smile.

Image: The H2ofloss Cordless Water Flosser, its packaging, and a selection of interchangeable jet tips.

Sigurnosne informacije

Please read all safety instructions before using the H2ofloss Water Flosser. Failure to follow these instructions may result in injury or damage to the product.

• For first-time users, always begin with the NAJNIŽE mode to allow your gums to adjust to the water pressure.
• Do not aim the water jet directly at your throat or eyes when operating the device.
• Držite uređaj van domašaja djece.
• Ne rastavljajte ili pokušavajte sami da popravite uređaj. Obratite se korisničkoj podršci za pomoć.
• Prije spajanja kabela za punjenje provjerite je li priključak za punjenje suh.

Sadržaj paketa

Provjerite da li se sve stavke nalaze u vašem paketu:

• H2ofloss Cordless Water Flosser Unit
• Standard Jet Tips (2)
• Periodontal Tip (1)
• Orthodontic Tip (1)
• Tongue Cleaner Tip (1)
• USB kabel za punjenje tipa C
• Prijenosna torba za pohranu

Image: The H2ofloss Water Flosser unit, various interchangeable tips, and the USB charging cable.

Product Overview

Familiarize yourself with the components of your H2ofloss Water Flosser:

Image: A detailed diagram highlighting key components of the H2ofloss Water Flosser, including the ON/OFF button, Mode button, Indicating lights, Charging port, 300ml Water Tank, and 360° Rotatable Tip.

• Dugme za uključivanje/isključivanje: Uključuje ili isključuje uređaj.
• Dugme za način rada: Cycles through the 5 different flossing modes.
• Indicating Lights: Display the currently selected mode and battery level.
• Port za punjenje: Type-C port for recharging the device.
• Dizajn protiv klizanja: Textured grip for secure handling.
• Rezervoar za vodu od 300 ml: Detachable reservoir for water or mouthwash.
• Water Entrance: Otvor za punjenje rezervoara za vodu.
• Tip Release Button: Press to remove or change the nozzle tip.
• 360° Rotatable Tip: Allows for easy access to all areas of the mouth.

Setup

1. Punjenje uređaja

Before first use, fully charge the water flosser. A full charge takes approximately 5 hours and provides up to 21-30 days of use, thanks to its 2500mAh battery.

• Connect the provided USB Type-C charging cable to the charging port on the device.
• Plug the other end of the USB cable into a 5V 1A adapter (not included), power bank, PC, or car charger.
• Indikatorska svjetla punjenja će svijetliti tokom punjenja i isključiti se kada se uređaj potpuno napuni.
• Ensure the protective lid is closed after charging to maintain the IPX7 waterproof rating.

Image: The H2ofloss Water Flosser connected to a power adapter via its Type-C charging cable, illustrating the charging process.

2. Punjenje rezervoara za vodu

The device features a 300ML detachable water tank for easy filling and cleaning.

• Otvorite poklopac spremnika za vodu.
• Fill the tank with lukewarm water. You may also add mouthwash if desired.
• Close the water tank lid securely to prevent leaks.

Image: A hand filling the detachable 300ML water tank of the H2ofloss Water Flosser under a faucet.

3. Attaching the Nozzle Tip

Select the appropriate nozzle tip for your needs.

• Insert the desired nozzle tip into the hole at the top of the flosser unit until it clicks into place.
• The tip can be rotated 360° for optimal cleaning angles.

Image: A composite image demonstrating the ergonomic design, Type-C charging, and 360-degree rotatable nozzle of the H2ofloss Water Flosser.

Uputstvo za upotrebu

1. Selecting a Flossing Mode

The H2ofloss Water Flosser offers 5 distinct flossing modes to cater to various oral care needs:

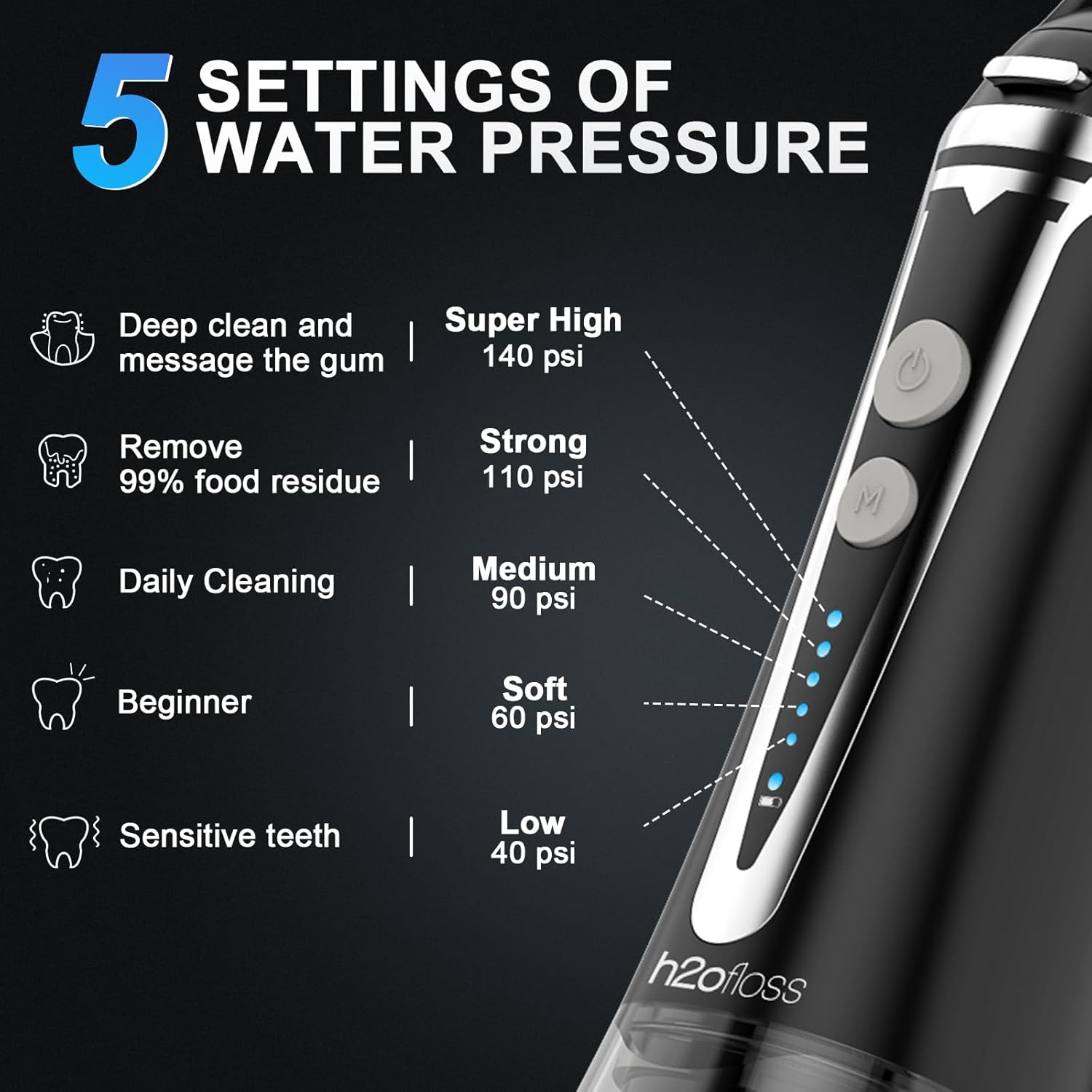

Image: A visual representation of the five water pressure settings available on the H2ofloss Water Flosser, ranging from Low (40 psi) to Super High (140 psi).

Pritisnite Mode button repeatedly to cycle through the settings until you reach your desired pressure.

2. Tehnika čišćenja koncem

Follow these steps for effective water flossing:

1. Fill the water tank with lukewarm water.
2. Insert the desired nozzle tip securely.
3. Pritisnite Mode button to select the appropriate water pressure.
4. Lean over a sink and place the tip into your mouth, directing it at a 90° angle to your gumline.
5. Pritisnite ON/OFF button to start the water flow.
6. Guide the water jet along your gumline, pausing briefly between teeth. Allow the water to flow into the sink.
7. Inovativno Gravity Ball design ensures continuous water flossing from all angles, even when the tank is tilted.

Image: A visual guide illustrating the five steps for using the H2ofloss Water Flosser, from filling the tank to operating the device.

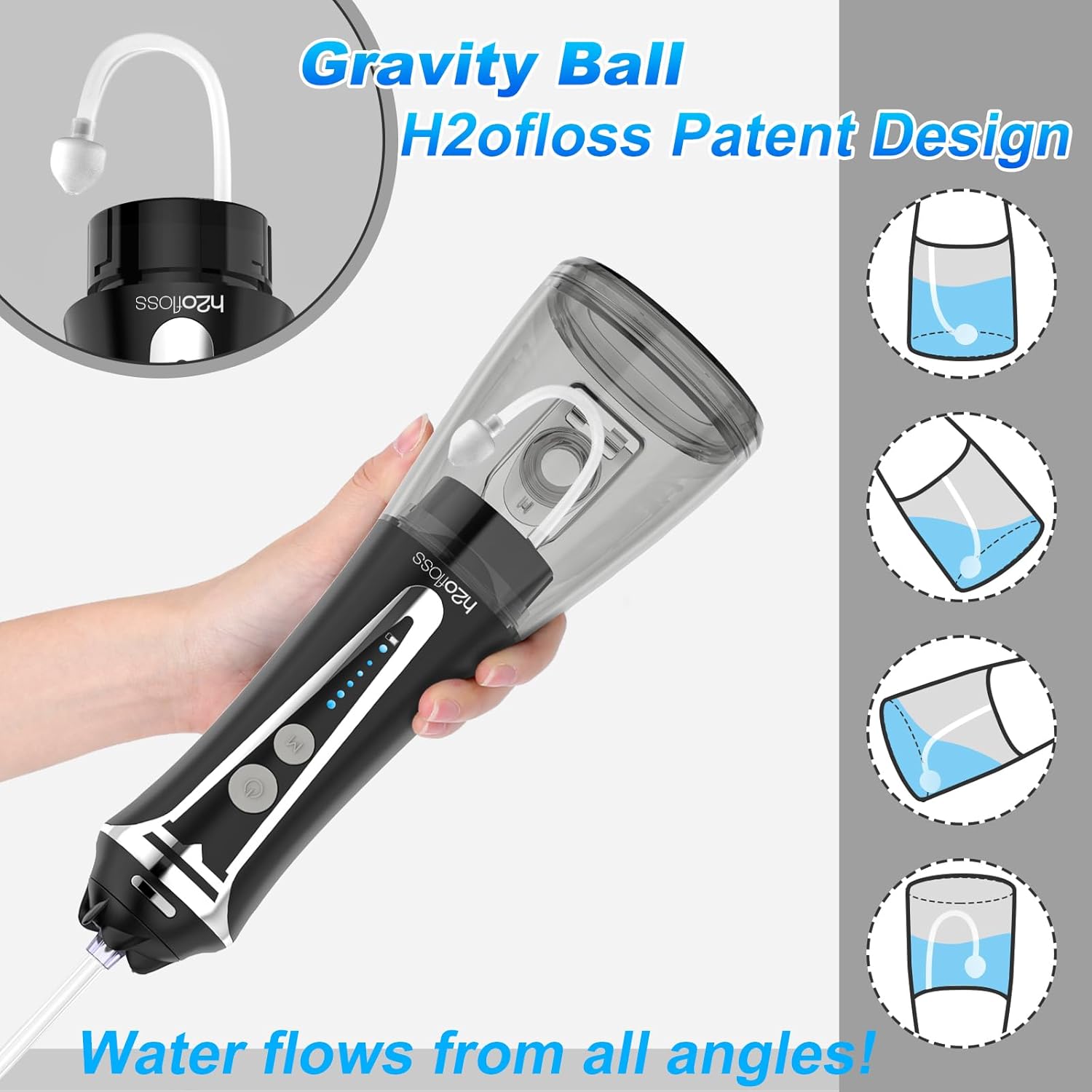

Image: An illustration demonstrating the H2ofloss Gravity Ball patent design, which ensures consistent water flow regardless of the device's angle.

3. Interchangeable Tips

The H2ofloss Water Flosser comes with multiple tips for specialized cleaning:

Image: A display of the five multifunctional tips included with the H2ofloss Water Flosser: Standard, Periodontal, Orthodontic, and Tongue Tip.

• Standardni savjet: For daily general cleaning.
• Parodontalni savjet: Designed for cleaning around gum pockets and sensitive areas.
• Ortodontski savjet: Posebno dizajniran za čišćenje oko proteza i ortodontskih aparata.
• Tongue Tip: For cleaning the tongue to help remove bacteria and freshen breath.

Održavanje

1. Čišćenje uređaja

Redovno čišćenje osigurava higijenu i produžava vijek trajanja vašeg perača za vodu.

• The device is IPX7 waterproof, allowing for safe use in the shower and easy rinsing under water.
• Nakon svake upotrebe ispraznite preostalu vodu iz rezervoara.
• Detach the water tank and rinse it thoroughly with clean water.
• Obrišite spoljašnjost jedinice mekom krpom, damp tkanina.
• Rinse the nozzle tips under running water. For deeper cleaning, tips can be soaked in a denture cleaning solution.

Image: The H2ofloss Water Flosser being rinsed under a running faucet, highlighting its IPX7 waterproof capability.

2. Skladištenje

• Prije skladištenja provjerite je li uređaj suh.
• Store the water flosser and its accessories in a cool, dry place, away from direct sunlight.
• Use the provided portable storage bag for convenient and protected travel.

Rješavanje problema

If you encounter any issues with your H2ofloss Water Flosser, please refer to the following common problems and solutions:

• Nema napajanja / Uređaj se ne uključuje:
  • Provjerite nivo napunjenosti baterije. Napunite uređaj ako je baterija slaba.
  • Provjerite da li je dugme UKLJUČENO/ISKLJUČENO čvrsto pritisnuto.
• Slab pritisak vode:
  • Verify that the water tank is sufficiently filled.
  • Check the selected mode. Switch to a higher pressure mode (e.g., Strong or Super High) if a more powerful stream is desired.
  • Ensure the nozzle tip is not clogged. Remove and rinse the tip.
• Nema protoka vode:
  • Confirm the water tank is filled with water.
  • Ensure the nozzle tip is securely inserted into the unit.
  • Check if the gravity ball tube inside the tank is kinked or obstructed. Straighten it if necessary.
• Problemi s punjenjem:
  • Ensure the Type-C charging cable is fully and correctly inserted into the charging port.
  • Try using a different USB power source (e.g., another wall adapter, PC USB port) to rule out a faulty power source.
  • Make sure the charging port is dry before connecting the cable.

If the problem persists after trying these steps, please contact H2ofloss customer support for further assistance.

Specifikacije

Garancija i podrška

H2ofloss stands behind the quality of its products. Your water flosser comes with a 12-month hassle-free refund and replacement warranty od datuma kupovine.

For any troubleshooting assistance, product inquiries, or warranty claims, please contact our customer support team. We aim to provide e-mail support and resolve issues within 24 hours.

Please refer to your purchase documentation for specific contact details or visit the official H2ofloss webstranicu za informacije o podršci.
