Kemei KM-MAX5090 Professional Hair Clipper User Manual

1. Uvod

Thank you for choosing the Kemei KM-MAX5090 Professional Hair Clipper. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

2. Važna sigurnosna uputstva

• Pročitajte sva uputstva prije korištenja ovog uređaja.
• Uređaj držite suhim. Ne koristite ga u blizini vode ili u vlažnim uslovima.
• Ne uranjajte uređaj u vodu ili bilo koju drugu tečnost.
• Držite uređaj podalje od djece.
• Always unplug the appliance from the power outlet immediately after charging.
• Do not use the appliance if it has a damaged cord or plug, or if it is not working properly.
• Use only the charger and accessories supplied by the manufacturer.
• Izbjegavajte kontakt sa pokretnim dijelovima.
• Ne pokušavajte sami popravljati ili rastavljati uređaj. Obratite se kvalifikovanom servisnom osoblju.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• Kemei KM-MAX5090 Hair Clipper
• 6 Guide Combs (1.5mm, 3mm, 6mm, 9mm, 12mm)
• USB-C kabl za punjenje
• Četka za čišćenje
• Boca ulja za podmazivanje
• Uputstvo za upotrebu

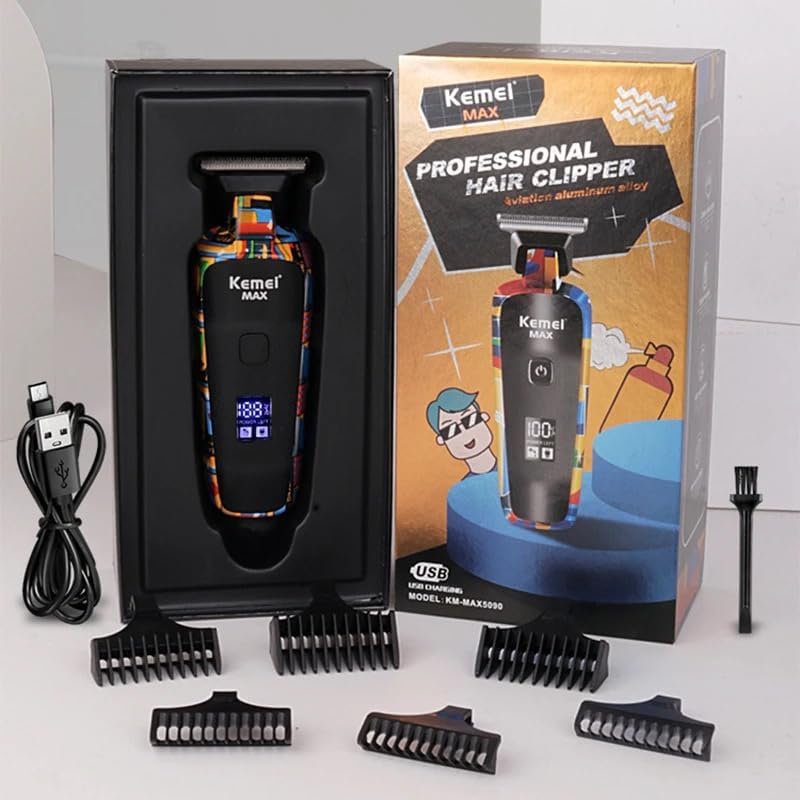

The Kemei KM-MAX5090 hair clipper packaging, displaying the clipper, six guide combs, USB-C charging cable, cleaning brush, and oil bottle. The box highlights 'Professional Hair Clipper' and 'USB Charging'.

4. Značajke proizvoda

• Snažan i tih motor: Ensures efficient and low-noise operation.
• Durable Carbon Steel Blade: Provides precise and clean cuts.
• Ergonomic and Modern Design: Aviation aluminum alloy body for comfortable handling and stylish appearance.
• Dugotrajna baterija: 600 mAh battery offers up to 90 minutes of continuous use.
• Univerzalno USB-C punjenje: Fast charging in approximately 1.5 hours.
• Svestrani češljevi za ravnanje: Includes 6 combs for various cutting lengths (1.5mm, 3mm, 6mm, 9mm, 12mm).

Diagrammatic view of the Kemei KM-MAX5090 hair clipper's internal induction motor, illustrating its powerful operation. The motor is depicted with blue glowing elements.

5. Početak rada (Podešavanje)

5.1 Punjenje uređaja

1. Prije prve upotrebe, potpuno napunite trimer otprilike 1.5 sata.
2. Connect the USB-C charging cable to the port at the bottom of the clipper.
3. Uključite drugi kraj USB-C kabla u kompatibilni USB adapter za napajanje (nije uključen) ili USB port računara.
4. Digitalni displej će prikazivati ​​status punjenja i postotak baterijetage.
5. A full charge provides up to 90 minutes of cordless operation.

Image showing the Kemei KM-MAX5090 hair clipper being charged via a USB-C cable. A hand is holding the clipper, and the USB-C port is clearly visible, emphasizing its fast charging capability.

5.2 Pričvršćivanje i skidanje vodećih češljeva

1. Prije pričvršćivanja ili skidanja vodećih češljeva, provjerite je li mašinica za šišanje isključena.
2. To attach, align the comb with the clipper blade and push it firmly until it clicks into place.
3. To remove, gently pull the comb upwards from the blade assembly.

Kemei KM-MAX5090 hair clipper with six guide combs (1mm, 2mm, 3mm, 6mm, 9mm, 12mm) laid out. The clipper has a colorful patterned body and a digital display showing battery percentage.

6. Operacija

6.1 Uključivanje/isključivanje

• To turn on the clipper, press the power button located on the front of the device.
• Da biste isključili trimer, ponovo pritisnite dugme za napajanje.

6.2 General Trimming Guidelines

• Prije šišanja provjerite je li kosa čista i suha.
• Always start with a longer guide comb and gradually reduce the length if desired.
• Hold the clipper with the blade flat against the skin.
• Polako i ravnomjerno pomičite mašinicu za šišanje u smjeru suprotnom od rasta dlačica.
• For detailing and outlining, remove the guide comb and use the bare blade carefully.

Kemei KM-MAX5090 hair clipper shown in use for both hair and beard trimming, demonstrating its versatility for various grooming needs. The clipper features a power button and a digital display.

Close-up view of the Kemei MAX hair clipper's carbon steel blade, highlighting its precision cutting teeth. The blade is secured by two screws.

Close-up of the Kemei KM-MAX5090 hair clipper's ultra-short cutting blade, designed for precise and detailed trimming. The image also shows examples of various short hairstyles achievable with the clipper.

7. Održavanje

7.1 Čišćenje oštrica

1. Uvjerite se da je aparat za šišanje isključen i isključen prije čišćenja.
2. Koristite priloženu četkicu za čišćenje kako biste uklonili sve otpale dlačice s oštrica i tijela mašinice za šišanje.
3. For a more thorough clean, the blade assembly can be carefully detached (refer to specific instructions if provided with the product for blade removal).
4. Do not rinse the clipper under water unless explicitly stated as waterproof.

7.2 Podmazivanje oštrica

1. After each use or cleaning, apply a few drops of the provided lubricating oil to the blades.
2. Uključite mašinicu za šišanje na nekoliko sekundi kako bi se ulje ravnomjerno rasporedilo.
3. Višak ulja obrišite mekom krpom. Redovno podmazivanje osigurava optimalne performanse rezanja i produžava vijek trajanja oštrice.

7.3 Skladištenje

• Čuvajte trimer na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i vlage.
• Keep the guide combs and accessories together with the clipper to prevent loss.

8. Otkrivanje problema

9. Specifikacije

10. Garancija i podrška

10.1 Informacije o garanciji

This product comes with an extended warranty against failures and defects for 12 months. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions.

10.2 Korisnička podrška

For any questions, concerns, or technical assistance regarding your Kemei KM-MAX5090 Professional Hair Clipper, please contact the retailer or manufacturer's customer service. Refer to your purchase documentation for specific contact details.
