5 CORE GRack 5N1 Multi Guitar Rack Instruction Manual

1. Uvod

Thank you for choosing the 5 CORE GRack 5N1 Multi Guitar Rack. This versatile stand is designed to securely hold up to five acoustic, electric, or bass guitars, providing a safe and organized display solution. Its sturdy construction and protective features ensure your instruments are well-protected. Please read this manual carefully before assembly and use to ensure proper setup and longevity of your product.

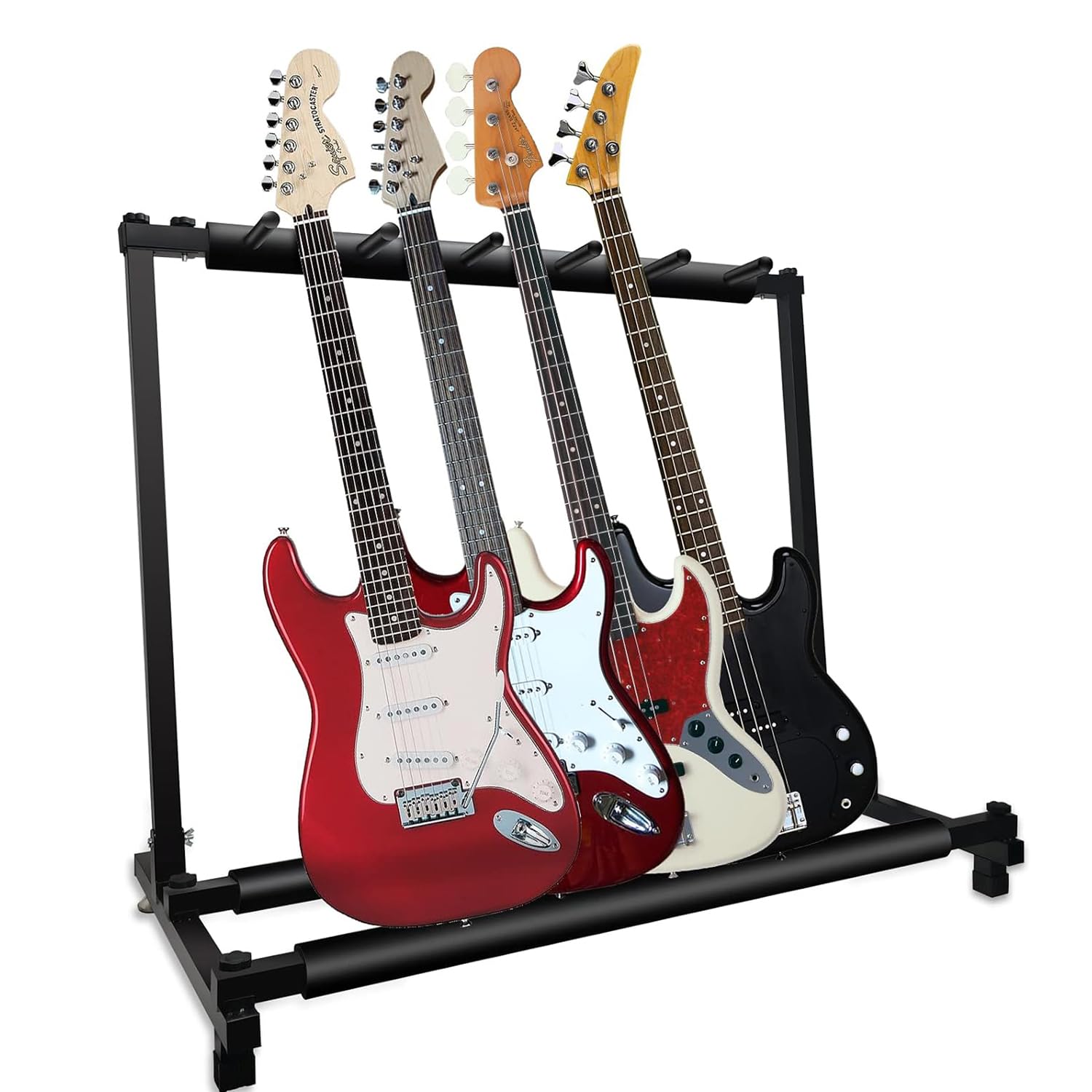

Image: The 5 CORE GRack 5N1 Multi Guitar Rack securely holding five guitars.

2. Sigurnosne informacije

• Ensure all components are securely fastened before placing guitars on the rack.
• Do not exceed the recommended capacity of five guitars for the GRack 5N1 model.
• Place the guitar rack on a flat, stable, and level surface to prevent tipping.
• Keep the rack away from high-traffic areas where it might be accidentally bumped.
• Regularly inspect the rack for any signs of wear or damage to padding and structural components.

3. Sadržaj paketa

Molimo Vas da provjerite da li su svi dijelovi prisutni prije početka montaže:

• Main Base Frame (1)
• Upper Support Bar (1)
• Vertical Support Poles (2)
• Guitar Neck Holders (5)
• Bottom Foam Padded Rails (2)
• Non-slip Rubber Feet (4)
• Assembly Hardware (screws, nuts, washers, Allen wrench)

Image: All components included for assembly of the guitar rack.

4. Upute za sastavljanje

Follow these steps to assemble your 5 CORE GRack 5N1 Multi Guitar Rack:

1. Attach Vertical Support Poles: Connect the two vertical support poles to the main base frame using the provided hardware. Ensure they are firmly secured.
2. Install Upper Support Bar: Fasten the upper support bar to the top of the vertical support poles.
3. Mount Guitar Neck Holders: Slide the five guitar neck holders onto the upper support bar. These holders feature soft padding to protect your guitar necks.
4. Attach Bottom Padded Rails: Secure the two foam-padded rails to the lower section of the main base frame. These rails provide cushioned support for the guitar bodies.
5. Install Non-slip Feet: Screw the non-slip rubber feet into the designated points on the bottom of the base frame. Adjust them to ensure the stand is level and stable on your floor.
6. Konačna provjera: Double-check all connections to ensure they are tight and secure before placing any instruments on the rack.

Image: Details showing soft padding for guitar protection, optimal spacing, and robust bracket material.

Image: Illustration of the protective foam rod preventing instrument rub and the thickened pipe diameter for enhanced durability.

Pogledajte video o sastavljanju za vizualni vodič:

Video: A detailed guide on assembling the 5 CORE Guitar Rack Stand.

5. Uputstvo za upotrebu

Using your GRack 5N1 is straightforward:

• Placing Guitars: Gently place each guitar into an available slot, ensuring the neck rests securely in the upper holder and the body is supported by the padded bottom rail. The rack is designed to accommodate various types of guitars, including acoustic, electric, and bass guitars.
• Kapacitet: The GRack 5N1 is designed to hold up to five guitars. Distribute the weight evenly for optimal stability.
• Podesiv nagib: The stand features adjustable feet that allow you to fine-tune the tilt, preventing the bottom of your guitar from touching the ground and ensuring a perfect fit for different guitar body shapes.

Slika: Krupni plan view of the adjustable tilt mechanism, designed to prevent guitar bottoms from touching the floor.

The GRack 5N1 also features a foldable and lightweight design for easy transport and storage when not in use.

Image: The guitar rack in its folded, compact state, demonstrating its lightweight and portable design.

6. Održavanje

• čišćenje: Wipe the metal frame with a soft, dry cloth. For the padded areas, use a slightly damp cloth and mild soap if necessary, then dry thoroughly. Avoid harsh chemicals.
• inspekcija: Povremeno provjeravajte sve vijke i spojeve kako biste bili sigurni da su čvrsto zategnuti. Ponovo zategnite ako primijetite bilo kakvu labavost.
• Padding Condition: Inspect the foam padding and rubber caps for any signs of wear, tears, or degradation. Replace if necessary to maintain instrument protection.

7. Otkrivanje problema

• Stalak je klimav: Ensure the stand is on a flat surface. Adjust the non-slip rubber feet to level the stand. Check all assembly screws for tightness.
• Guitars Not Sitting Securely: Verify that the guitar necks are properly seated in the upper holders and the bodies are resting on the padded rails. Adjust the tilt if needed.
• Scratches on Guitars: Ensure all padded contact points are intact and properly positioned. If padding is damaged, replace it to prevent further scratches.

8. Specifikacije

Image: Detailed dimensions of the GRack 5N1 Multi Guitar Rack.

Za generalno prekoview of the guitar rack stand, watch this video:

Video: Prekorview of the 5 CORE Guitar Rack Stand.

9. Garancija i podrška

garancija: This product comes with a 30-day return policy for refunds or replacements, as per standard terms. Please retain your proof of purchase for any warranty claims.

Korisnička podrška: For any questions, concerns, or assistance with your 5 CORE GRack 5N1 Multi Guitar Rack, please contact the seller, Kaneer Ent., through the platform where you made your purchase. They will be able to provide further support and guidance.

Image: Graphic indicating a 30-day warranty and customer satisfaction.
