Faber FPB1800W Digital Power Blender Mixer Grinder User Manual

1. Važna sigurnosna uputstva

Please read all instructions carefully before using the Faber FPB1800W Digital Power Blender Mixer Grinder. Retain this manual for future reference.

• Uvijek se uvjerite da je uređaj isključen iz struje prije sastavljanja, rastavljanja ili čišćenja.
• Ne uranjajte bazu motora u vodu ili druge tečnosti.
• Držite ruke i pribor podalje od staklenke dok miksate kako biste smanjili rizik od teških ozljeda osoba ili oštećenja blendera.
• Oštrice su oštre. Prilikom čišćenja rukujte s izuzetnom pažnjom.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari rad ili je pao ili oštećen na bilo koji način.
• Ensure the lid is securely locked in place before operating the blender. The sensor technology prevents operation if the lid is not correctly positioned.
• Do not overfill the jars. Refer to the maximum fill lines.
• Koristite samo dodatke i dodatke koje preporučuje proizvođač.
• Exercise caution when blending hot liquids, as steam can cause burns.
• Ovaj aparat je samo za upotrebu u domaćinstvu.

2. Proizvod je gotovview

2.1 Uključene komponente

• Main Motor Unit (Base)
• 1.2L Glass Jar with Lid and 6-Leaf Stainless Steel Blade
• 0.8L Stainless Steel Jar with Lid and Blade
• Tamper/Pusher
• Četka za čišćenje
• Measuring Cup

2.2 Ključne karakteristike

• Snažan motor od 1800 W: Ensures efficient blending, grinding, and mixing for various ingredients.
• Built-in 850W Heater: Allows for hot soup making and keeping food warm directly in the blender.
• 6 Auto-Cook Menus: Pre-programmed settings for common preparations like hot soup, nut milk, smoothies, and more.
• Digitalni displej i kontrola dodirom: Intuitive interface for easy operation and precise control over time and speed.
• Durable Jars: Includes a 1.2L Boron Glass Jar and a 0.8L Stainless Steel Jar for versatile use.
• 6-Leaf Stainless Steel Serrated Blade: Designed for optimal blending and grinding consistency.
• 3D Cyclone Flow Technology: Ensures thorough mixing and prevents lumps.
• Tehnologija senzora: Activates the control panel only when the lid is securely locked, enhancing safety.
• Dizajn otporan na curenje: Prevents accidental spills and splashes during operation.
• Metal Coupler: Provides enhanced durability and stability for long-lasting performance.

2.3 Vizualni prikazi proizvoda

Figure 1: Faber Digital Power Blender Mixer Grinder with 1.2L glass jar and 0.8L stainless steel jar.

Figure 2: Close-up of the digital control panel with various function buttons.

Figure 3: Icons representing the various functions and auto-cook menus available on the blender.

2.4 Zvanični video proizvoda

3. Vodič za postavljanje

1. Raspakirajte: Carefully remove all components from the packaging. Retain packaging for storage or future shipping.
2. Čisti: Before first use, wash the jars, lids, and blades with warm soapy water. Rinse thoroughly and dry. Wipe the motor base with a damp tkanina.
3. plasman: Place the motor base on a stable, flat, and dry surface. Ensure it is away from heat sources and water.
4. Sastavite teglu:
   • For the glass jar, ensure the blade assembly is securely attached to the bottom.
   • For the stainless steel jar, ensure the blade is correctly seated.
5. Attach Jar to Base: Place the desired jar onto the motor base, aligning the bottom of the jar with the coupler on the base. Twist gently until it locks into place.
6. Sigurni poklopac: Add ingredients to the jar. Place the lid onto the jar and twist clockwise until it clicks securely into position. The digital control panel will illuminate, indicating it's ready for operation.
7. Uključeno: Uključite kabl za napajanje u odgovarajuću električnu utičnicu.

4. Uputstvo za upotrebu

The Faber FPB1800W features a user-friendly digital control panel. Ensure the jar and lid are correctly assembled and locked before starting any operation.

4.1 Opći rad

1. Dodajte sastojke: Place your desired ingredients into the chosen jar. Do not exceed the maximum fill line.
2. Sigurni poklopac: Place the lid on the jar and twist clockwise until it locks. The control panel will activate.
3. Odaberite funkciju:
   • Ručni način rada: Use the "TIME" and "SPEED" buttons to adjust blending duration and intensity.
   • Meniji za automatsko kuhanje: Press the "MENU" button to cycle through the 6 pre-programmed functions (Juice/Grinding, Smoothie, Milkshake, Batter, Soup, Nut Milk). The selected program will display on the screen.
   • Topla funkcija: Press "WARM" to activate the heating element for hot soups or to keep contents warm.
   • Washing/Pulse: Use "WASHING/PULSE" for quick bursts of power or for cleaning.
4. Start/Stop: Press the "START/STOP" button to begin or end the selected operation.
5. Nakon upotrebe: Once blending is complete, press "START/STOP" to halt the operation. Unplug the appliance before removing the lid and jar.

4.2 Specifične funkcije

• Blending Smoothies/Juices: Use the 1.2L glass jar. Select "Smoothie" or "Juice/Grinding" from the menu. For best results, add liquids first, then soft ingredients, and finally harder items or ice.
• Suho mljevenje: Use the 0.8L stainless steel jar for dry spices, nuts, or coffee beans. Select "Juice/Grinding" or use manual speed control.
• Hot Soup Making: Use the 1.2L glass jar. Add ingredients for soup (e.g., vegetables, broth). Select the "Soup" auto-cook menu. The built-in 850W heater will cook and blend the ingredients to a smooth, hot consistency.
• Mlijeko od orašastih plodova: Use the "Nut Milk" auto-cook menu for preparing fresh nut milks.
• drobljenje leda: The powerful motor and blades are suitable for crushing ice. Use the 1.2L glass jar and select an appropriate speed or pulse function.

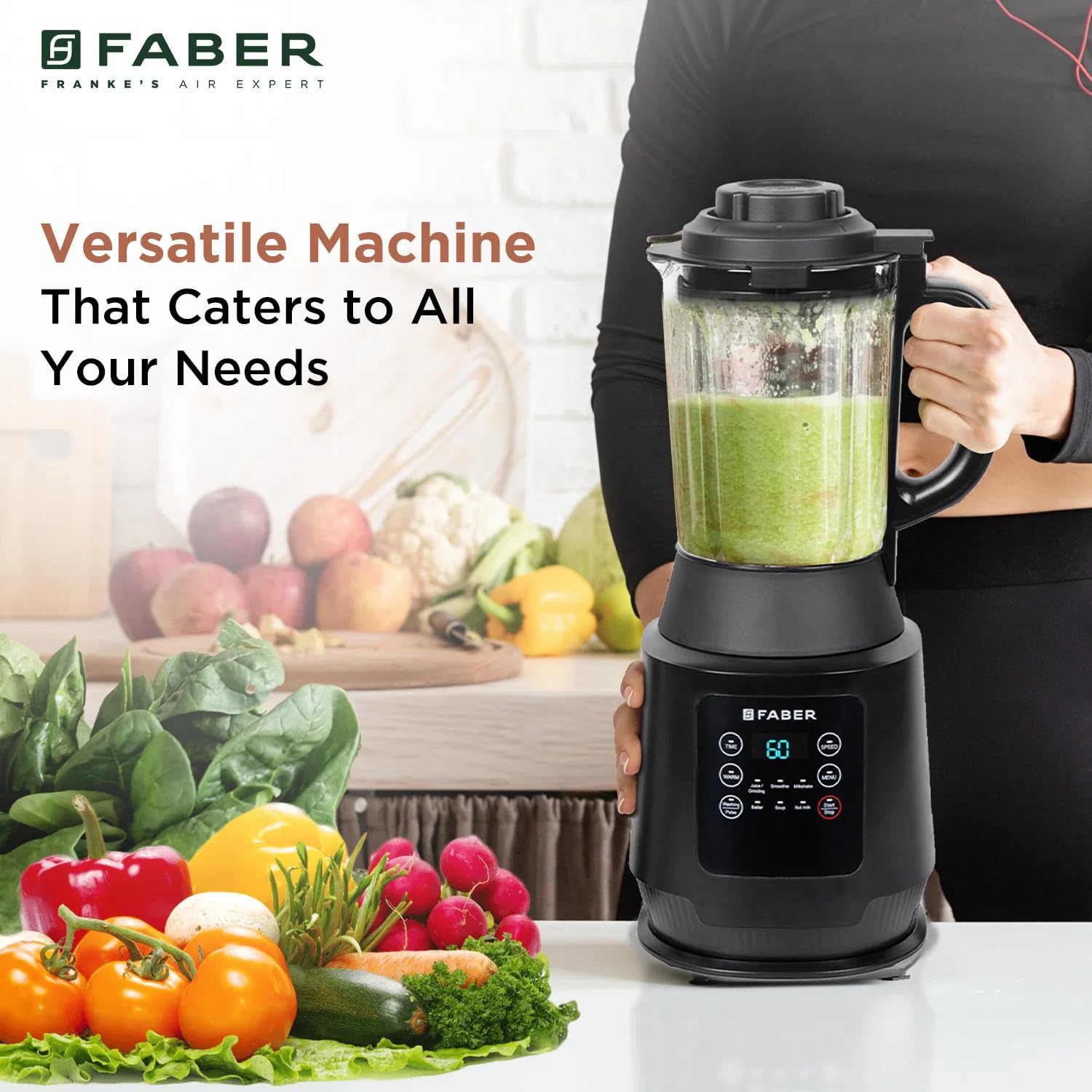

Figure 4: The blender's versatility in preparing a range of items from soups to smoothies.

5. Održavanje i čišćenje

Redovno čišćenje osigurava optimalne performanse i produžava vijek trajanja vašeg uređaja.

1. Isključite: Uvijek isključite blender iz utičnice prije čišćenja.
2. Samočišćenje (brzo čišćenje):
   • Add warm water and a drop of dish soap to the jar (do not exceed half full).
   • Secure the lid and place the jar on the motor base.
   • Press the "WASHING/PULSE" button for a few seconds, or run on low speed for 30 seconds.
   • Temeljno isperite teglu.
3. Deep Cleaning Jars and Lids:
   • Disassemble the jars and blades (if removable).
   • Wash with warm, soapy water using the provided cleaning brush for hard-to-reach areas.
   • Temeljno isperite i ostavite da se potpuno osuši na zraku prije ponovnog sastavljanja ili skladištenja.
   • Napomena: The jars and lids are dishwasher safe.
4. Čišćenje baze motora:
   • Obrišite bazu motora mekanom bojom, damp tkanina.
   • Ne koristite abrazivna sredstva za čišćenje ili spužve za ribanje.
   • Nikada ne uranjajte bazu motora u vodu ili bilo koju drugu tekućinu.
5. Skladištenje: Store the blender and its accessories in a clean, dry place.

6. Otkrivanje problema

7. Tehničke specifikacije

8. Garancija i podrška

The Faber FPB1800W Digital Power Blender Mixer Grinder comes with a 2 godine ograničene garancije od datuma kupovine.

This warranty covers manufacturing defects and faulty materials under normal household use. It does not cover damage resulting from misuse, neglect, accidental damage, or unauthorized repairs.

Korisnička podrška:

For warranty claims, technical assistance, or spare parts, please contact Faber customer service. Refer to the contact information provided in your product packaging or visit the official Faber website.

Manufacturer: Faber, Faber
