VELECO ZT63 Uputstvo za upotrebu mobilnog skutera

1. Uvod

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VELECO ZT63 3-wheel mobility scooter. Please read this manual thoroughly before using the scooter to ensure proper handling and to prevent injury or damage.

The VELECO ZT63 is a high-quality, fully assembled mobility scooter designed for ease of use and comfort, featuring a robust design and advanced suspension system.

2. Sigurnosne informacije

Vaša sigurnost je najvažnija. Uvijek se pridržavajte sljedećih sigurnosnih smjernica:

• Uvijek nosite odgovarajuću zaštitnu opremu, uključujući kacigu, kada upravljate skuterom.
• Ensure the scooter is fully charged before each use to avoid unexpected power loss.
• Nemojte prekoračiti maksimalnu nosivost od 199 kg.
• Operate the scooter at a safe speed, especially in crowded areas or on uneven terrain. The maximum speed is 12 km/h.
• Be aware of your surroundings and avoid distractions while driving.
• Use the brakes smoothly and anticipate stops. The scooter features disc front brakes and drum rear brakes.
• Avoid operating the scooter under the influence of alcohol or medication that may impair your judgment.
• Regularly inspect tires, brakes, and lights for proper function.
• Do not modify the scooter in any way, as this may compromise its safety and void the warranty.
• Secure the scooter with the alarm and handlebar lock when unattended to prevent theft.

3. Proizvod je gotovview

The VELECO ZT63 is a 3-wheel mobility scooter designed for comfort and reliability. Key features include:

• Snažan motor: 650W motor with a rated voltage od 60V.
• Prošireni raspon: Up to 40-50 km on a single charge.
• Visoka nosivost: Podržava do 199 kg.
• Udobno sjedenje: Wide, comfortable seat for extended use.
• Napredno ovjes: Reliable on various terrains.
• Sigurnosne karakteristike: Large wheels, powerful brakes (front disc, rear drum), alarm, and handlebar lock.
• Podesiva brzina: Two speed levels for different road conditions.
• Lako manevrisanje: Includes reverse gear.

Slika 3.1: Prednja strana view of the VELECO ZT63 mobility scooter, showing the headlight, turn signals, and front wheel.

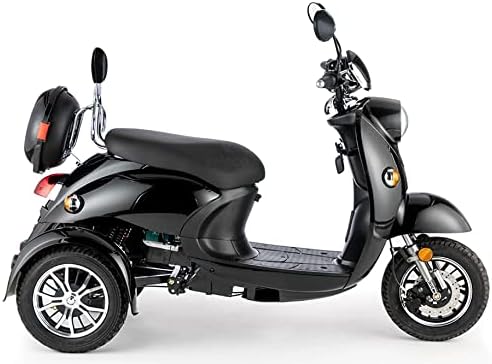

Slika 3.2: Bočna strana view of the VELECO ZT63 mobility scooter, highlighting the comfortable seat, footrest, and three-wheel configuration.

Slika 3.3: Pozadi view of the VELECO ZT63 mobility scooter, showing the rear wheels, taillights, and storage compartment.

4. Podešavanje

The VELECO ZT63 mobility scooter is delivered fully assembled and ready to use. Follow these steps for initial preparation:

1. Raspakivanje: Pažljivo izvadite skuter iz ambalaže. Pregledajte da li ima oštećenja prilikom transporta.
2. Početna naplata: Before first use, fully charge the battery. Connect the charger to the scooter's charging port and then to a standard electrical outlet. The charging time is typically 6-8 hours.
3. Provjera pritiska u gumama: Ensure tires are inflated to the recommended pressure. Refer to the tire sidewall for specifications.
4. Kontrolno upoznavanje: Sit on the scooter and familiarize yourself with the handlebar controls, including the throttle, brakes, lights, horn, and speed selector.

5. Uputstvo za upotrebu

Operating your VELECO ZT63 scooter is straightforward. Always practice in a safe, open area before riding in public.

5.1 Pokretanje skutera

1. Umetnite ključ u bravu za paljenje i okrenite ga u položaj "UKLJUČENO".
2. Check the dashboard display for battery level and readiness indicator.
3. Ensure the kickstand (if present) is up.

Figure 5.1: Dashboard display showing speed, battery level, and readiness indicator.

5.2 Driving Forward

1. Lagano okrenite ručicu gasa na desnom upravljaču da biste ubrzali.
2. Use the speed selector switch (usually on the handlebar) to choose between the two available speed levels. Start with the lower speed setting until you are comfortable.
3. Steer by turning the handlebars.

5.3 Kočenje

1. To slow down or stop, release the throttle and gently squeeze the brake levers on both handlebars.
2. The left lever typically controls the rear drum brake, and the right lever controls the front disc brake. Use both for balanced and effective stopping.

5.4 Reverse Gear

The scooter is equipped with a reverse gear for easy maneuvering in tight spaces.

1. Ensure the scooter is stationary.
2. Engage the reverse switch (refer to your scooter's specific control layout, usually a button or switch near the throttle).
3. Gently apply the throttle. The scooter will move backward at a reduced speed.
4. Disengage the reverse switch to return to forward operation.

5.5 Parking and Security

1. Okrenite ključ za paljenje u položaj "OFF" i izvucite ga.
2. Engage the handlebar lock (if available) for added security.
3. Activate the alarm system if leaving the scooter unattended.

6. Održavanje

Redovno održavanje osigurava dugotrajnost i siguran rad vašeg VELECO ZT63 skutera.

6.1 Njega baterija

• Charge the 5 x 20 Ah / 12 V lead-acid gel batteries after every use, even if only for a short period.
• Izbjegavajte potpuno pražnjenje baterije, jer to može smanjiti njen vijek trajanja.
• Store the scooter in a cool, dry place when not in use, and ensure the battery remains charged.
• If storing for an extended period, charge the battery at least once a month.

6.2 Održavanje guma

• Regularly check tire pressure (size 3.0-10''). Correct pressure improves range and handling.
• Pregledajte gume na istrošenost, posjekotine ili probušene dijelove. Istrošene gume odmah zamijenite.

6.3 Kočioni sistem

• Periodically check brake levers for proper tension and responsiveness.
• Ensure brake pads (for disc brake) and shoes (for drum brake) are not excessively worn. Consult a qualified technician for brake adjustments or replacements.

6.4 Generalno čišćenje

• Redovno čistite skuter sredstvom za čišćenje.amp krpom i blagim deterdžentom.
• Izbjegavajte direktno korištenje visokotlačnih perača na električnim komponentama.
• Keep all moving parts free from dirt and debris.

7. Otkrivanje problema

This section addresses common issues you might encounter with your VELECO ZT63 scooter.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact VELECO customer support.

8. Specifikacije

Detailed technical specifications for the VELECO ZT63 mobility scooter:

Figure 8.1: Dimensional diagram of the VELECO ZT63 mobility scooter.

9. Garancija i podrška

For warranty information, please refer to the documentation provided with your purchase or contact VELECO customer support directly. VELECO offers full access to spare parts for your scooter.

If you require technical assistance, have questions about operation, or need to order spare parts, please contact VELECO customer service through their official webweb-mjesto ili kontakt informacije navedene u dokumentaciji o kupovini.
